Professional Extended Straight Router Bits

Name: Professional Extended Straight Router Bits
SKU: 2818

Professional straight and extended straight router bits for deep grooving, slotting, trimming and production routing in wood panels and plastics.

Available specifications

Choose a model for your inquiry

31 options

Selected: Straight Router Bit 1/4 × 1/8 × 13 mm

Wholesale · OEM · Custom Profiles

Need pricing for your quantity?

Send the required size, cutting material, machine type and quantity. We will confirm the suitable specification and quotation.

Request a quote Discuss a custom profile

Specification support before quotationConfirm the shank, cutting profile, material, machine and quantity so the suitable option can be reviewed.

Description

Professional Straight Router Bits for Standard and Deep Grooves

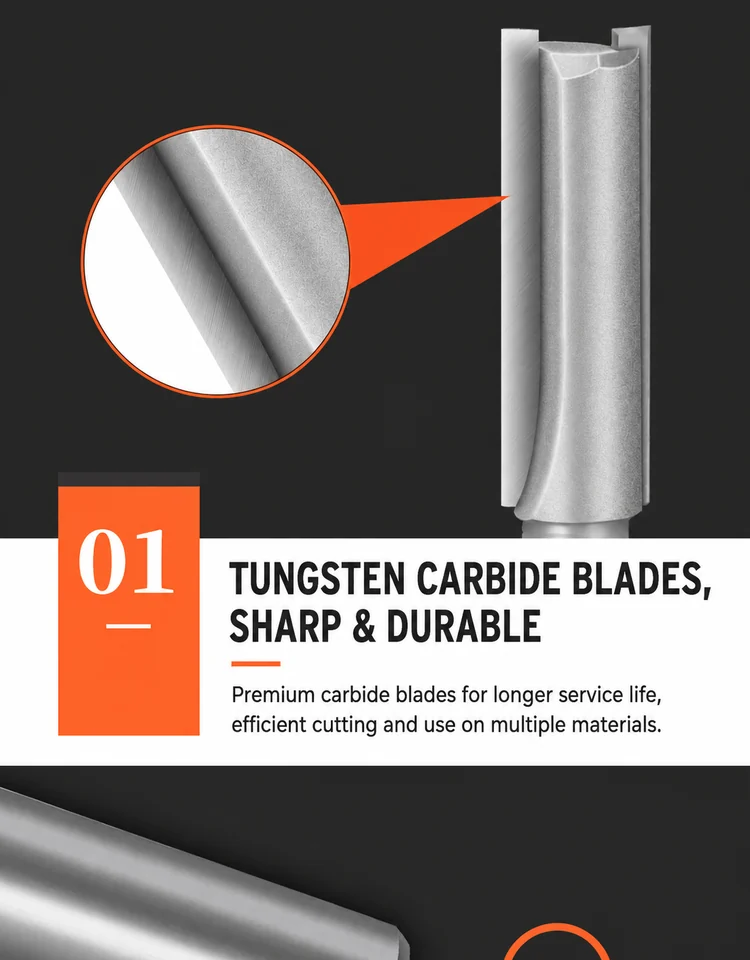

This broad straight-bit range covers compact cutters, standard grooving lengths and extended 38–76 mm cutting lengths. Tungsten-carbide edges and steel bodies support clean slotting in solid wood, MDF, plywood, particleboard, hardwood and plastics.

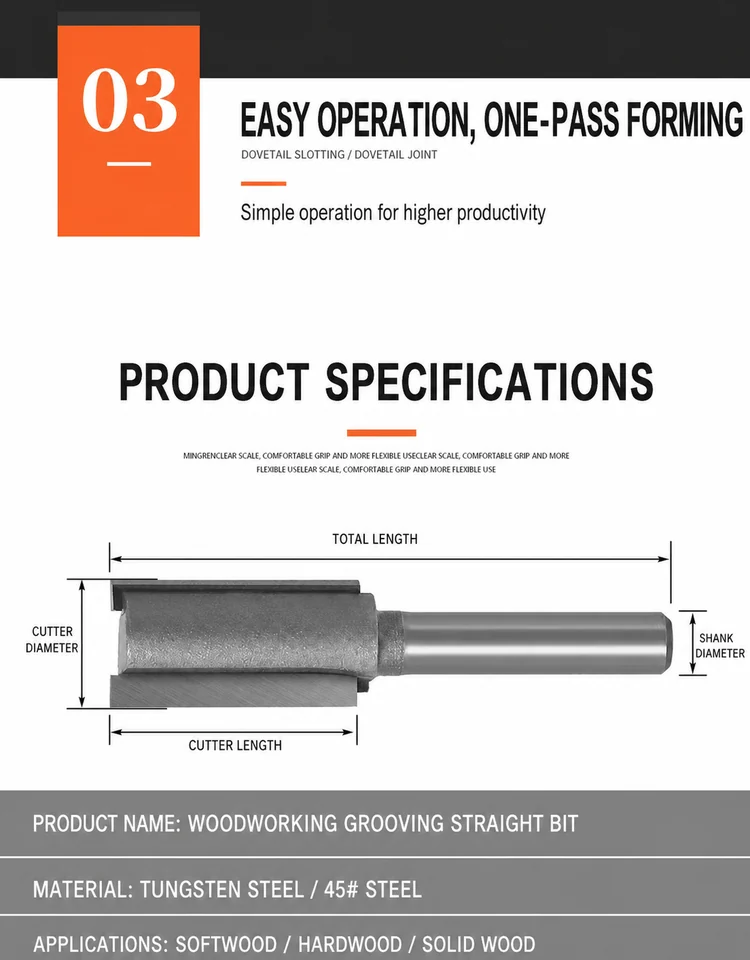

Range specifications

Shank options	1/4 in (6.35 mm) and 1/2 in (12.7 mm)
Cutter diameters shown	3.17–25.4 mm
Cutting lengths shown	13–76 mm
Cutting design	Straight and extended double-flute tungsten-carbide cutting edges

Typical applications

Grooves, slots and dadoes
Deep mortising and production routing
Edge trimming and shaping
Solid wood, hardwood, plywood, MDF, particleboard and plastics

Ordering guidance

Send the required shank diameter, cutter diameter, cutting length, workpiece material and quantity. Confirm collet size and safe cutting depth before ordering.

Product Details

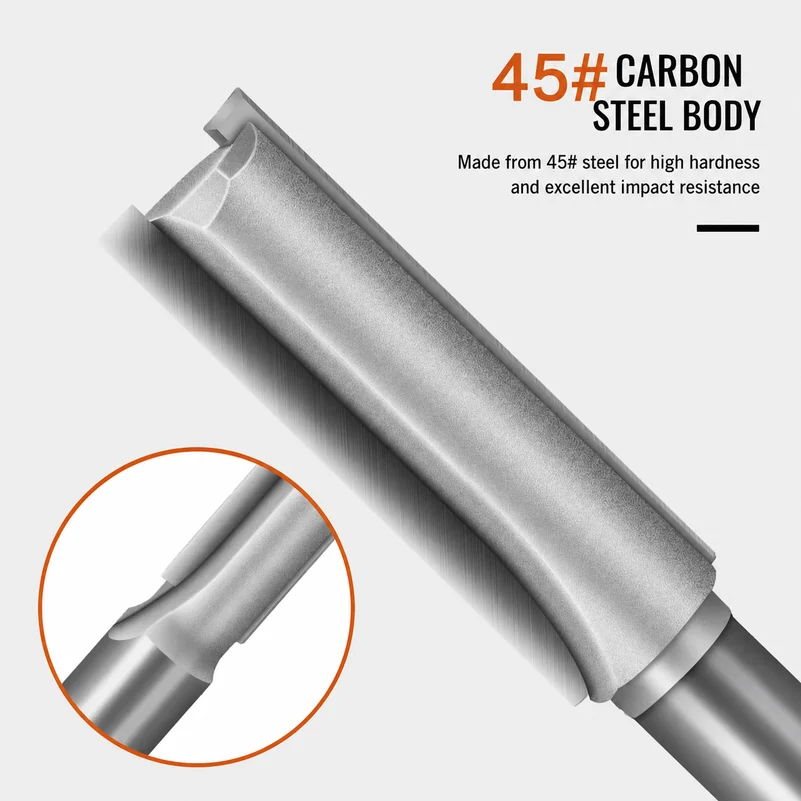

CUTQOR Professional Extended Straight Router Bits product detail

Additional information

Shank / Cutter Diameter / Cutting Length

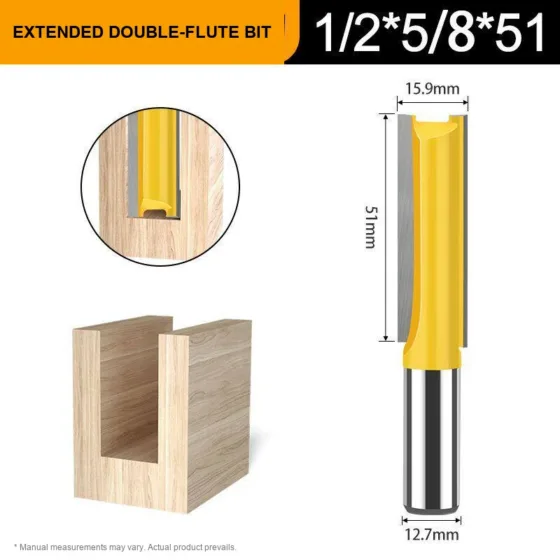

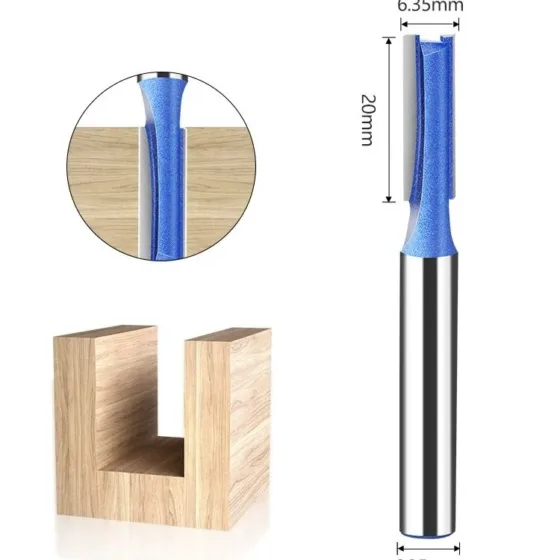

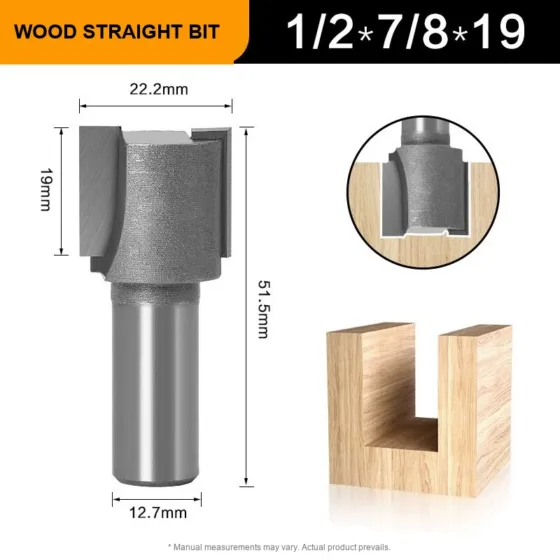

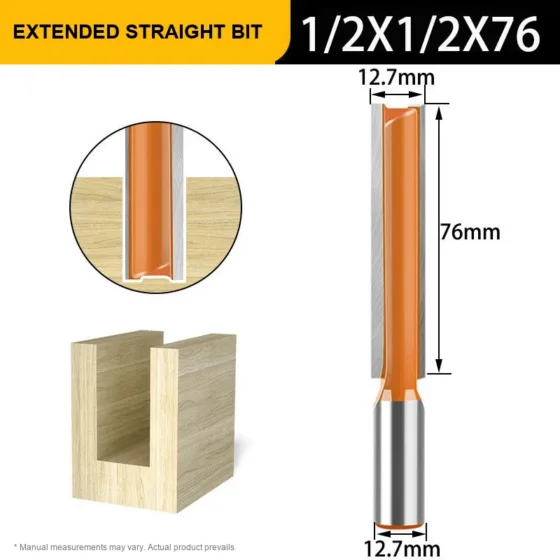

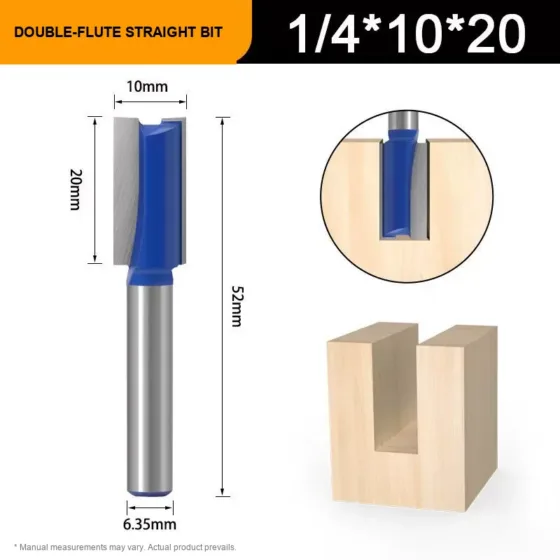

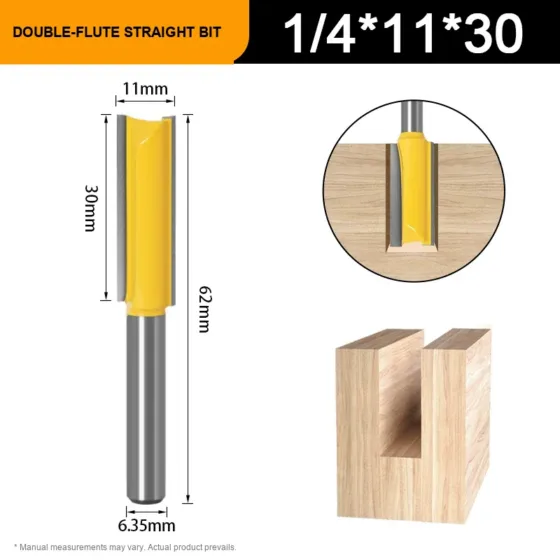

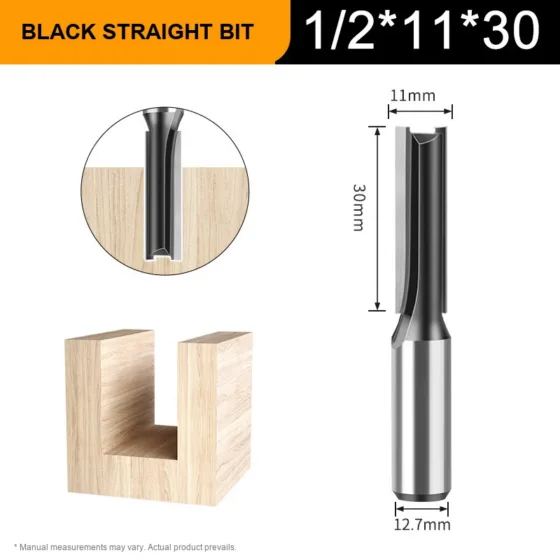

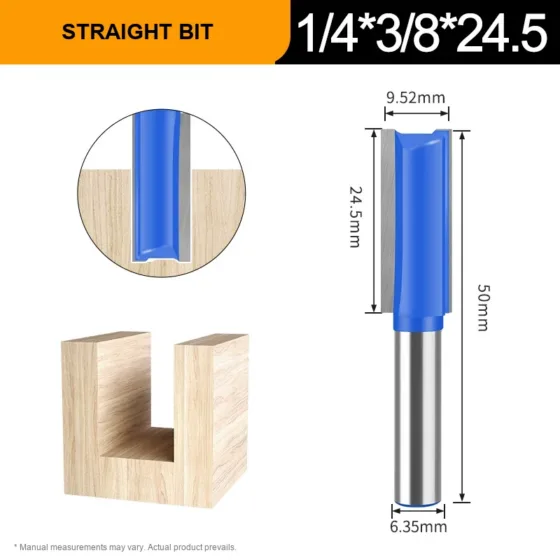

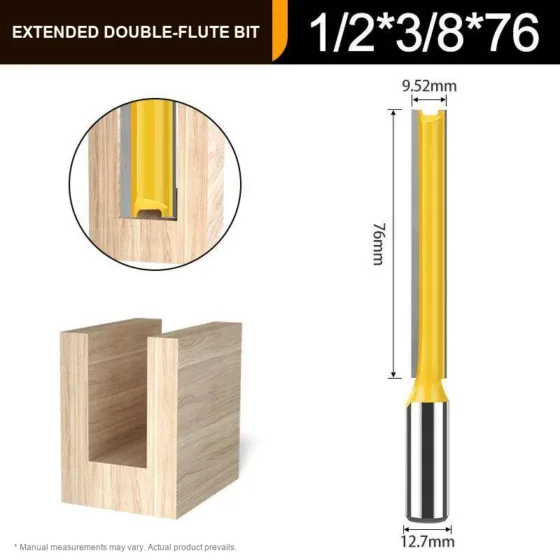

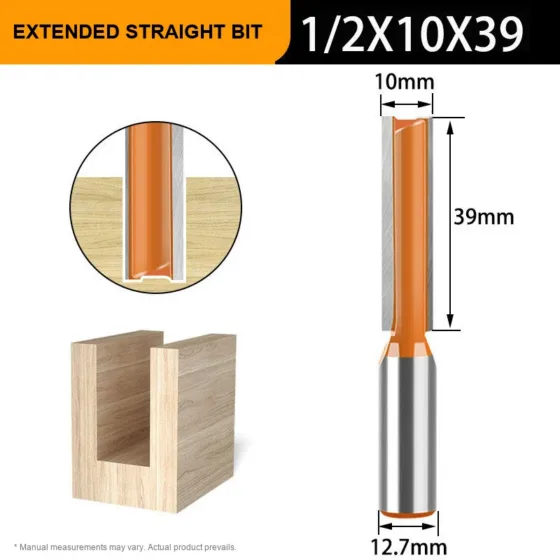

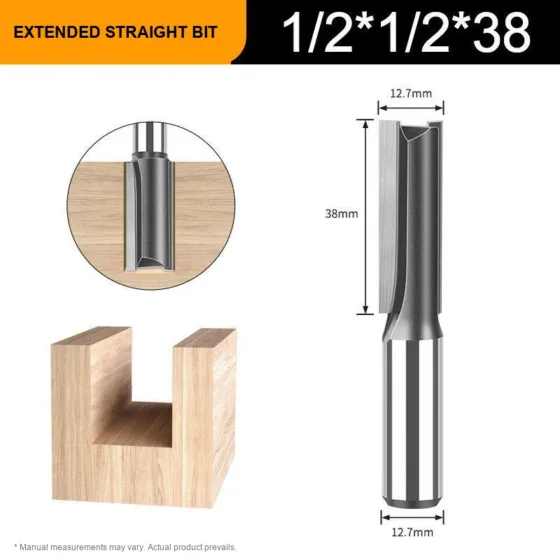

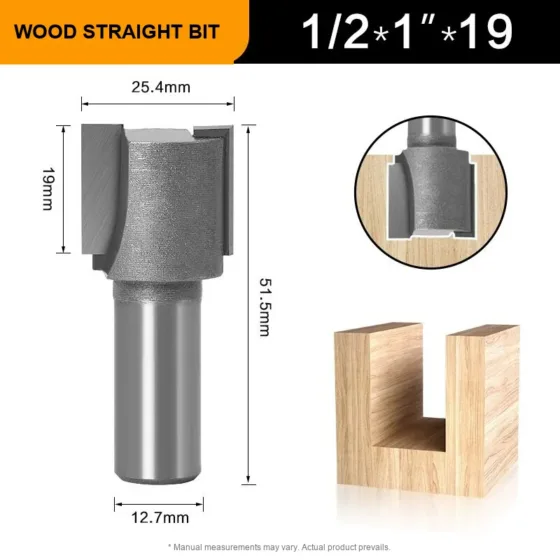

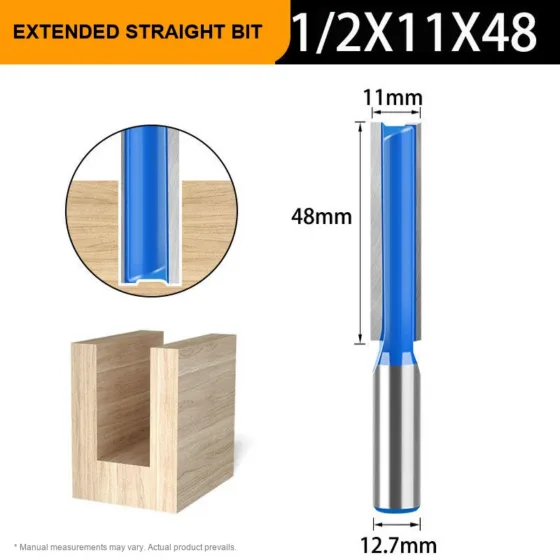

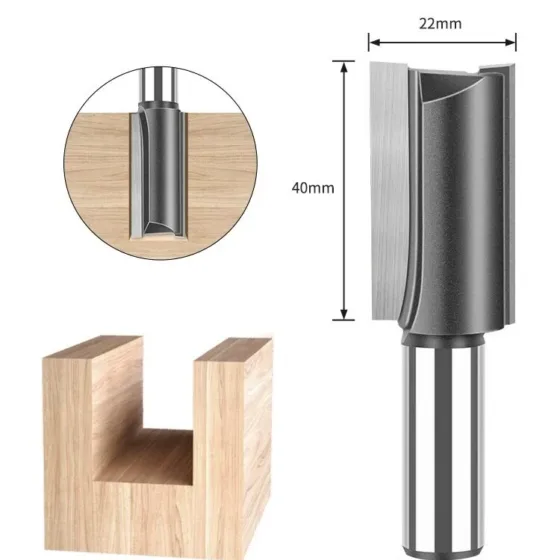

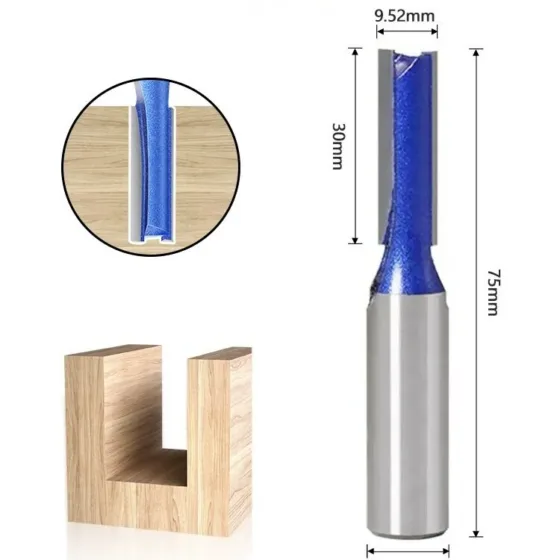

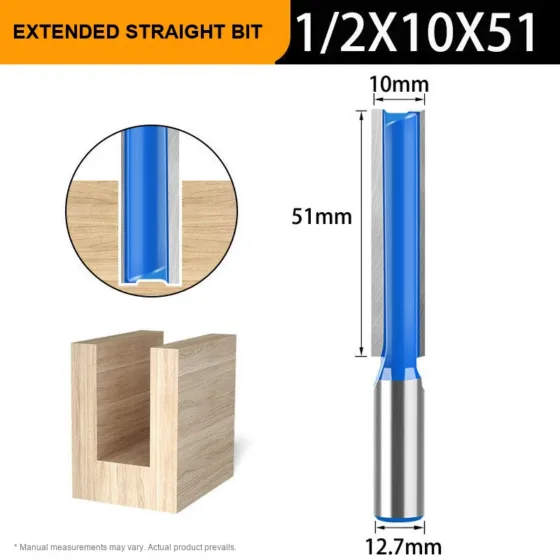

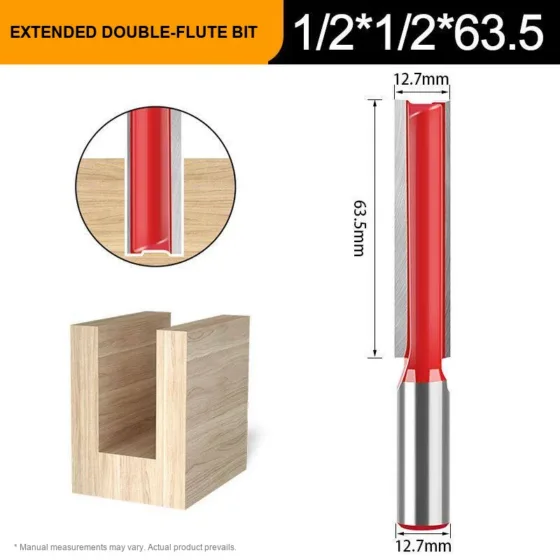

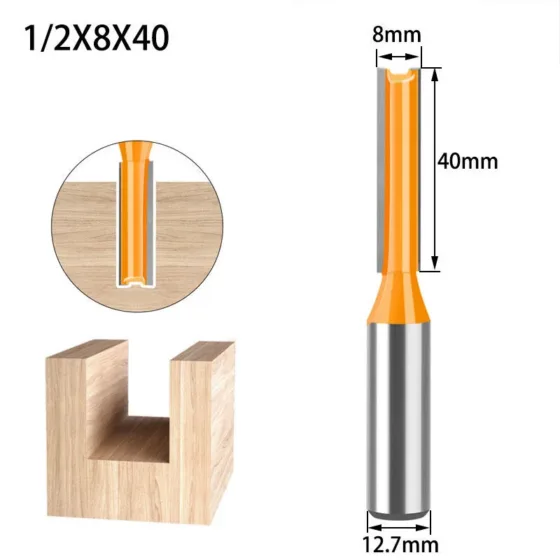

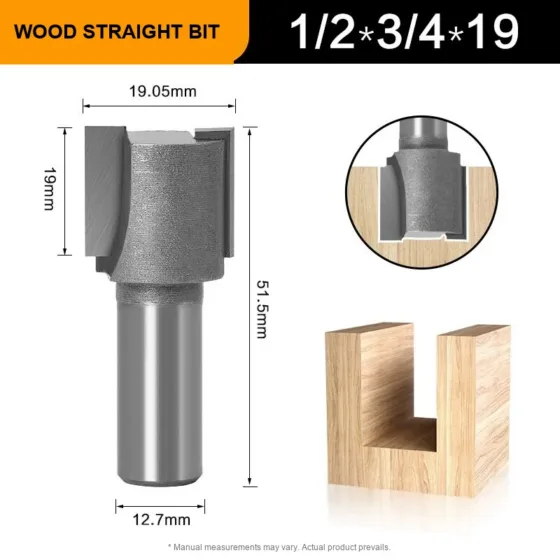

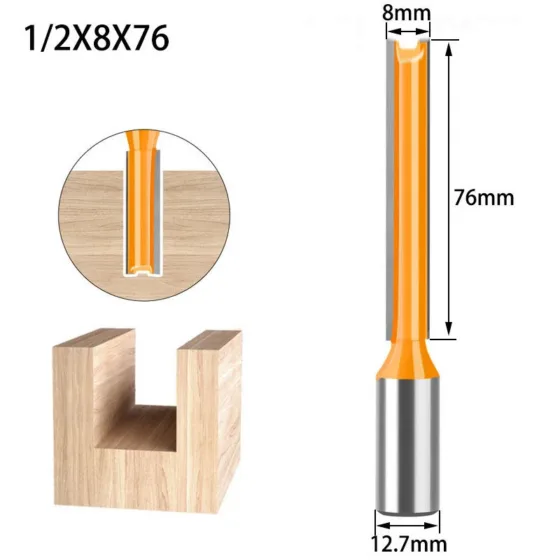

1/4 × 1/8 × 13 mm, 1/4 × 5/32 × 13 mm, 1/4 × 3/16 × 13 mm, 1/4 × 1/4 × 30 mm, 1/4 × 5/16 × 30 mm, 1/4 × 5/16 × 20 mm, 1/4 × 3/8 × 30 mm, 1/4 × 3/8 × 24.5 mm, 1/4 × 10 × 20 mm, 1/4 × 11 × 30 mm, 1/2 × 1/2 × 63.5 mm, 1/2 × 3/8 × 30 mm, 1/2 × 15 × 40 mm, 1/2 × 22 × 40 mm, 1/4 × 5/16 × 26 mm, 1/4 × 1/4 × 20 mm, 1/2 × 11 × 40 mm, 1/2 × 14 × 40 mm, 1/2 × 5/8 × 51 mm, 1/2 × 3/8 × 76 mm, 1/2 × 10 × 51 mm, 1/2 × 1/2 × 76 mm, 1/2 × 11 × 48 mm, 1/2 × 8 × 76 mm, 1/2 × 1/2 × 38 mm, 1/2 × 8 × 40 mm, 1/2 × 11 × 30 mm, 1/2 × 10 × 39 mm, 1/2 × 1 × 19 mm, 1/2 × 7/8 × 19 mm, 1/2 × 3/4 × 19 mm

Reviews

There are no reviews yet.

Be the first to review “Professional Extended Straight Router Bits”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country
