Pointed-Nose Carving and Decorative Molding Router Bits

Pointed-nose carving and decorative molding router bits for concave grooves, rounded line work, ornamental channels and edge shaping in wood and panel materials.

Key specifications

Cutter diameter	3–20 mm
Cutter thickness	0.5–8 mm
Clearance diameter	1.5–10 mm
Clearance length	4–25 mm
Shank diameter	4–20 mm
Overall length	50–75 mm
Flutes	4

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.

Standard model range

Select a model and dimensions

19 options

Inquiry selection: Pointed-Nose Carving Bit 1/4 × 1/4

Description

Decorative Pointed Grooves and Rounded Molding Profiles

This pointed-nose carving-bit family combines a sharp center point with curved carbide wings to create symmetrical concave grooves, rounded line work, decorative channels and shaped edges. The range covers compact 1/4-inch shank cutters and larger 1/2-inch shank profiles for workshop, CNC, OEM and wholesale requirements.

Range specifications

Shank diameters	1/4 inch / 6.35 mm and 1/2 inch / 12.7 mm
Cutter diameters	6.35 mm to 50.8 mm depending on model
Profile geometry	Pointed center with concave, rounded molding wings

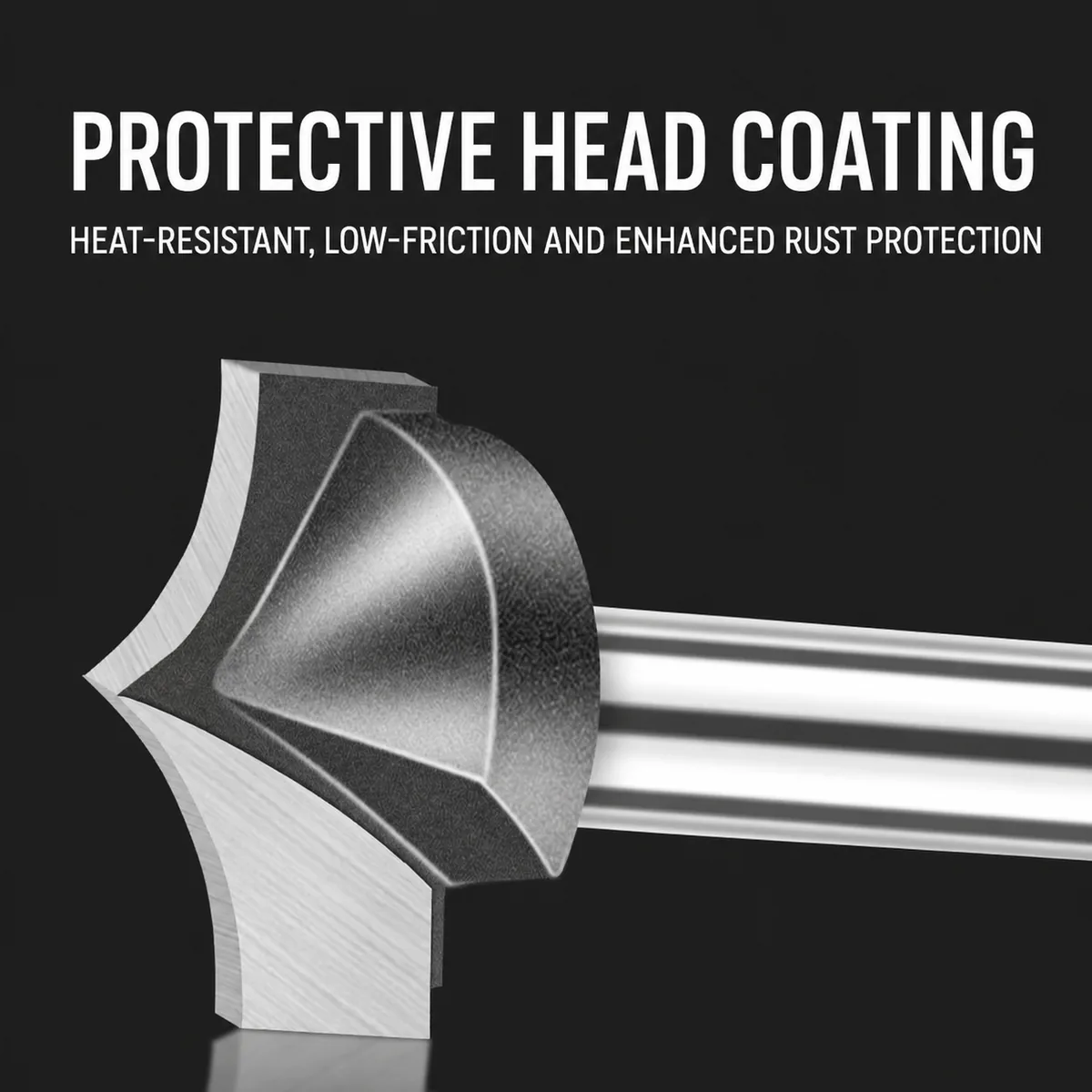

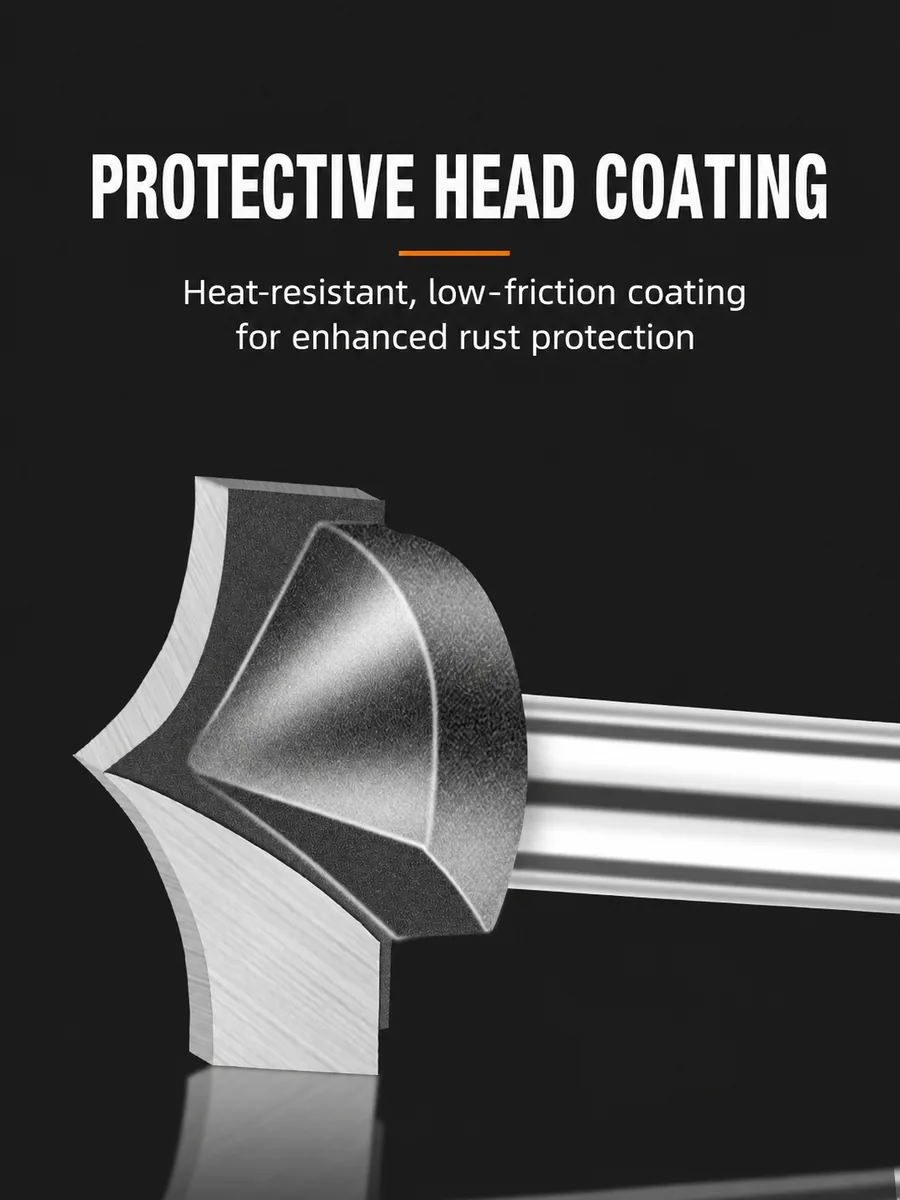

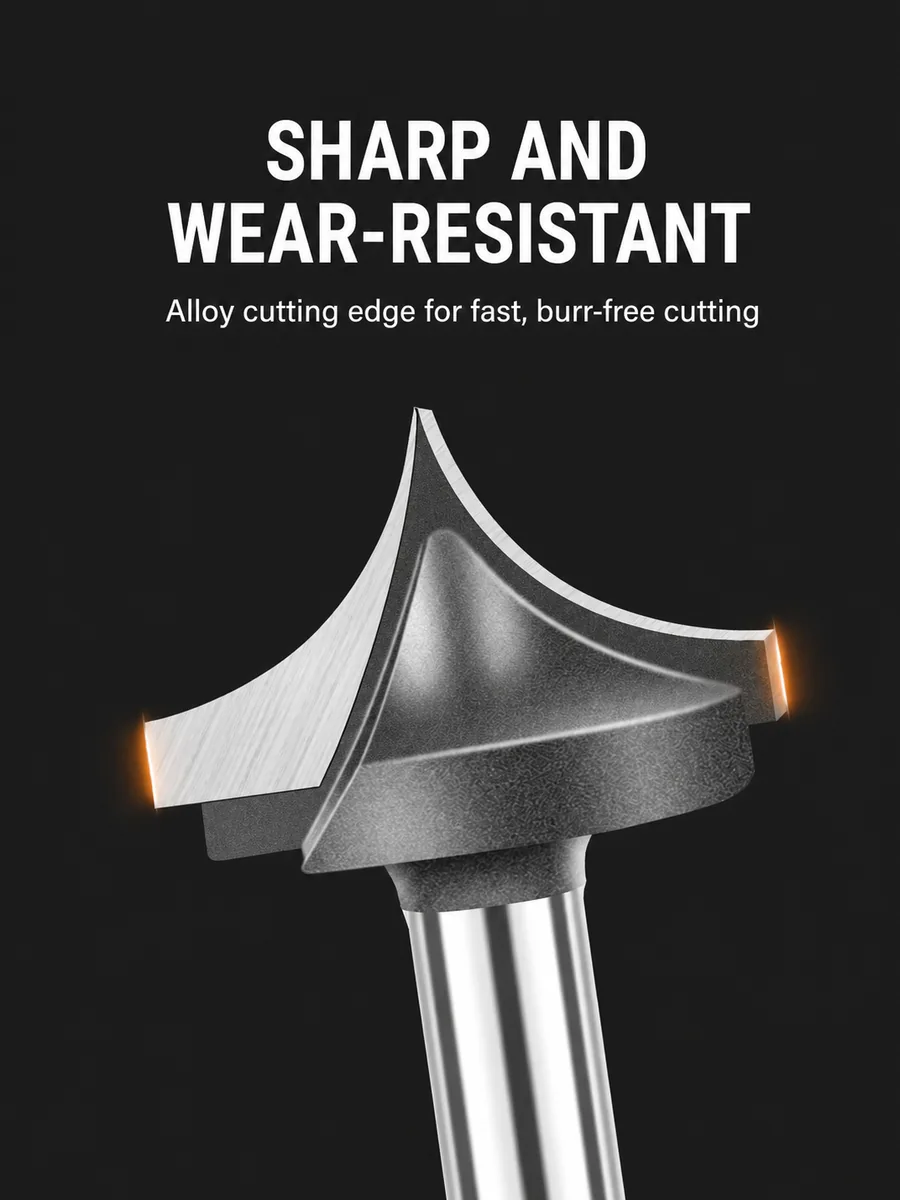

Cutting construction	Alloy cutting edges, high-frequency welded cutter head and protective coating
Supported materials	Solid wood, hardwood, plywood, MDF, particleboard and compatible wood composites
Compatible machines	Trim routers, router tables, engraving machines and CNC routers with a matching collet

Typical applications

Decorative concave grooves and pointed center channels
Cabinet, furniture, trim and molding line work
Rounded ornamental profiles and edge shaping
Custom wood components, workshop production and wholesale supply

Ordering guidance

Select the model by the full English name and upper-right size shown in its specification drawing. Confirm shank diameter, cutter diameter, required profile radius, cutting depth, machine collet, workpiece material and quantity before ordering or requesting a quotation.

Product Details

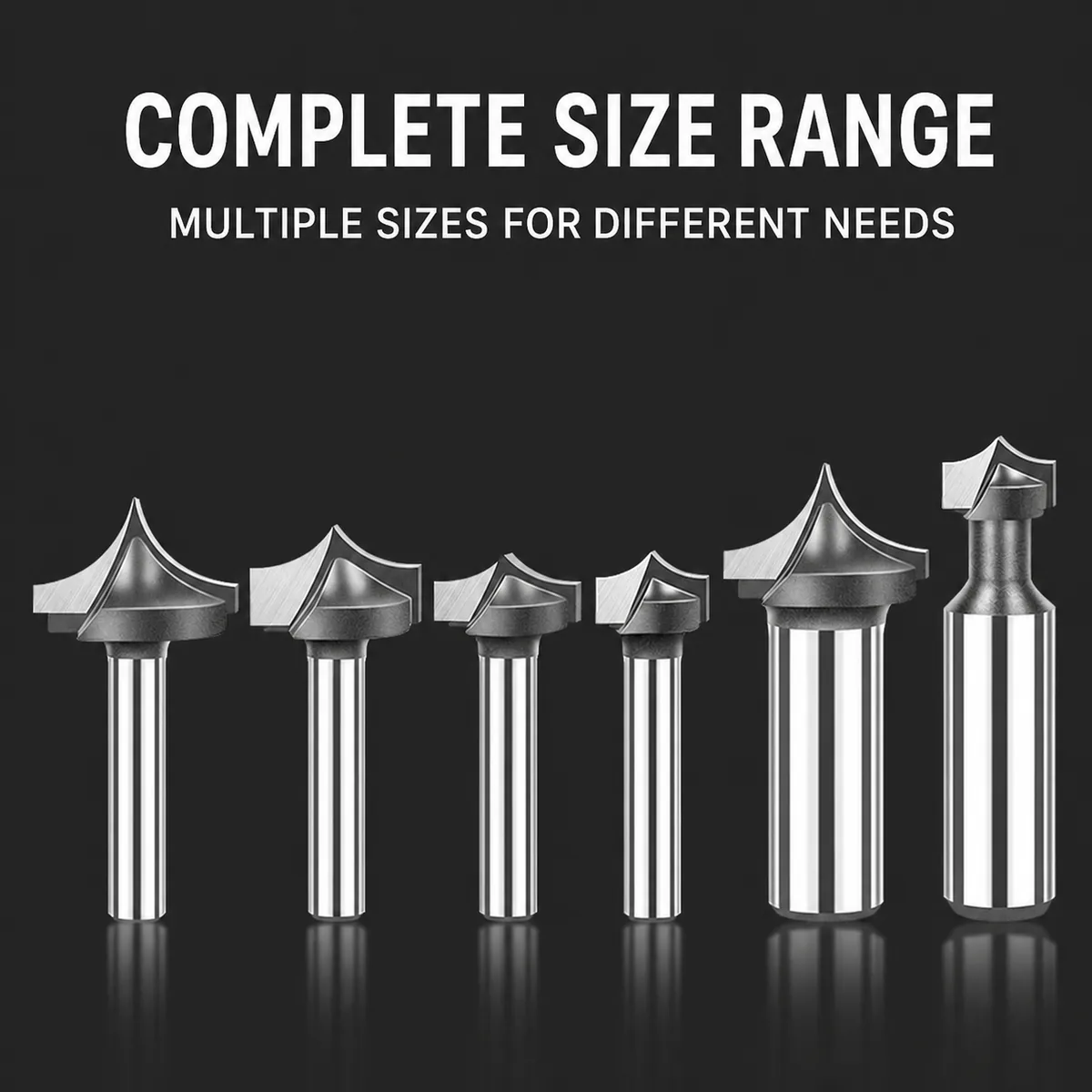

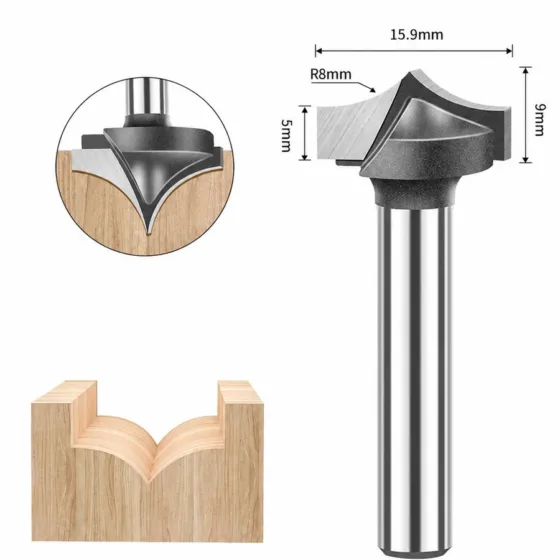

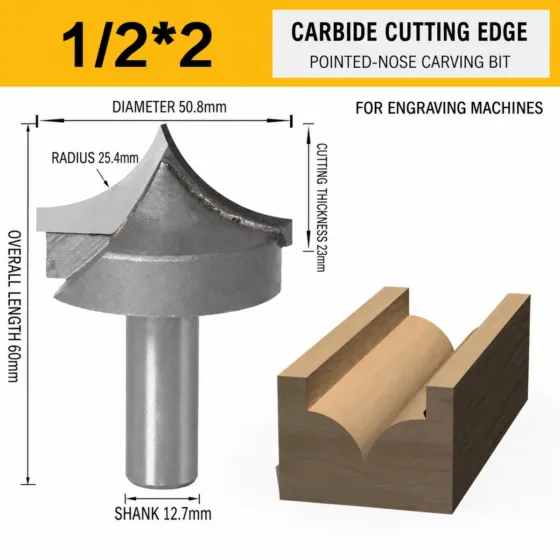

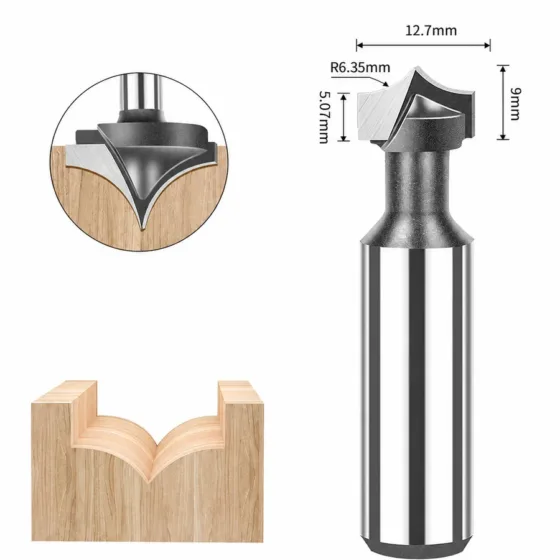

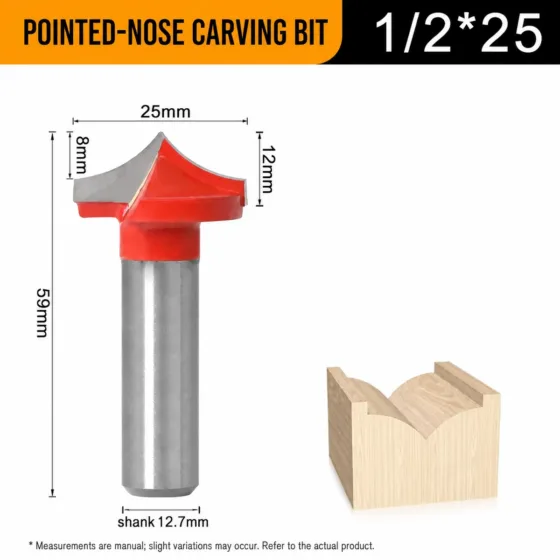

Complete Pointed-Nose Carving Bit Size Range

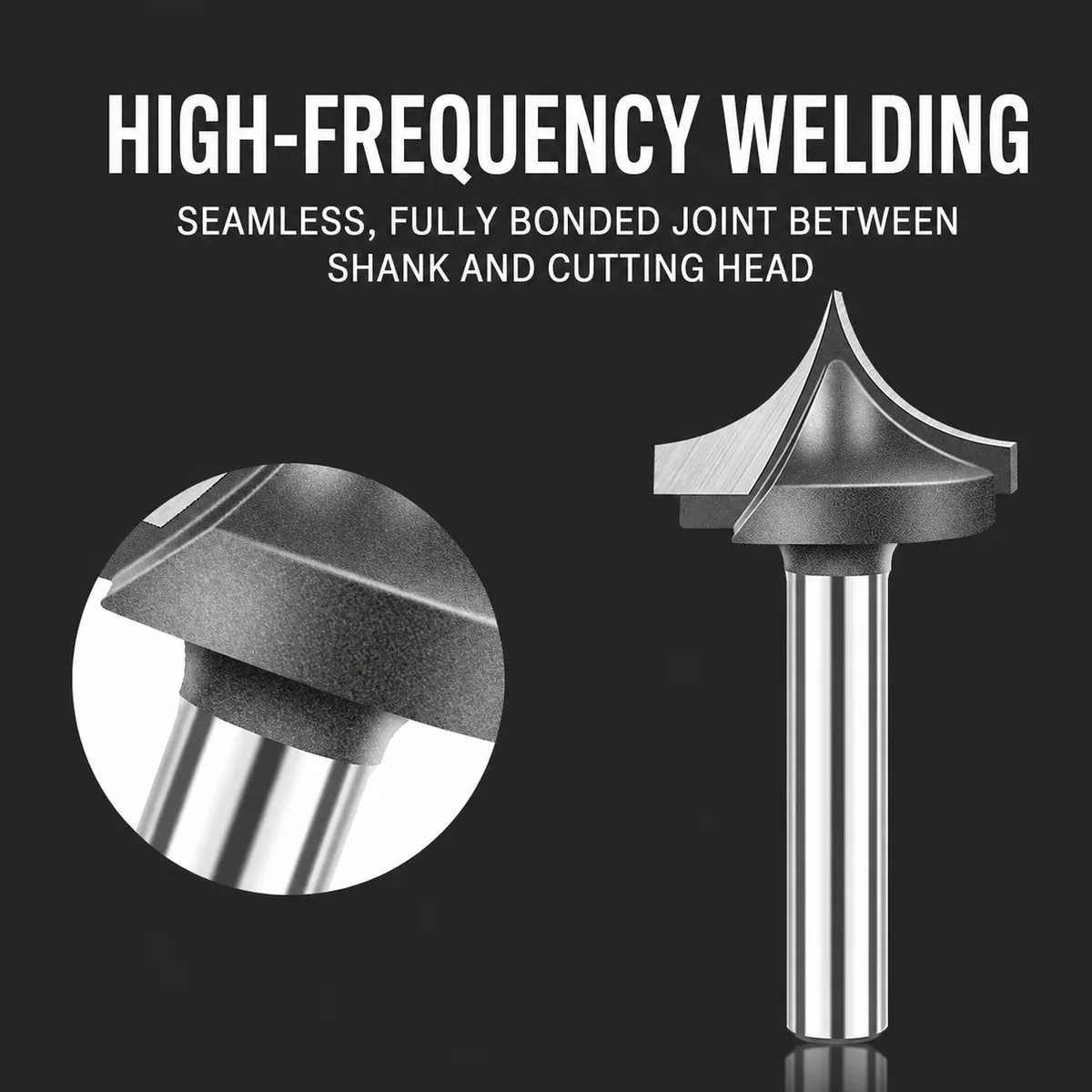

High-Frequency Welded Cutter Construction

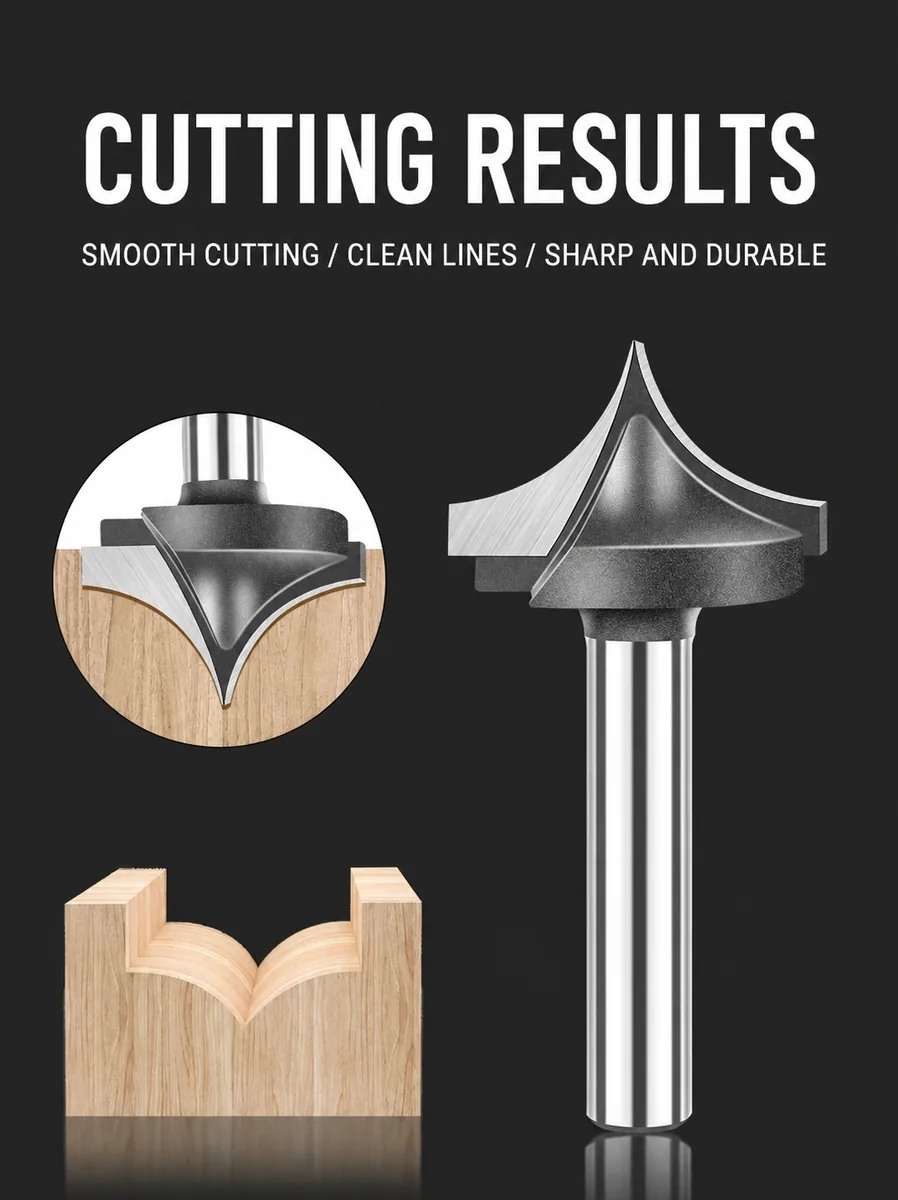

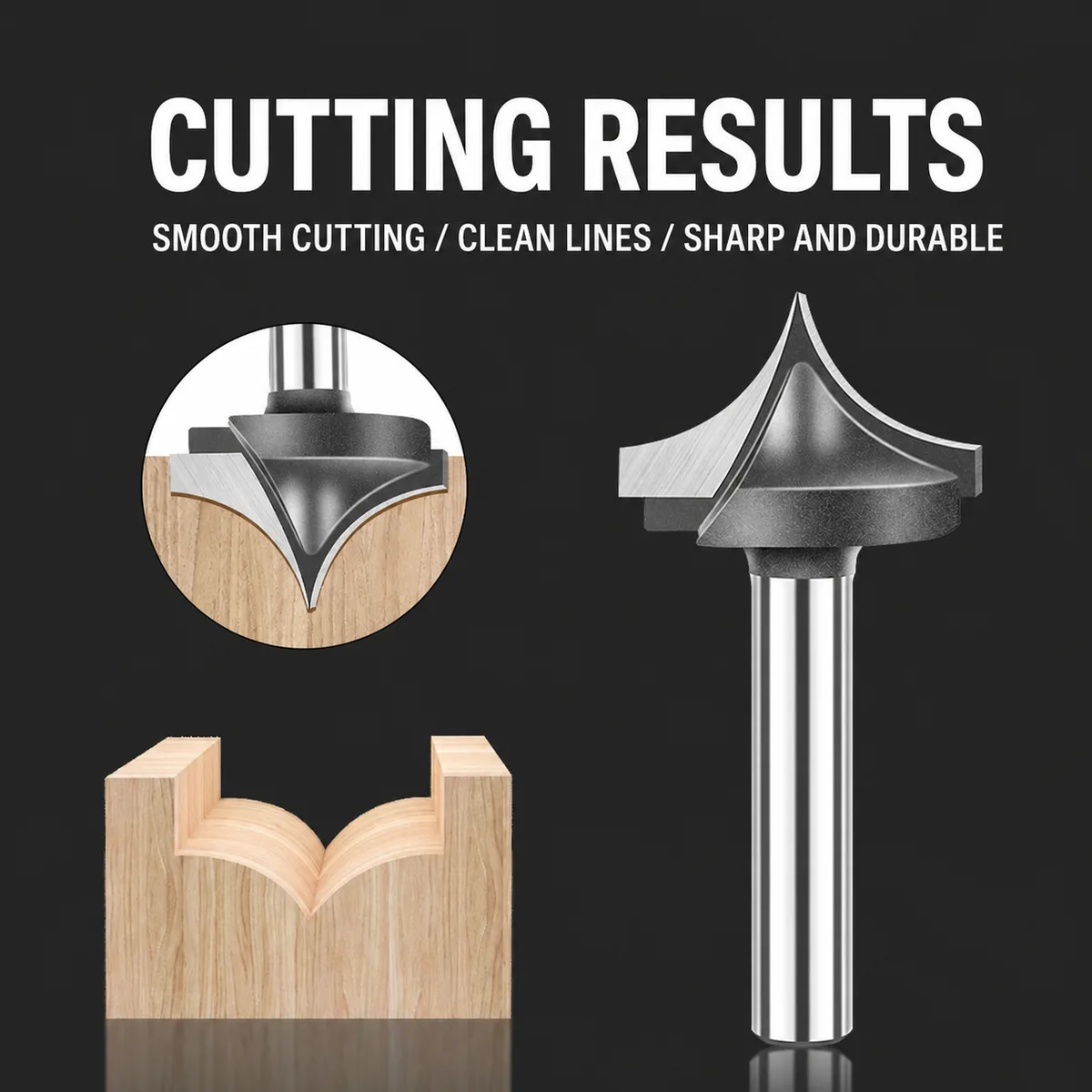

Decorative Pointed-Groove Cutting Results

Pointed-Nose Carving Bit Construction, Materials and Applications

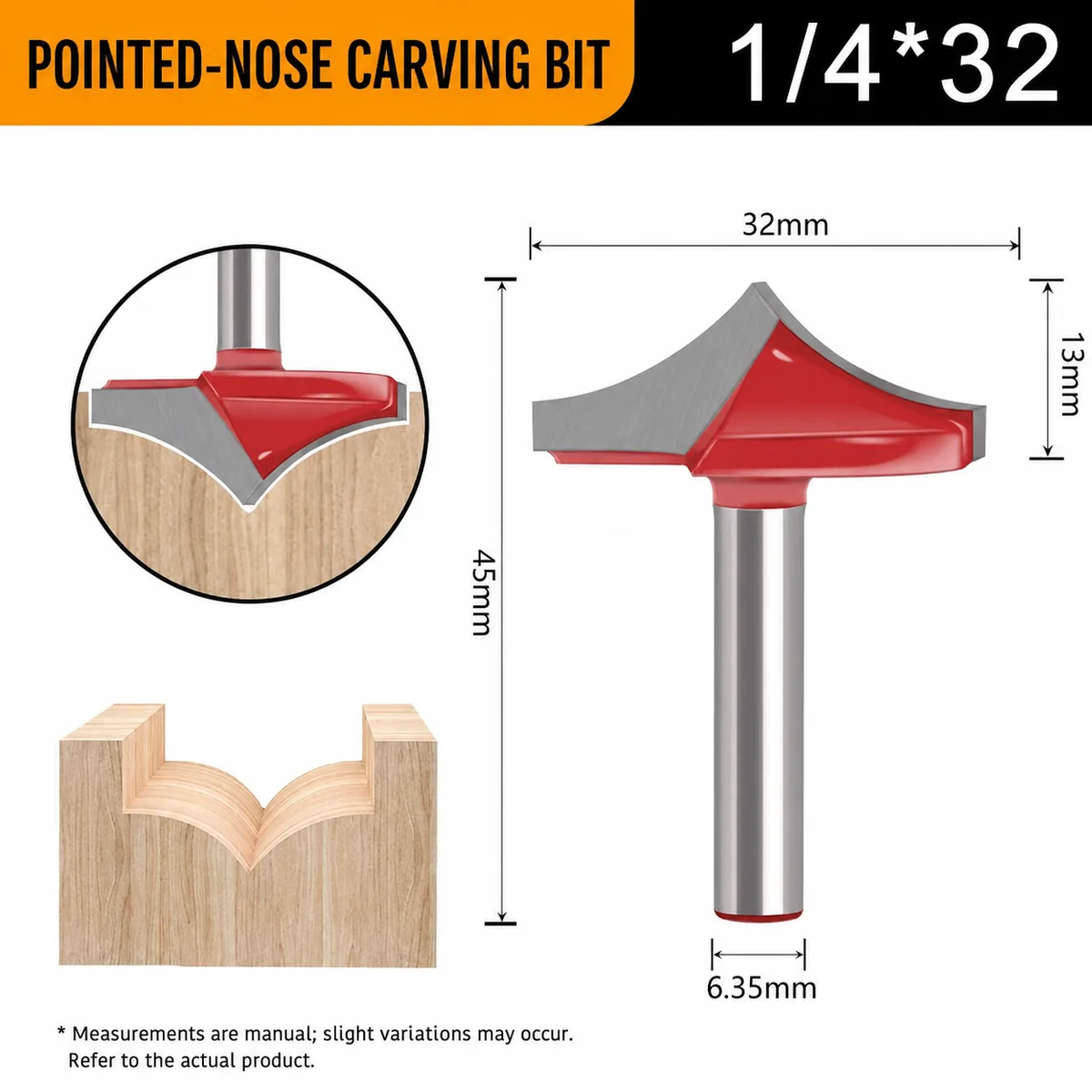

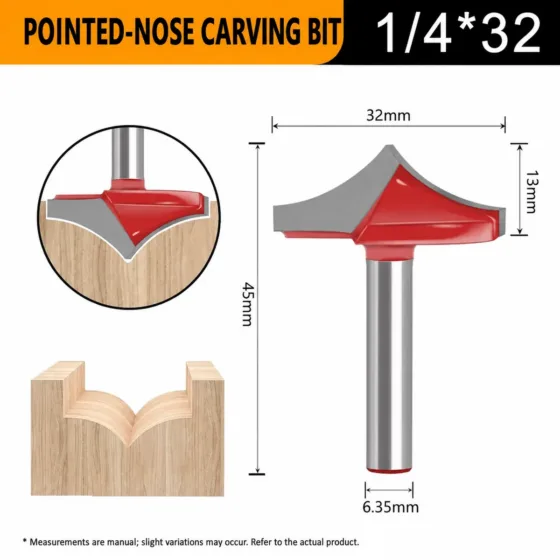

Pointed-Nose Carving Bit 1/4 × 32 Alternate Specification View

Pointed-Nose Carving Bit Workshop Product View

Additional information

Model / Size

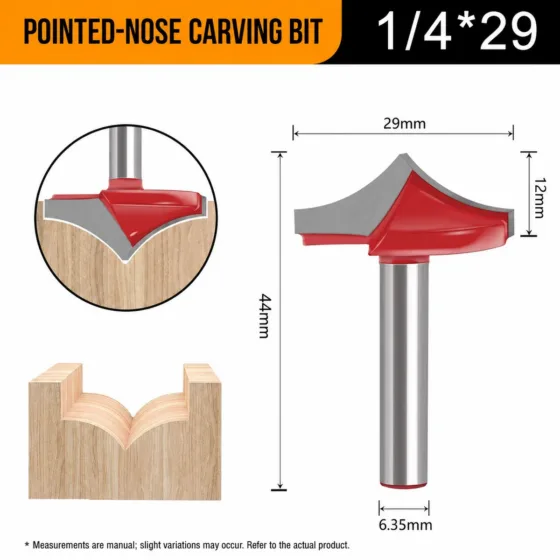

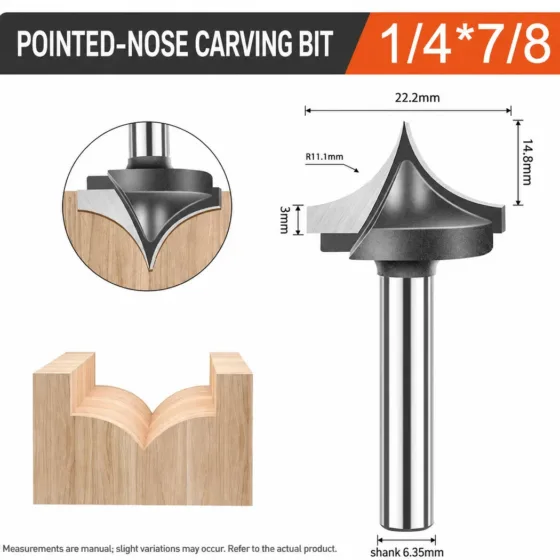

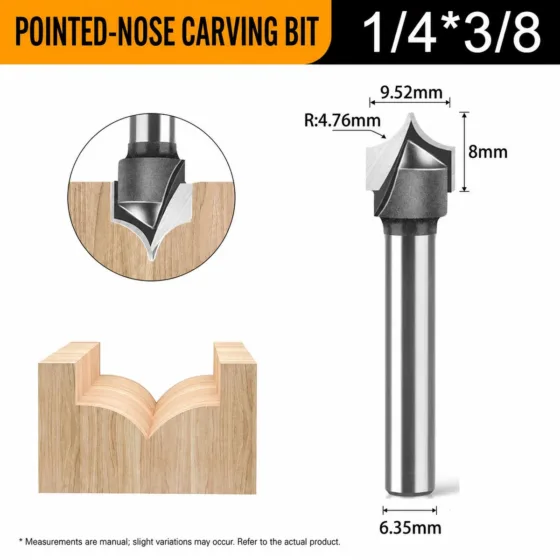

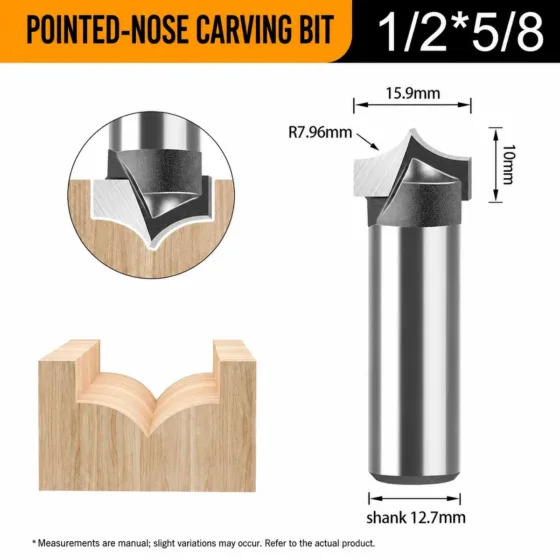

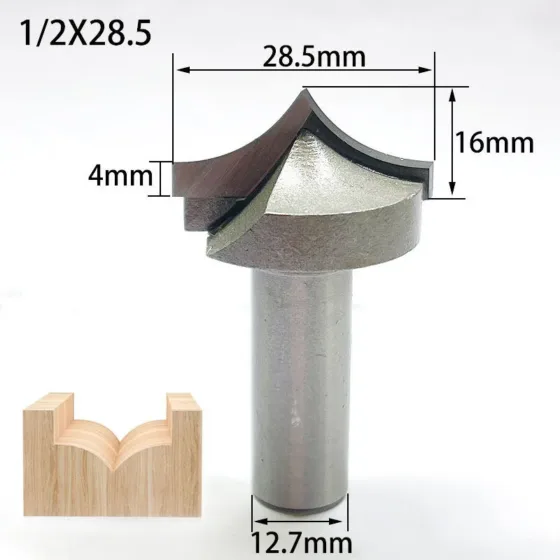

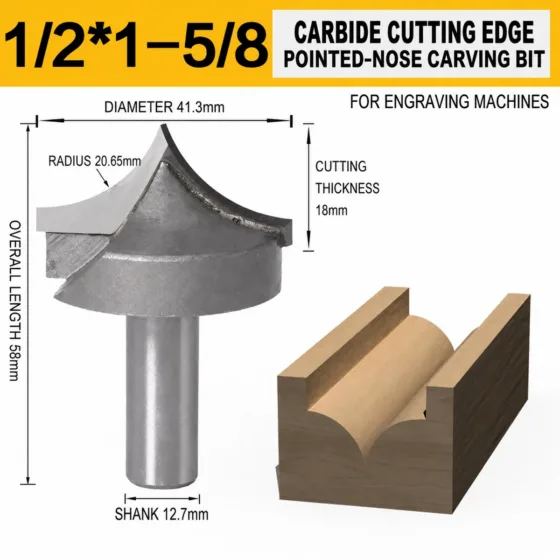

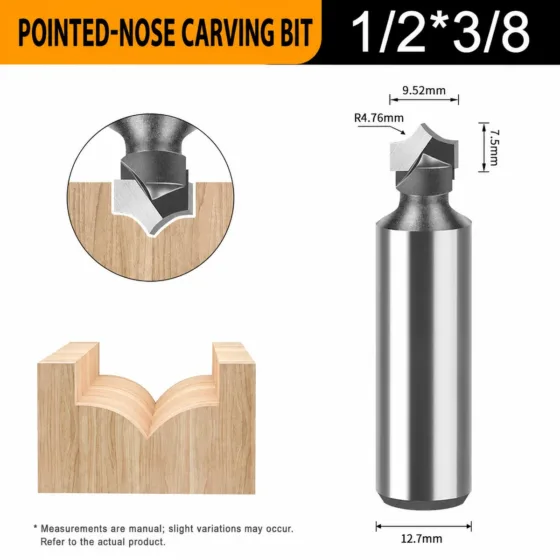

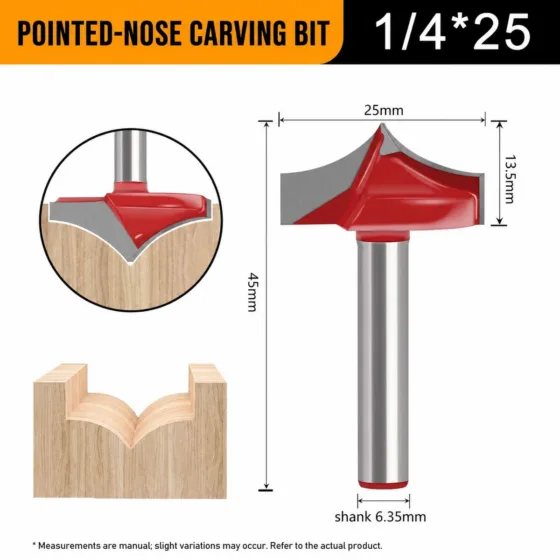

Pointed-Nose Carving Bit 1/4 × 1/4, Pointed-Nose Carving Bit 1/4 × 1/2, Pointed-Nose Carving Bit 1/4 × 5/8, Pointed-Nose Carving Bit 1/4 × 3/4, Pointed-Nose Carving Bit 1/4 × 7/8, Pointed-Nose Carving Bit 1/4 × 32, Pointed-Nose Carving Bit 1/2 × 3/8, Pointed-Nose Carving Bit 1/2 × 2, Pointed-Nose Carving Bit 1/2 × 1-5/8, Pointed-Nose Carving Bit 1/2 × 1-1/4, Pointed-Nose Carving Bit 1/2 × 28.5, Pointed-Nose Carving Bit 1/2 × 25, Pointed-Nose Carving Bit 1/2 × 7/8, Pointed-Nose Carving Bit 1/2 × 3/4, Pointed-Nose Carving Bit 1/2 × 5/8, Pointed-Nose Carving Bit 1/2 × 1/2, Pointed-Nose Carving Bit 1/4 × 29, Pointed-Nose Carving Bit 1/4 × 25, Pointed-Nose Carving Bit 1/4 × 3/8

Reviews

There are no reviews yet.

Be the first to review “Pointed-Nose Carving and Decorative Molding Router Bits”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country
