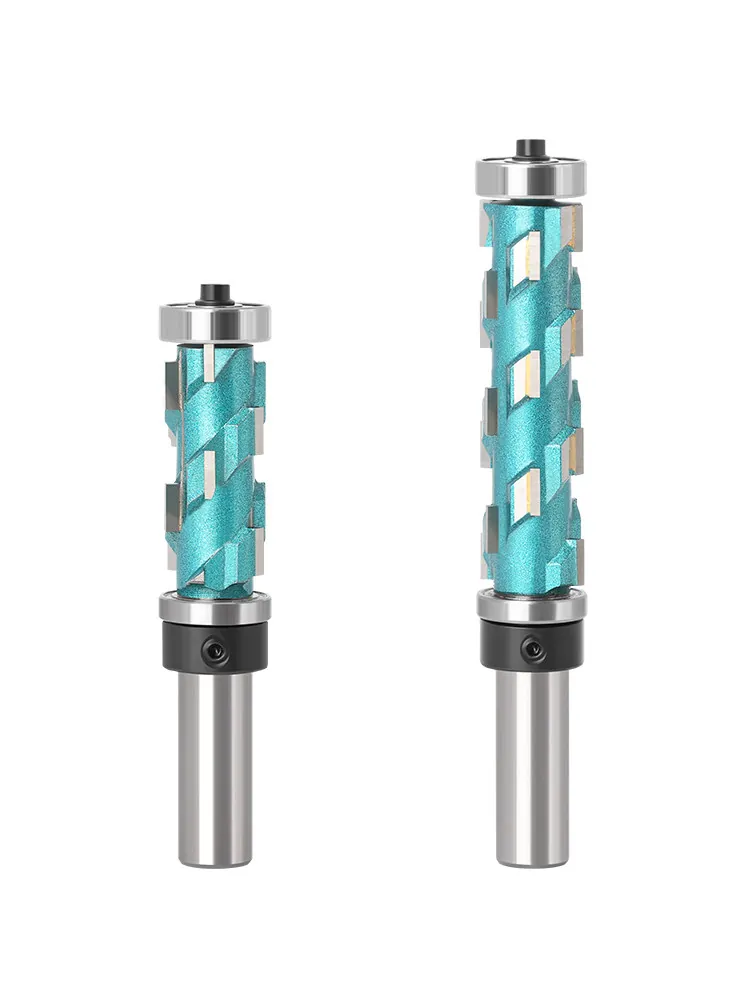

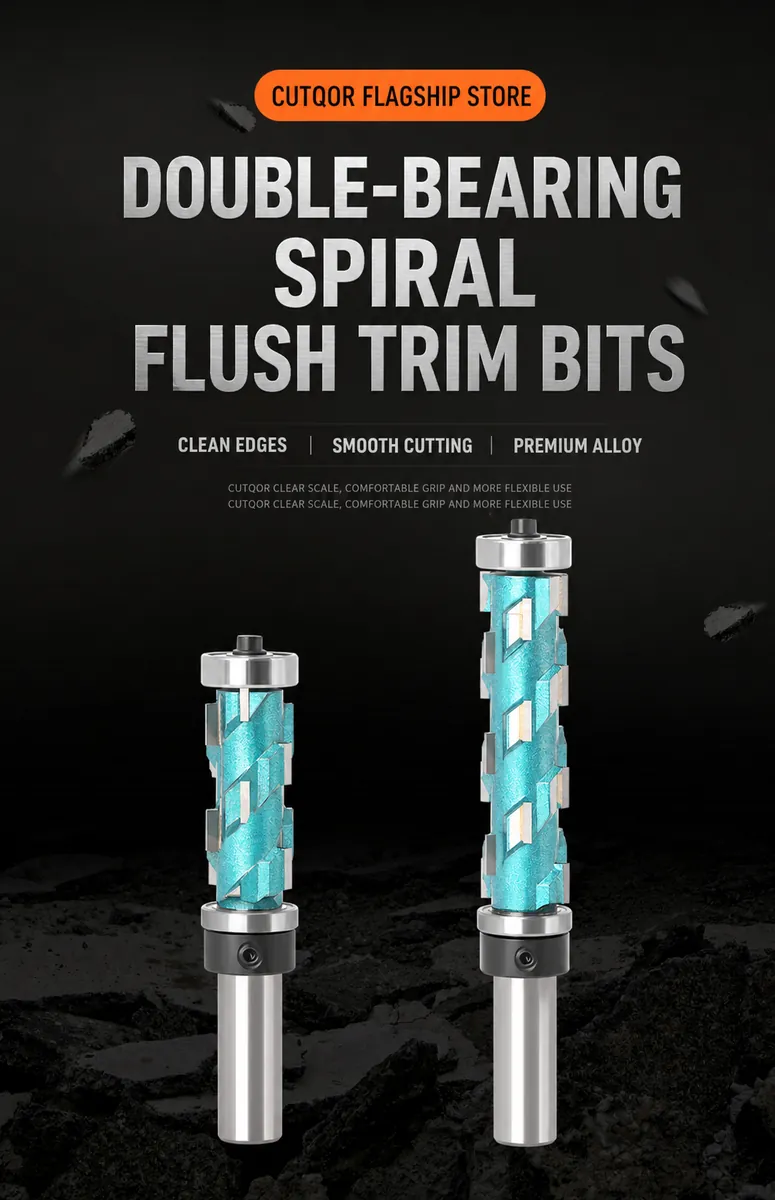

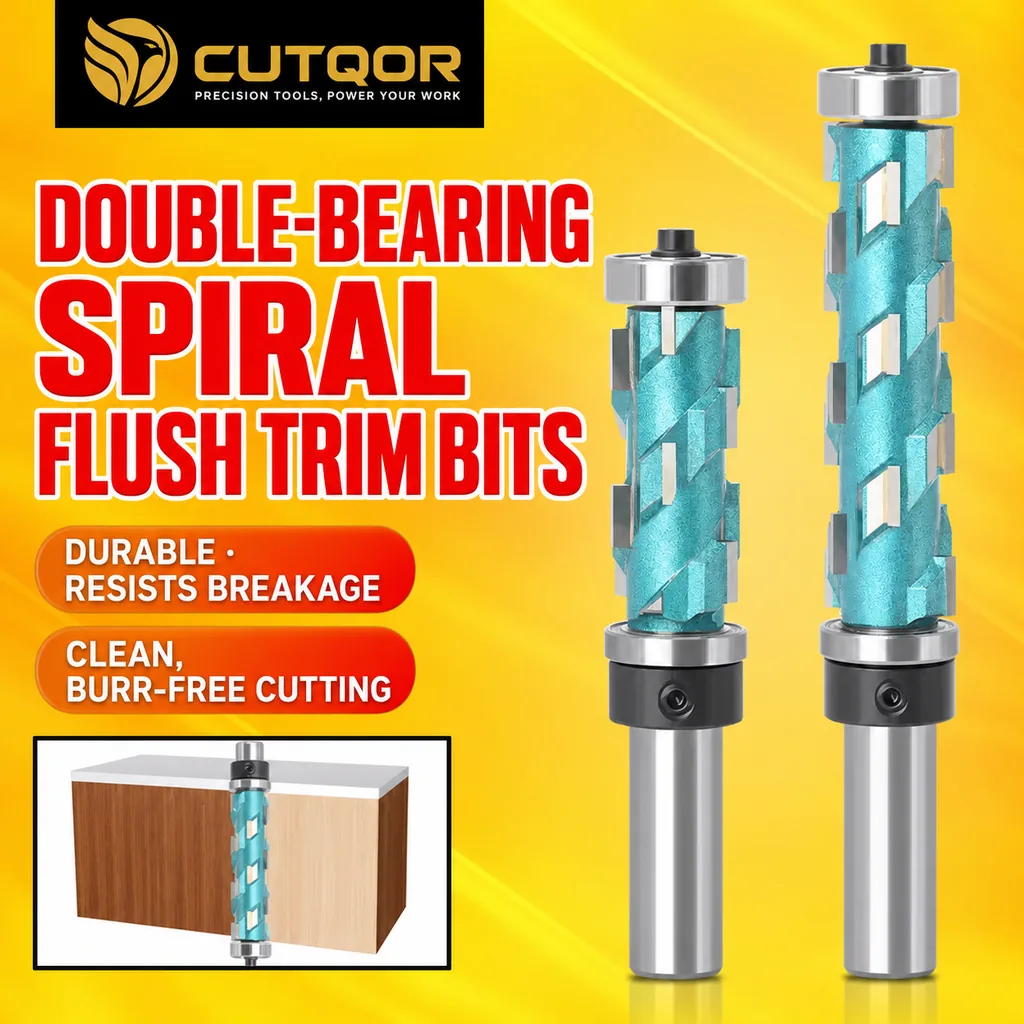

Double-Bearing Spiral Flush-Trim Bits for Pattern Routing

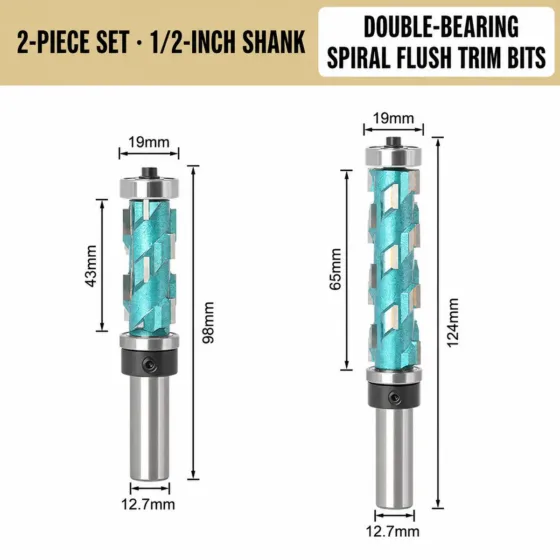

This bearing-guided router-bit family combines spiral and straight cutting profiles with guide bearings for clean template following, edge duplication and flush trimming. The range includes 1/4-inch and 1/2-inch shanks, cutter diameters from 12.7 to 19.05 mm, individual cutters and a two-piece spiral set for workshops, CNC users and distributors.

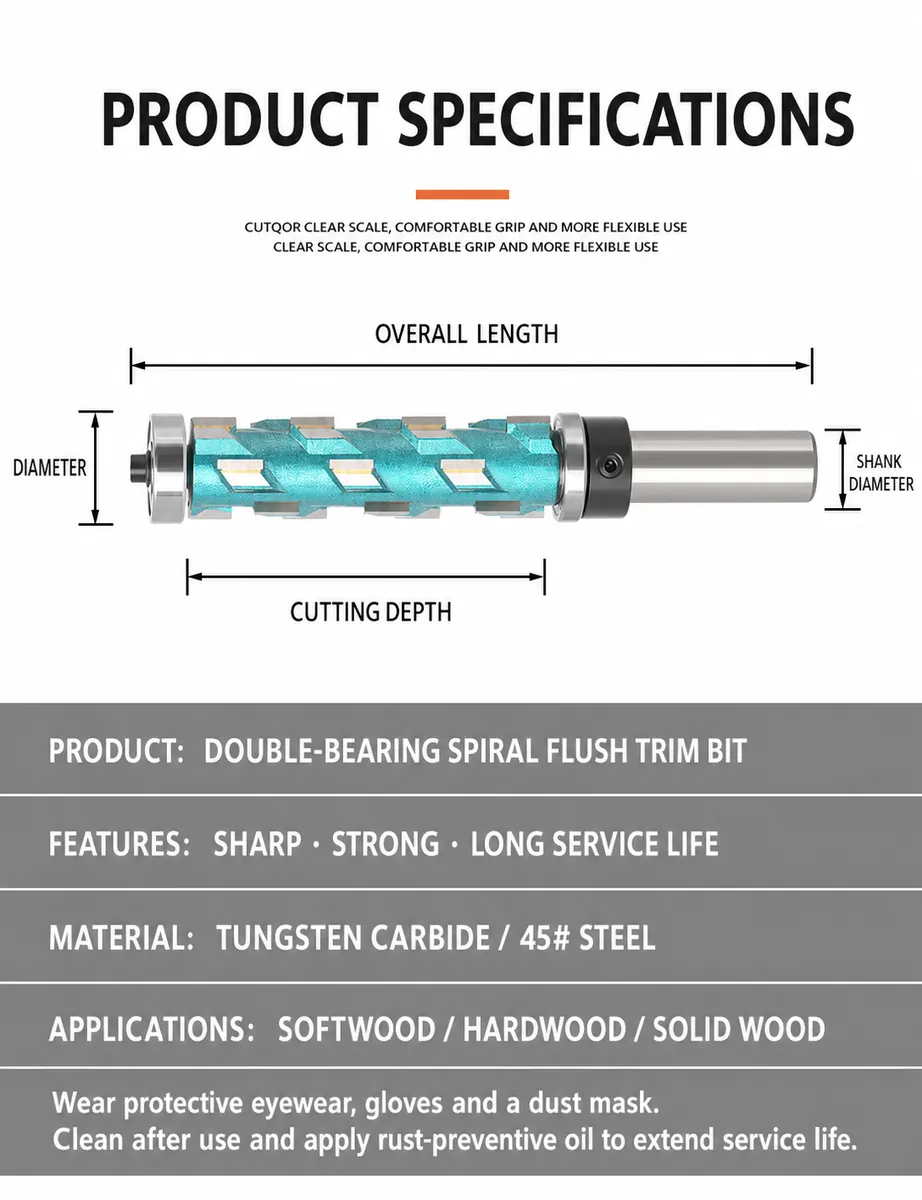

Range specifications

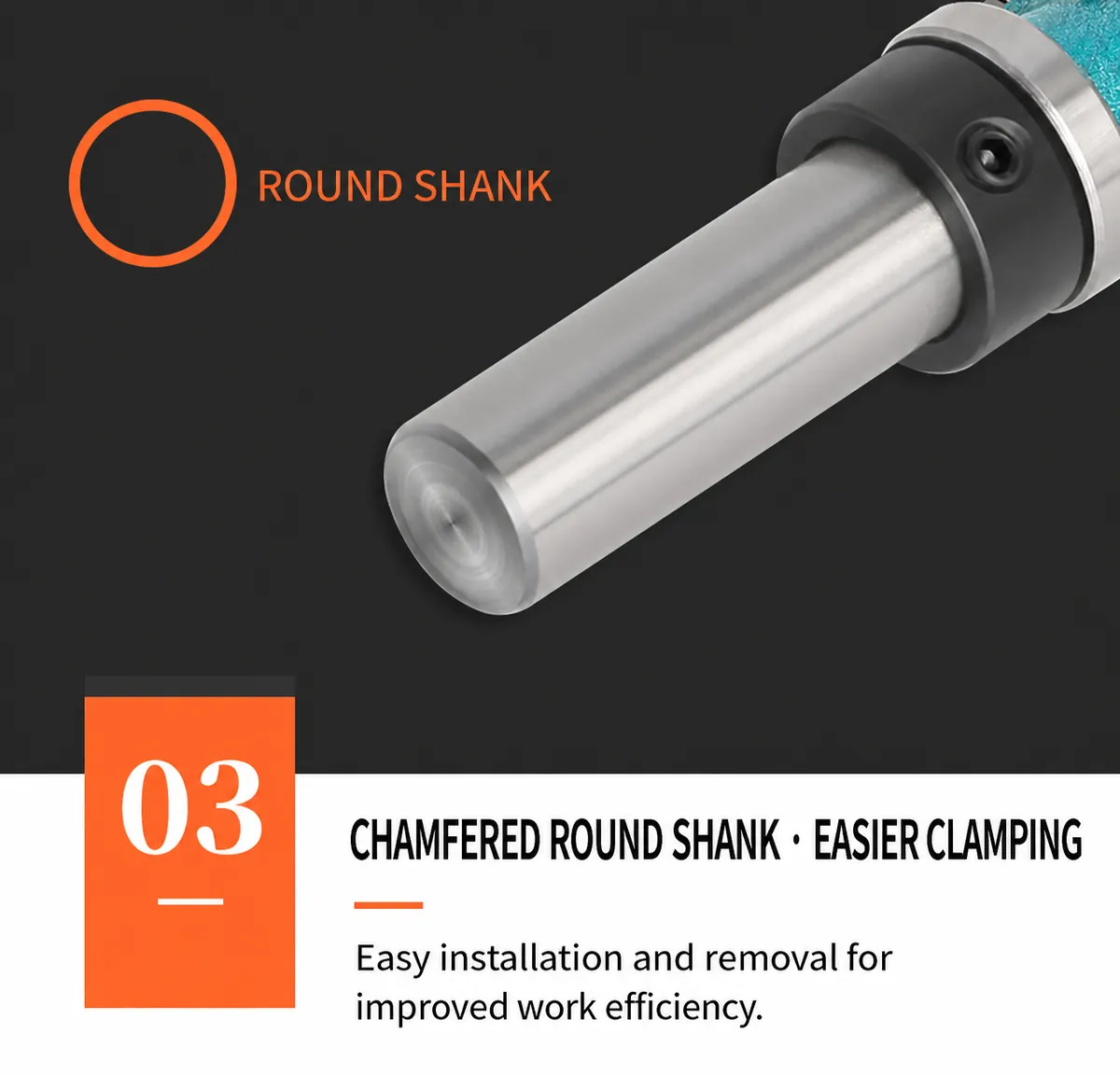

| Shank diameters | 1/4 inch / 6.35 mm and 1/2 inch / 12.7 mm |
|---|---|

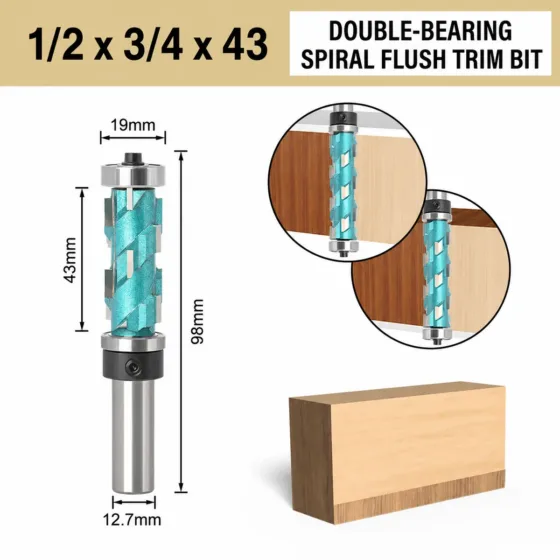

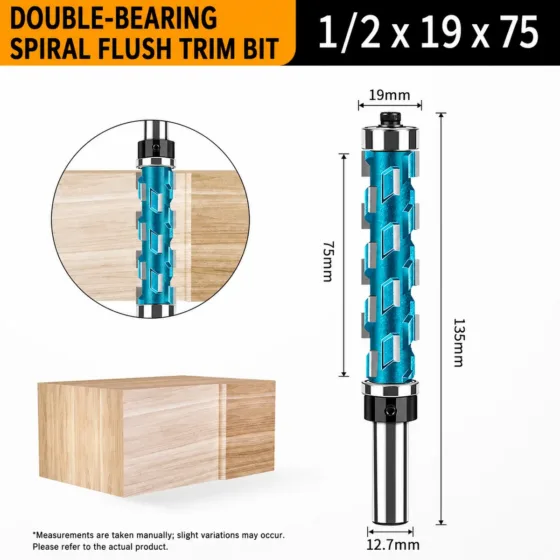

| Cutter diameters | 12.7 mm, 19 mm and 19.05 mm depending on model |

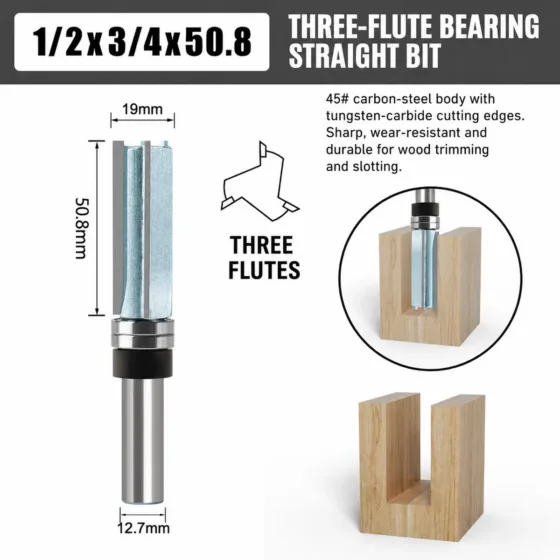

| Cutting lengths | 20 mm to 75 mm, plus a 50.8 mm three-flute option |

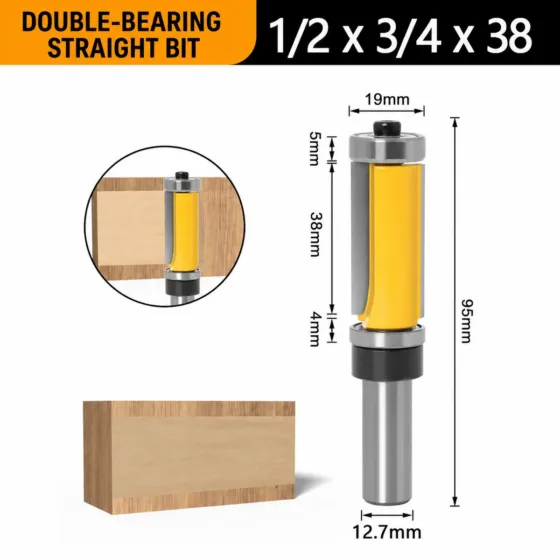

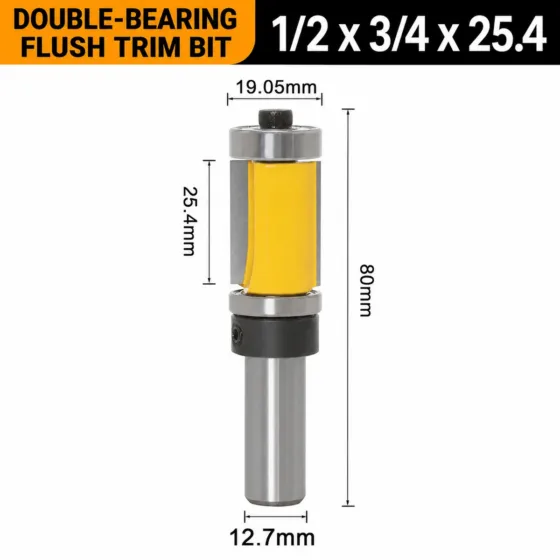

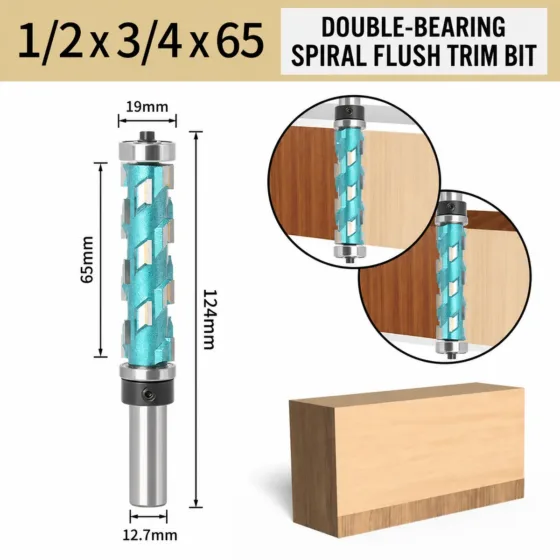

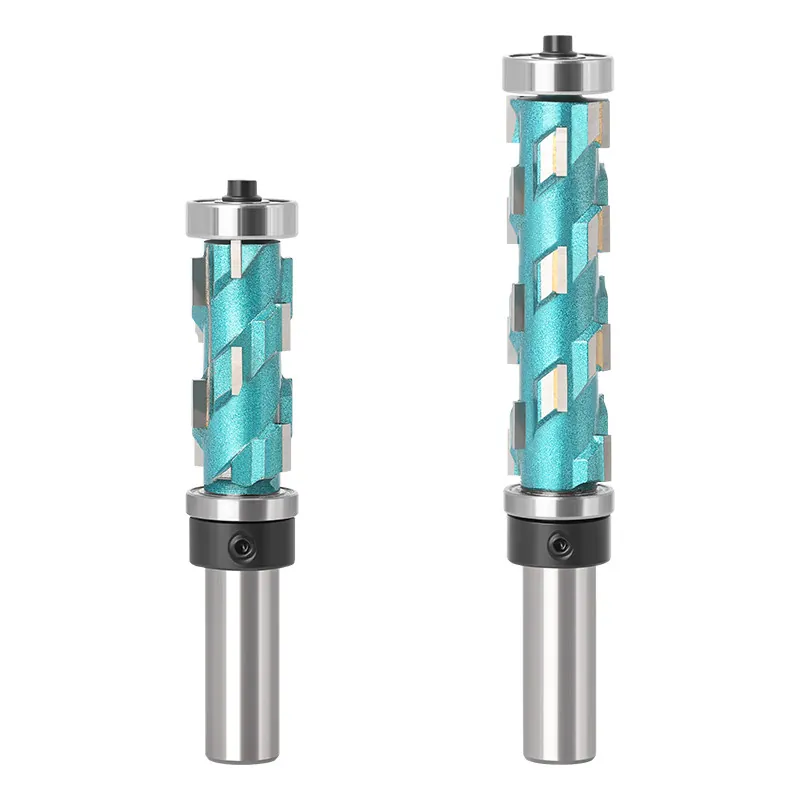

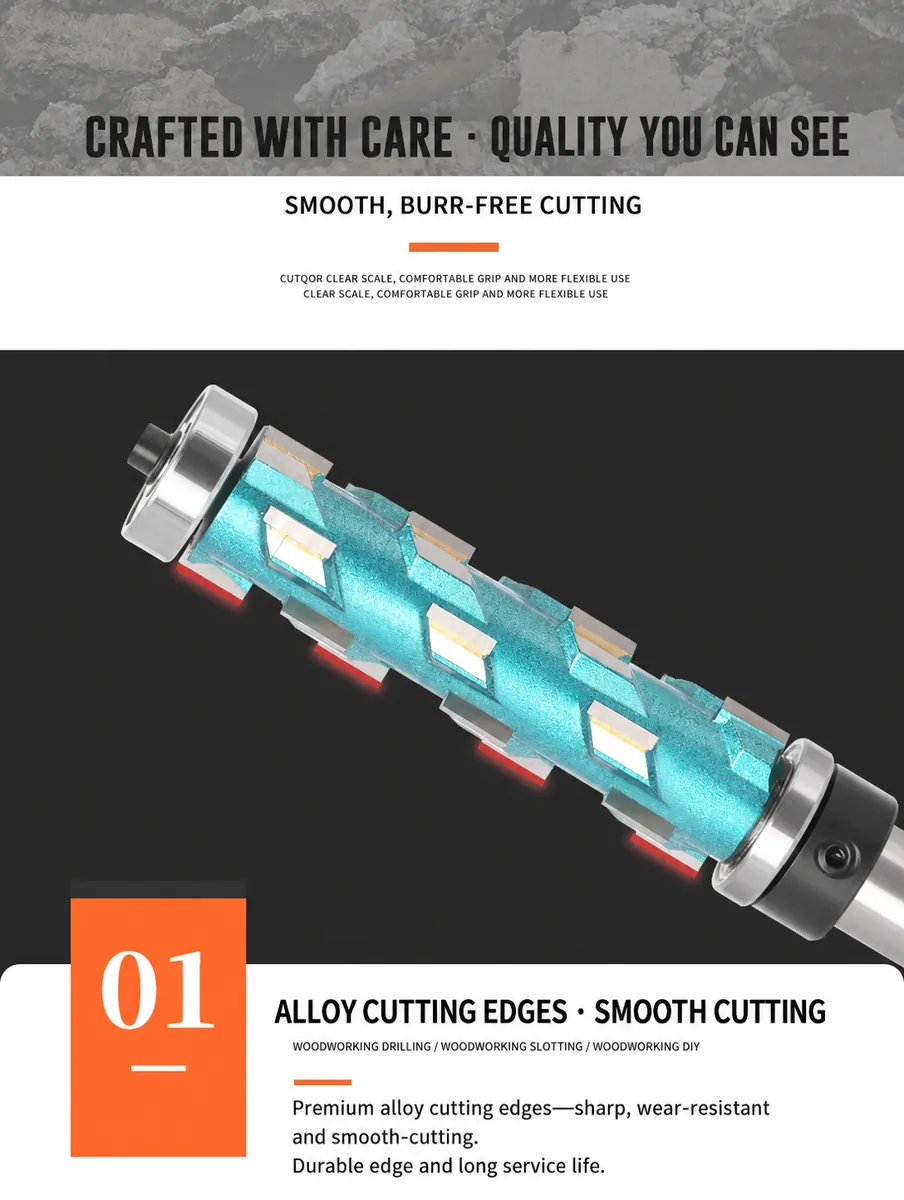

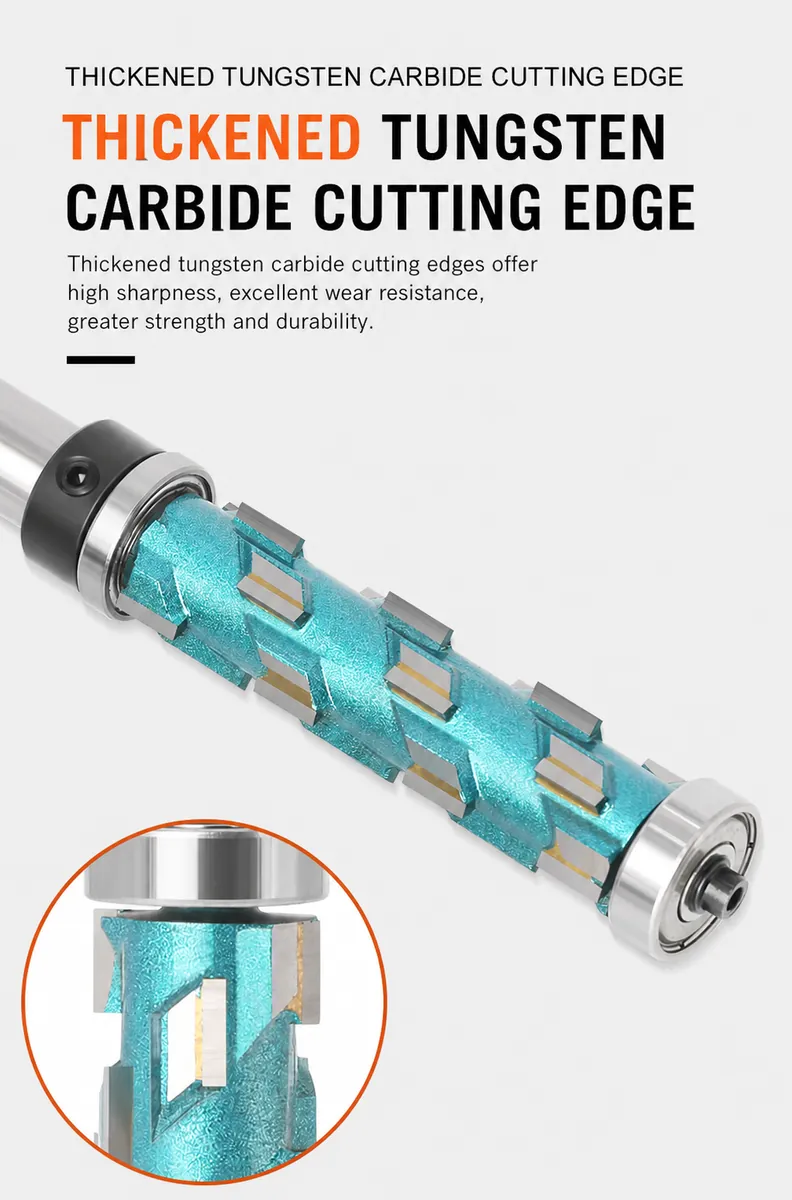

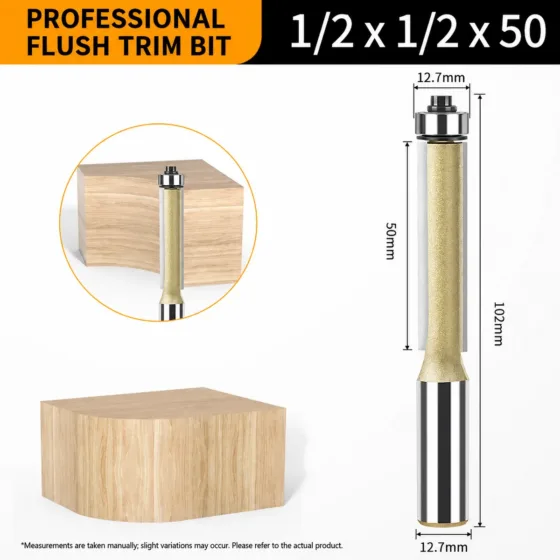

| Cutting profiles | Double-bearing spiral, double-bearing straight and three-flute bearing-guided straight |
| Typical materials | Solid wood, hardwood, plywood, MDF, particleboard and laminated panels |

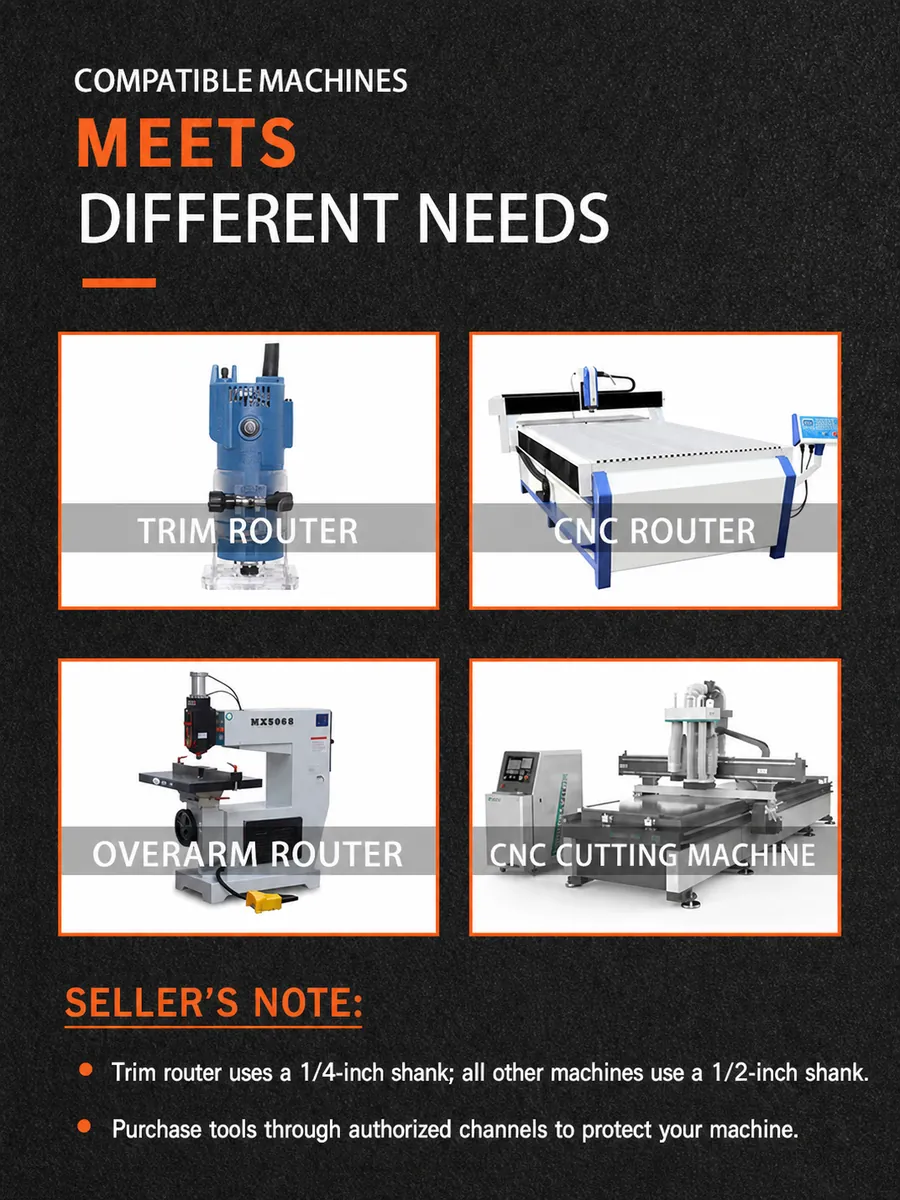

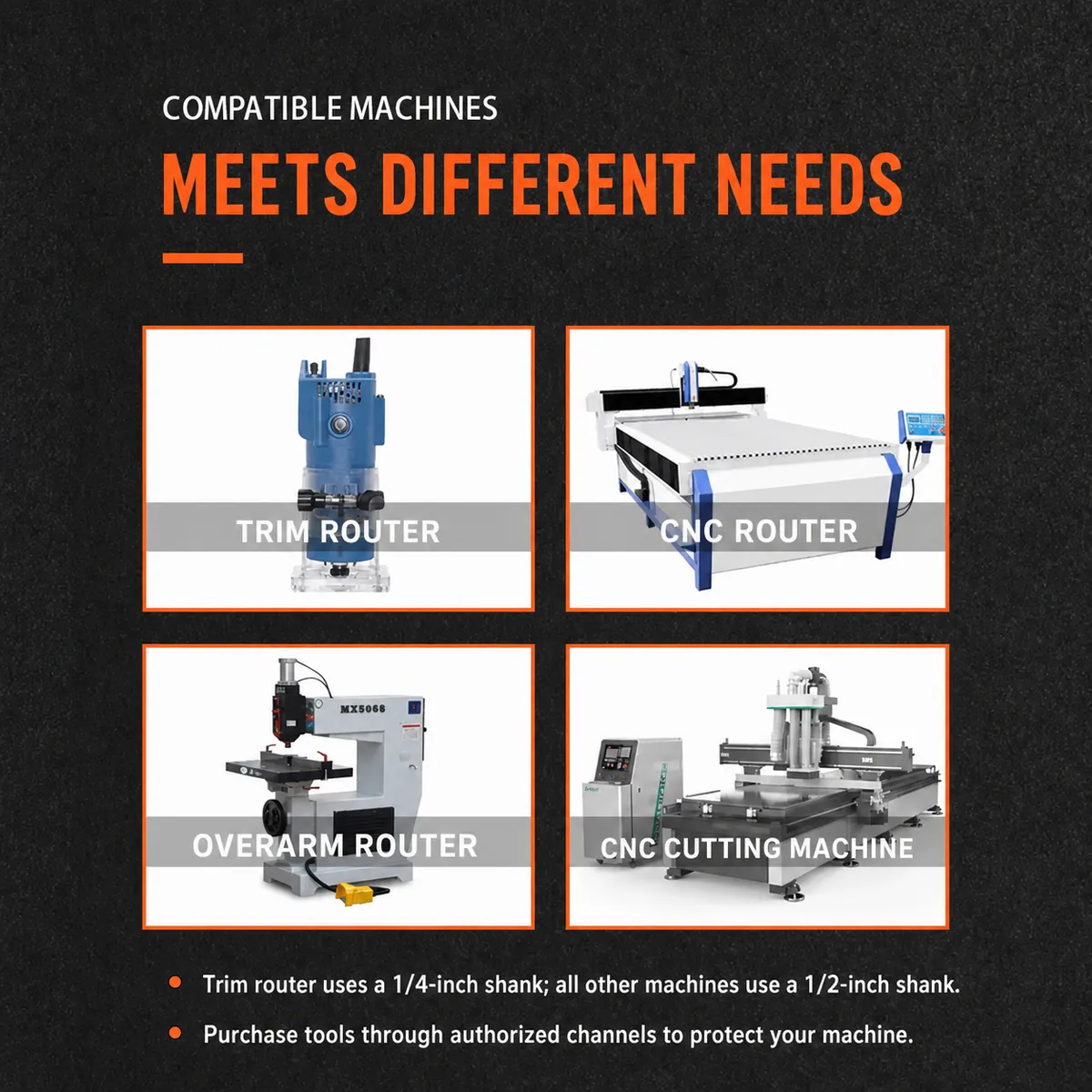

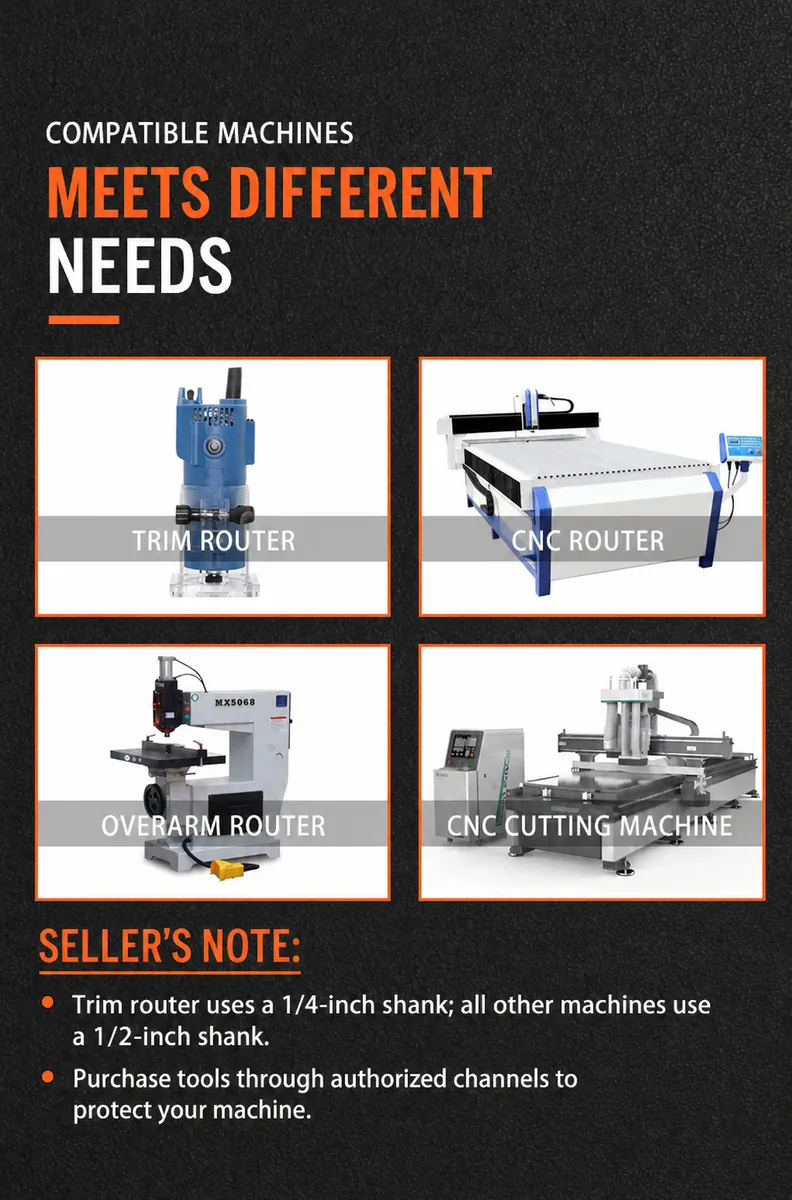

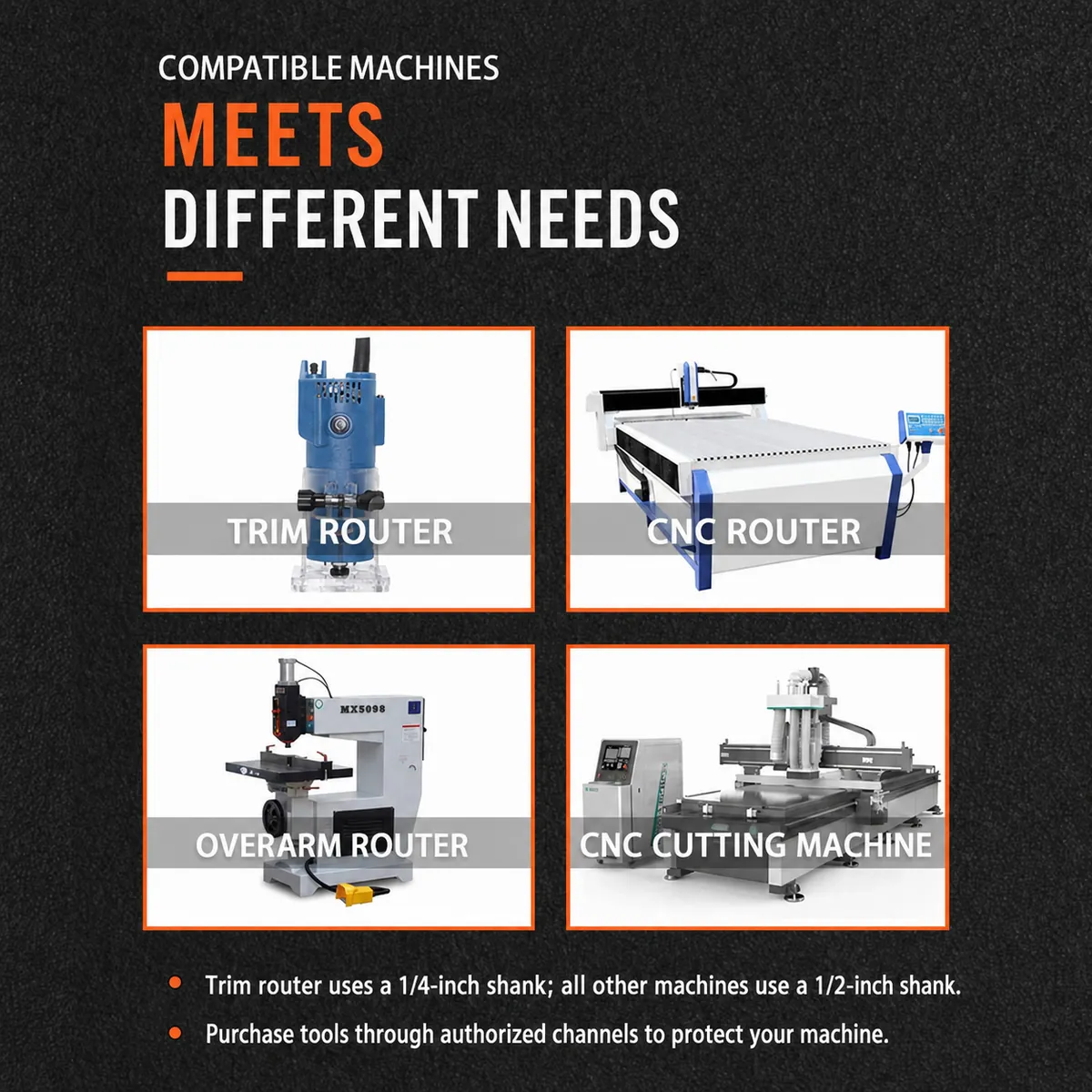

| Compatible equipment | Trim routers, handheld routers, router tables, overarm routers and compatible CNC routers |
Typical applications

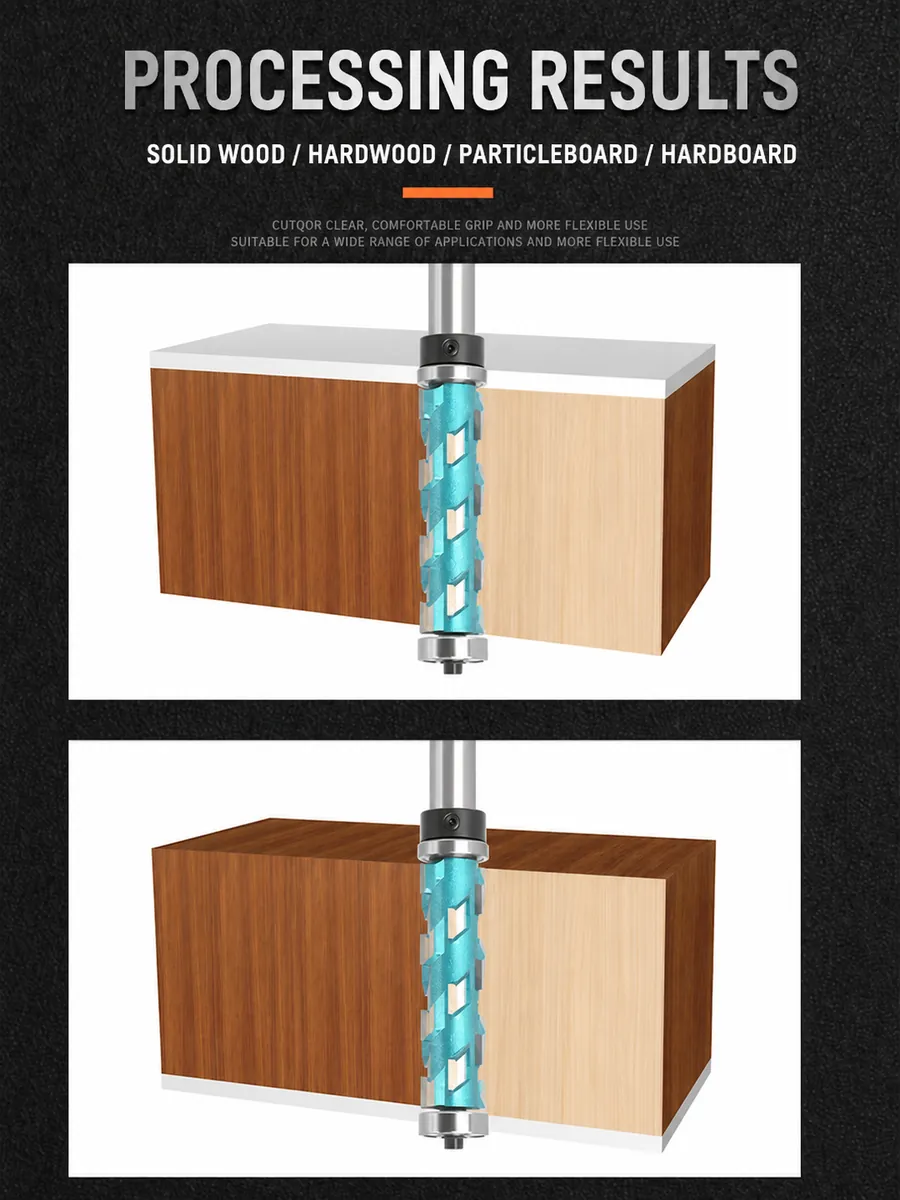

- Template and pattern routing with top or bottom bearing guidance

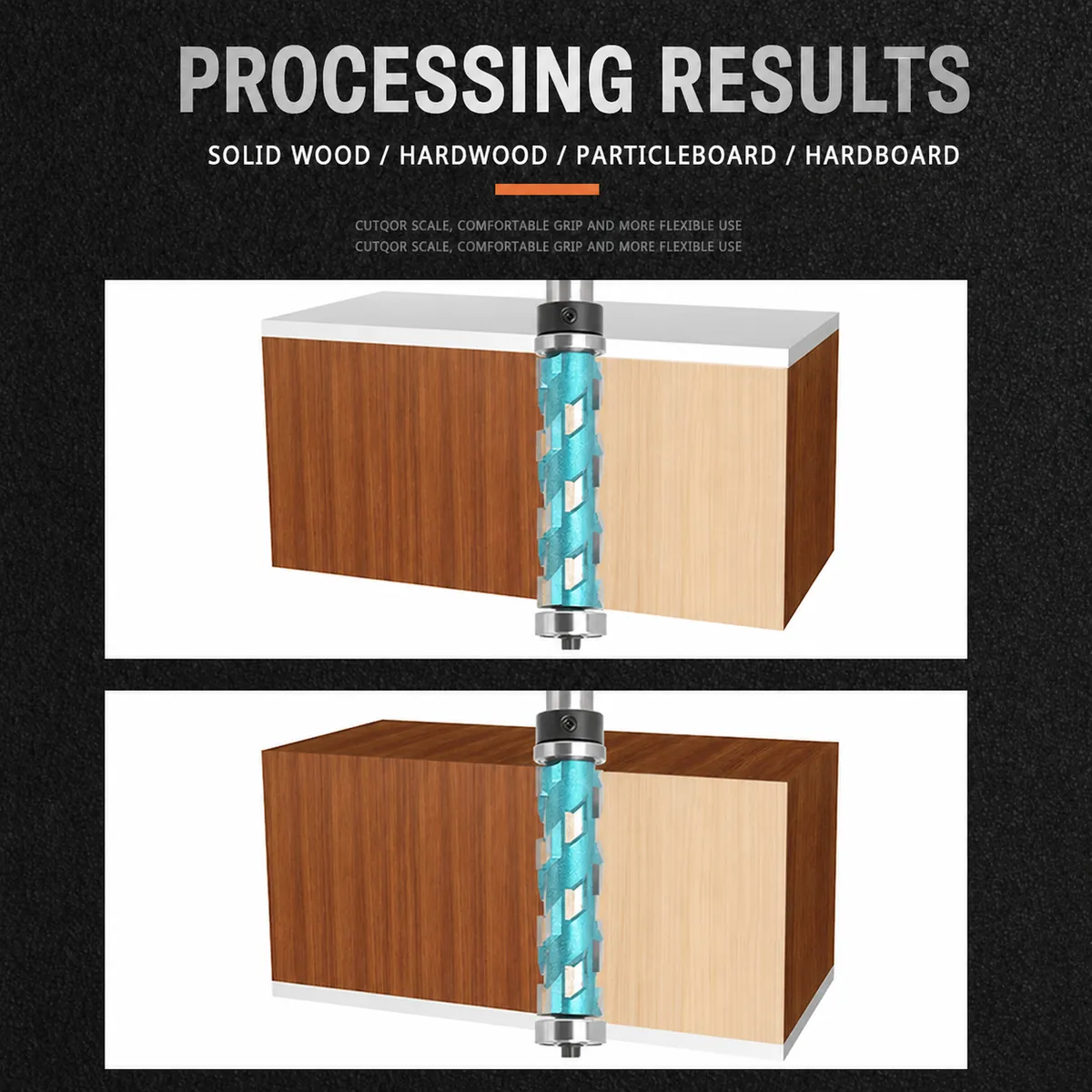

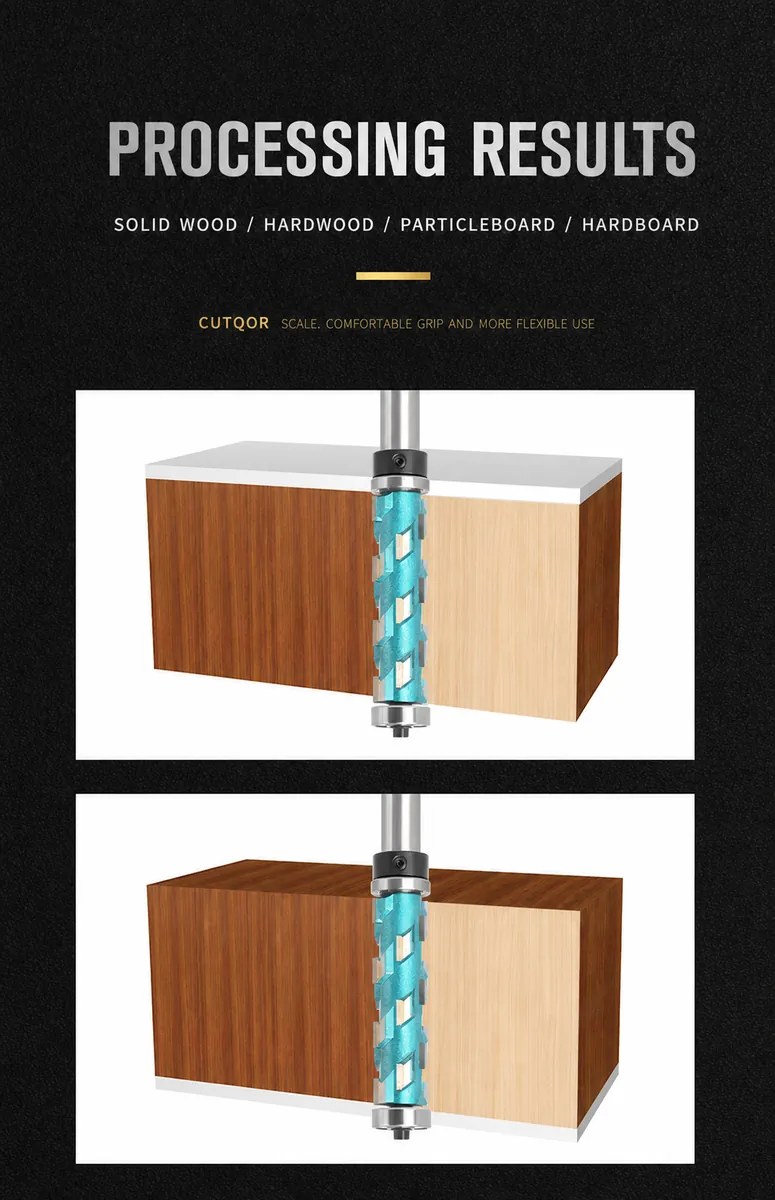

- Flush trimming solid wood, plywood, MDF and laminated panel edges
- Copy routing, workpiece duplication and clean edge finishing
- Cabinet, furniture, door, sign and production woodworking
Ordering guidance
Select the model by shank diameter, cutter diameter, cutting length and overall length. Confirm the required bearing position, workpiece thickness, cutting material, machine direction and quantity before requesting a quotation.
