90° V-Groove Panel Folding Bit — 1/2″ × 1-3/4″

Name: 90° V-Groove Panel Folding Bit — 1/2″ × 1-3/4″
SKU: 1/2X1-3/4

A 1/2-inch shank 90° V-groove cutter for woodworking chamfers, V-grooves and folding-line preparation on aluminum composite and integrated wall panels.

Wholesale · OEM · Custom Profiles

Need pricing for your quantity?

Send the required size, cutting material, machine type and quantity. We will confirm the suitable specification and quotation.

Request a quote Discuss a custom profile

Specification support before quotationConfirm the shank, cutting profile, material, machine and quantity so the suitable option can be reviewed.

Description

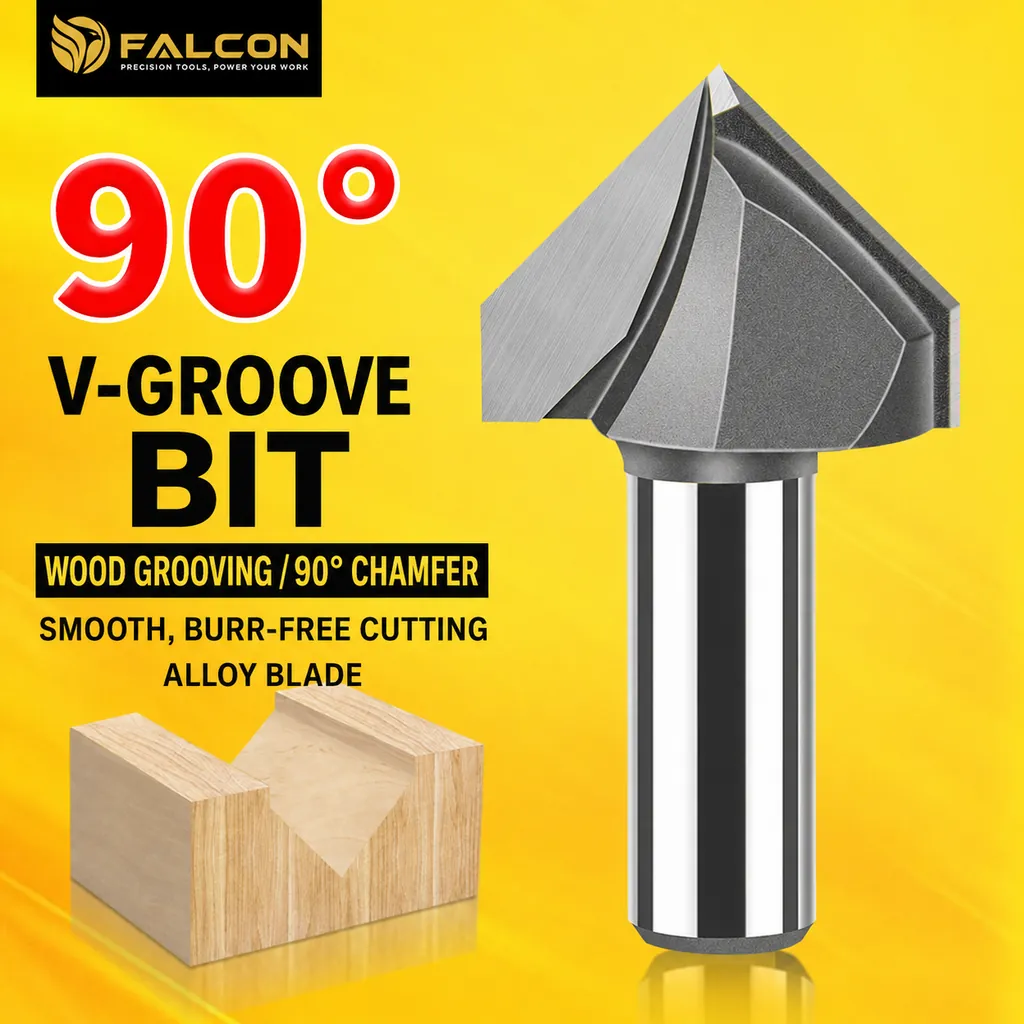

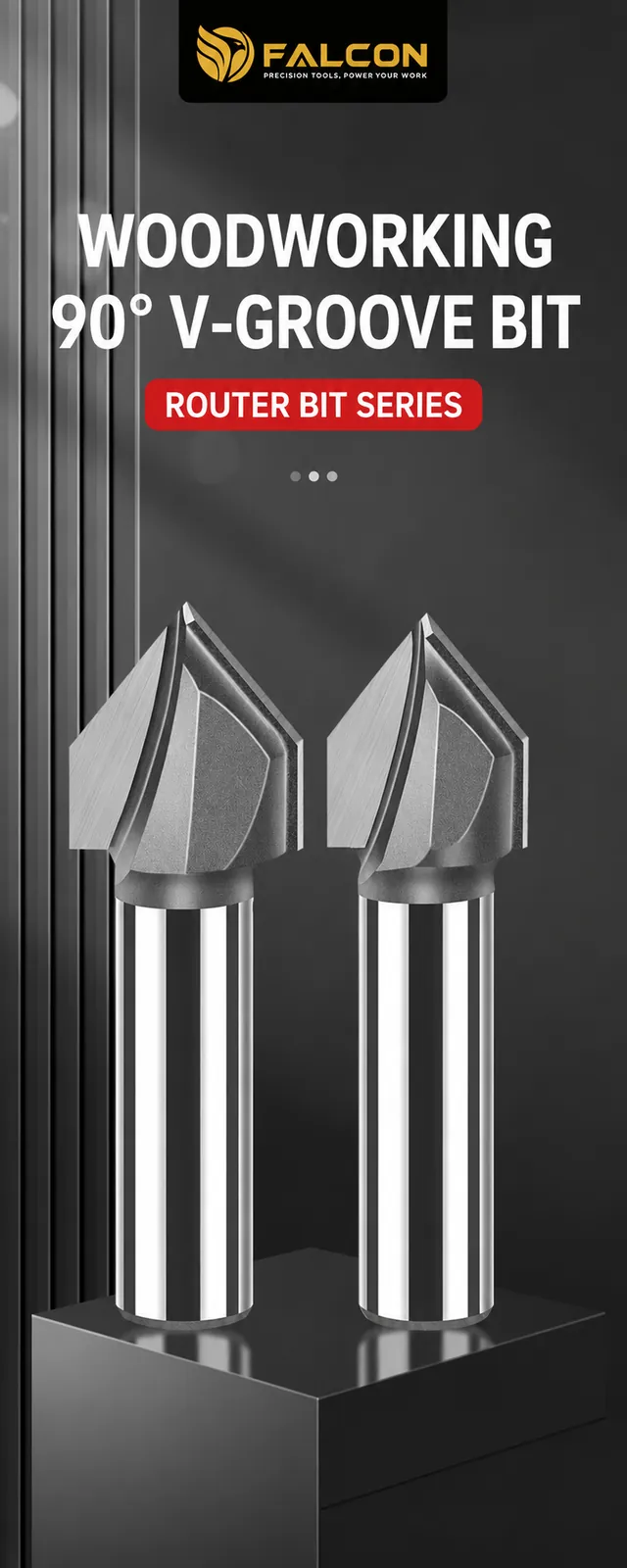

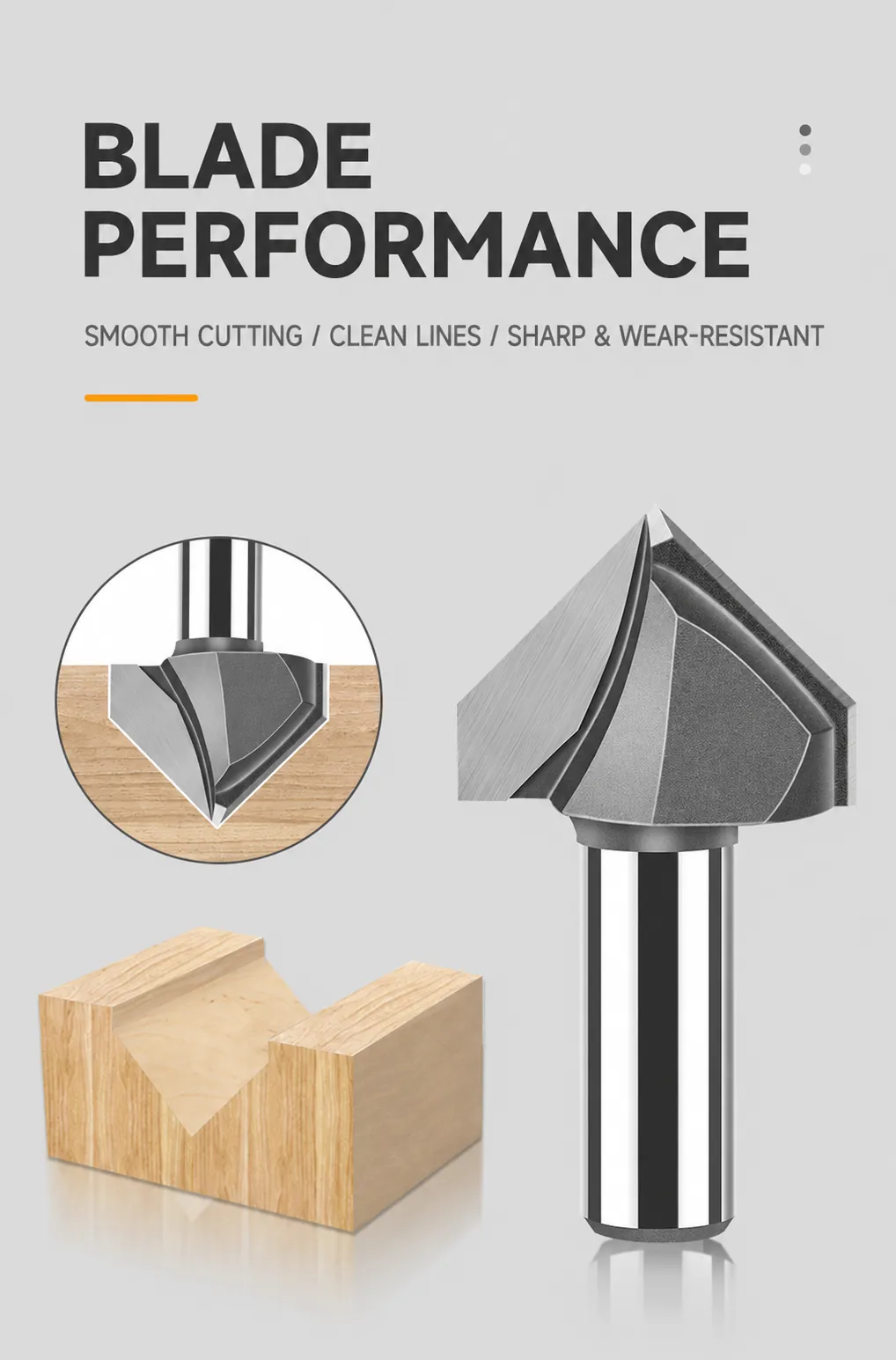

90° V-Groove Router Bit for Clean Chamfers and Folding Lines

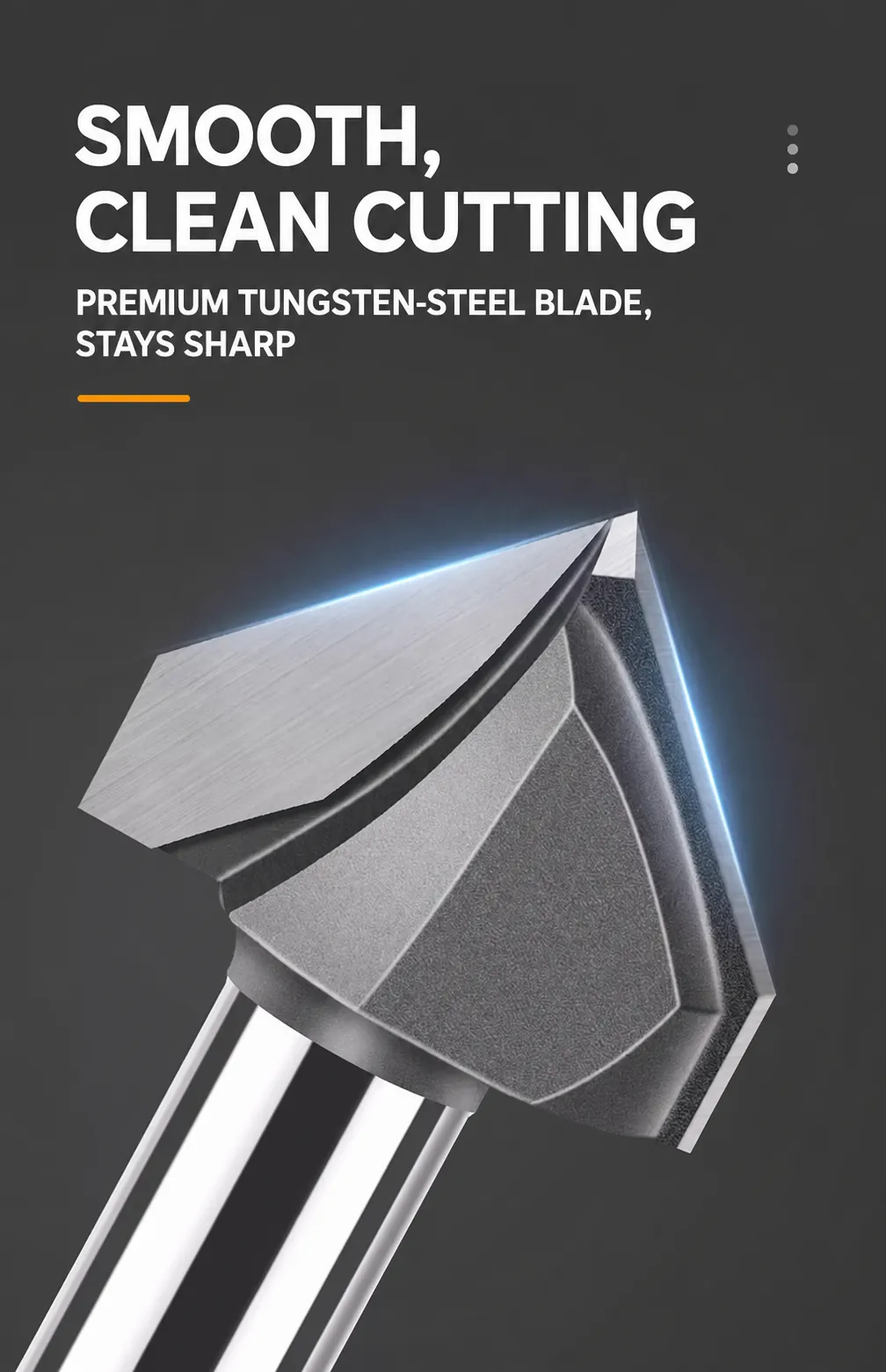

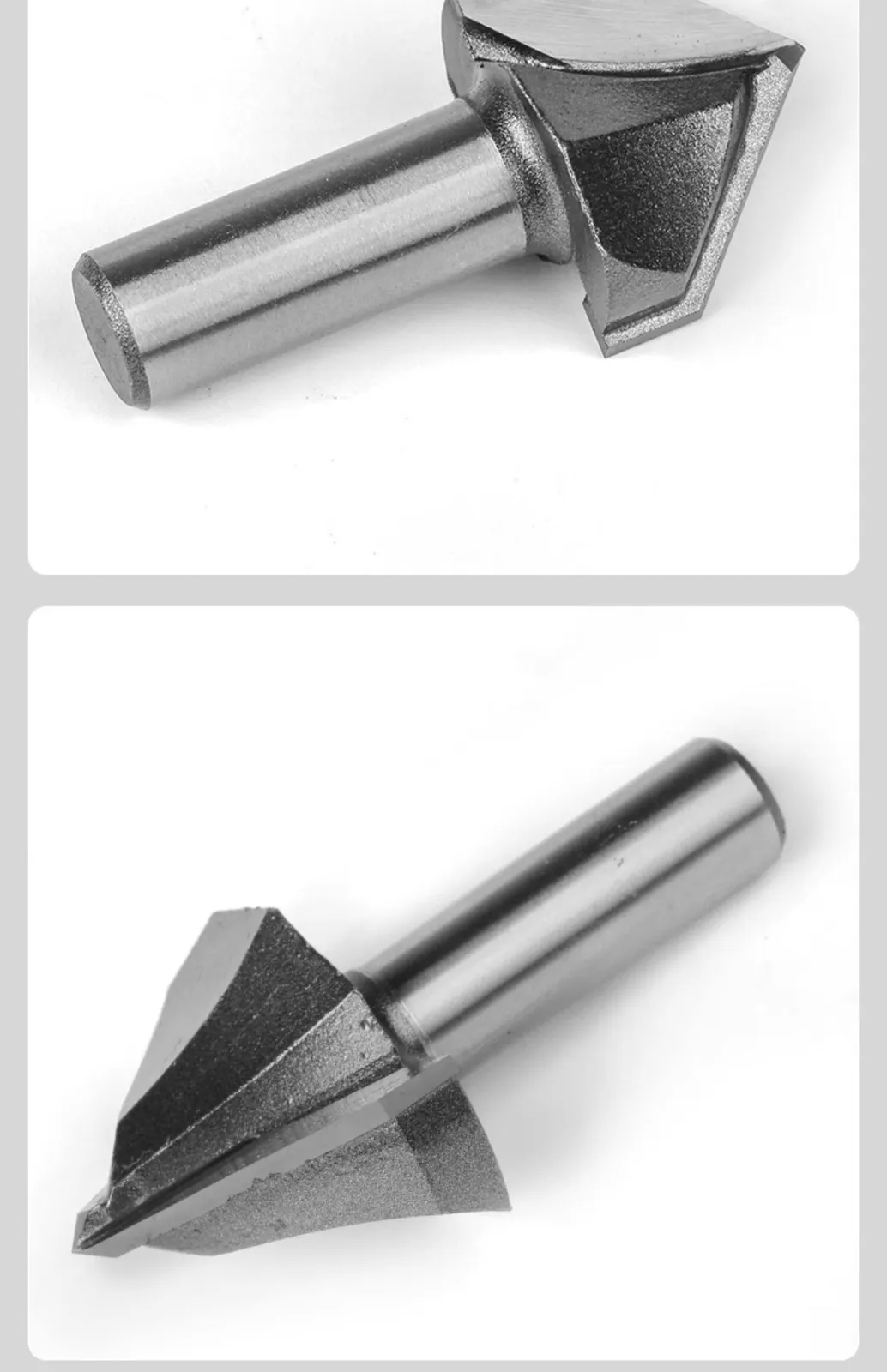

This large-profile carbide router bit produces a 90° V-groove for woodworking, edge chamfering and folding-line preparation. It is intended for compatible routers and CNC equipment working with wood, MDF, particleboard, aluminum composite panels and integrated wall panels.

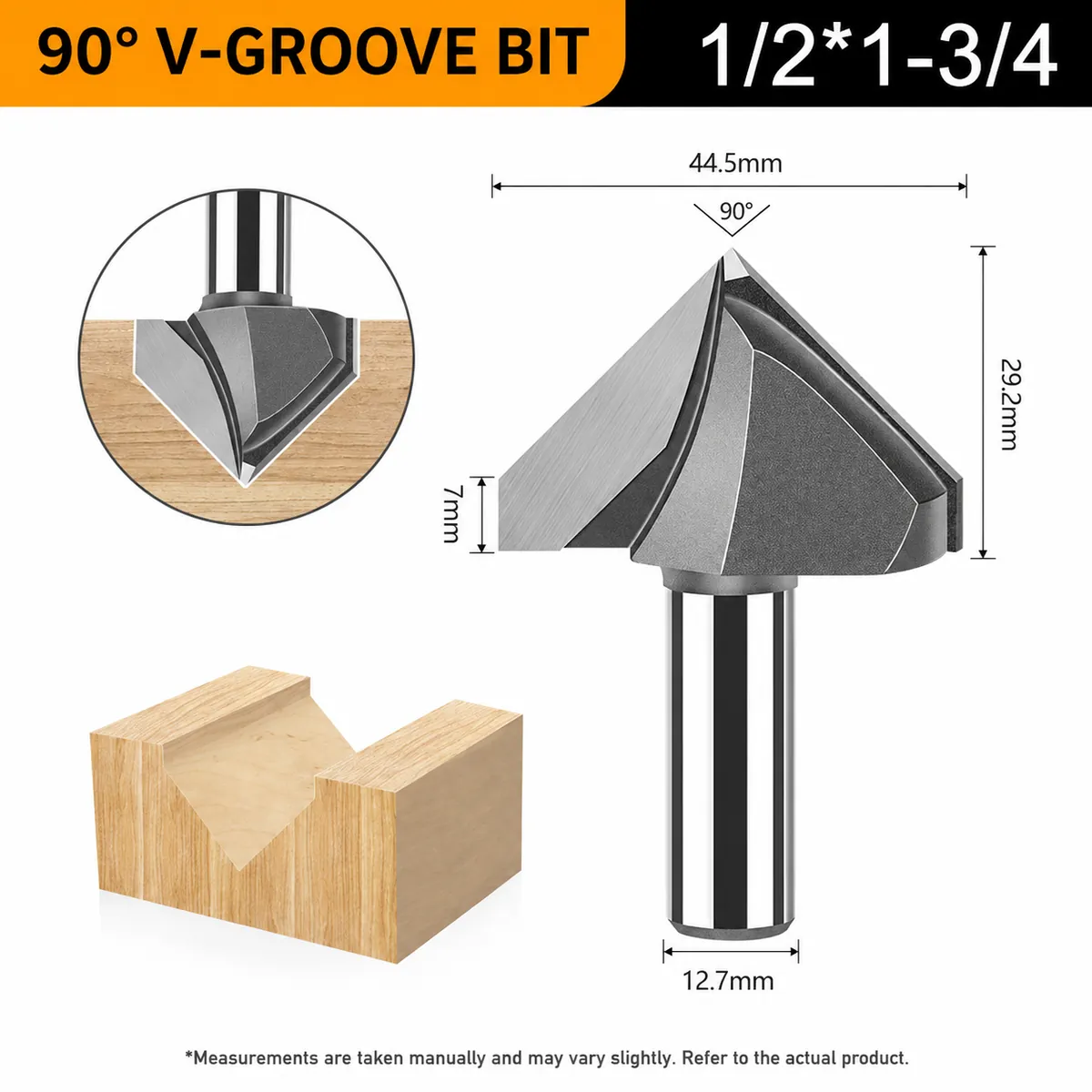

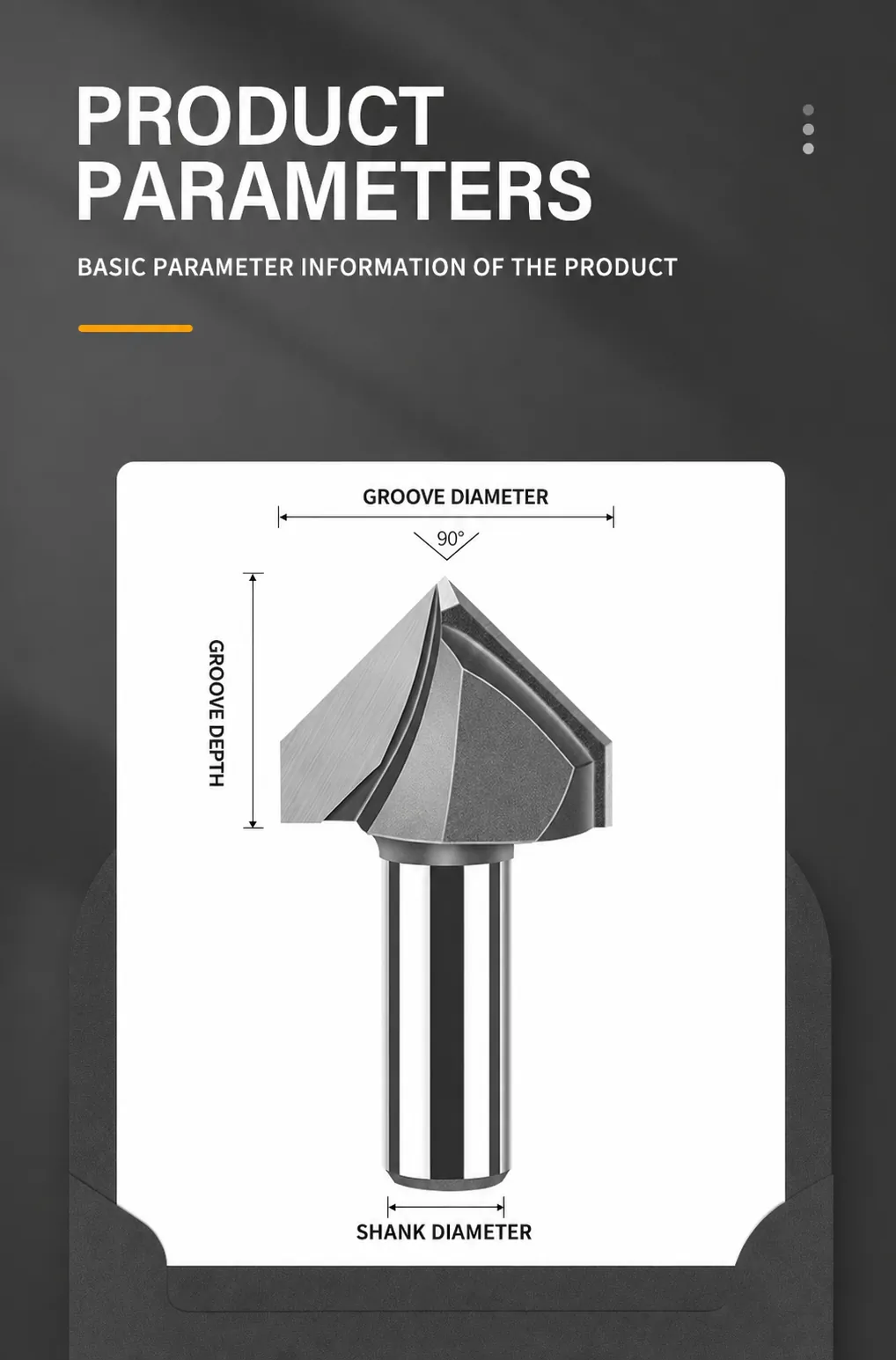

Key specifications

SKU	90° V-Groove Bit 1/2 × 1-3/4
Included angle	90°
Shank diameter	12.7 mm / 1/2 in
Cutting diameter	44.5 mm / 1-3/4 in
Groove depth	29.2 mm
Lower cutting-edge height	7 mm

Applications

90° V-grooving and chamfering in solid wood, hardwood, MDF and particleboard
Folding-line preparation for aluminum composite and integrated wall panels

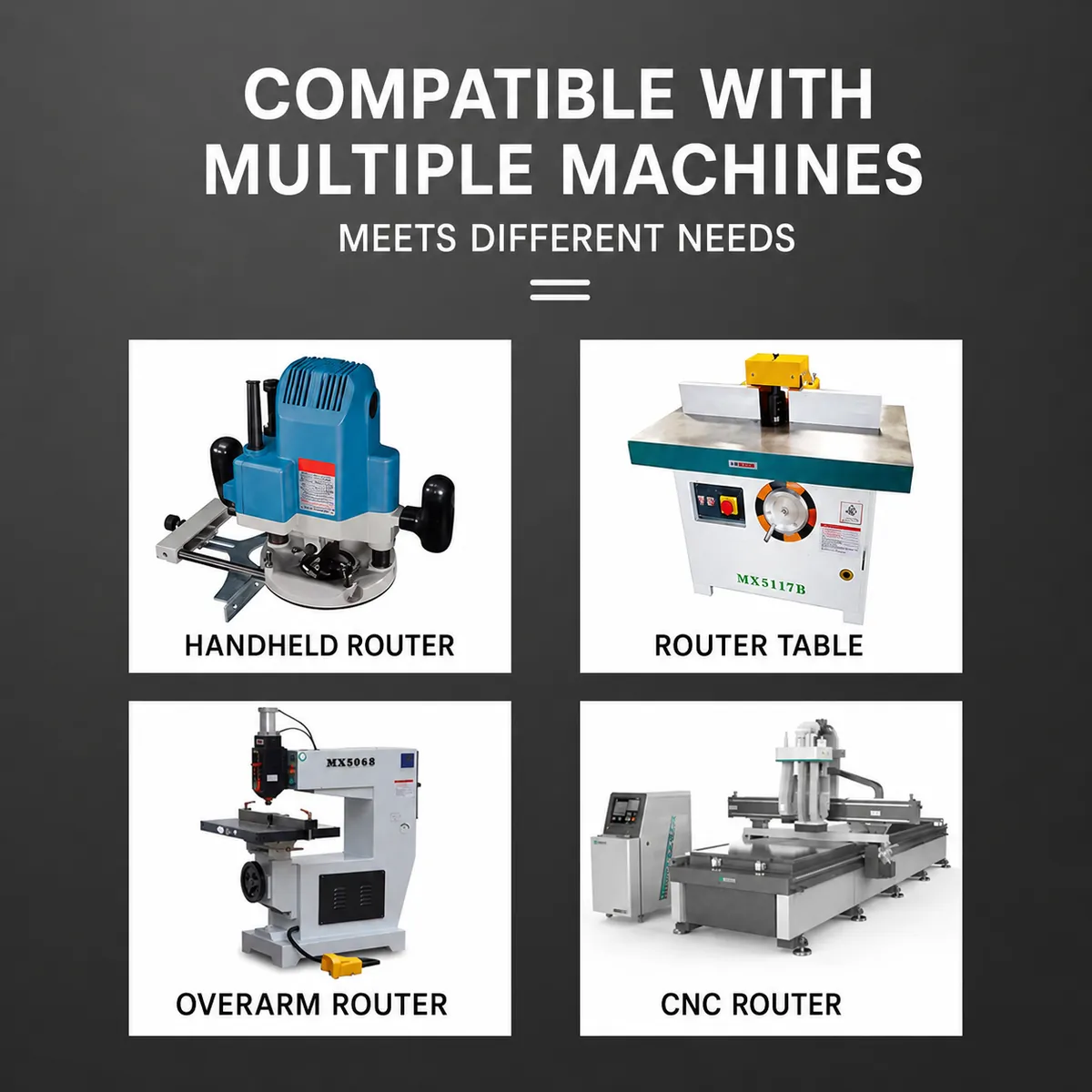

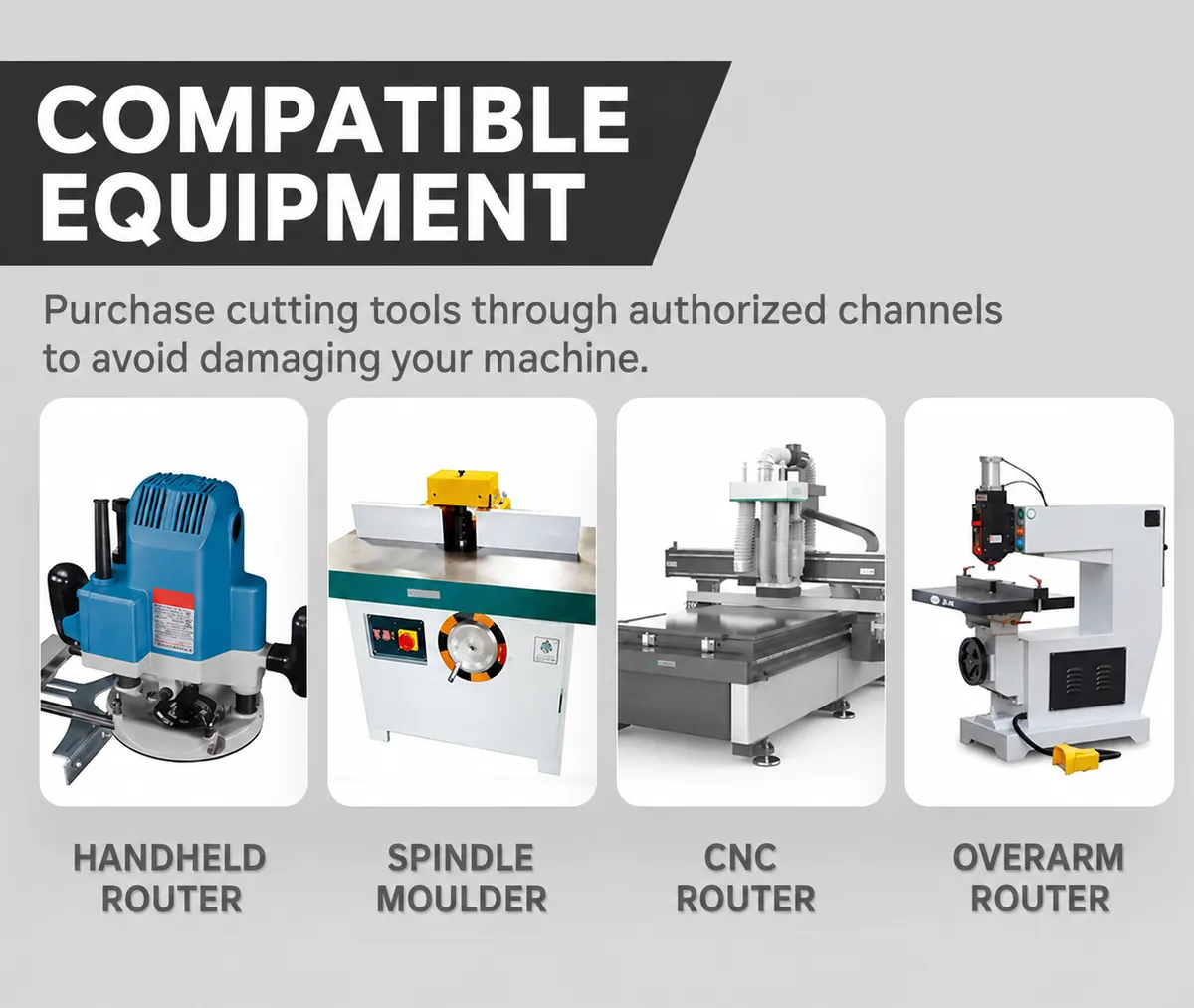

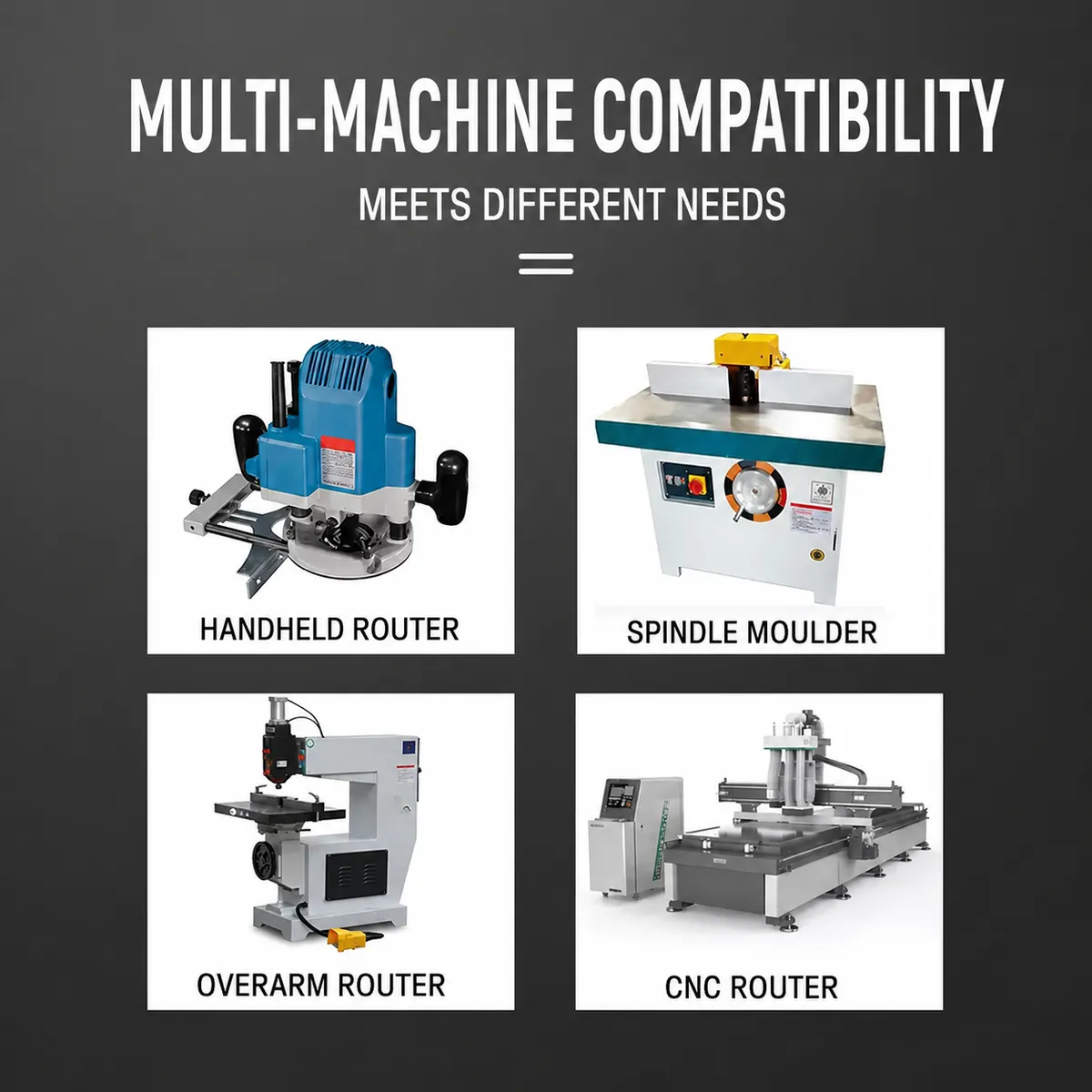

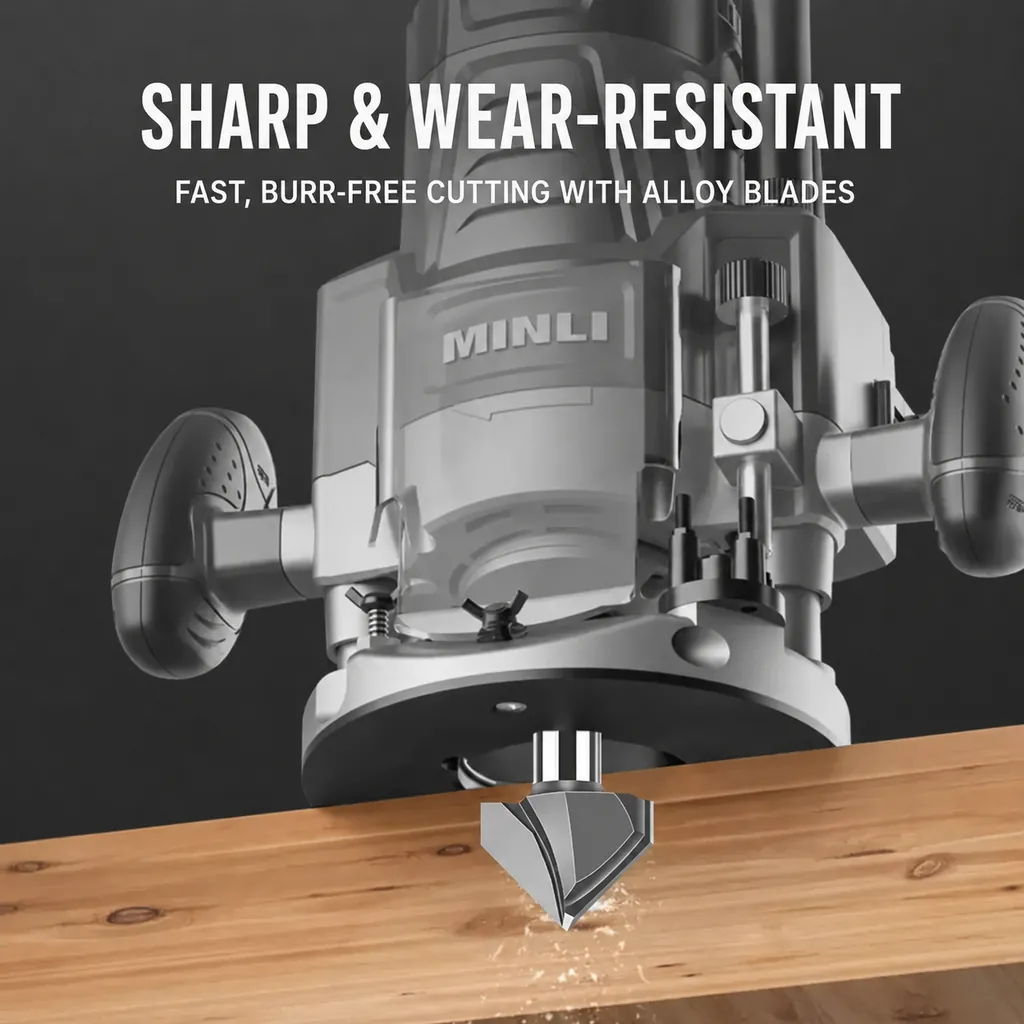

Edge forming with handheld routers, router tables, overarm routers and CNC routers

Ordering guidance

Confirm the 1/2-inch collet size, required groove depth, workpiece material and machine speed before ordering. For volume purchasing or application matching, send the material, machine model and target groove dimensions with your inquiry.
