1/4-Inch Shank 90° V-Groove Router Bits

A 1/4-inch-shank 90° V-groove router-bit family for V channels, bevels, panel folding grooves, edge forming and decorative woodworking. Choose 6.35 mm, 8 mm, 9.5 mm or 12.7 mm cutter diameters.

Key specifications

Cutter diameter	3–20 mm
Cutter thickness	0.5–8 mm
Clearance diameter	1.5–10 mm
Clearance length	4–25 mm
Shank diameter	4–20 mm
Overall length	50–75 mm
Flutes	4

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.

Standard model range

Select a model and dimensions

4 options

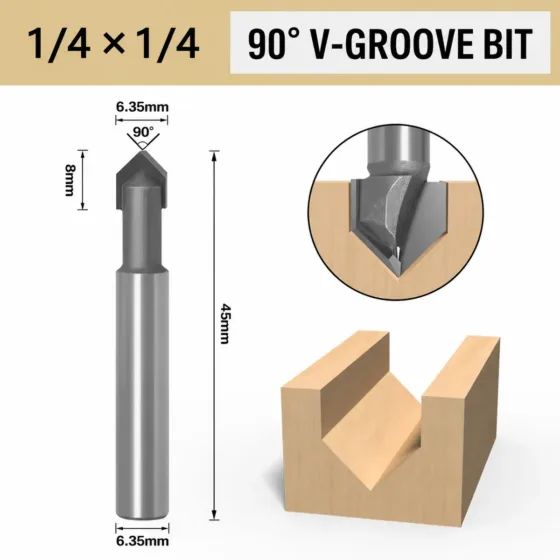

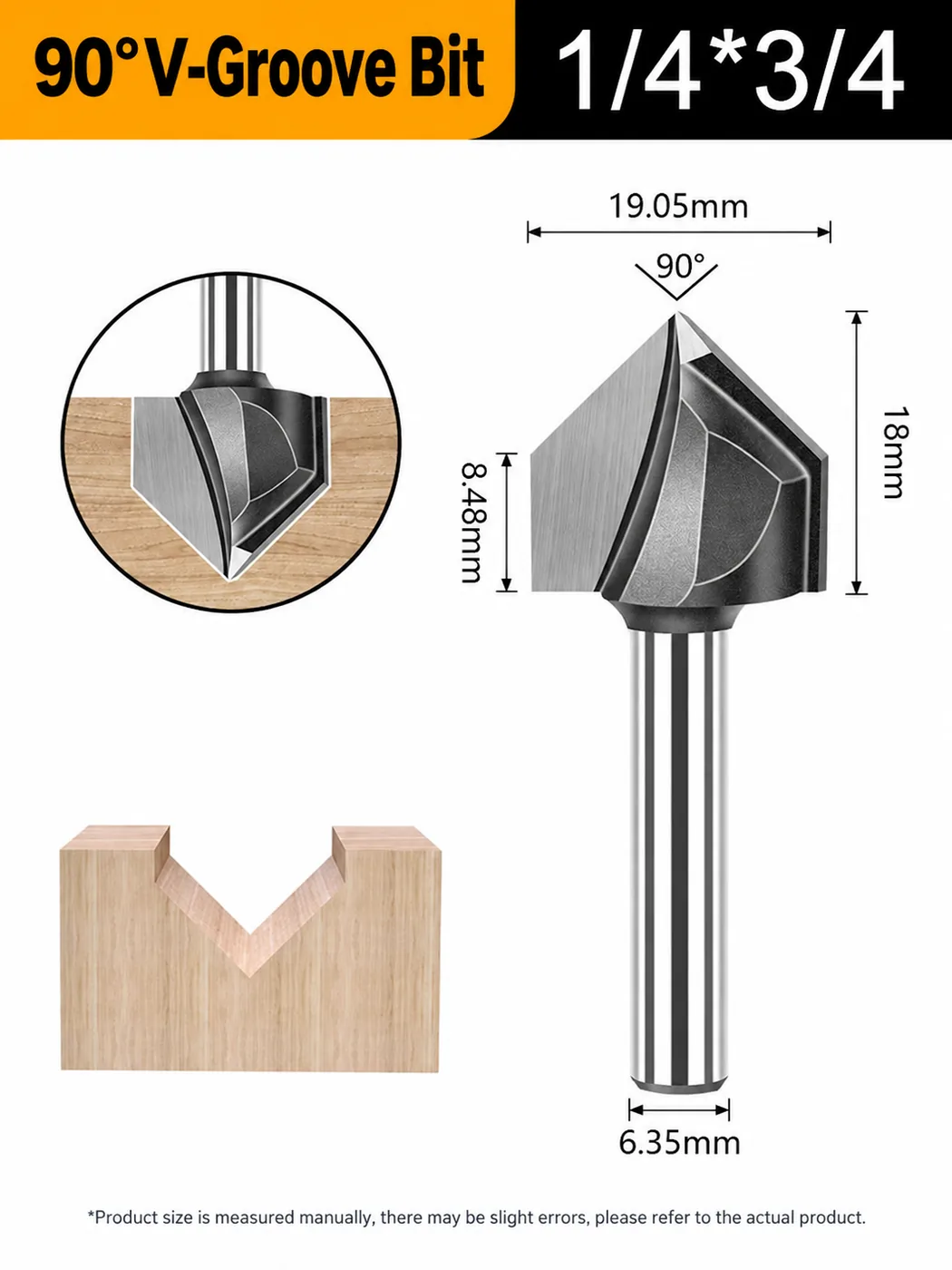

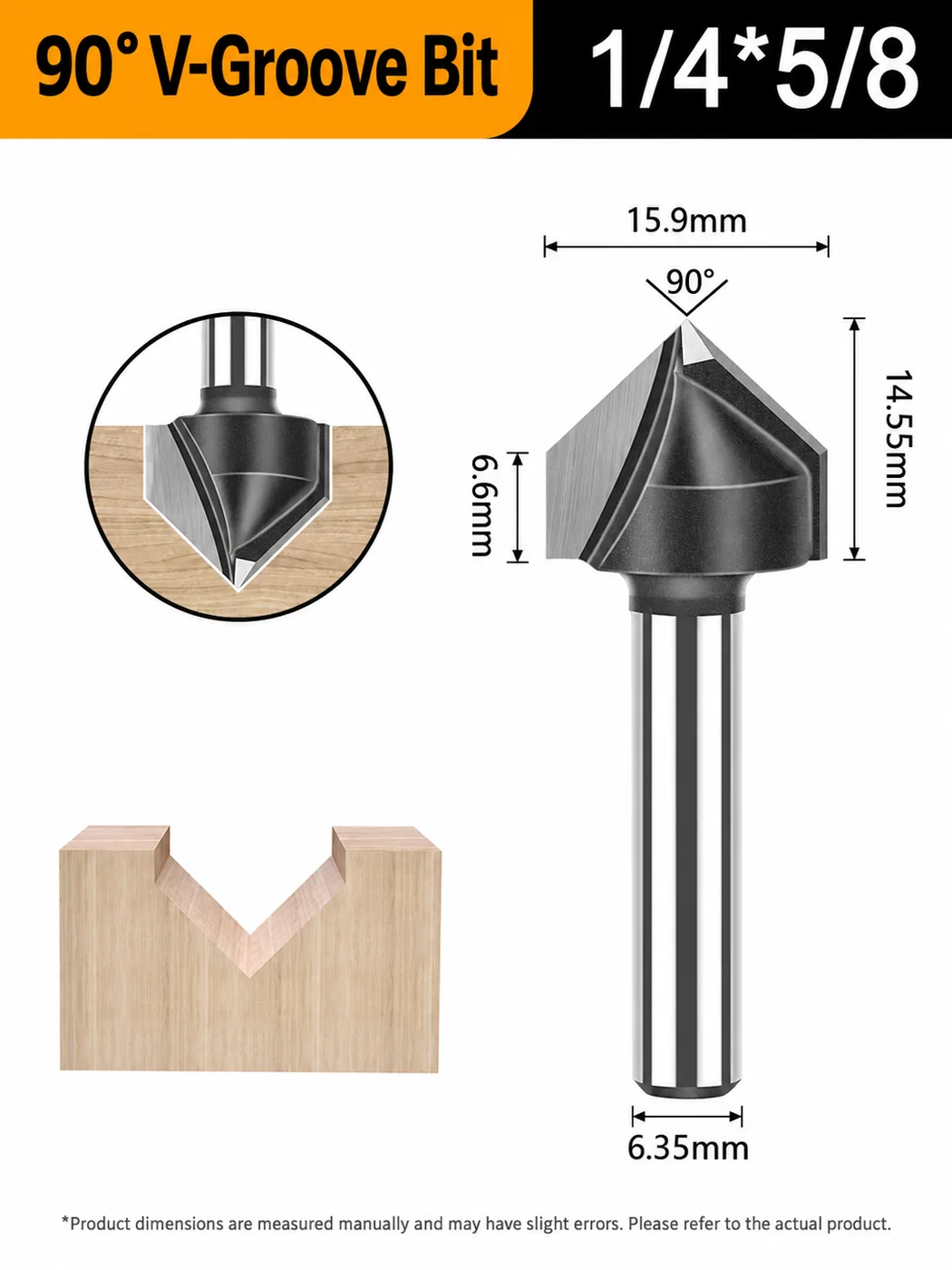

Inquiry selection: 90° V-Groove Bit — 1/4 × 1/4

Description

90° V-Groove Router Bits for Woodworking and Panel Folding

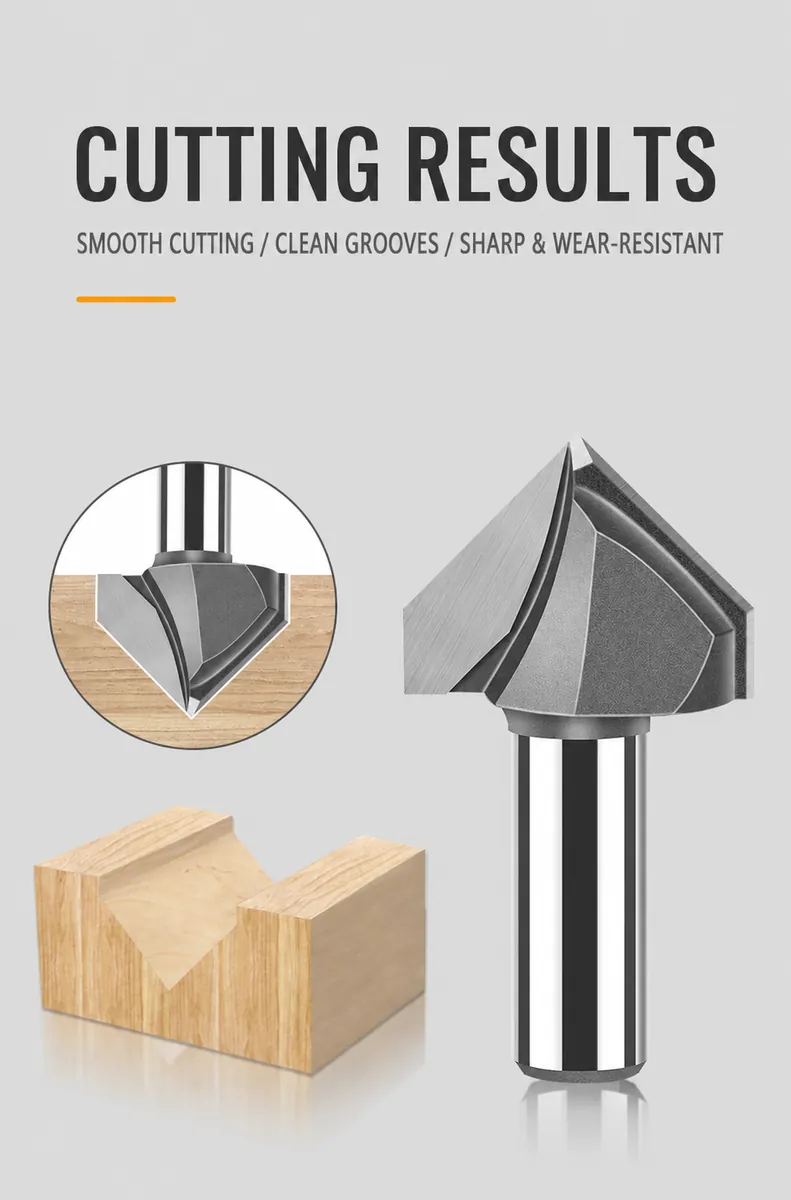

This 1/4-inch-shank cutter family creates clean 90-degree V grooves, bevels and folding lines. Four cutter diameters support detailed engraving, decorative woodworking, panel corner preparation and controlled edge forming.

Range specifications

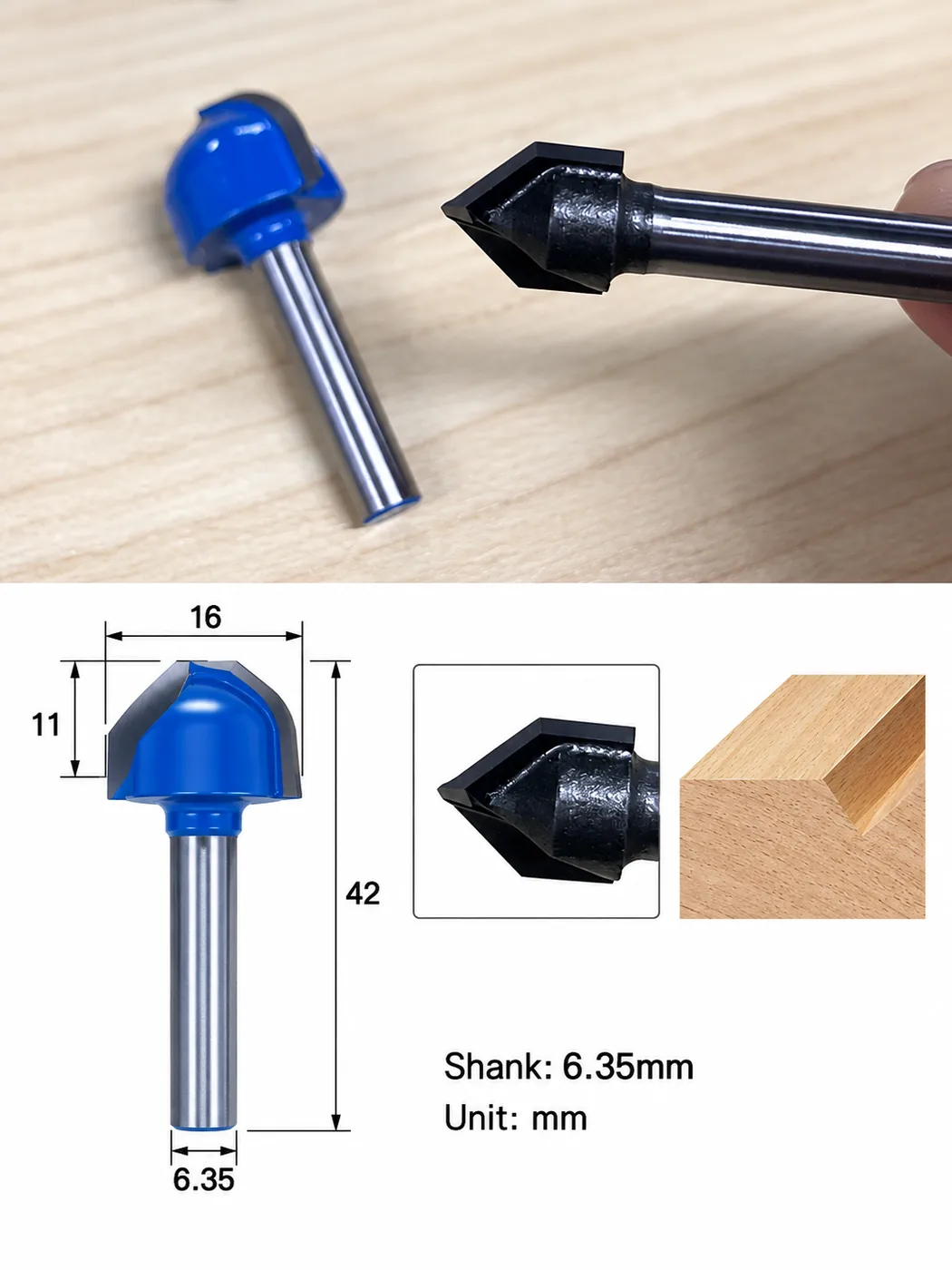

Shank diameter	1/4 inch / 6.35 mm
Profile angle	90° V

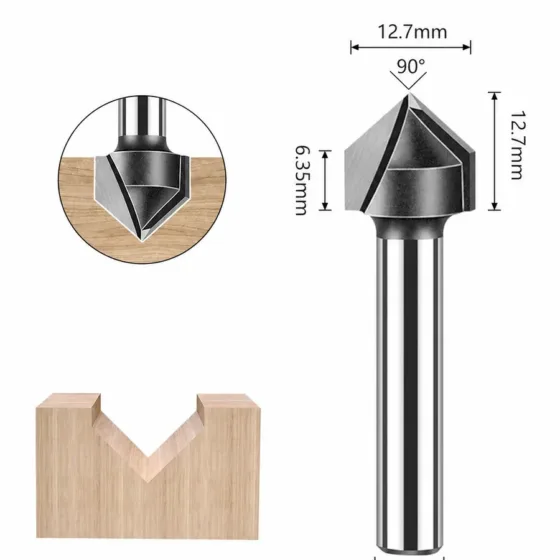

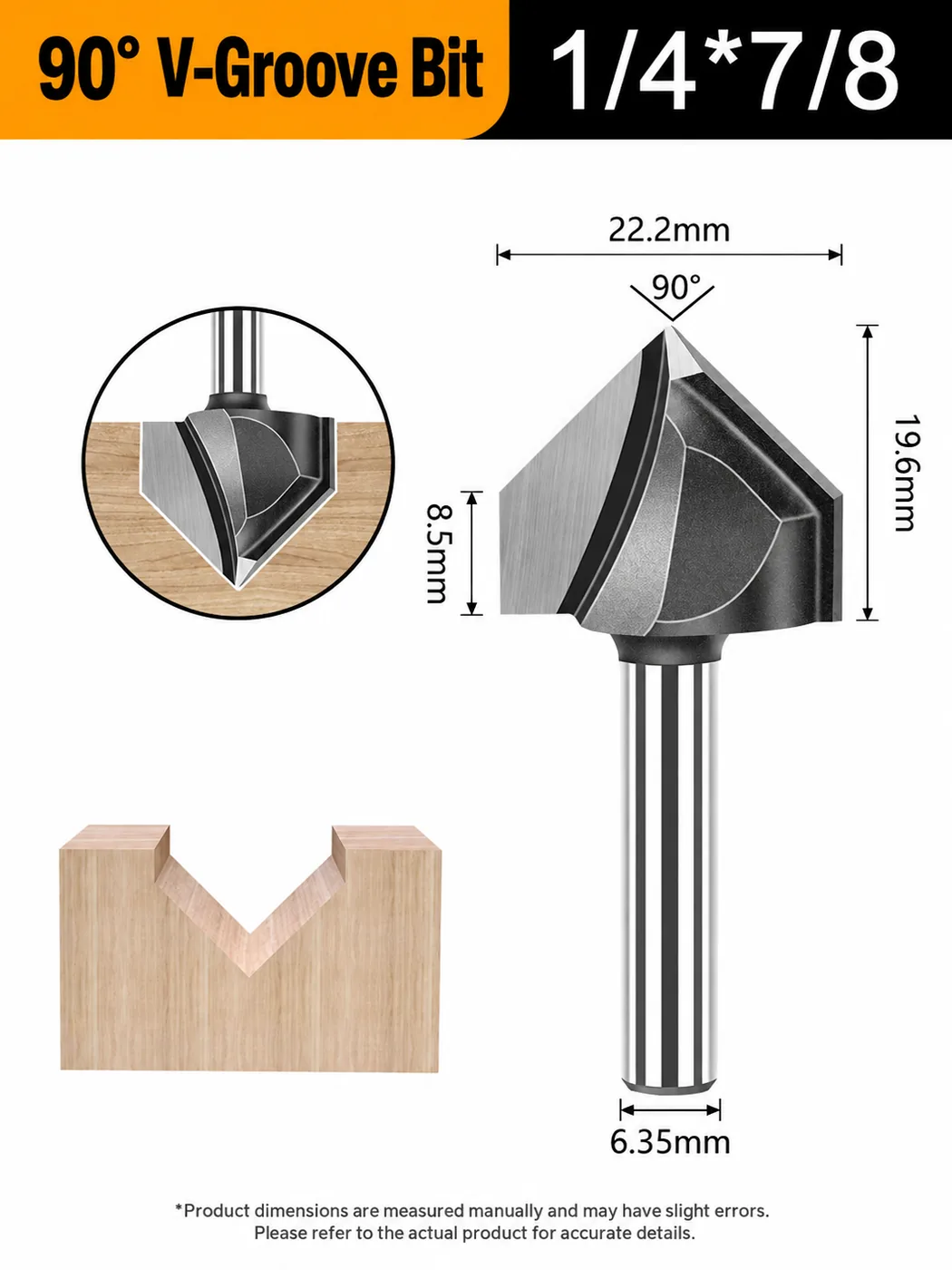

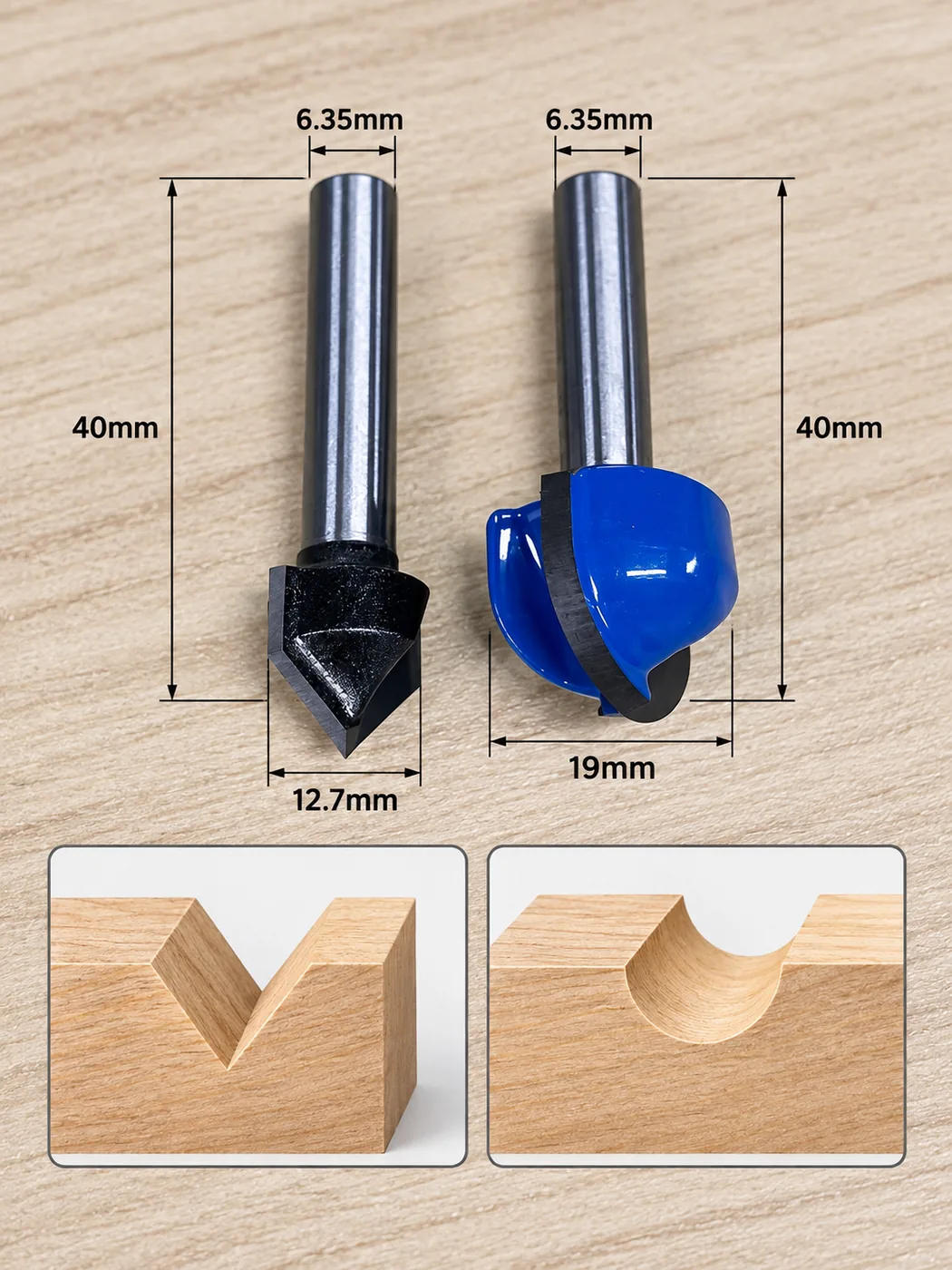

Cutter diameters	6.35 mm, 8 mm, 9.5 mm and 12.7 mm
Typical materials	Solid wood, hardwood, plywood, MDF, particleboard, aluminum composite panels and compatible integrated wall panels

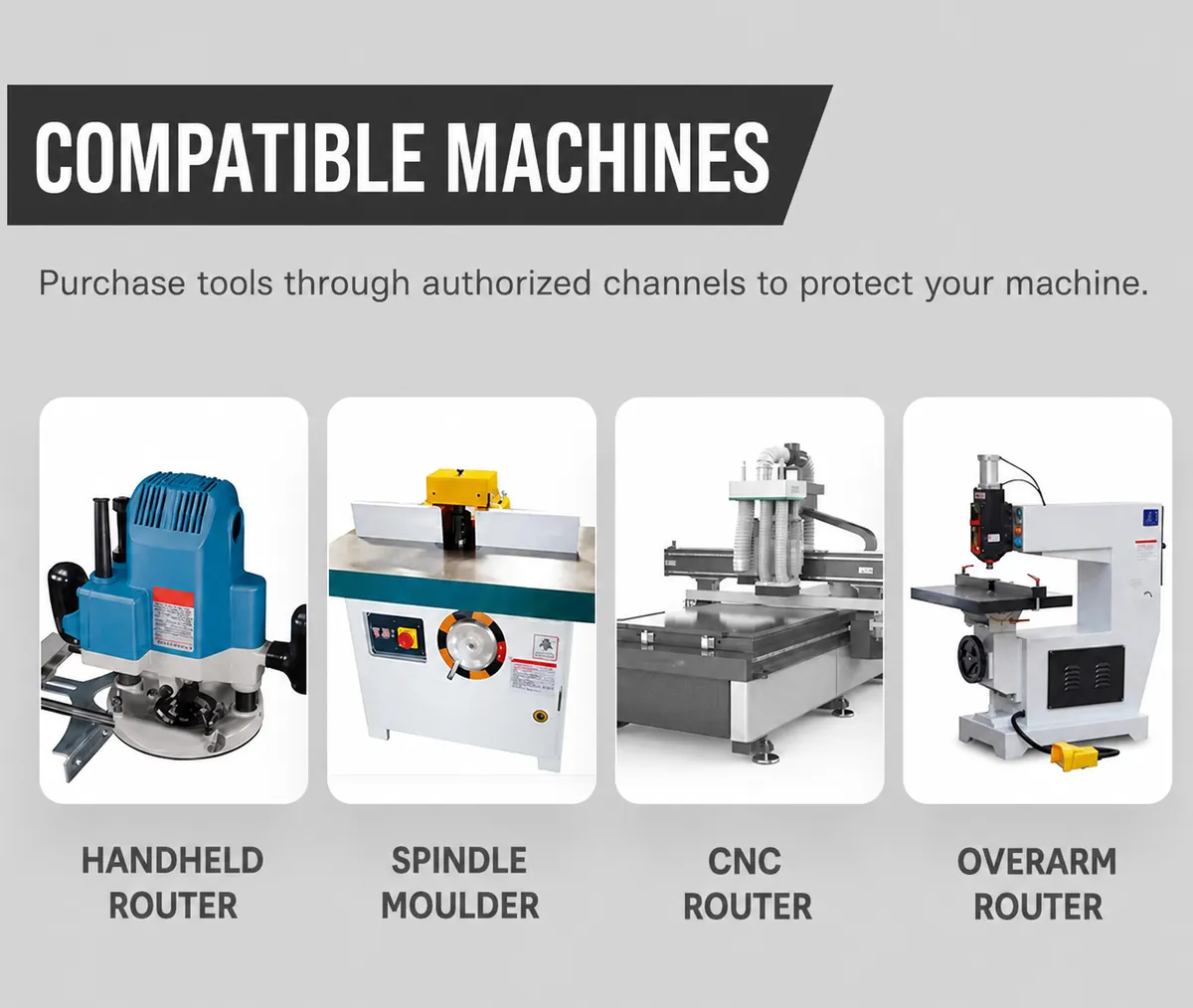

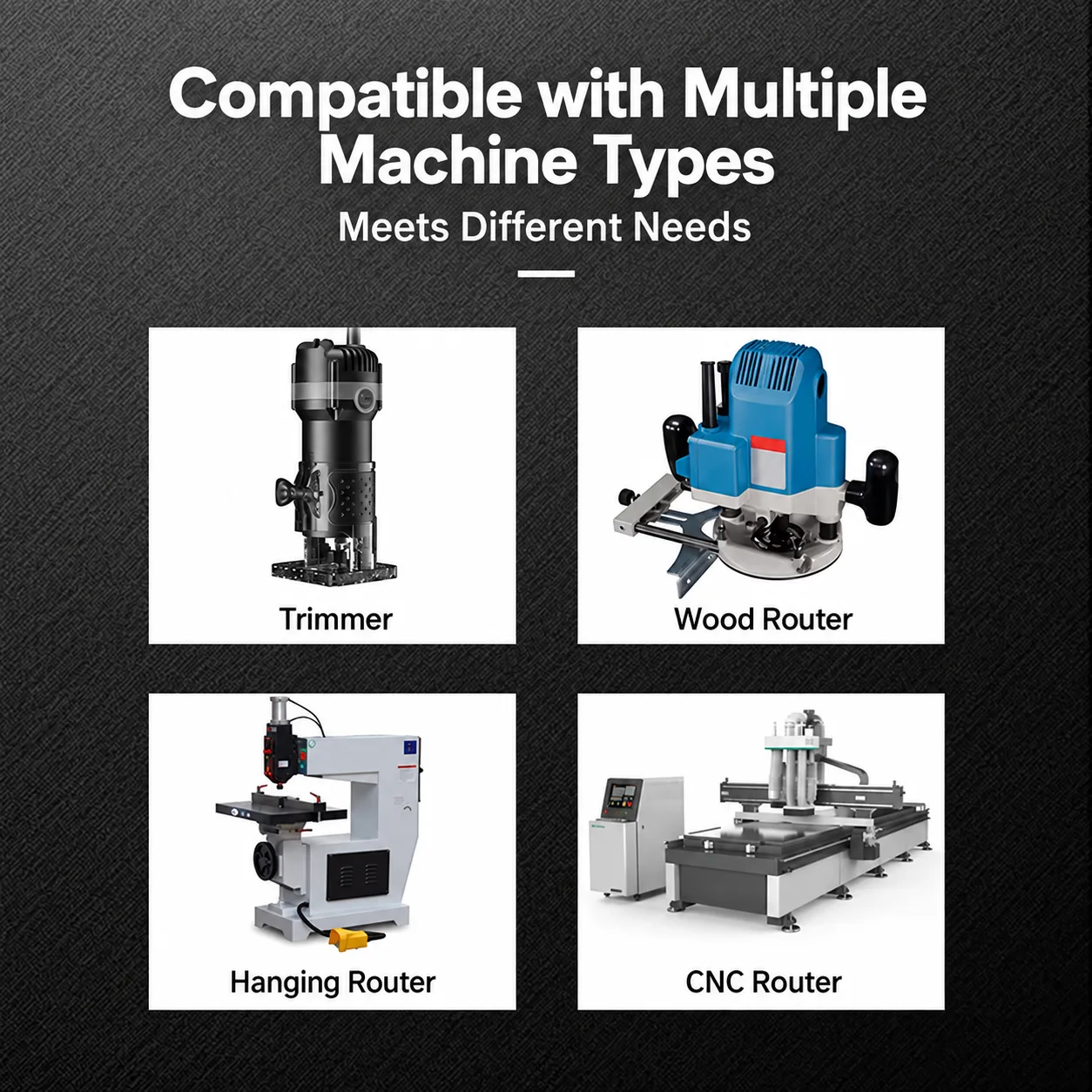

Compatible equipment	Handheld routers, trimmers, spindle moulders, overarm routers and compatible CNC routers

Typical applications

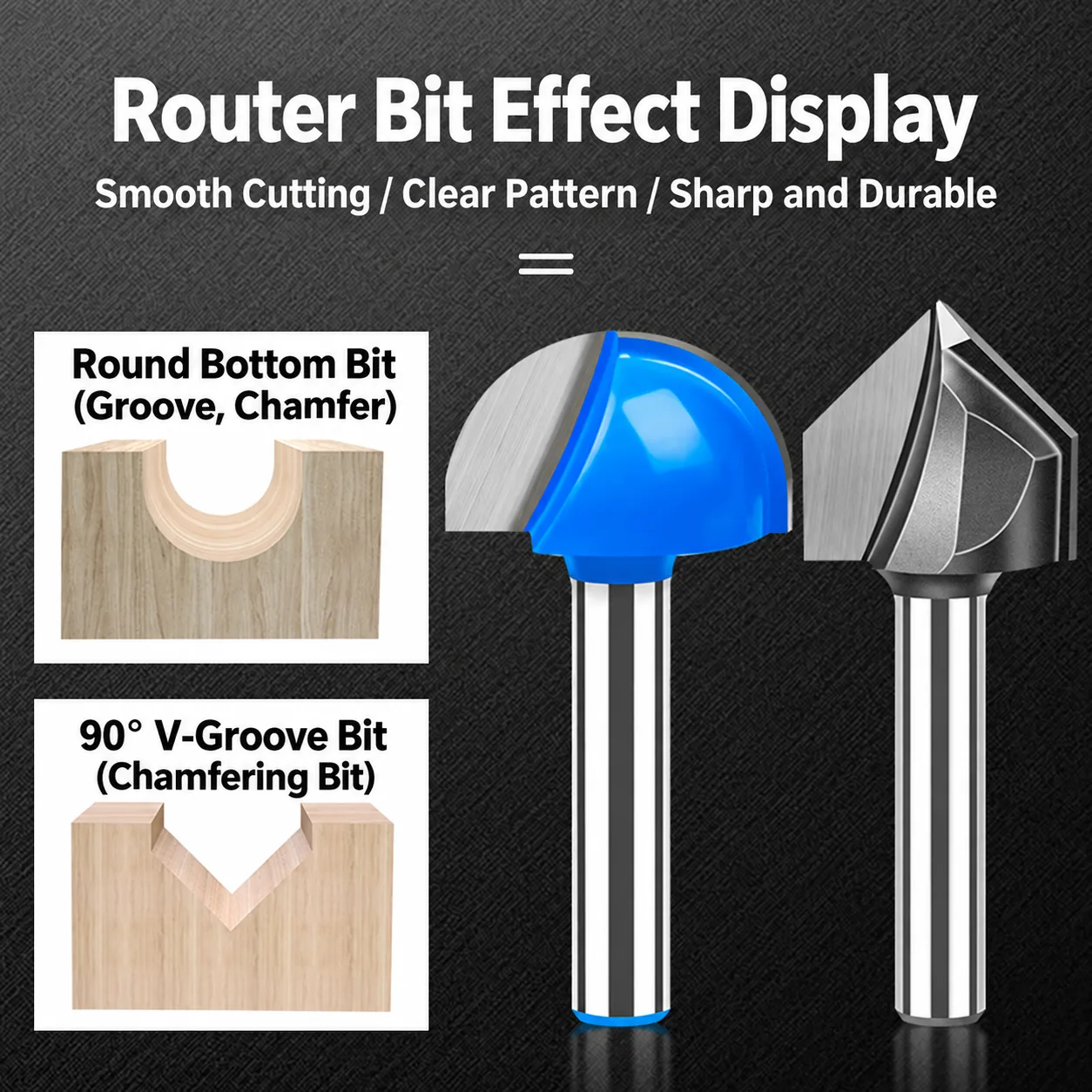

90-degree V grooves, decorative lines, engraving and lettering

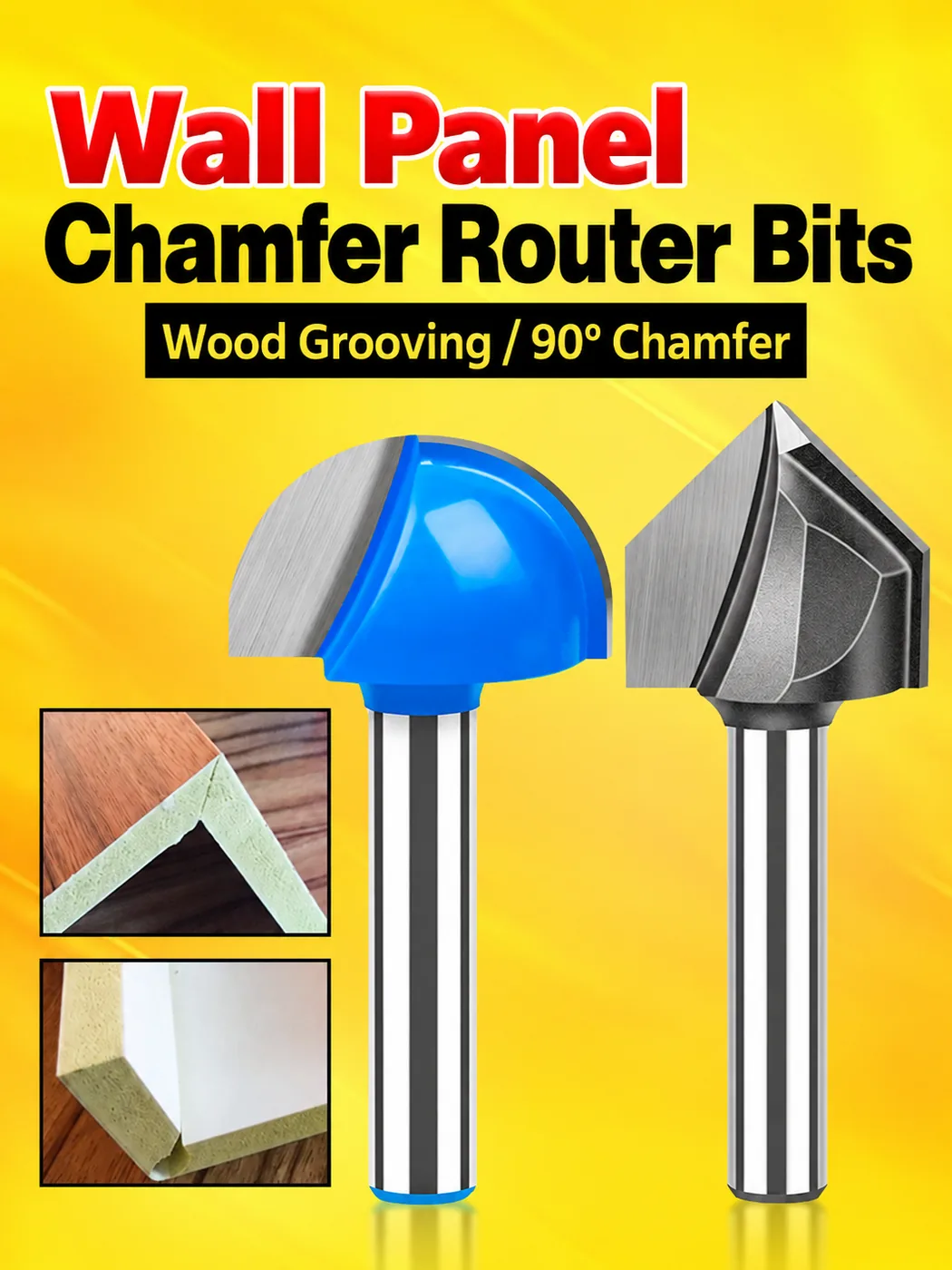

Beveled edges, corner relief and panel folding-line preparation
Woodworking, cabinet panels, aluminum-composite panels and compatible wall panels
Production routing, CNC work and portable-router operations

Ordering guidance

Select the illustrated cutter diameter and confirm a 6.35mm collet. Include the workpiece material, groove depth, machine type, quantity and packaging requirements with your inquiry. For aluminum-composite or integrated-wall panels, confirm the panel construction and required residual skin thickness before production.
