CUTQOR Bearing-Guided Flush-Trim Router Bit Series

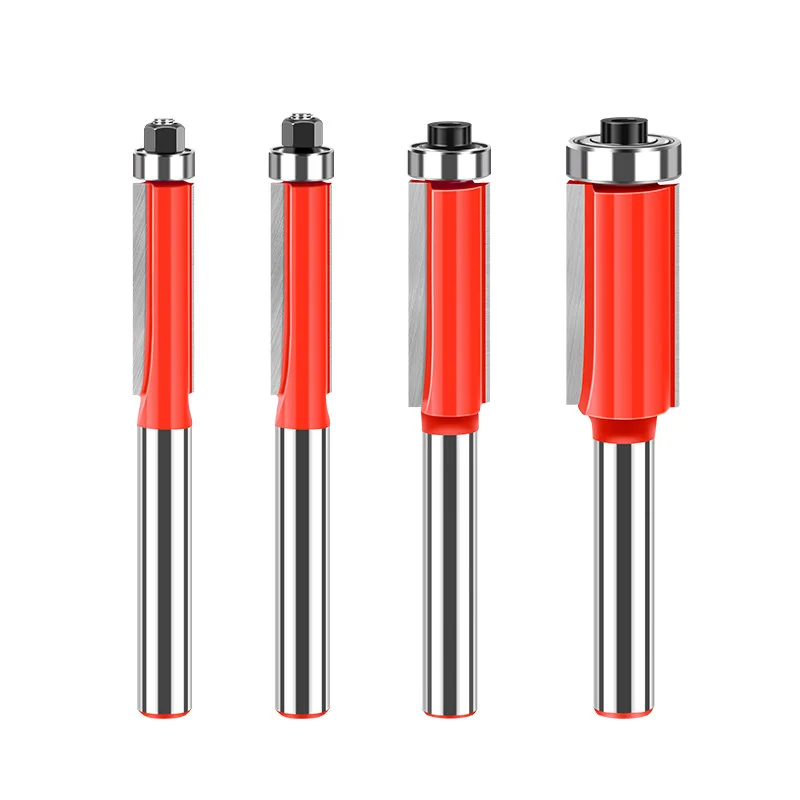

CUTQOR Bearing-Guided Flush-Trim Router Bit Series product view

Bearing-Guided Flush-Trim Router Bit Series

A broad bearing-guided flush-trim router-bit range with top-bearing, bottom-bearing, double-bearing, extra-long and multi-piece options for edge trimming and template routing.

Key specifications

Cutter diameter	3–20 mm
Cutter thickness	0.5–8 mm
Clearance diameter	1.5–10 mm
Clearance length	4–25 mm
Shank diameter	4–20 mm
Overall length	50–75 mm
Flutes	4

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.

Standard model range

Select a model and dimensions

40 options

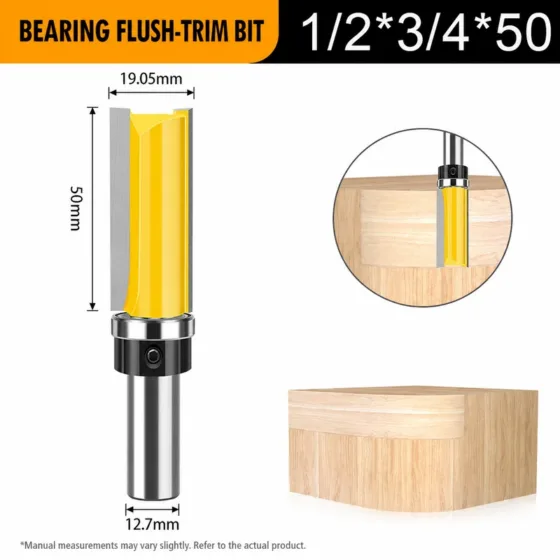

Inquiry selection: Top-Bearing Flush-Trim Bit 1/2 in × 3/4 in × 50 mm

Description

Bearing-Guided Flush-Trim Bits for Clean, Repeatable Edge Work

Select from compact trim bits, long-reach cutters and double-bearing designs for template duplication, straight edge trimming and woodworking production. Available options cover 1/4-inch and 1/2-inch shanks with multiple cutter diameters and cutting lengths.

Range specifications

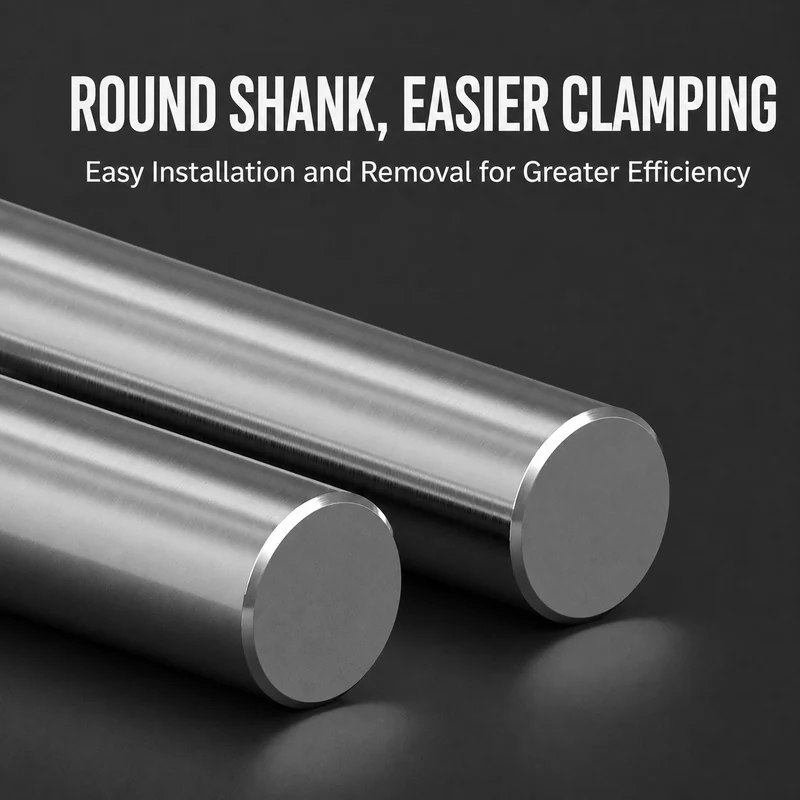

Shank sizes	1/4 in (6.35 mm) and 1/2 in (12.7 mm)
Designs	Top-bearing, bottom-bearing, double-bearing, extra-long and multi-piece sets

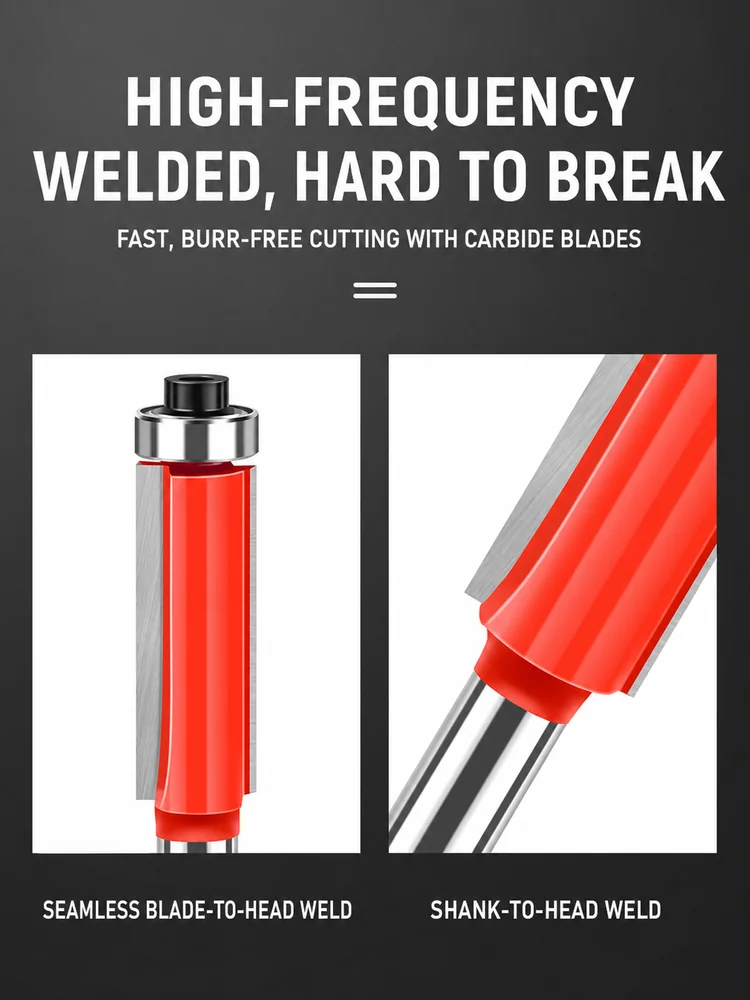

Cutting material	Tungsten-carbide cutting edges with steel bodies
Compatible equipment	Trim routers, CNC routers, engraving machines, router tables and overarm routers

Typical applications

Template routing and copy trimming
Flush trimming of solid wood, hardwood, plywood and MDF
Edge forming and laminate trimming
Cabinet, furniture and production woodworking

Ordering guidance

Send the required bearing position, shank size, cutter diameter, cutting length, material and quantity. Confirm all dimensions before ordering.

Product Details

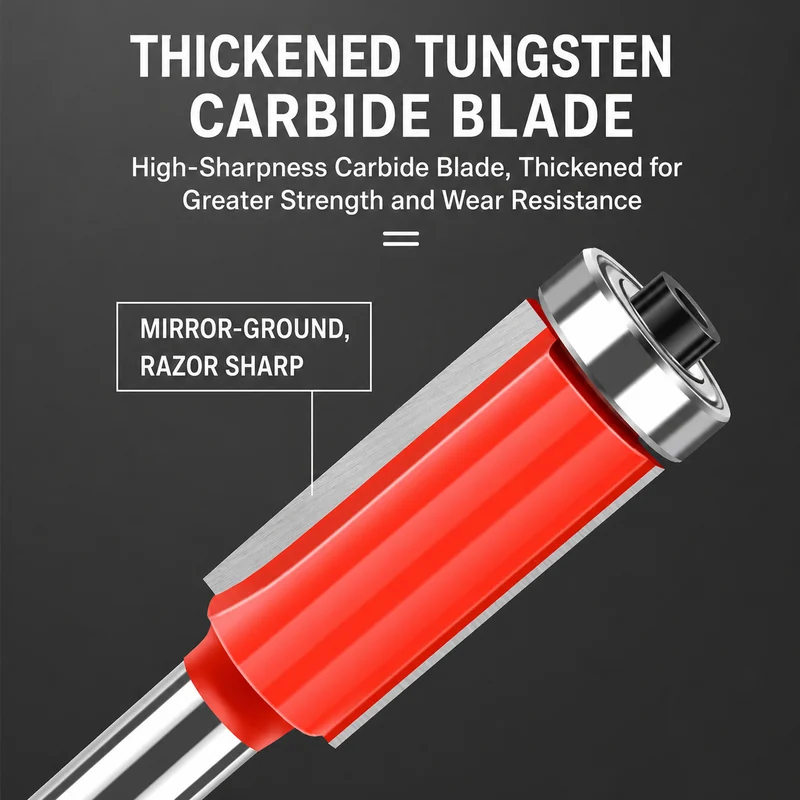

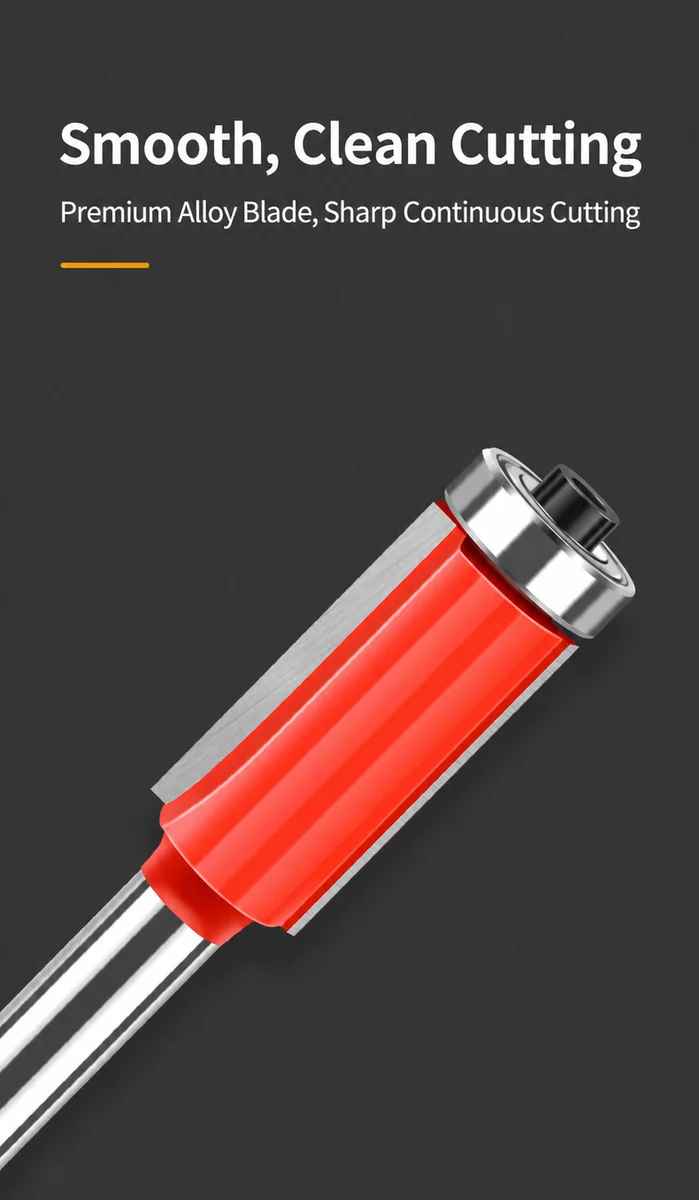

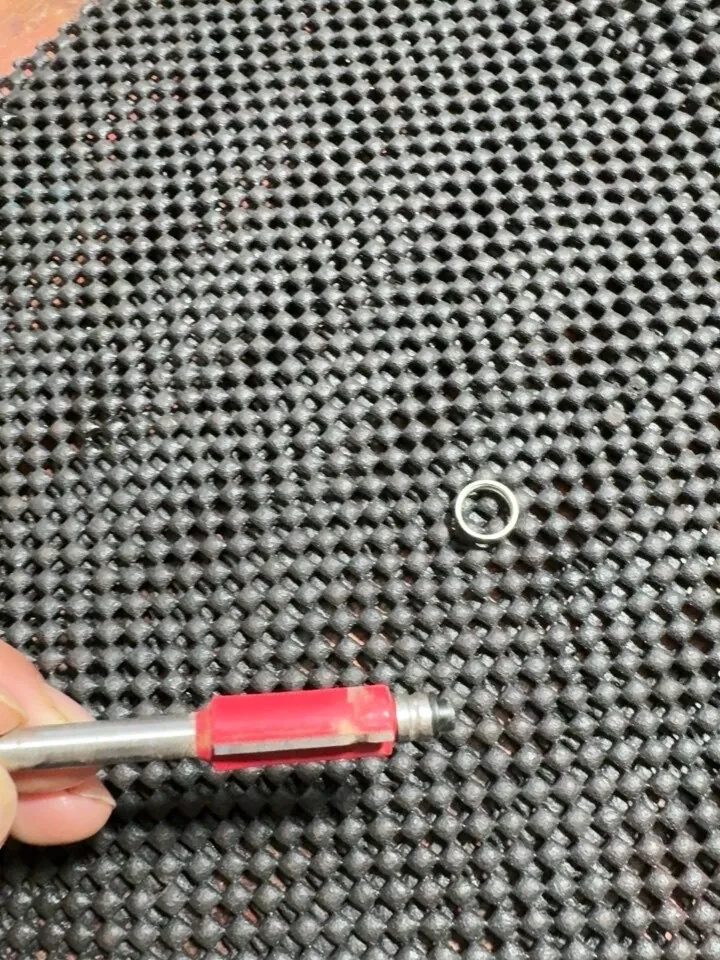

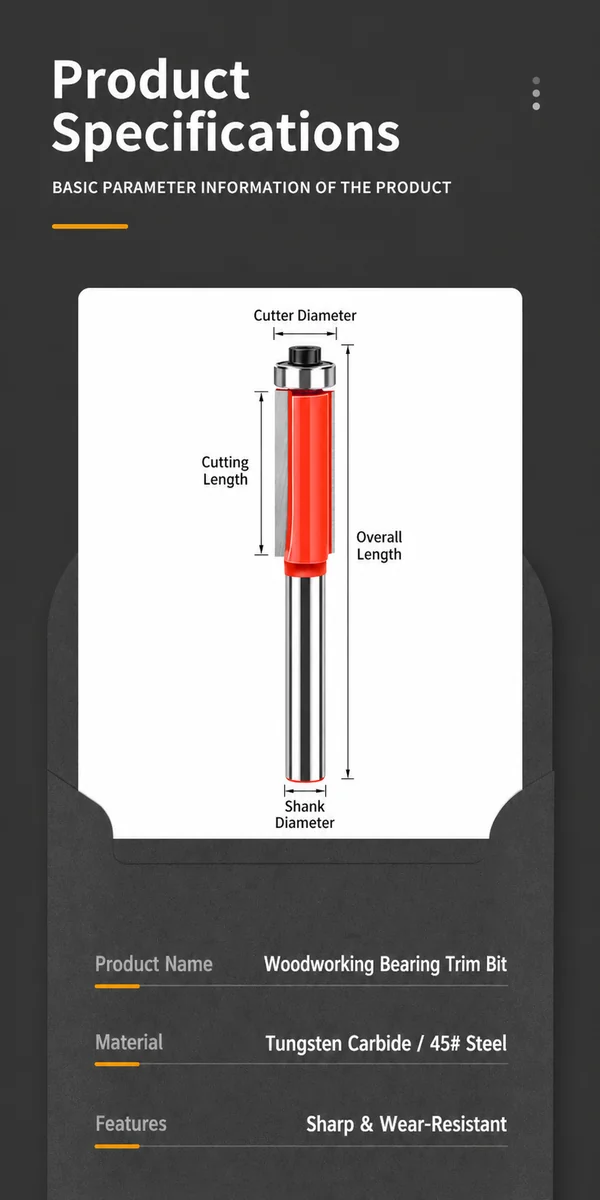

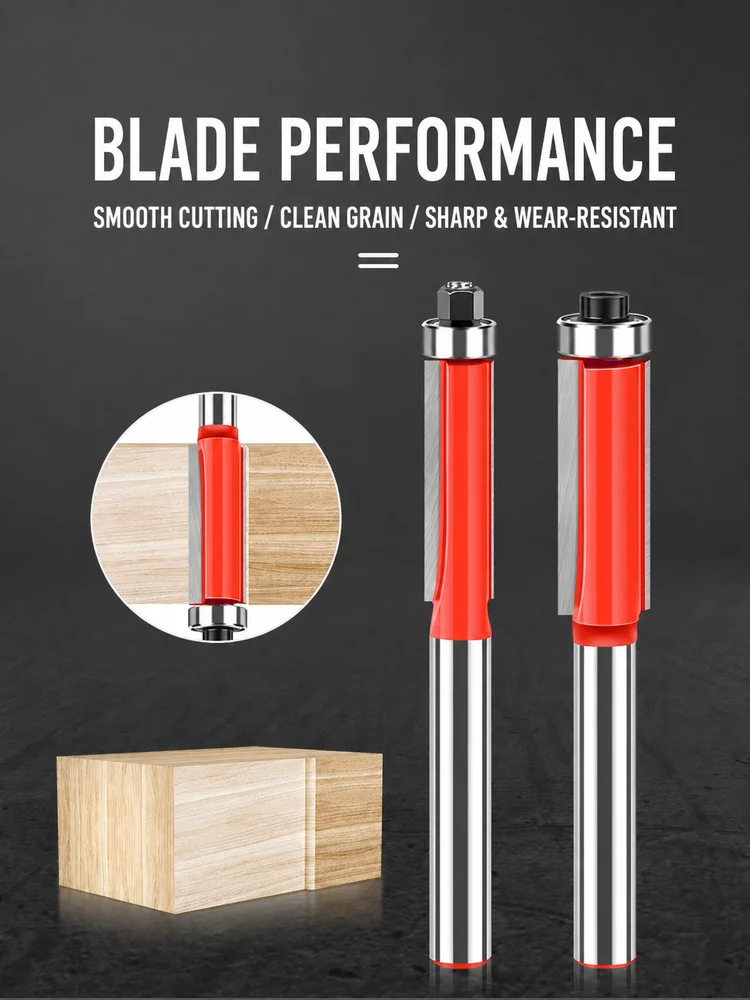

CUTQOR Bearing-Guided Flush-Trim Router Bit Series product detail

Additional information

Design / Shank / Cutter Size

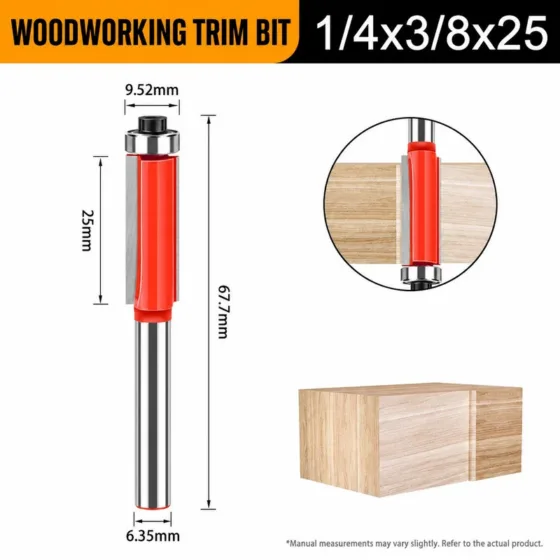

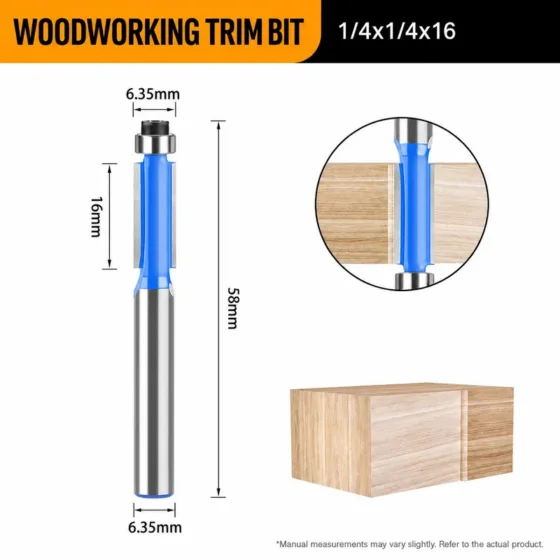

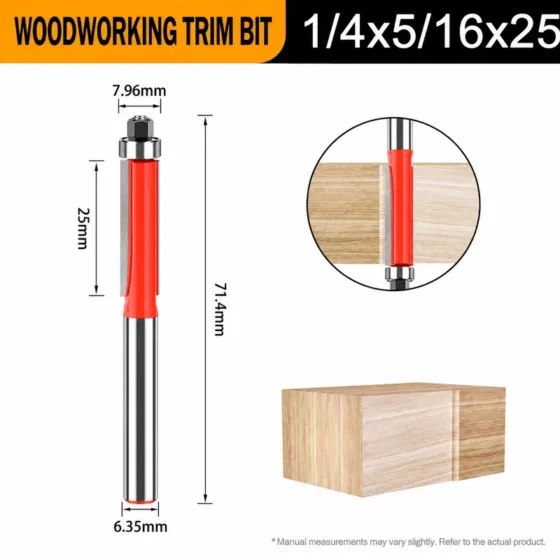

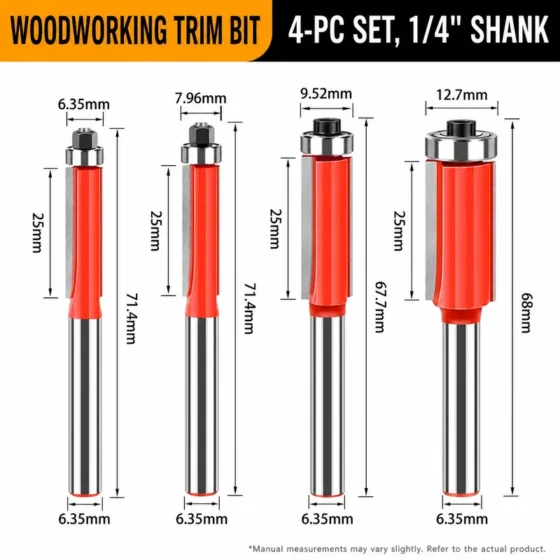

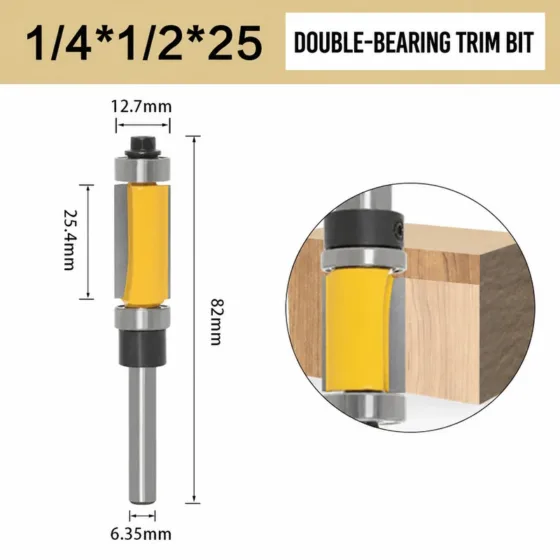

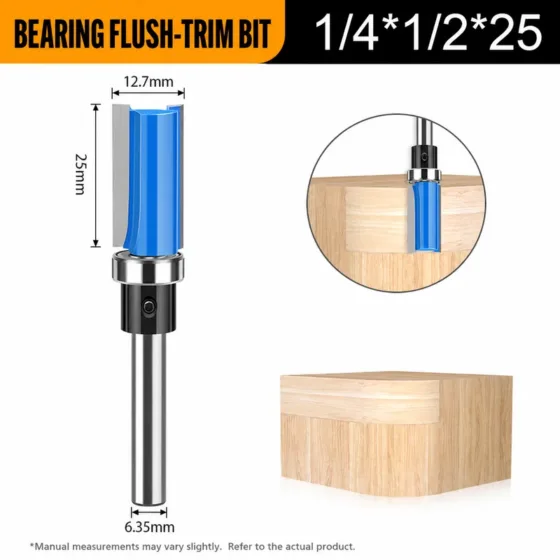

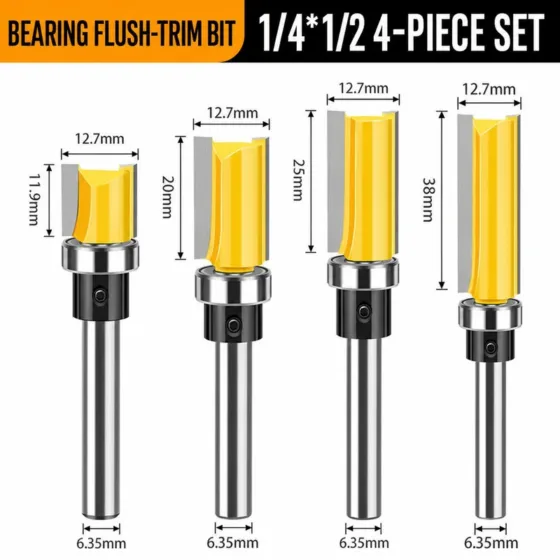

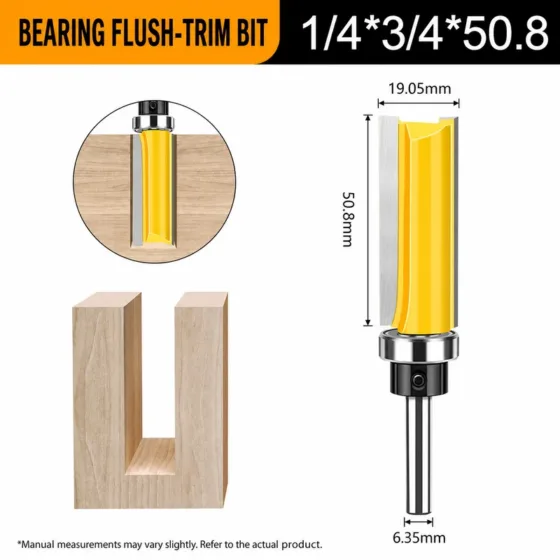

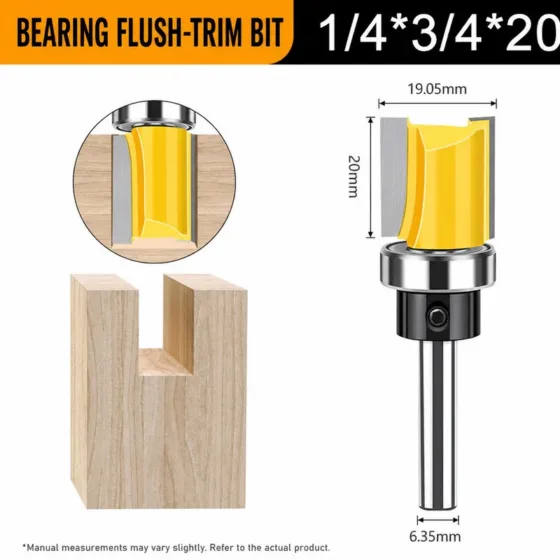

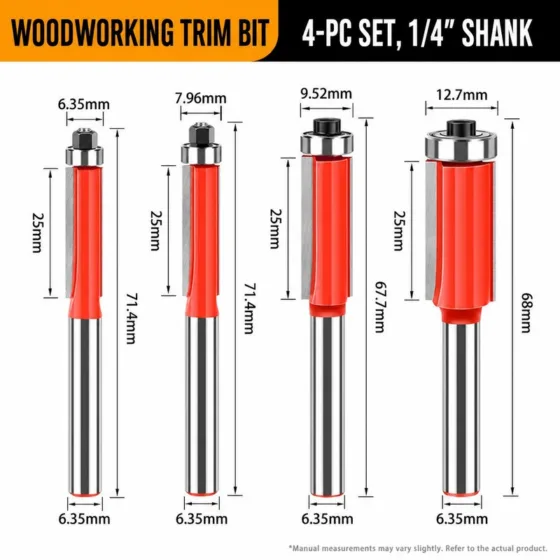

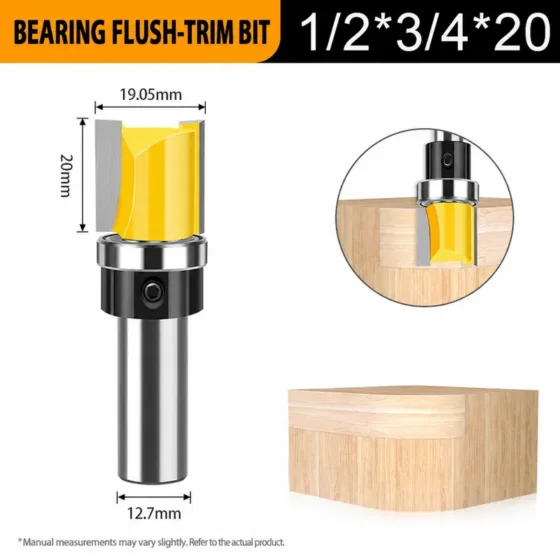

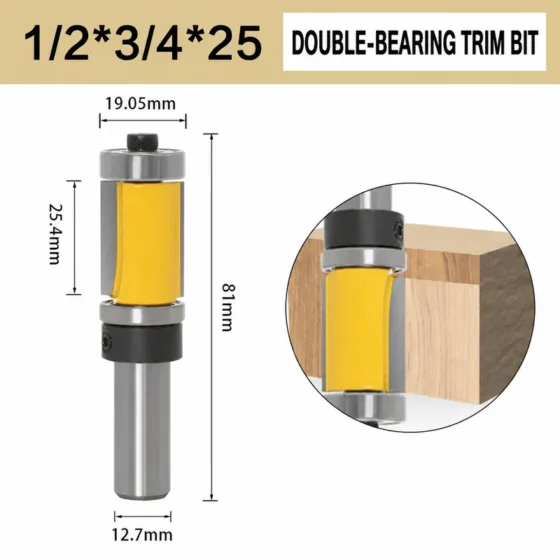

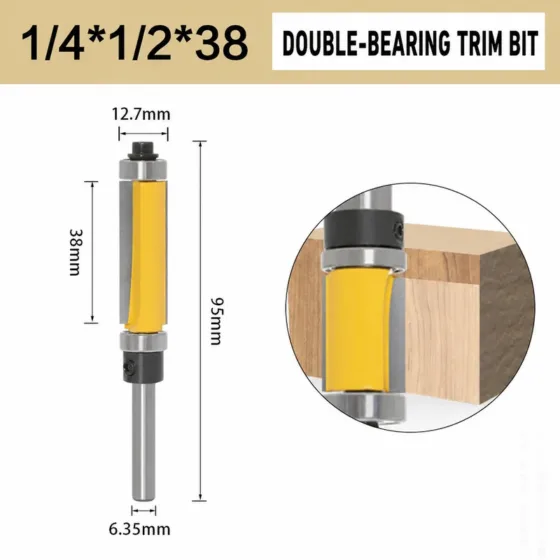

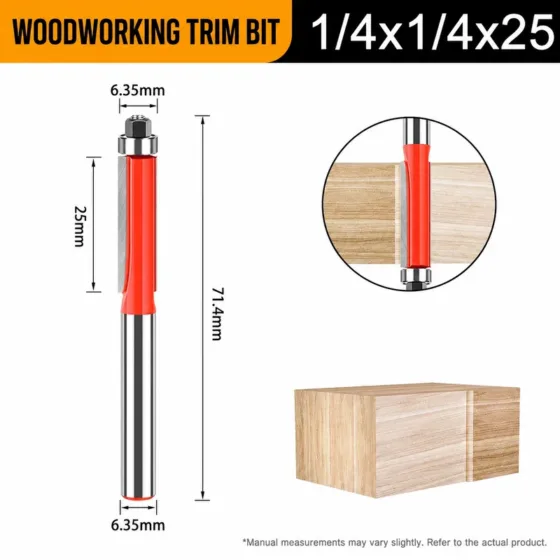

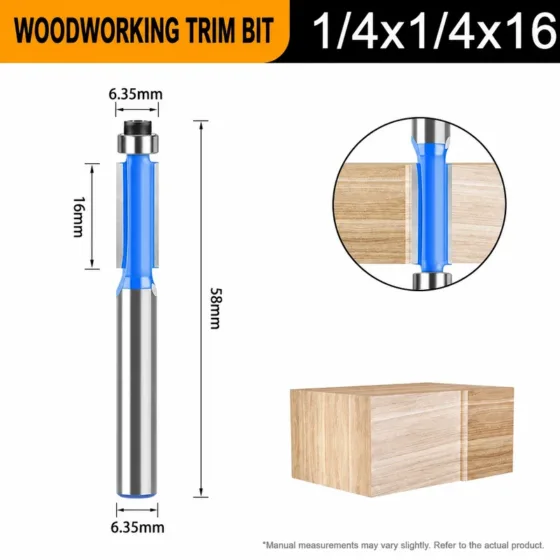

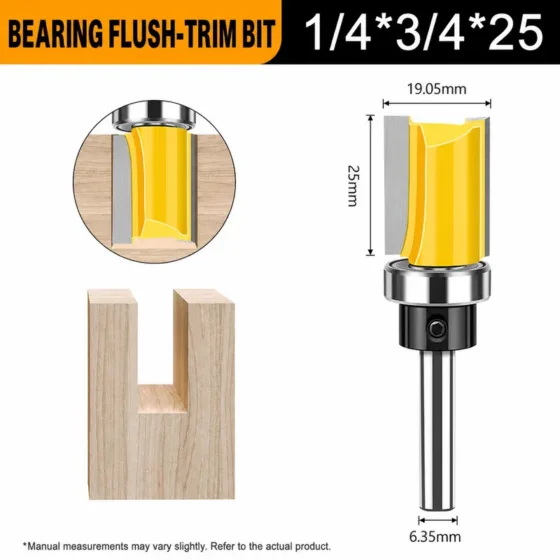

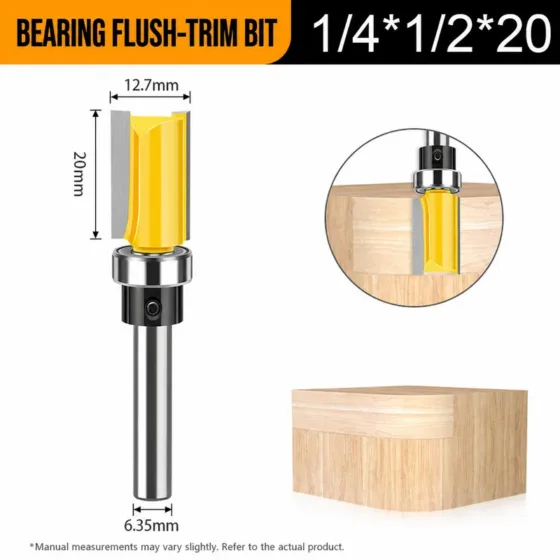

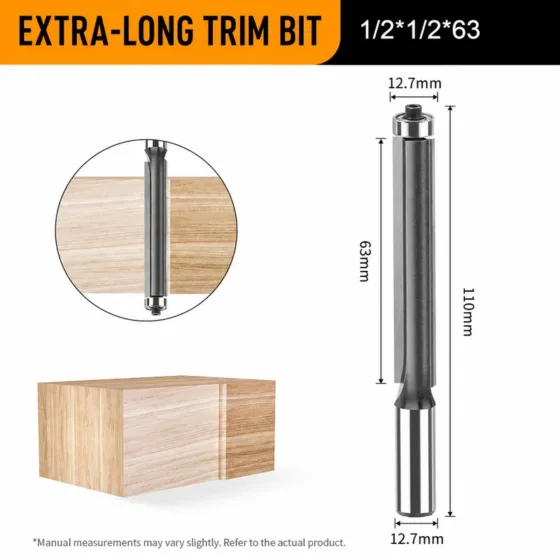

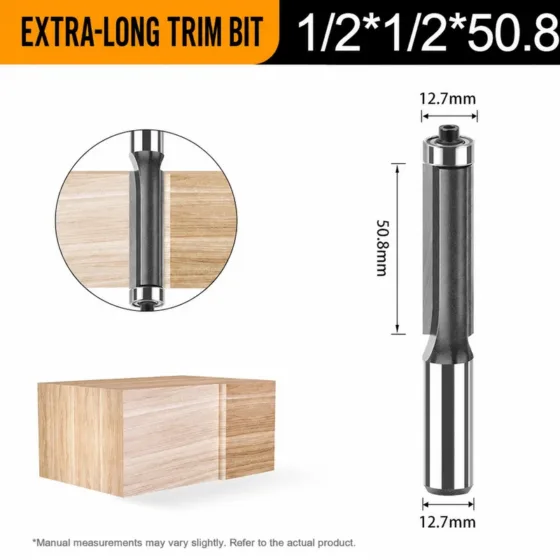

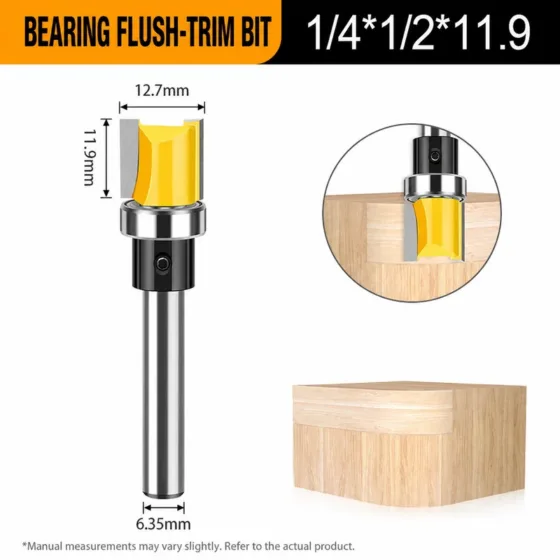

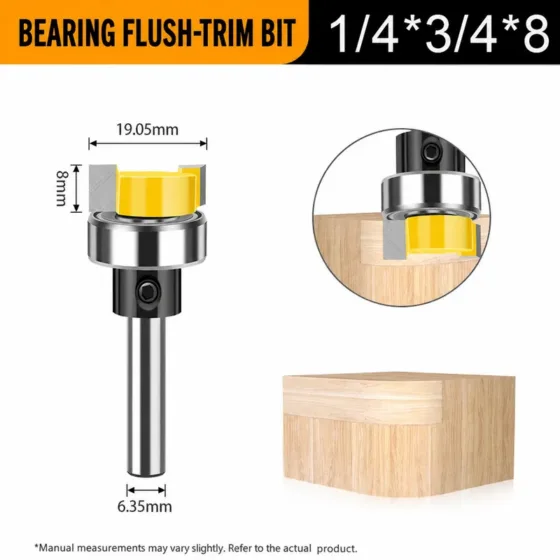

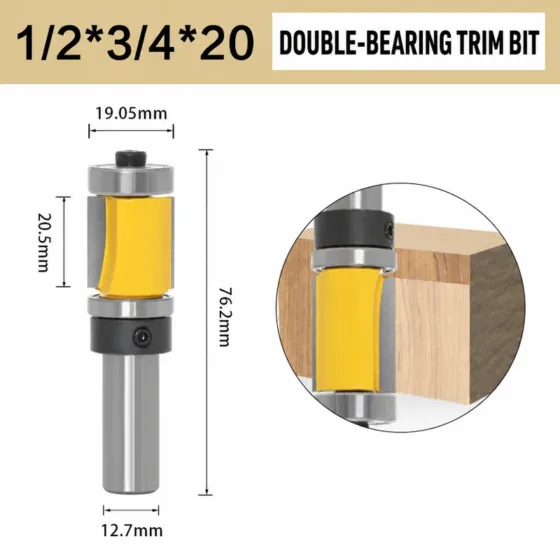

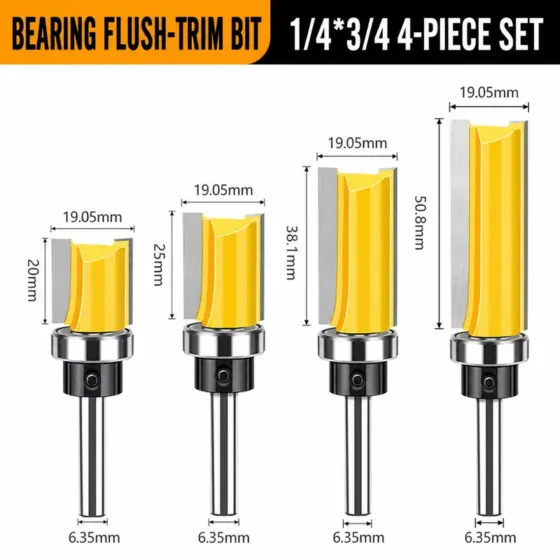

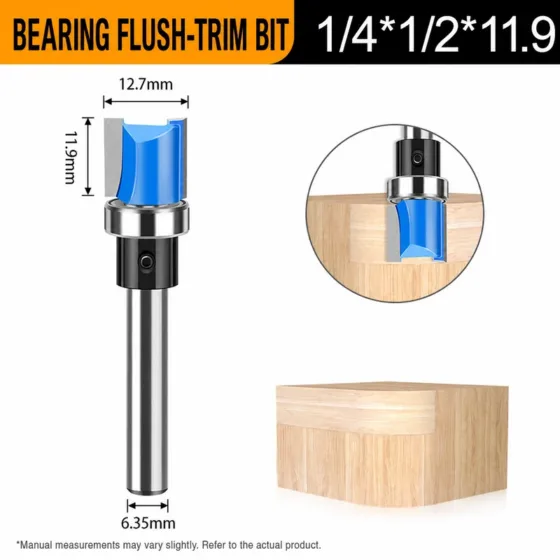

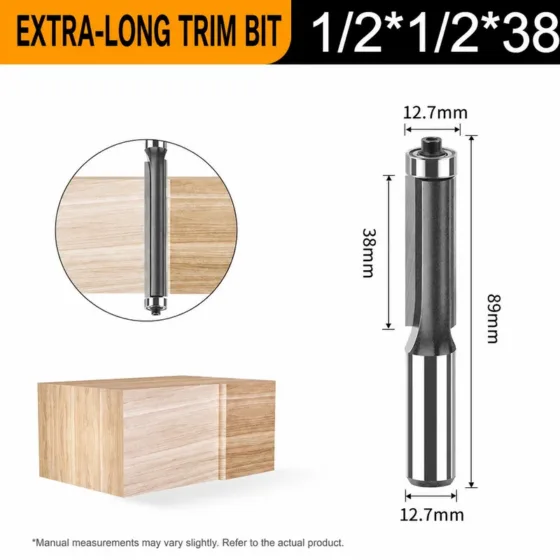

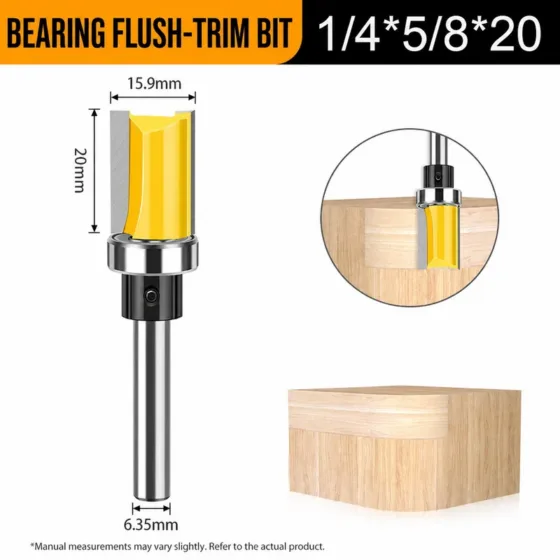

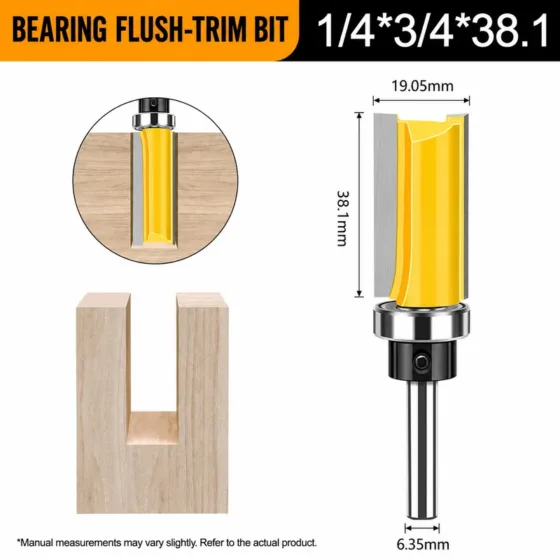

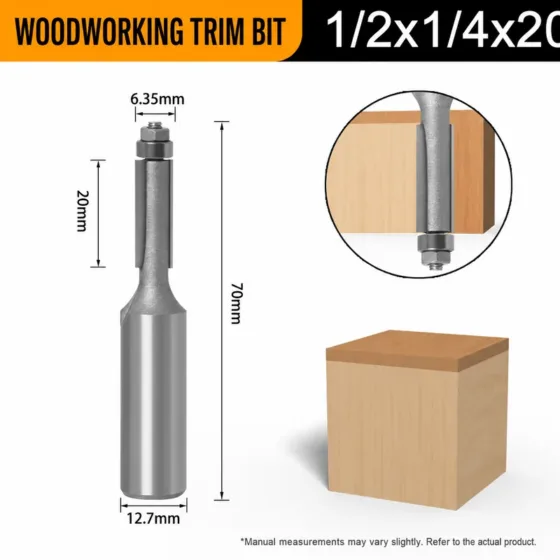

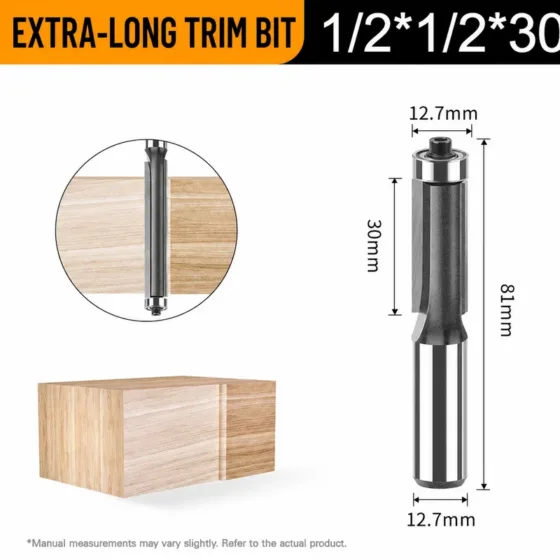

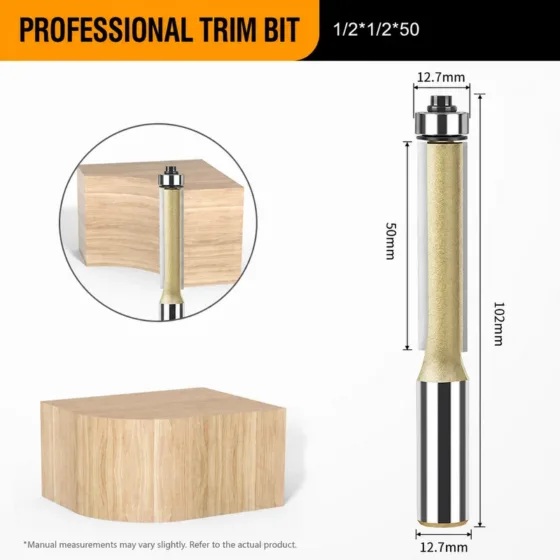

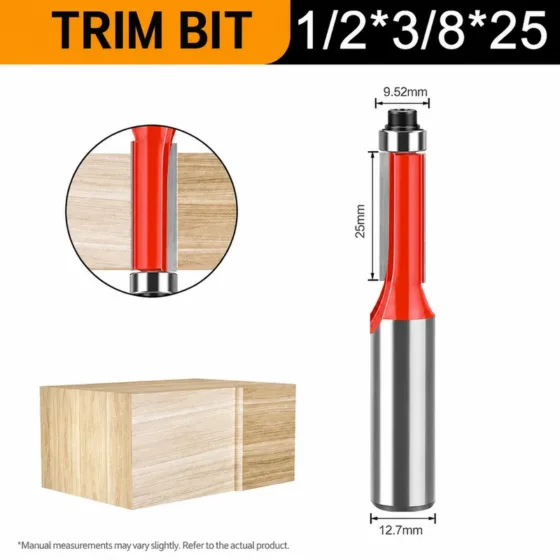

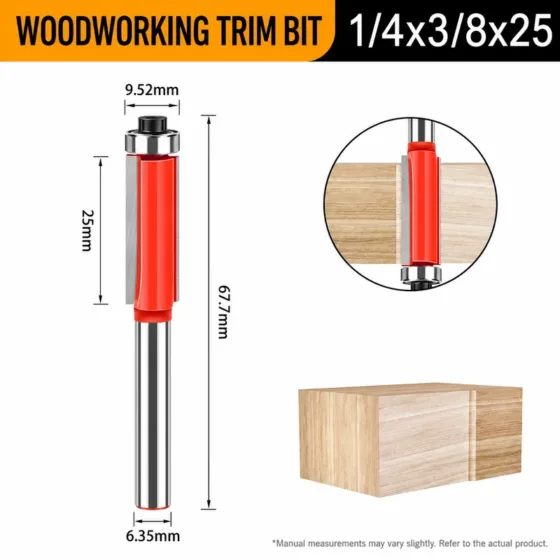

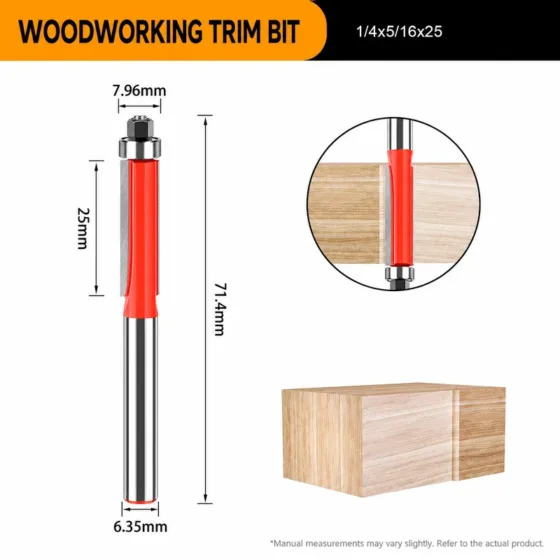

Top-bearing, 1/2 in × 3/4 in × 50 mm, Double-bearing, 1/4 in × 1/4 in × 16 mm, Top-bearing, 1/4 in × 3/4 in × 50.8 mm, Double-bearing, 1/4 in × 1/4 in × 25 mm, Top-bearing, 1/4 in × 3/4 in × 25 mm, Double-bearing, 1/4 in × 5/16 in × 25 mm, Top-bearing, 1/4 in × 3/4 in × 38.1 mm, Double-bearing, 1/4 in × 3/8 in × 25 mm, Top-bearing, 1/4 in × 1/2 in × 25 mm, Double-bearing, 4-piece set, 1/4 in shank, Bottom-bearing, 1/4 in × 1/2 in × 20 mm, Top-bearing, 1/4 in × 1/2 in × 25 mm, Yellow, Extra-long, 1/2 in × 1/2 in × 63 mm, Bottom-bearing, 1/4 in × 1/2 in × 11.9 mm, Extra-long, 1/2 in × 1/2 in × 50.8 mm, Double-bearing, 1/2 in × 3/4 in × 25.4 mm, Double-bearing, 1/2 in × 3/4 in × 20 mm, Double-bearing, 1/4 in × 1/2 in × 25 mm, Double-bearing, 1/4 in × 1/2 in × 38 mm, Bottom-bearing, 1/2 in × 3/4 in × 20 mm, Top-bearing, 4-piece set, 1/4 in × 3/4 in, Top-bearing, 1/4 in × 3/4 in × 20 mm, Bottom-bearing, 1/4 in × 3/4 in × 8 mm, Bottom-bearing, 1/4 in × 5/8 in × 20 mm, Bottom-bearing, 4-piece set, 1/4 in × 1/2 in, Bottom-bearing, 1/4 in × 1/2 in × 38 mm, Extra-long, 1/2 in × 1/2 in × 38 mm, Professional, 1/2 in × 1/2 in × 50 mm, Extra-long, 1/2 in × 1/2 in × 30 mm, Top-bearing, 1/2 in × 1/2 in × 26 mm, Double-bearing, 1/2 in × 3/8 in × 25 mm, Double-bearing, 1/2 in × 5/16 in × 20 mm, Double-bearing, 1/2 in × 1/4 in × 20 mm, Double-bearing, 4-piece set, 1/4 in shank, Red, Double-bearing, 1/4 in × 3/8 in × 25 mm, Red, Double-bearing, 1/4 in × 5/16 in × 25 mm, Red, Double-bearing, 1/4 in × 1/4 in × 16 mm, Blue, Top-bearing, 1/2 in × 19 mm × 27 mm, Top-bearing, 1/2 in × 16 mm × 25 mm

Reviews

There are no reviews yet.

Be the first to review “Bearing-Guided Flush-Trim Router Bit Series”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country

Start RFQ
