CUTQOR Three-Flute 8° Edge-Banding Bevel Trim Router Bits

Three-Flute 8° Edge-Banding Bevel Trim Router Bits

Top-bearing three-flute 8° bevel trim router bits for clean upper and lower edge trimming on edge-banded panels, cabinet parts and production woodworking.

Available specifications

Choose a model for your inquiry

11 options

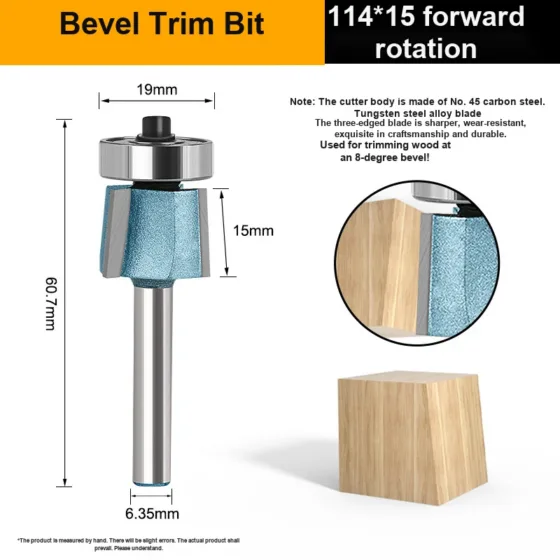

Selected: 8° Bevel Trim Bit 1/4 in × 15 mm Forward

Wholesale · OEM · Custom Profiles

Need pricing for your quantity?

Send the required size, cutting material, machine type and quantity. We will confirm the suitable specification and quotation.

Request a quote Discuss a custom profile

Specification support before quotationConfirm the shank, cutting profile, material, machine and quantity so the suitable option can be reviewed.

Description

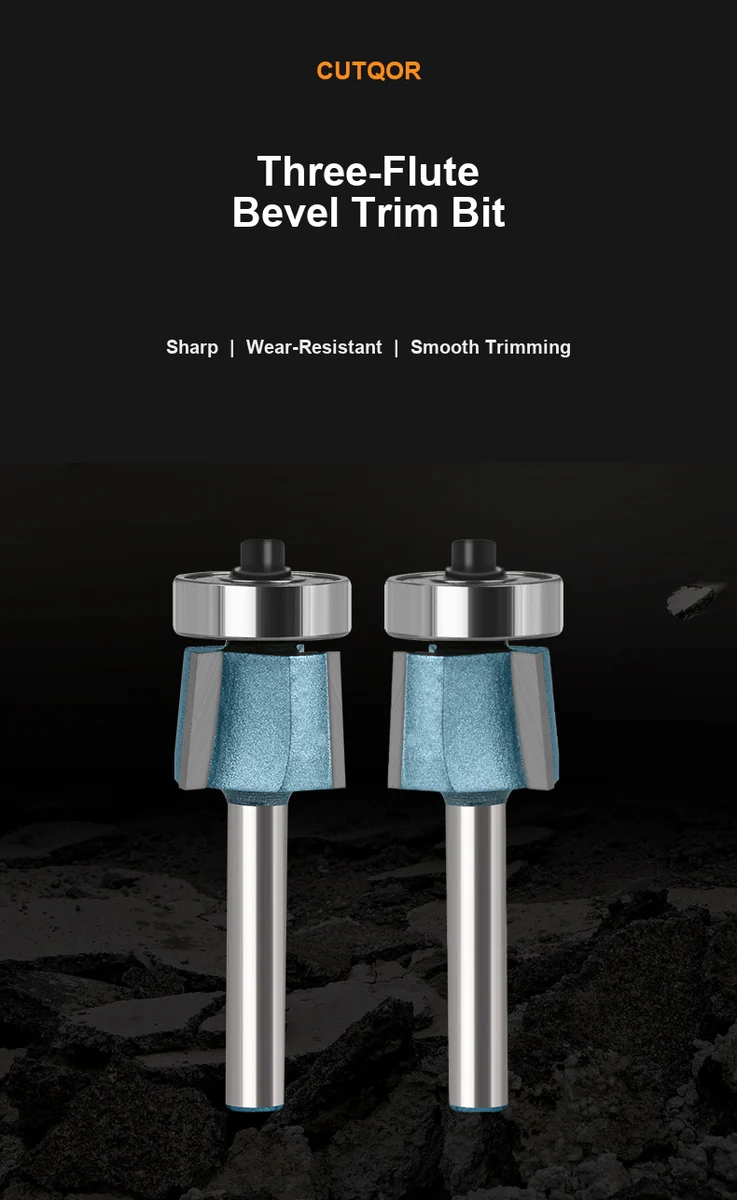

Three-Flute 8° Bevel Trimming for Edge-Banded Panels

These bearing-guided bevel trim bits form a controlled 8-degree edge while trimming panel overhangs cleanly. Forward-rotation, reverse-rotation and matched-pair options support upper and lower trimming positions on edge-banding machines and compatible routers.

Range specifications

Profile	8° bevel trim with three cutting flutes
Shank options	6 mm and 1/4 in (6.35 mm)

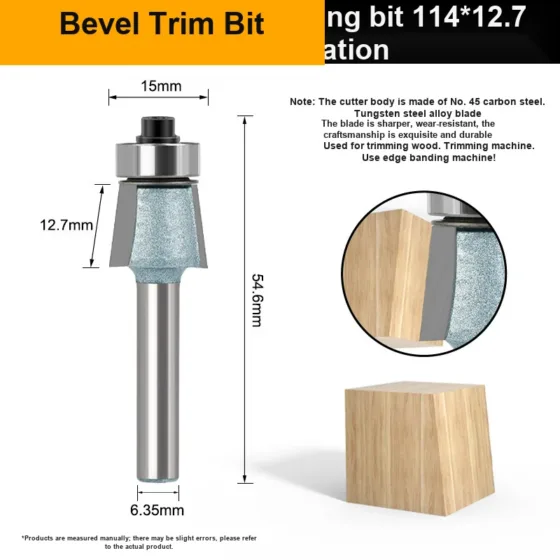

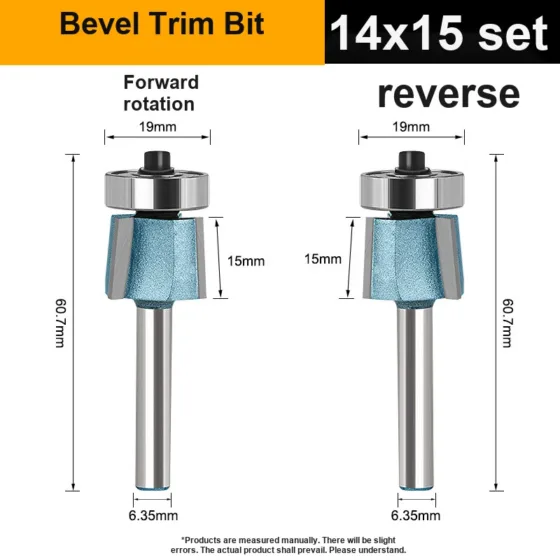

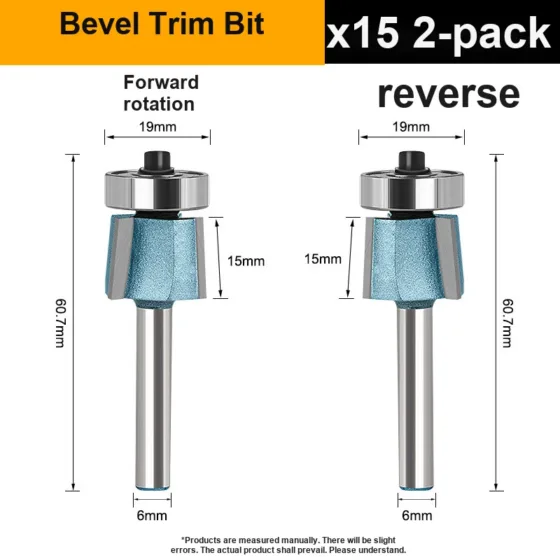

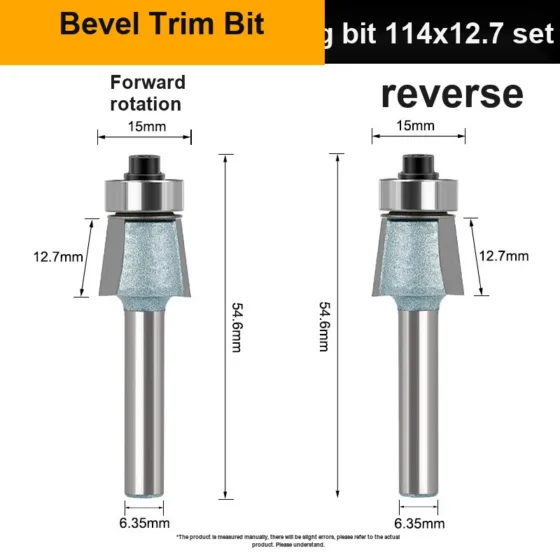

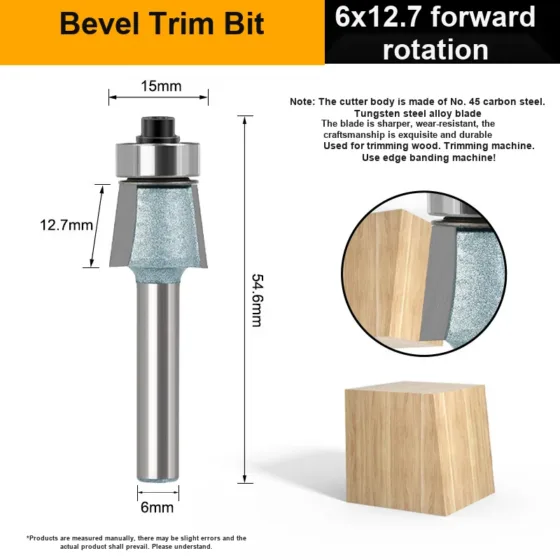

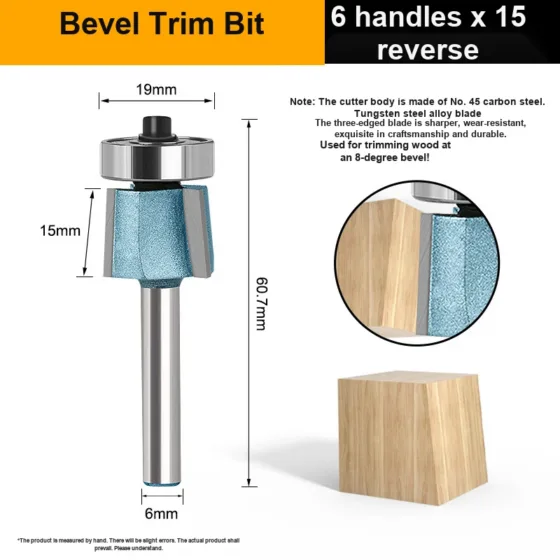

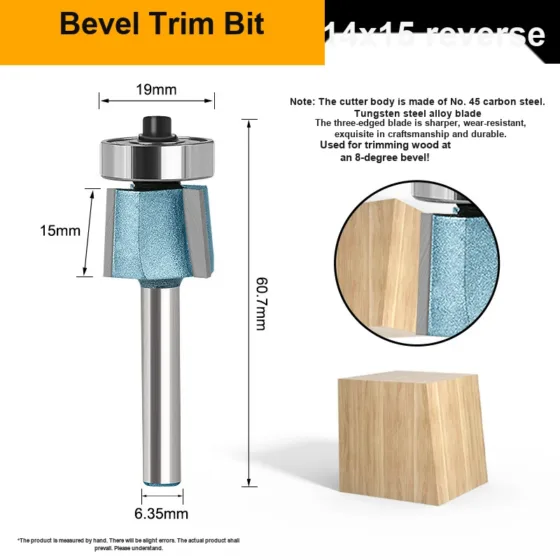

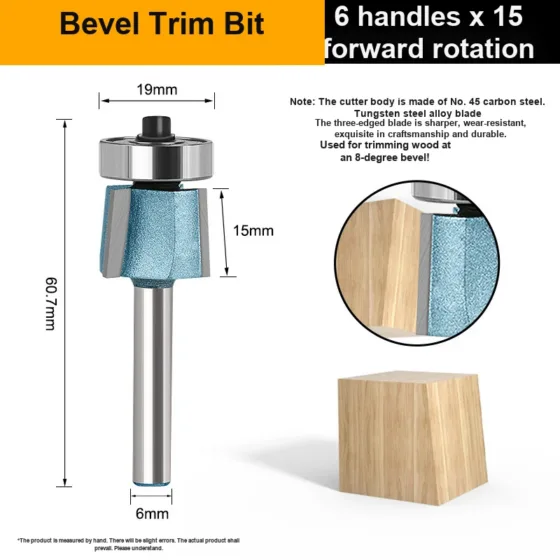

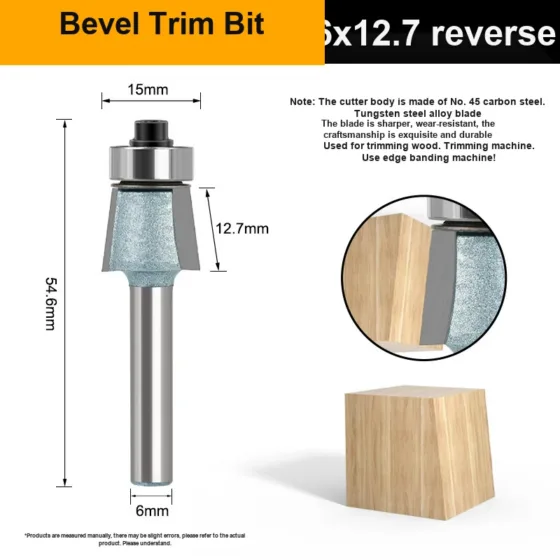

Cutter sizes shown	15 mm diameter × 12.7 mm cutting height; 19 mm diameter × 15 mm cutting height
Rotation options	Forward, reverse and matched forward/reverse sets

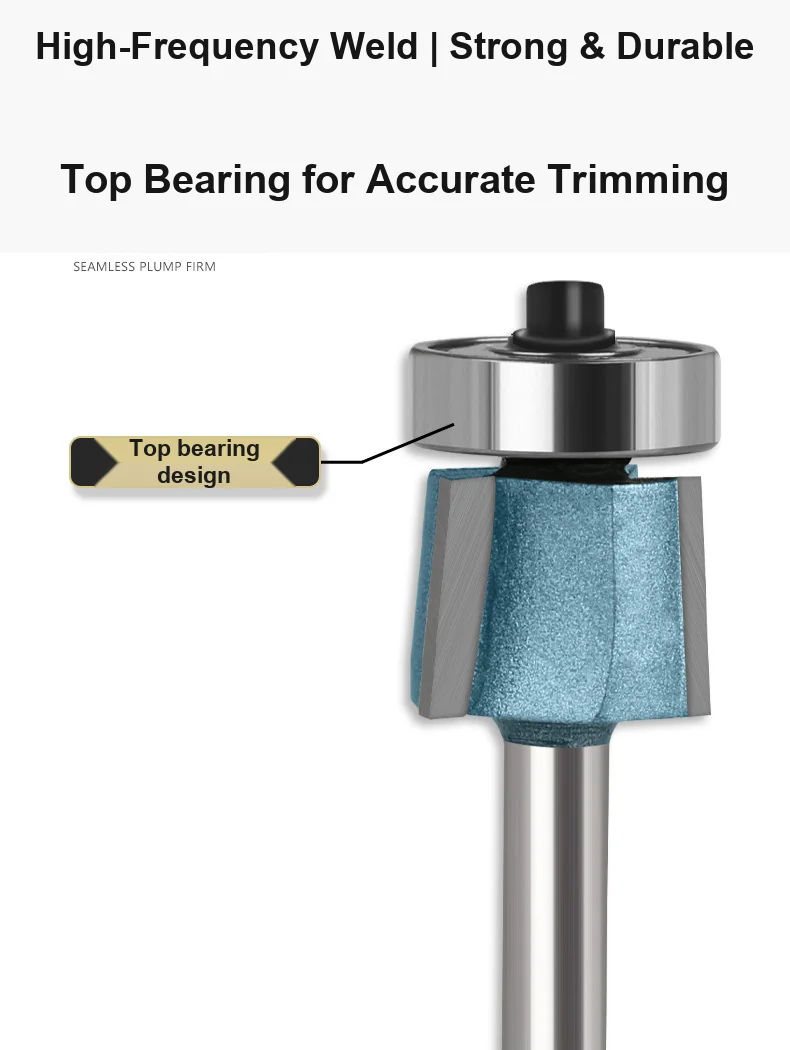

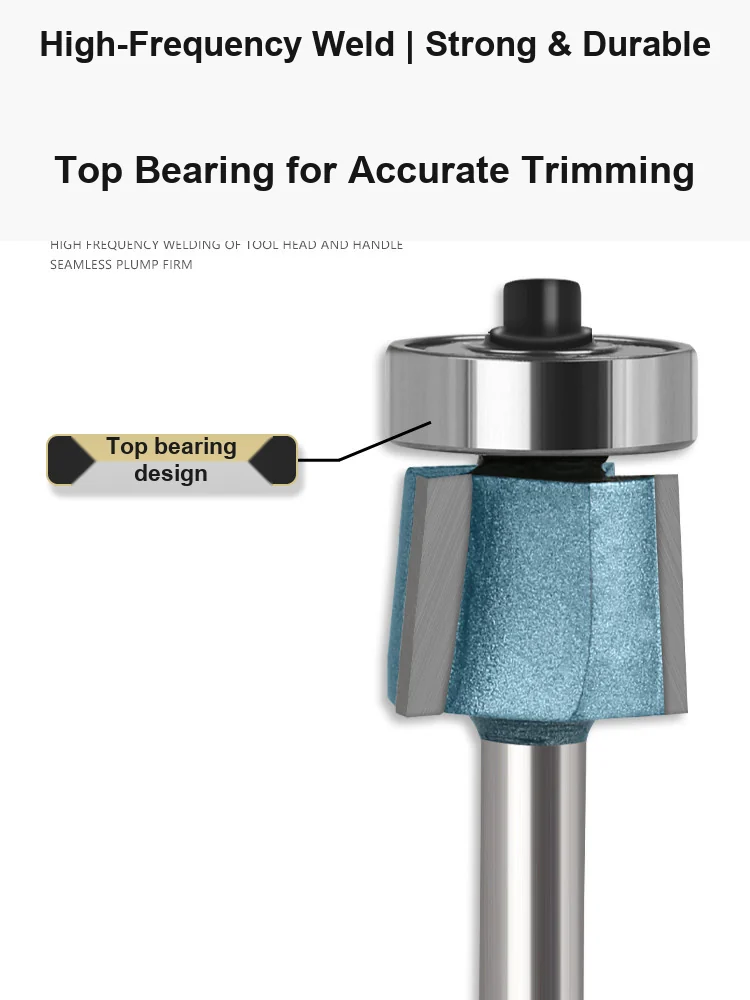

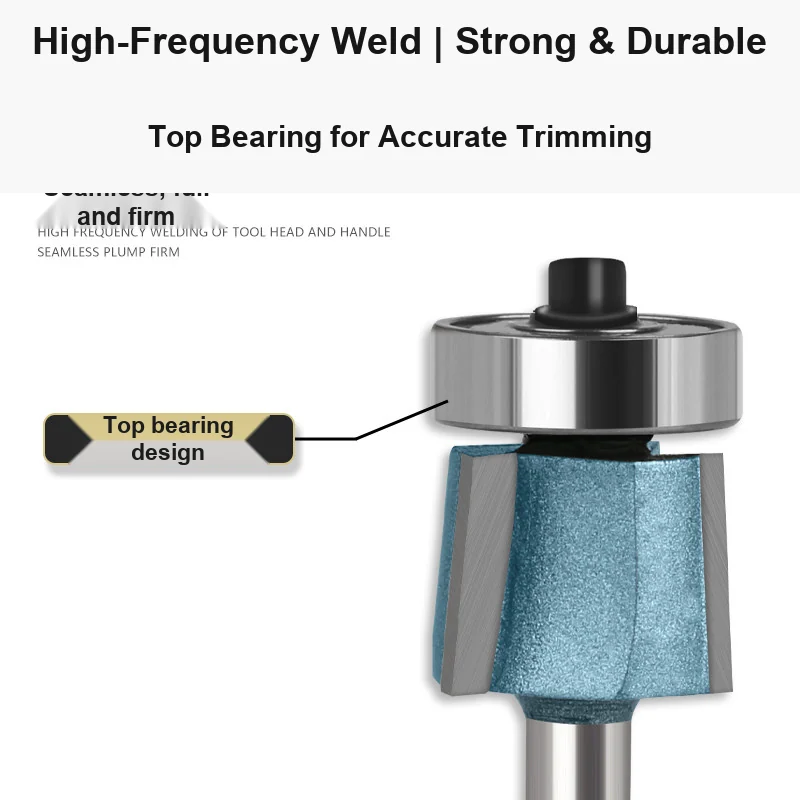

Guidance	Top-bearing guided edge trimming

Typical applications

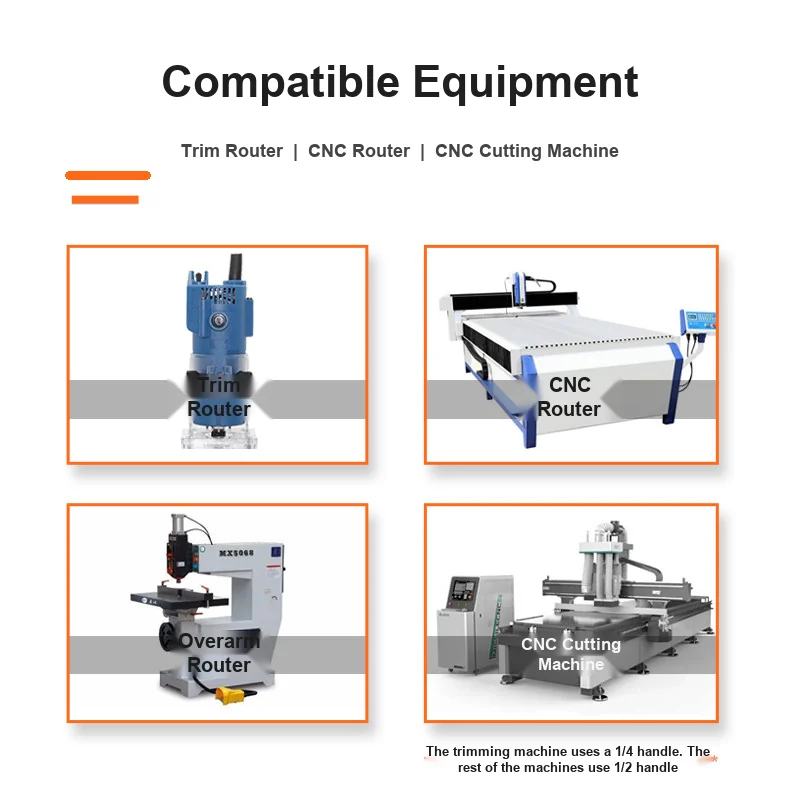

Upper and lower edge trimming on edge-banding machines
Cabinet, furniture and panel edge beveling

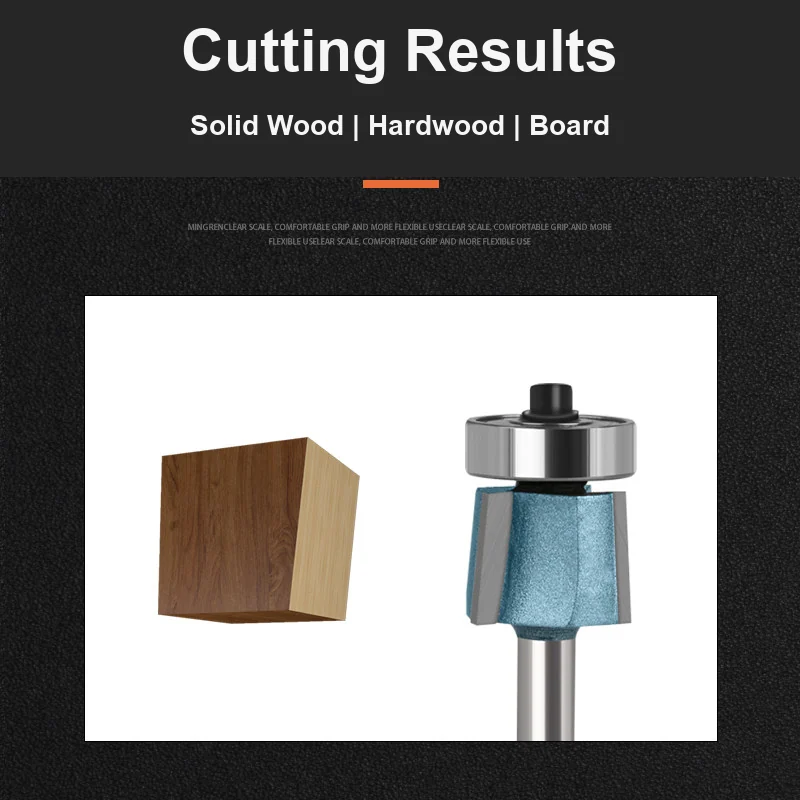

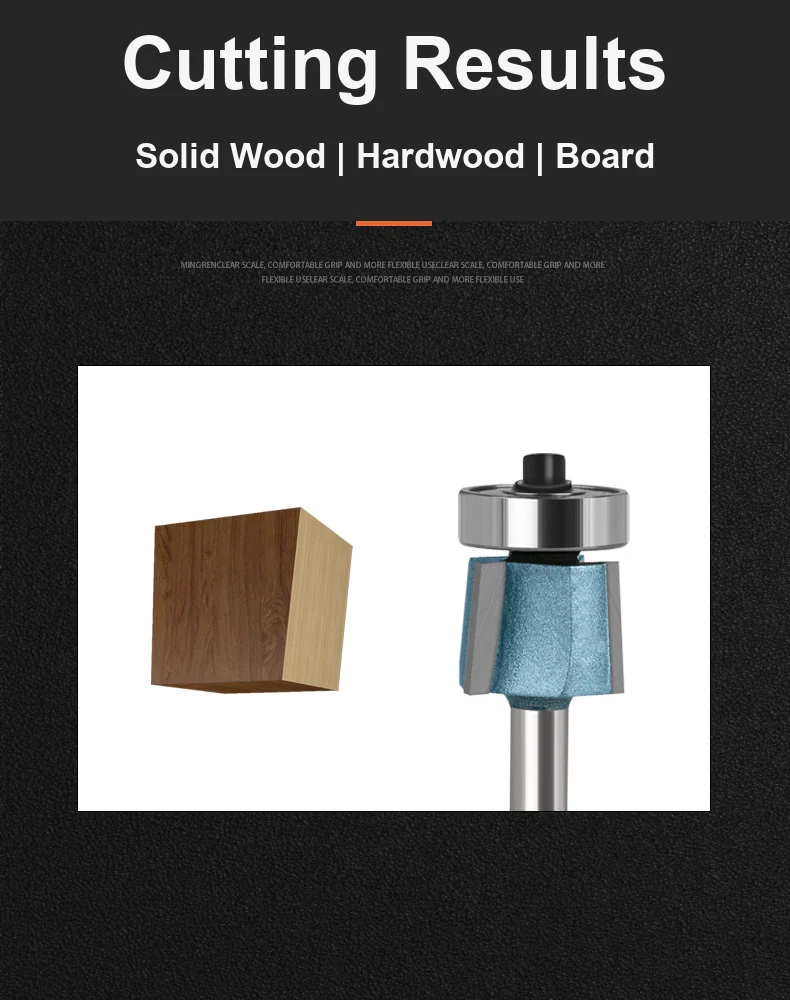

Solid wood, hardwood and wood-based boards
Production woodworking and repeatable guided trimming

Ordering guidance

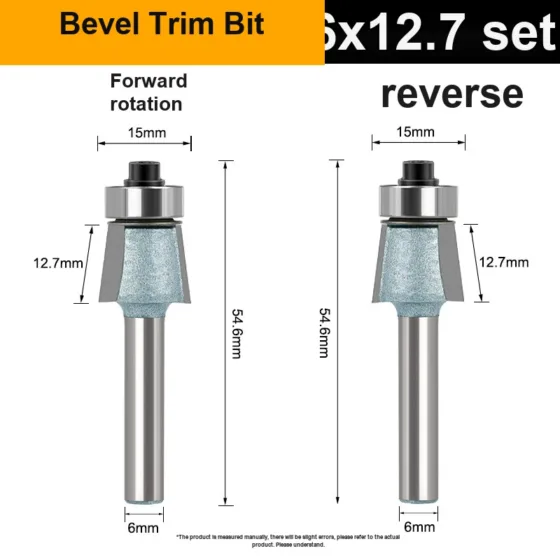

Send the required shank diameter, cutting height, rotation direction, machine model, panel material and quantity. For matched upper/lower trimming, specify a forward/reverse pair.

Product Details

CUTQOR Three-Flute 8° Edge-Banding Bevel Trim Router Bits product detail

Additional information

Shank / Cutting Height / Rotation	1/4 in × 15 mm Forward, 1/4 in × 15 mm Reverse, 1/4 in × 15 mm Forward/Reverse Set, 6 mm × 12.7 mm Forward/Reverse Set, 6 mm × 12.7 mm Forward, 1/4 in × 12.7 mm Forward/Reverse Set, 1/4 in × 12.7 mm Forward, 6 mm × 15 mm Forward/Reverse Set, 6 mm × 15 mm Reverse, 6 mm × 12.7 mm Reverse, 6 mm × 15 mm Forward

Reviews

There are no reviews yet.

Be the first to review “Three-Flute 8° Edge-Banding Bevel Trim Router Bits”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country
