Bottom-Cleaning Router Bits

Carbide bottom-cleaning router bits with 1/4-inch and 1/2-inch shanks for flat-bottom grooves, recesses, dados and pocket cleaning.

Key specifications

Cutter diameter	3–20 mm
Cutter thickness	0.5–8 mm
Clearance diameter	1.5–10 mm
Clearance length	4–25 mm
Shank diameter	4–20 mm
Overall length	50–75 mm
Flutes	4

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.

Standard model range

Select a model and dimensions

18 options

Inquiry selection: Bottom-Cleaning Bit 1/4 × 3/8 in

Description

Professional Clean-Out Bits for Flat-Bottom Grooves and Recesses

This professional clean-out range combines carbide cutting edges with 1/4-inch and 1/2-inch shanks. Cutter diameters from 5/16 inch to 2 inches cover narrow grooves, wide dados, recess cleaning and production pocketing in solid wood and panel materials.

Range specifications

Shank options	1/4 in (6.35 mm) and 1/2 in (12.7 mm)
Cutter diameters	5/16 in to 2 in
Cutting depths	15, 16, 17 and 20 mm, depending on model

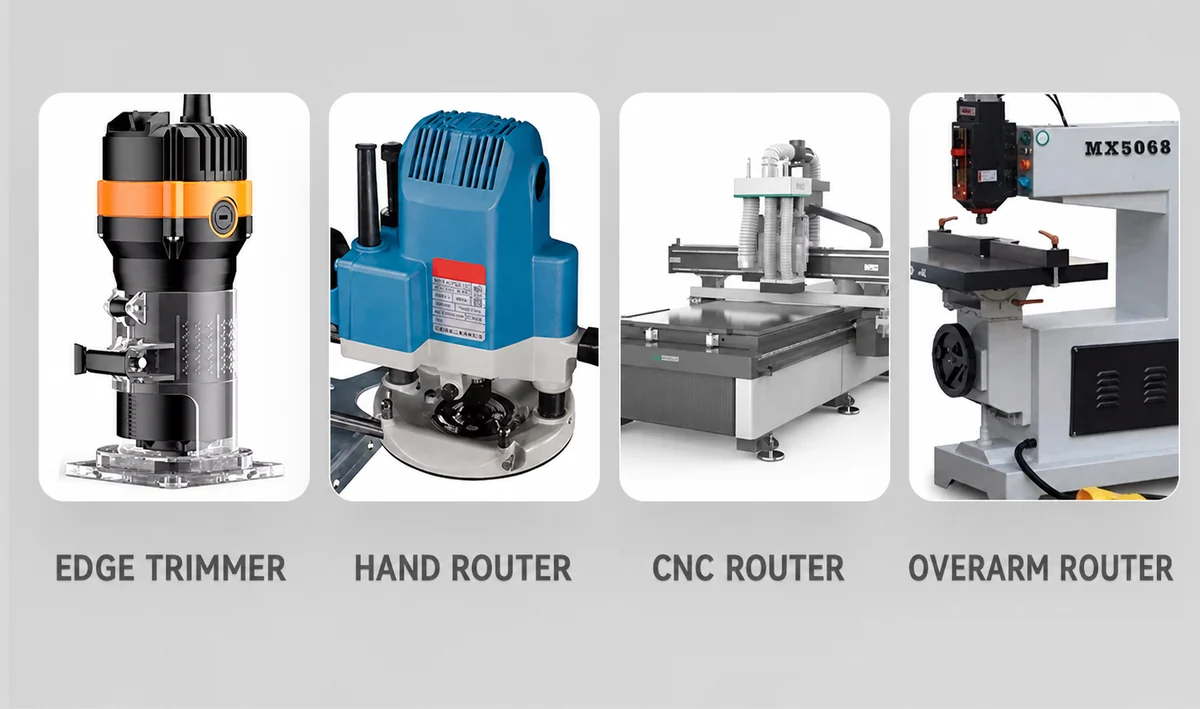

Compatible equipment	Edge trimmer, hand router, CNC router and overarm router

Typical applications

Flat-bottom groove and dado cutting
Pocket and recess bottom cleaning
Cabinet, jig and template routing
Solid wood, hardwood, MDF and particleboard

Ordering guidance

Send the required shank diameter, cutter diameter, cutting depth, workpiece material and quantity. Confirm collet size and router power for cutters above 1 inch.

Product Details

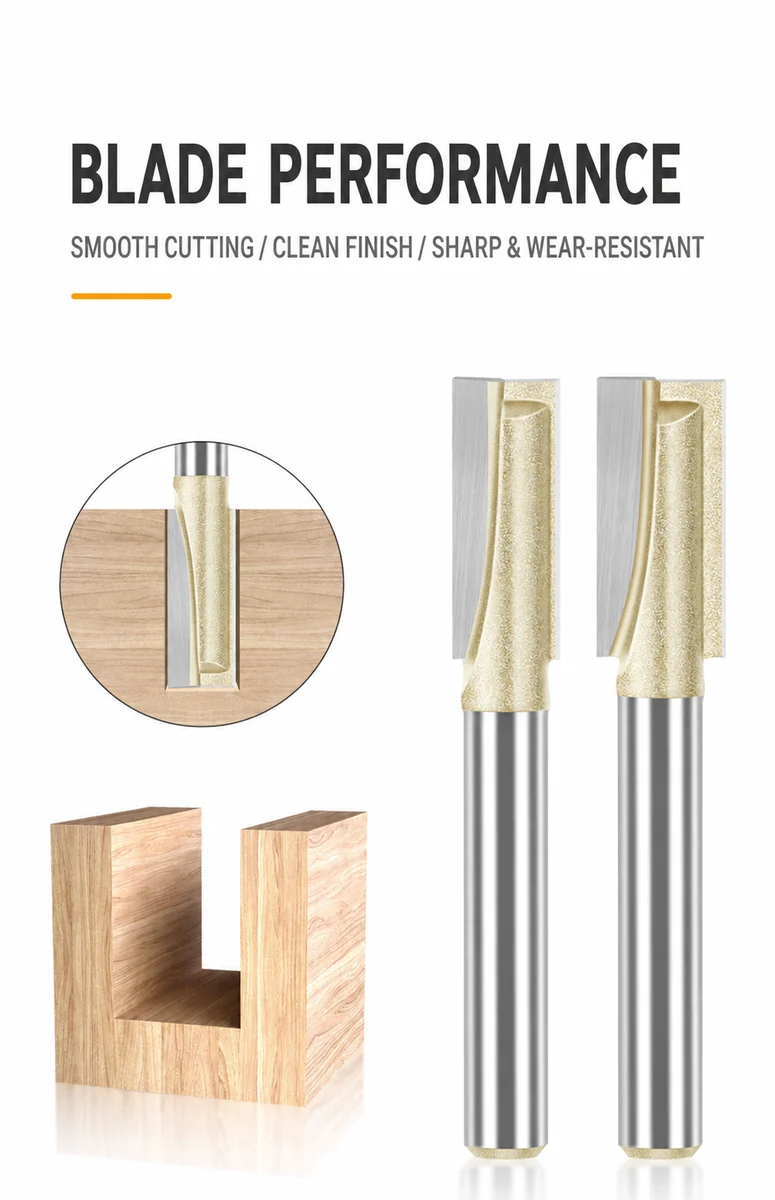

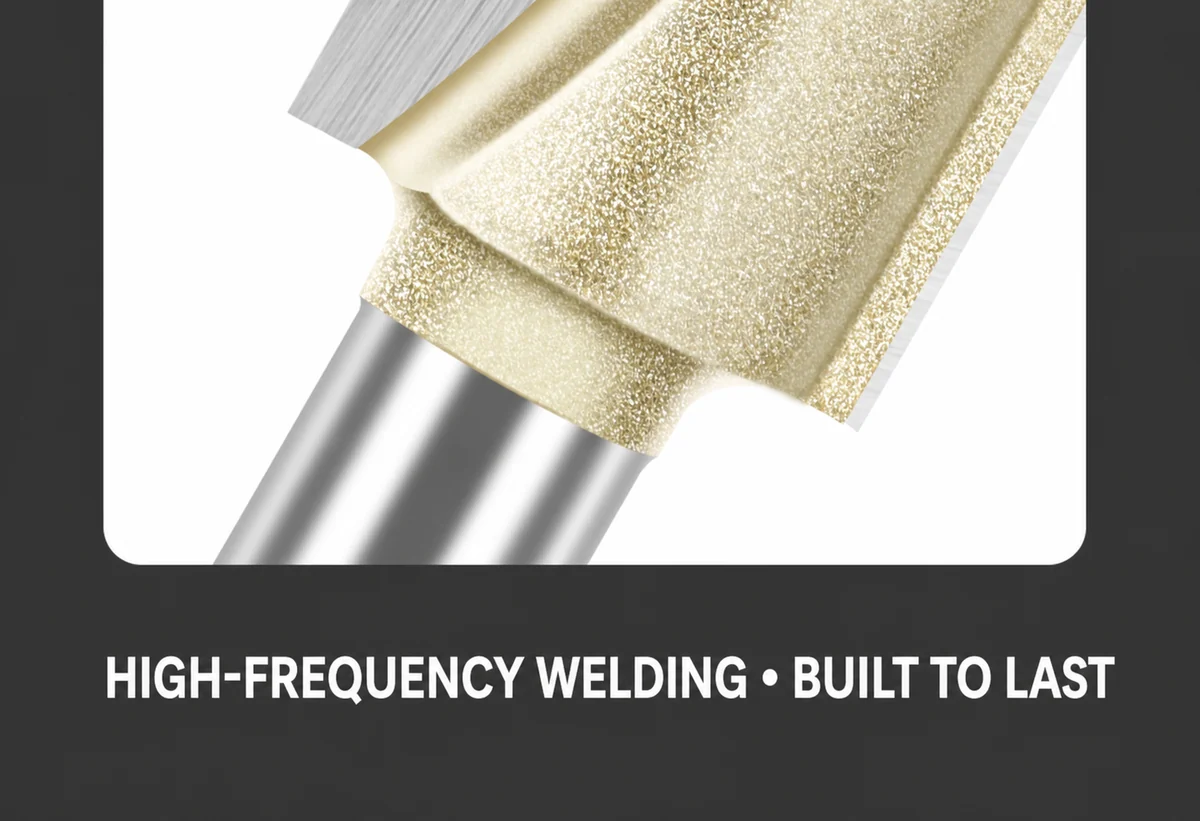

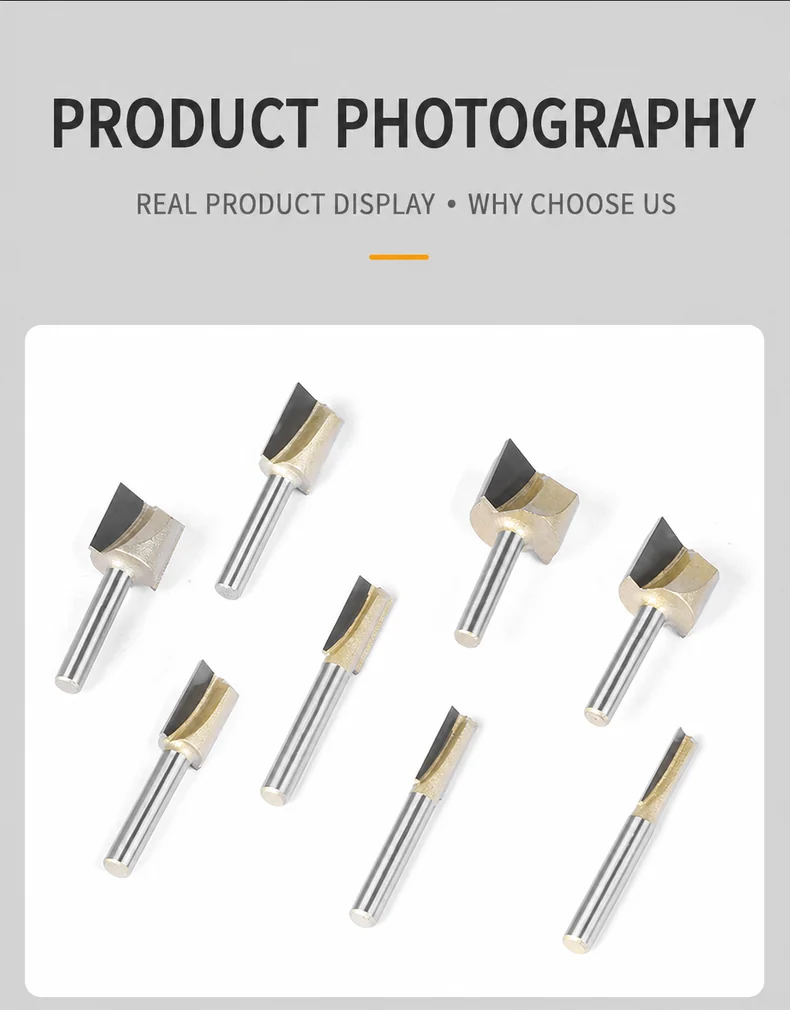

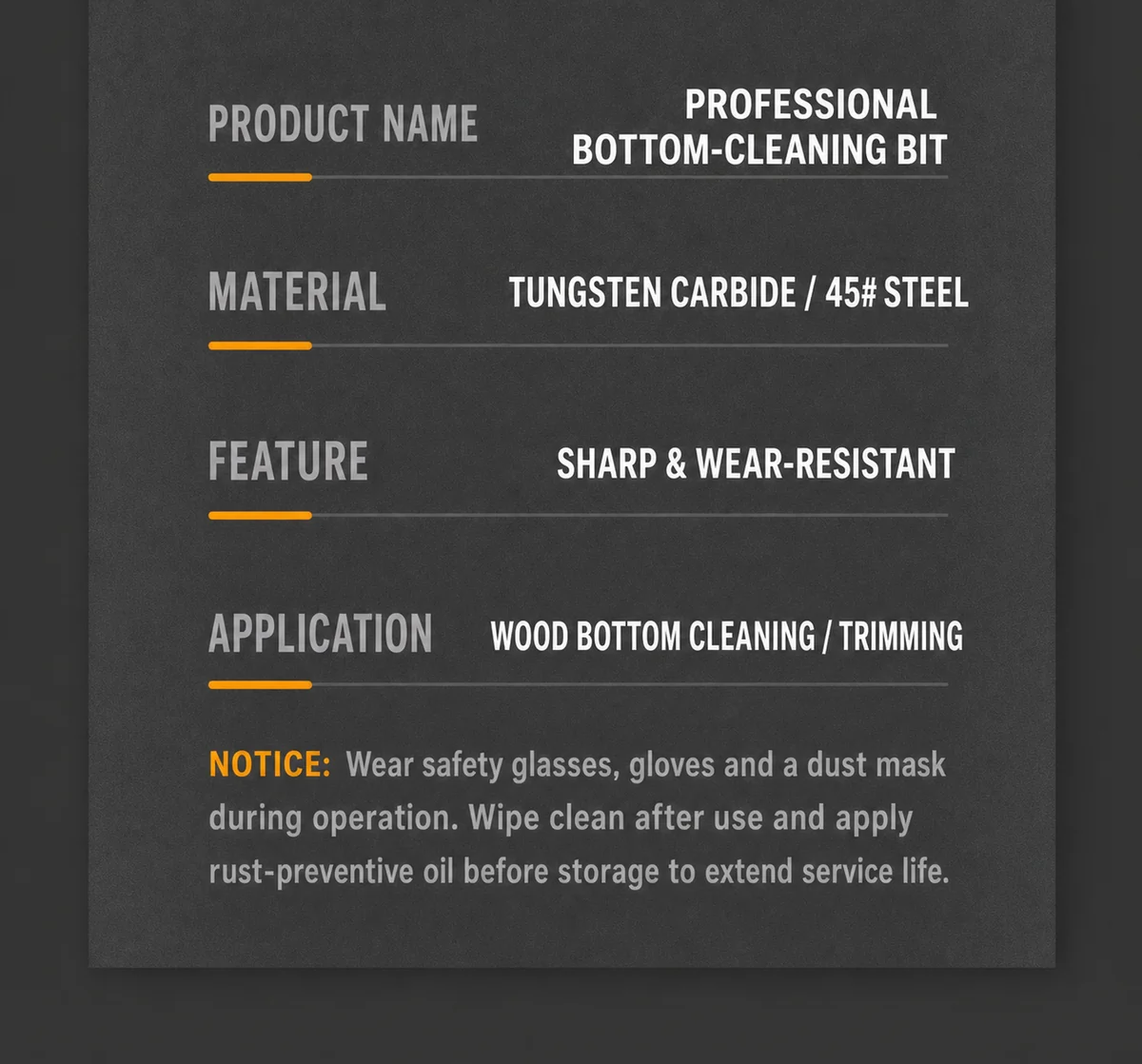

CUTQOR Professional Bottom-Cleaning Router Bits product detail

Additional information

Shank / Cutter / Cutting Depth

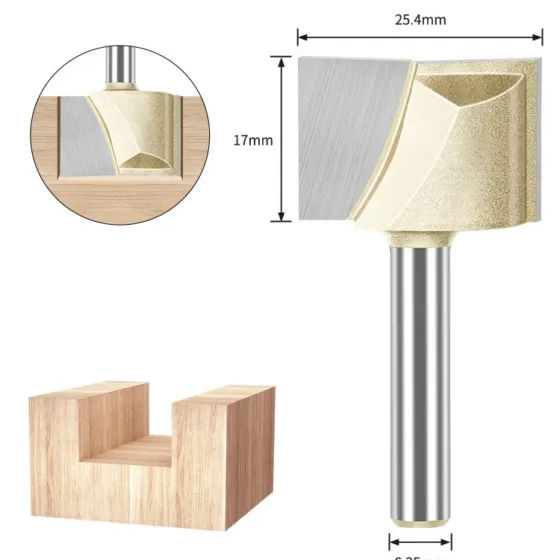

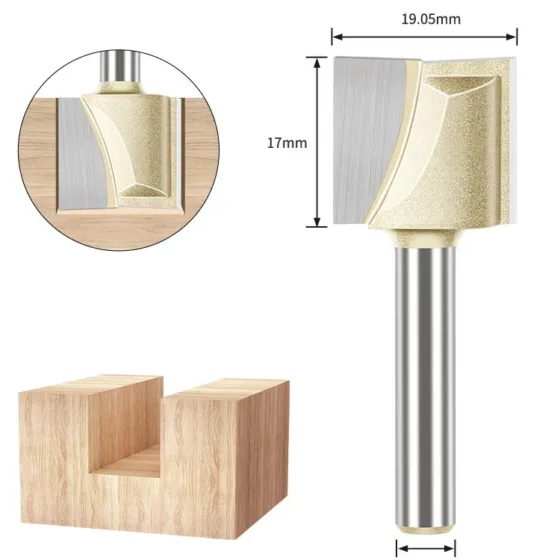

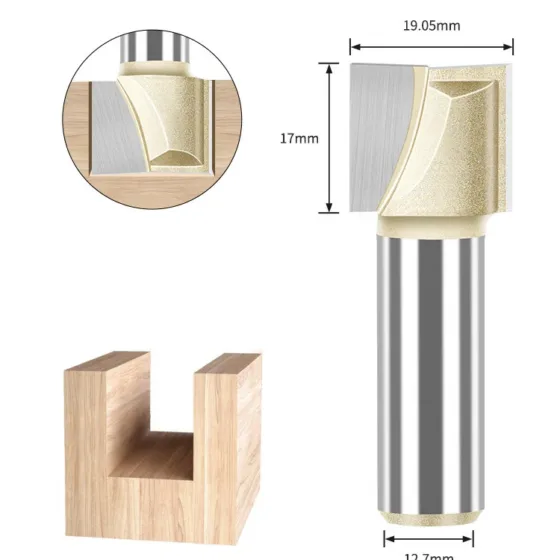

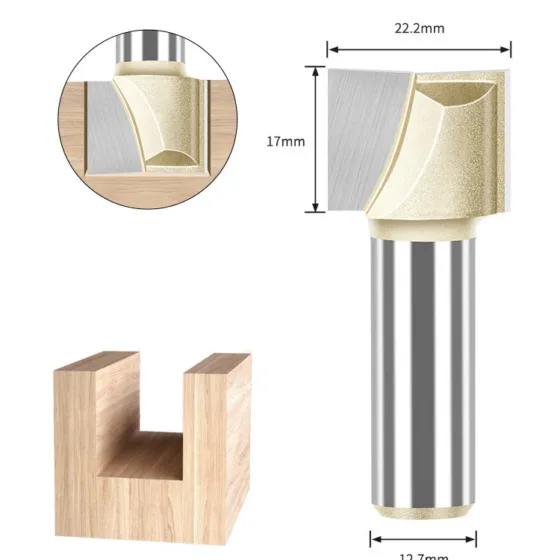

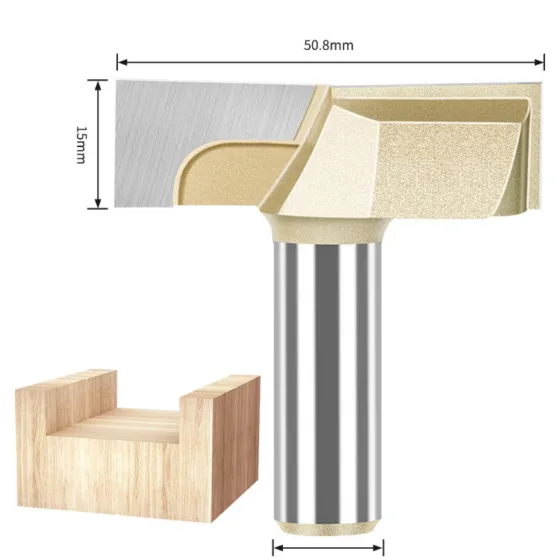

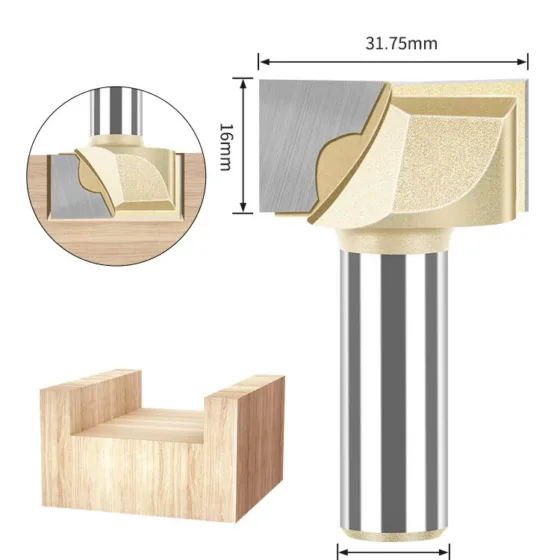

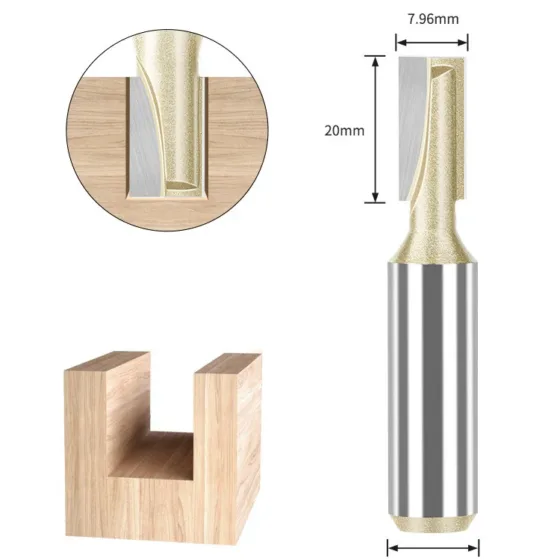

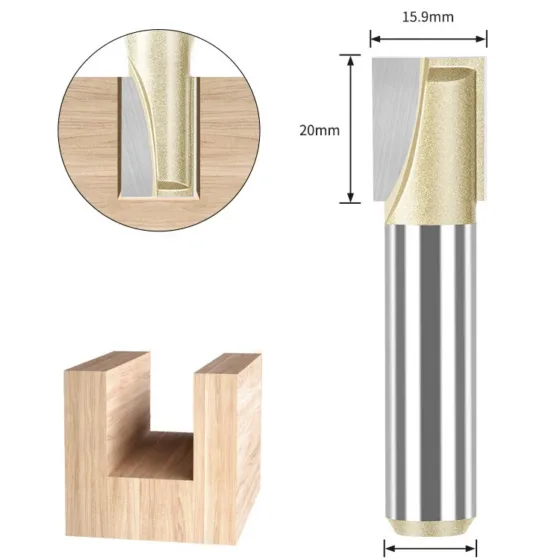

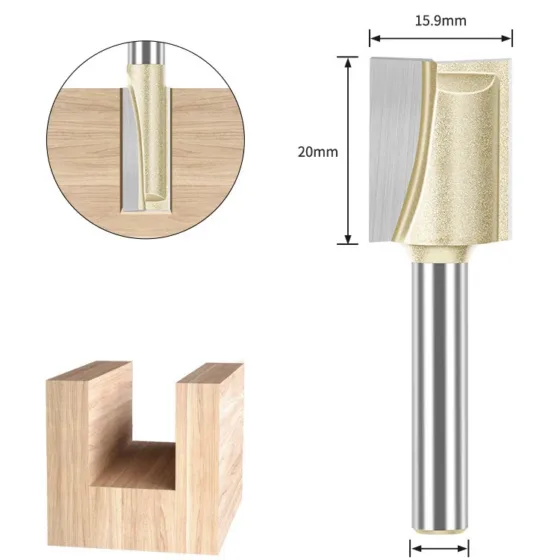

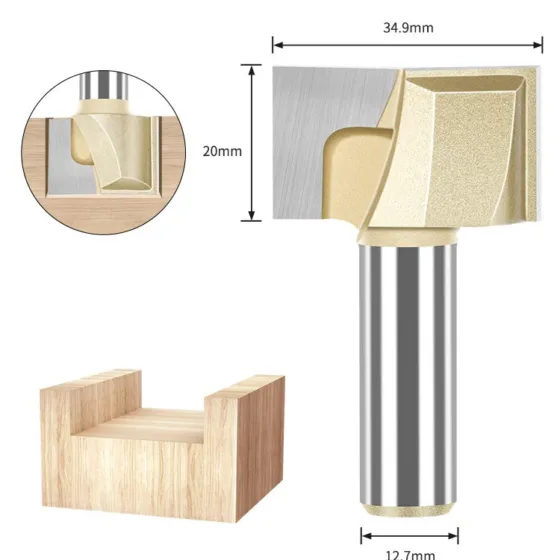

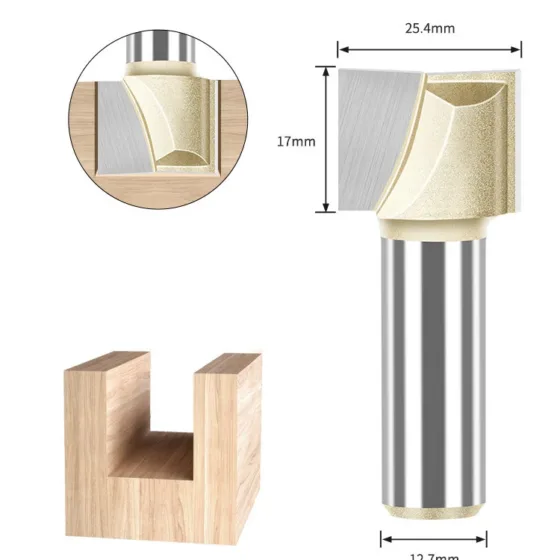

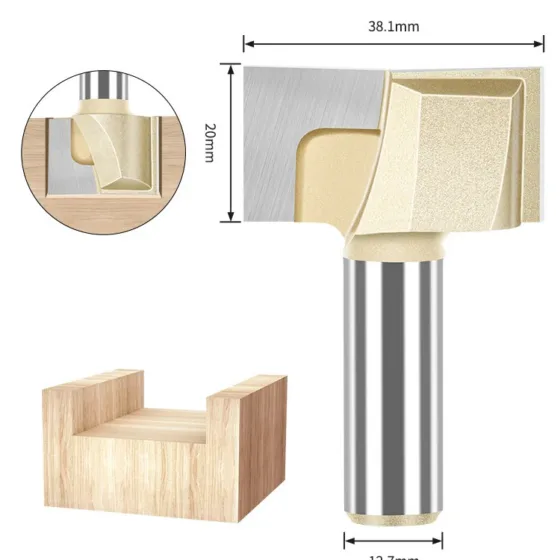

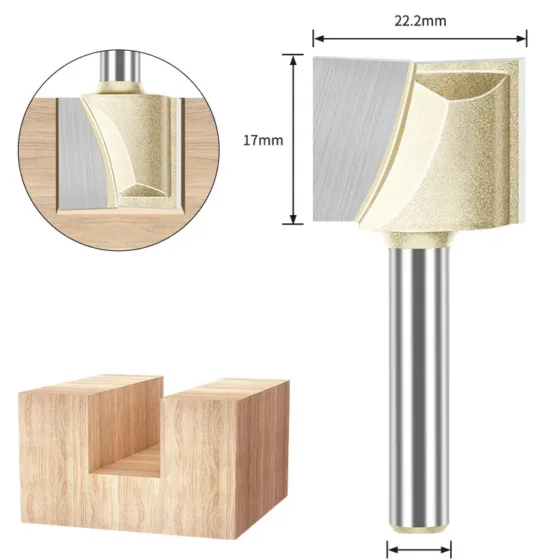

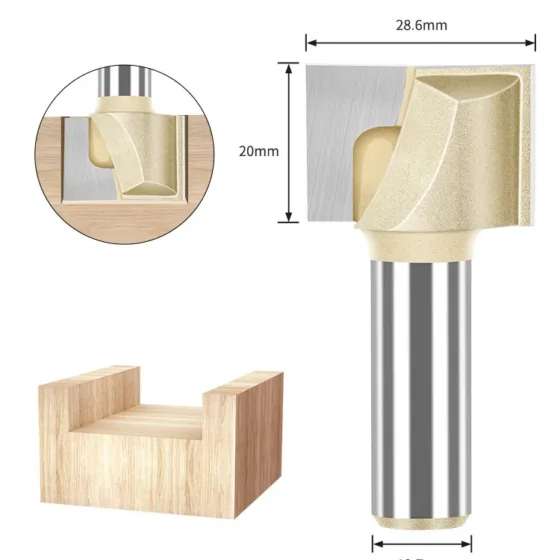

1/4 in × 3/8 in × 20 mm, 1/4 in × 5/8 in × 20 mm, 1/4 in × 1/4 in × 20 mm, 1/4 in × 3/4 in × 17 mm, 1/4 in × 1 in × 17 mm, 1/4 in × 7/8 in × 17 mm, 1/2 in × 5/16 in × 20 mm, 1/2 in × 5/8 in × 20 mm, 1/2 in × 3/4 in × 17 mm, 1/2 in × 7/8 in × 17 mm, 1/2 in × 1 in × 17 mm, 1/2 in × 1-1/8 in × 20 mm, 1/2 in × 1-1/4 in × 16 mm, 1/2 in × 1-3/8 in × 20 mm, 1/2 in × 1-1/2 in × 20 mm, 1/2 in × 1-5/8 in × 15 mm, 1/2 in × 1-3/4 in × 15 mm, 1/2 in × 2 in × 15 mm

Reviews

There are no reviews yet.

Be the first to review “Bottom-Cleaning Router Bits”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country
