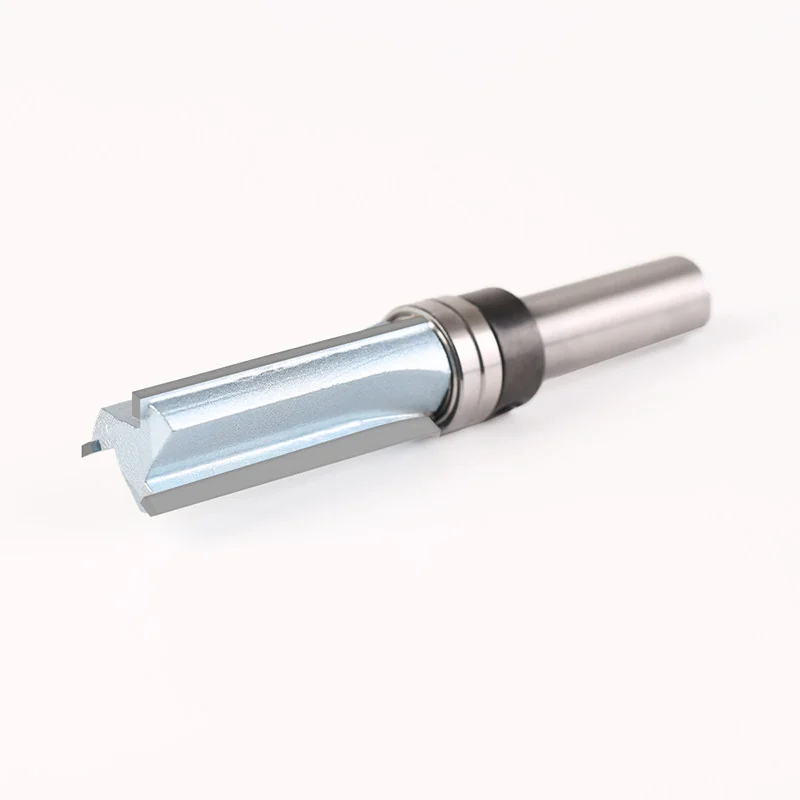

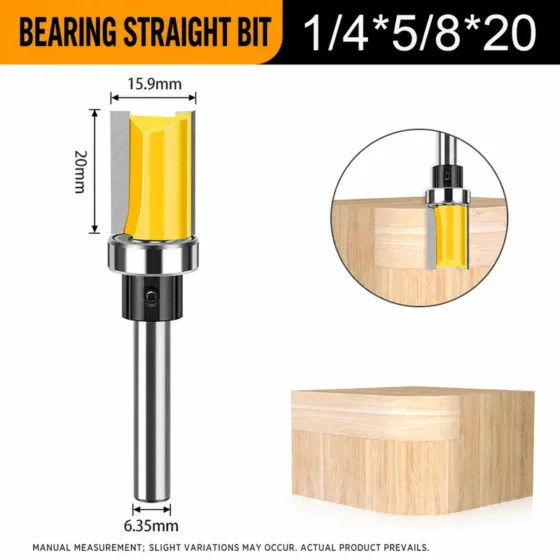

CUTQOR Shank-Bearing Three-Flute & Double-Bearing Flush-Trim Bits product view

Shank-Bearing Three-Flute & Double-Bearing Flush-Trim Bits

Name: Shank-Bearing Three-Flute &amp; Double-Bearing Flush-Trim Bits
SKU: 1532

Shank-bearing flush-trim bits for grooving, edge trimming and template work, including three-flute straight cutters and double-bearing configurations in 1/4-inch and 1/2-inch shanks.

Available specifications

Choose a model for your inquiry

29 options

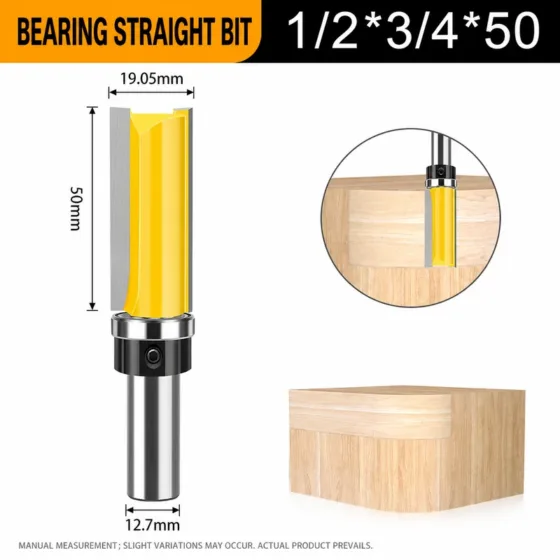

Selected: Bearing Straight Bit 1/2 × 3/4 × 50 mm

Wholesale · OEM · Custom Profiles

Need pricing for your quantity?

Send the required size, cutting material, machine type and quantity. We will confirm the suitable specification and quotation.

Request a quote Discuss a custom profile

Specification support before quotationConfirm the shank, cutting profile, material, machine and quantity so the suitable option can be reviewed.

Description

Shank-Bearing Flush-Trim Bits for Clean, Controlled Woodworking

This range combines bearing-guided straight cutters, three-flute designs and double-bearing options for controlled edge trimming, template routing and grooving. Select the shank, cutting diameter, cutting length and bearing arrangement required for your router and workpiece.

Range specifications

Shank options	1/4 in (6.35 mm) and 1/2 in (12.7 mm)
Cutter options	Bearing straight, three-flute and double-bearing flush-trim configurations
Typical materials	Solid wood, plywood, MDF, particleboard and laminated wood panels

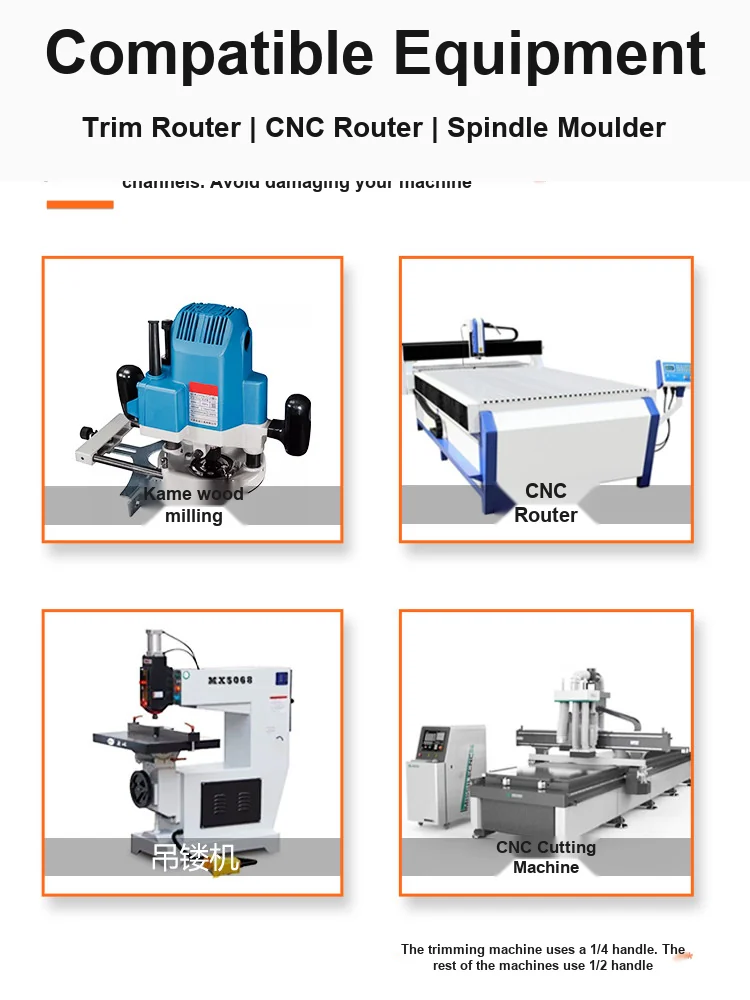

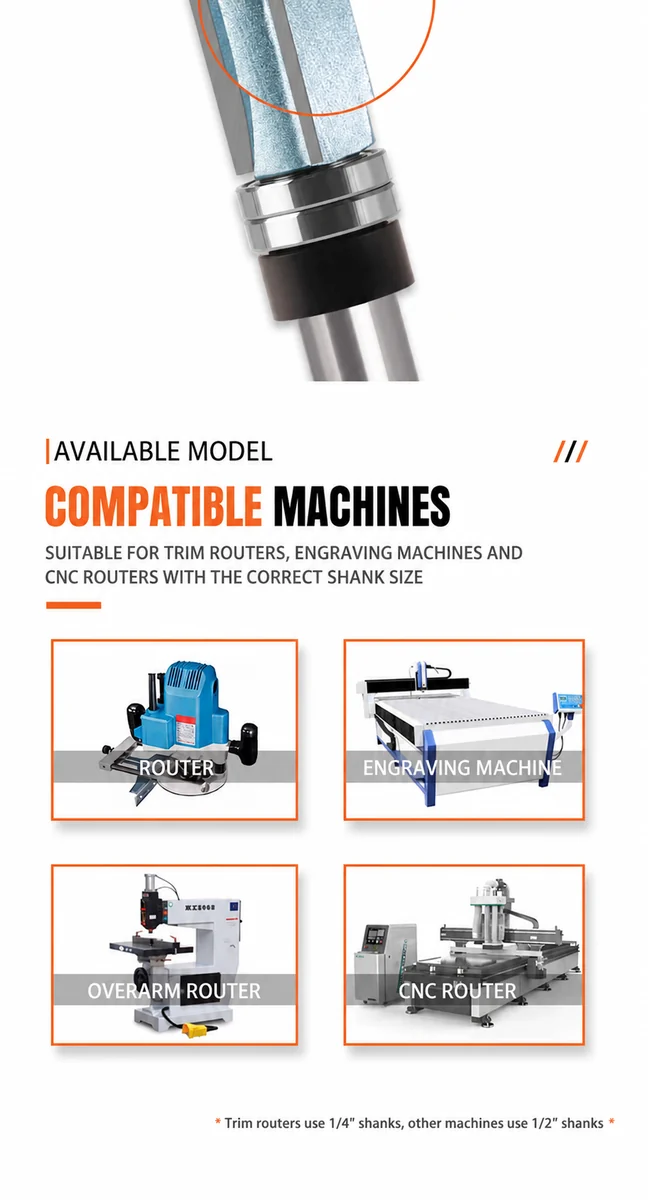

Typical machines	CNC router, trim router, router table and handheld router

Typical applications

Template and pattern routing

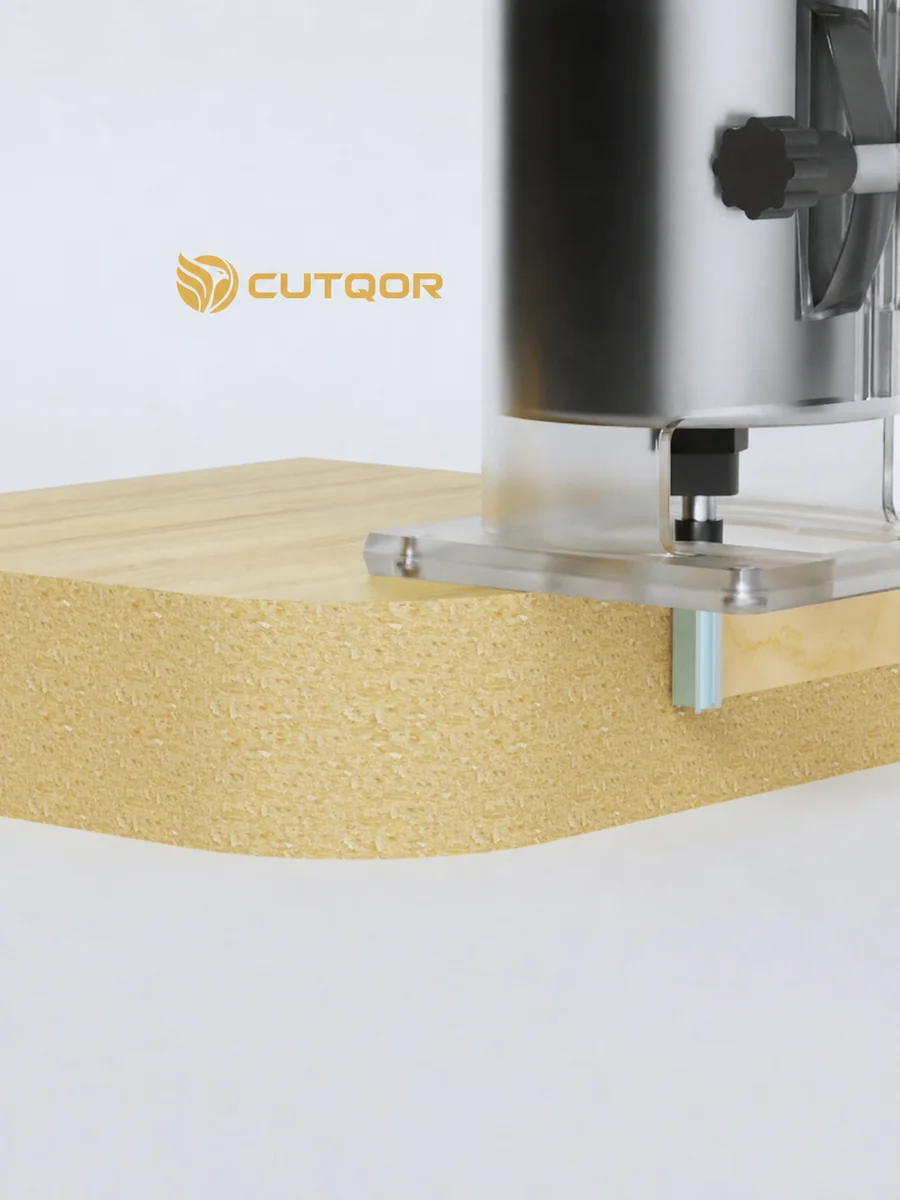

Flush trimming and edge duplication
Grooving and slot cutting
Cabinet, furniture and panel production

Ordering guidance

Send the required shank diameter, cutting diameter, cutting length, bearing arrangement, workpiece material and quantity. Confirm whether a standard bearing straight bit, three-flute cutter or double-bearing configuration is required.

Product Details

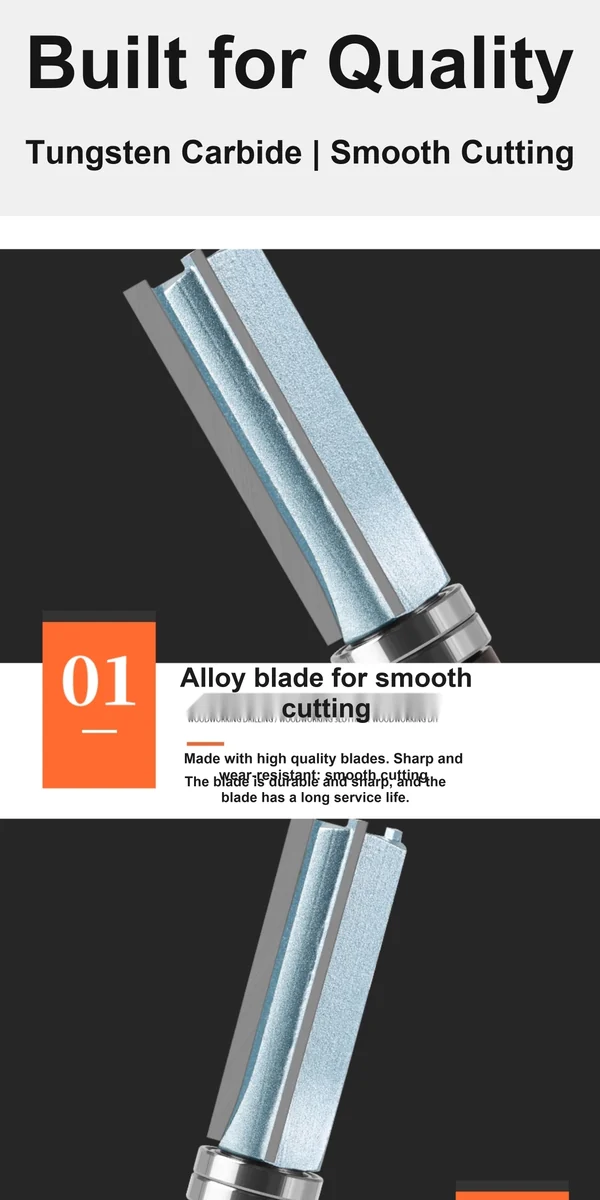

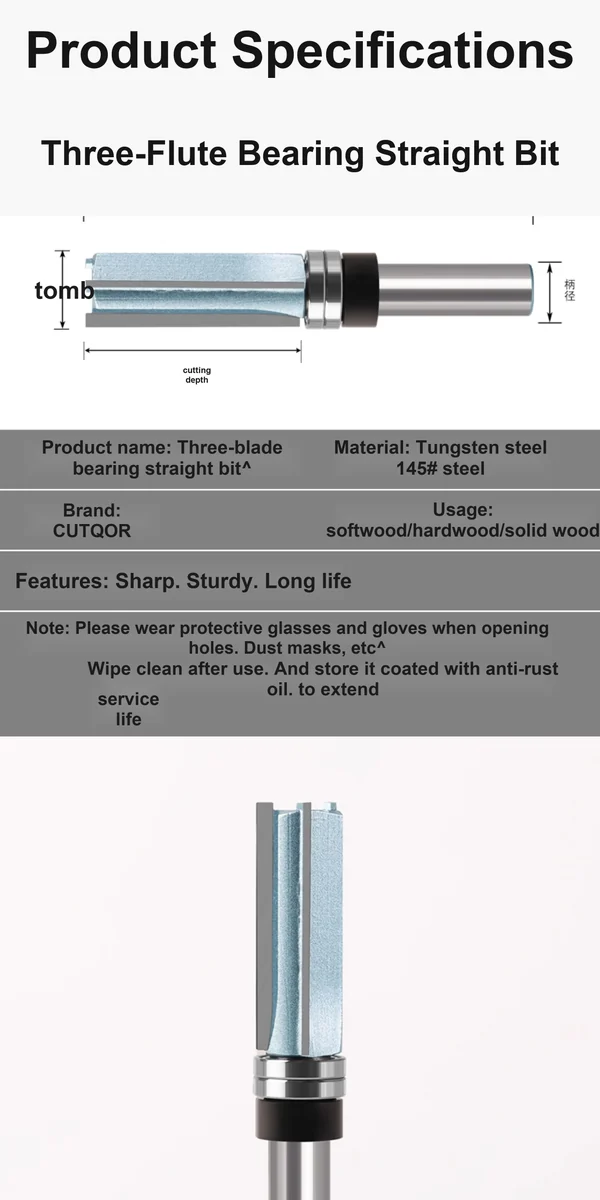

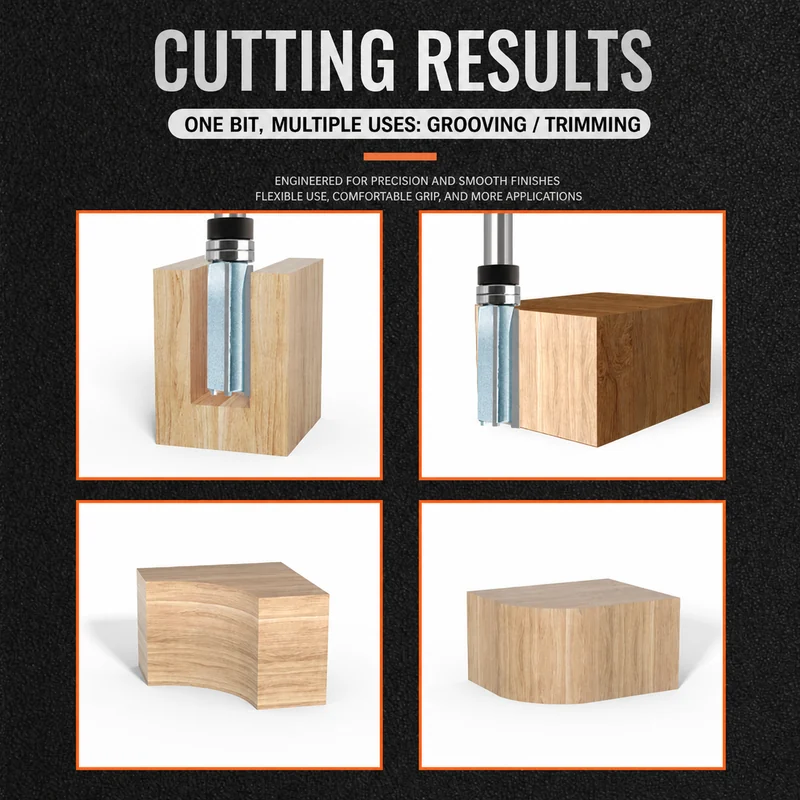

CUTQOR Shank-Bearing Three-Flute & Double-Bearing Flush-Trim Bits product detail

Additional information

Shank / Cutting Diameter / Cutting Length

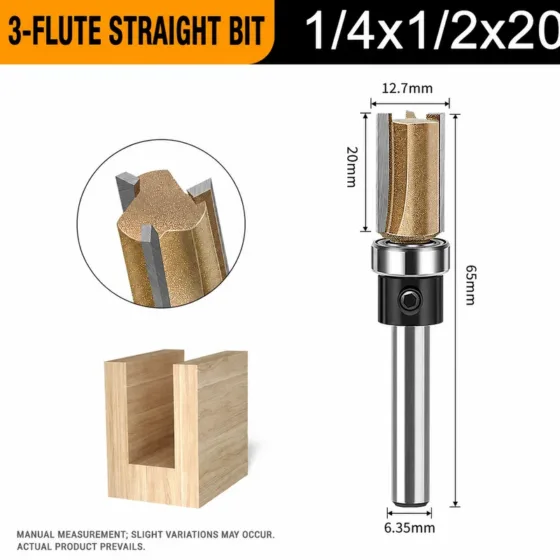

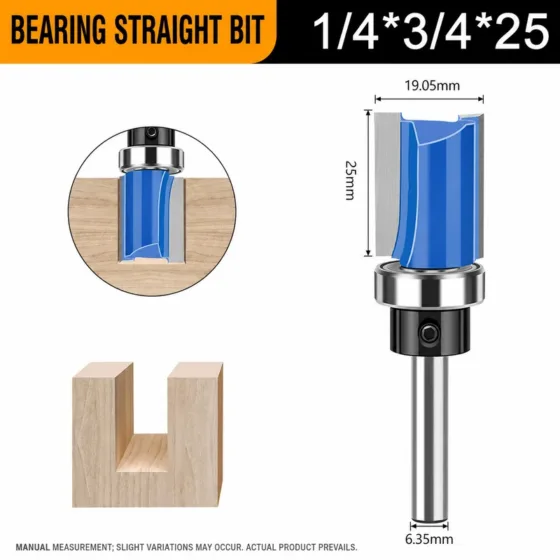

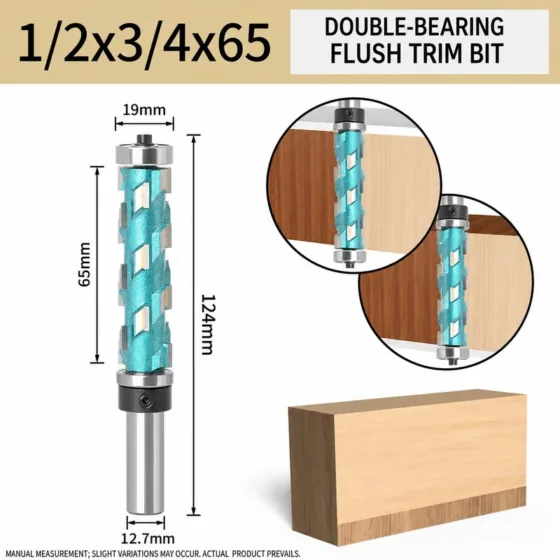

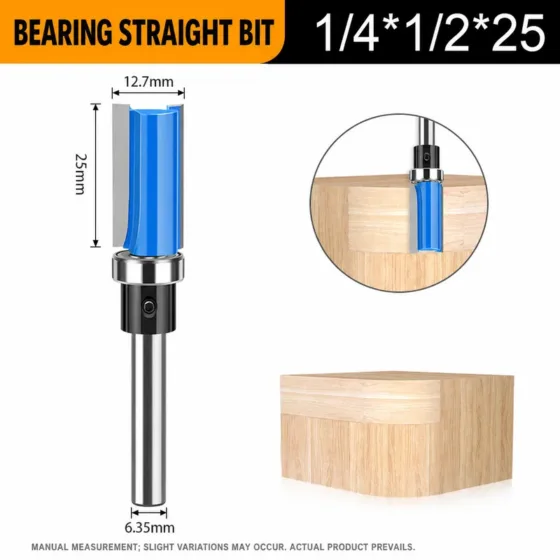

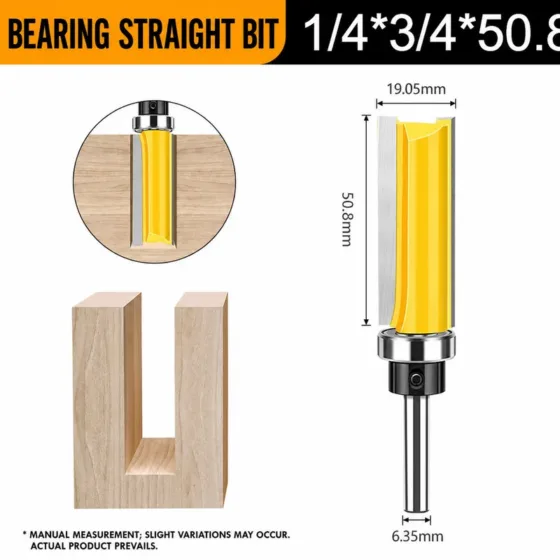

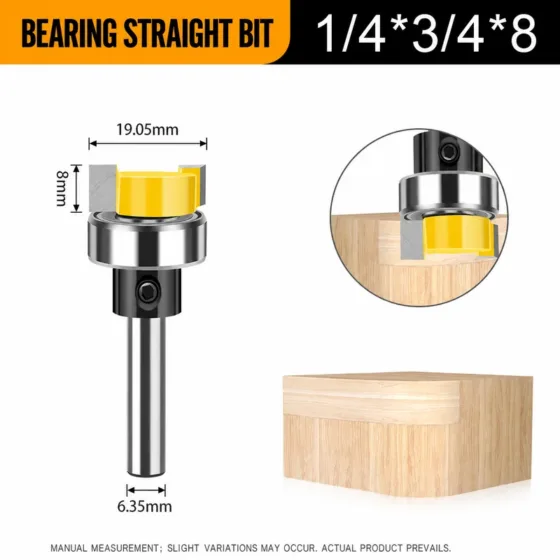

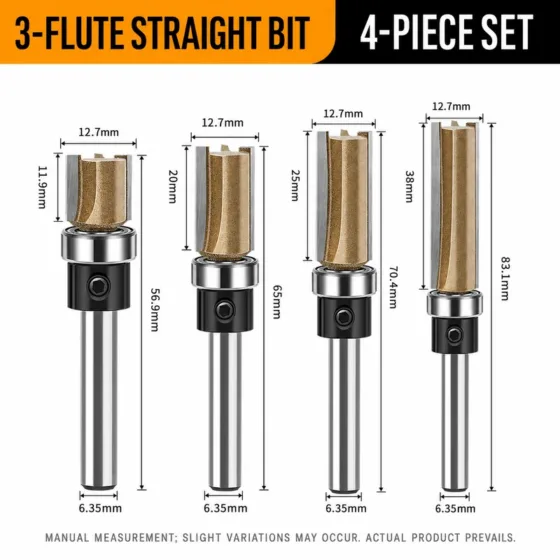

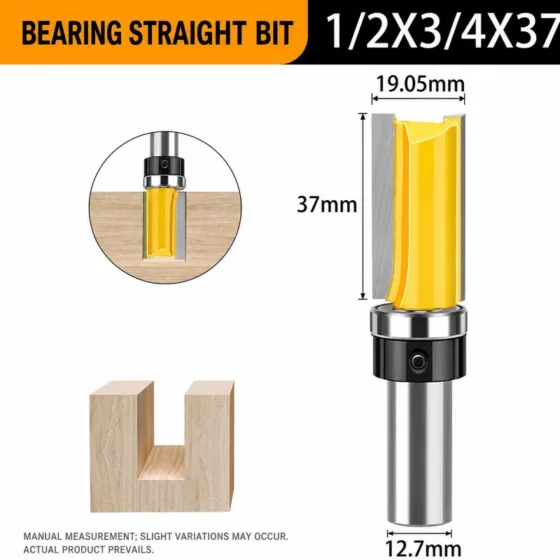

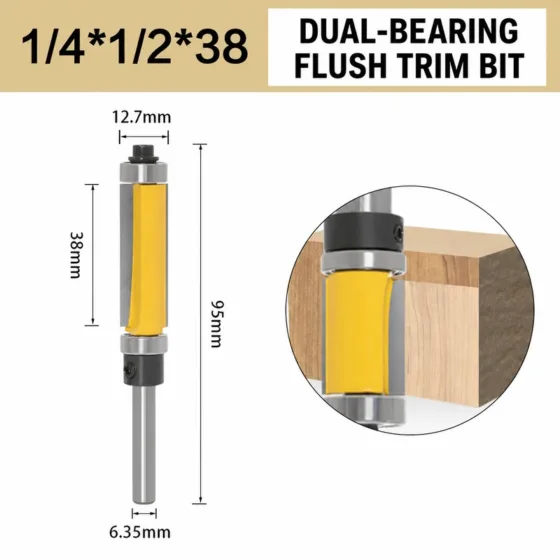

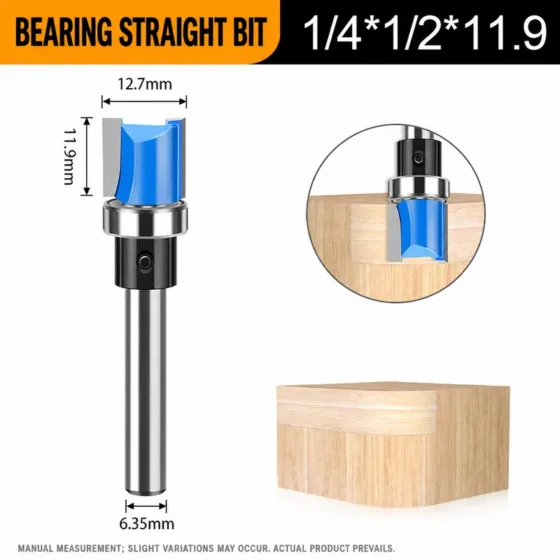

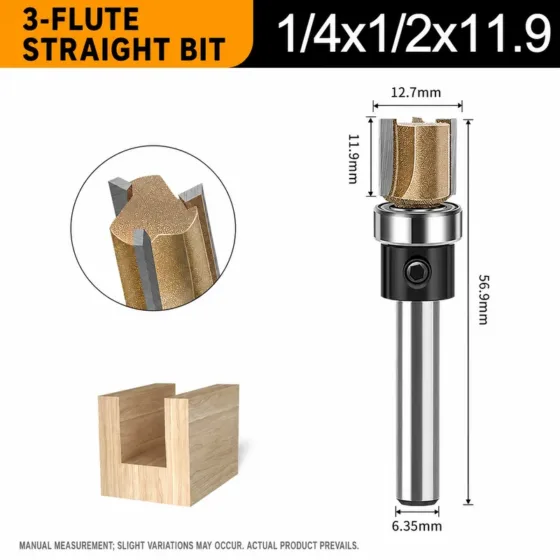

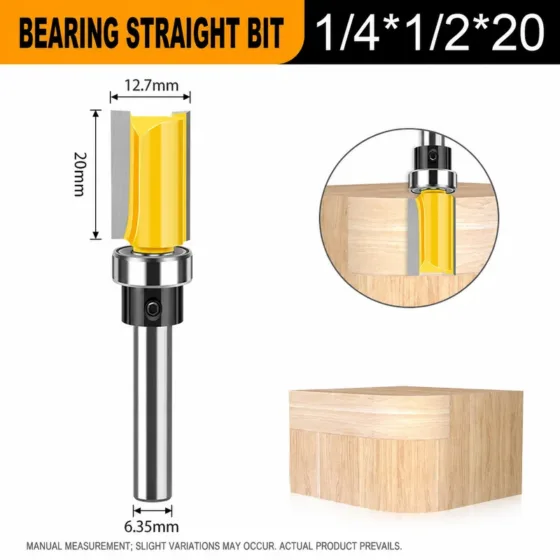

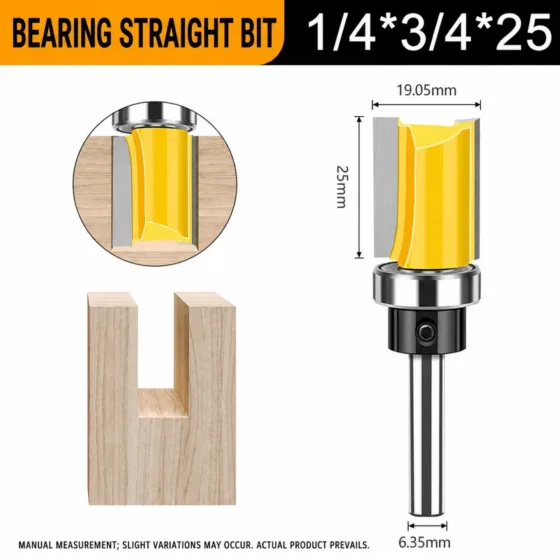

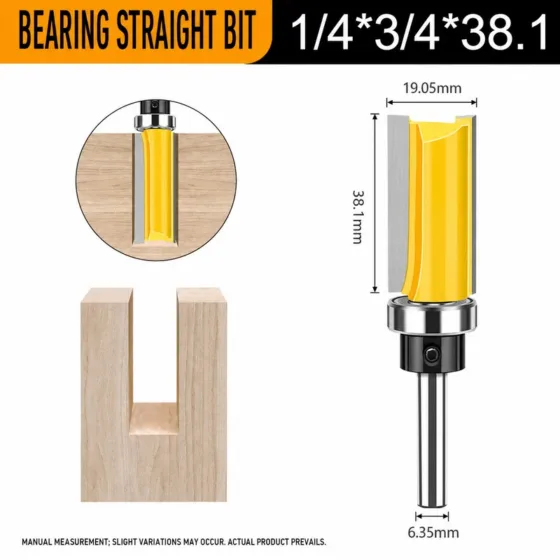

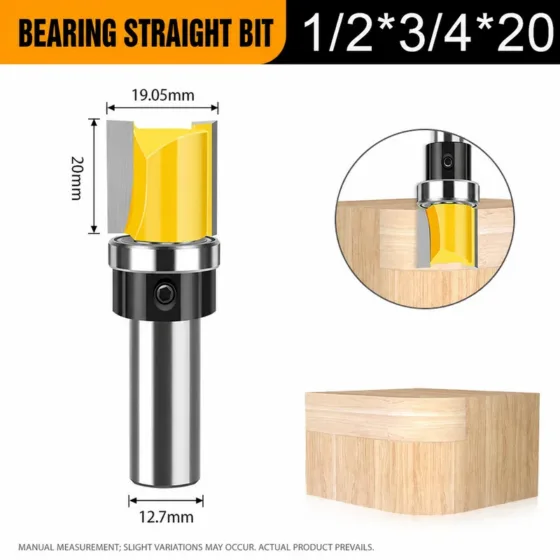

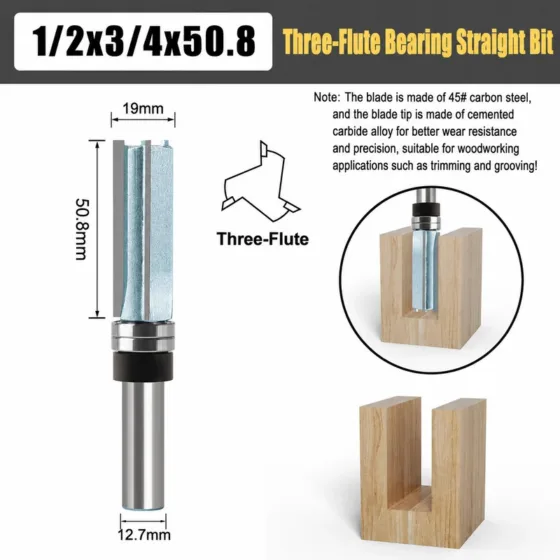

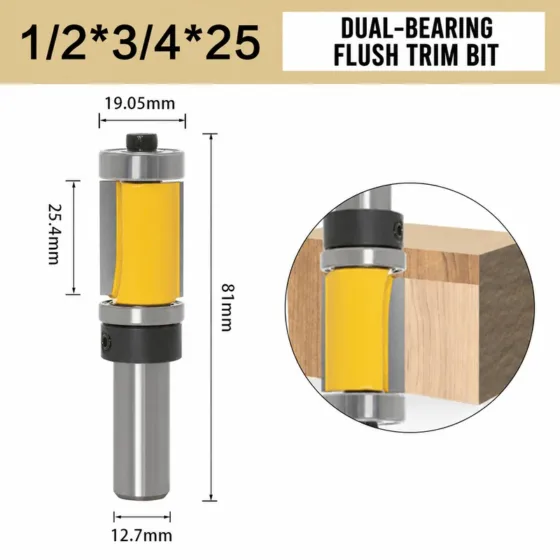

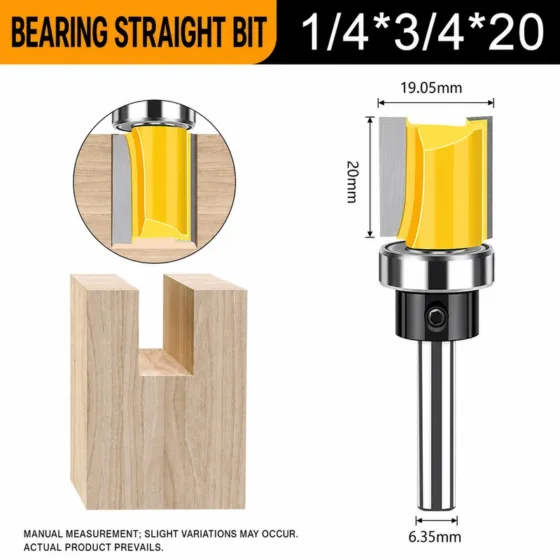

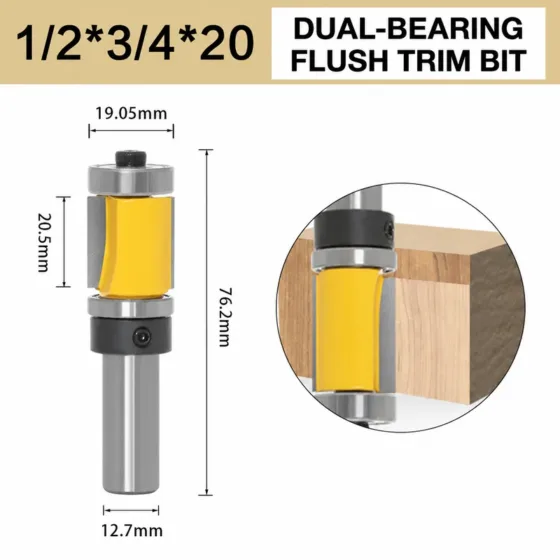

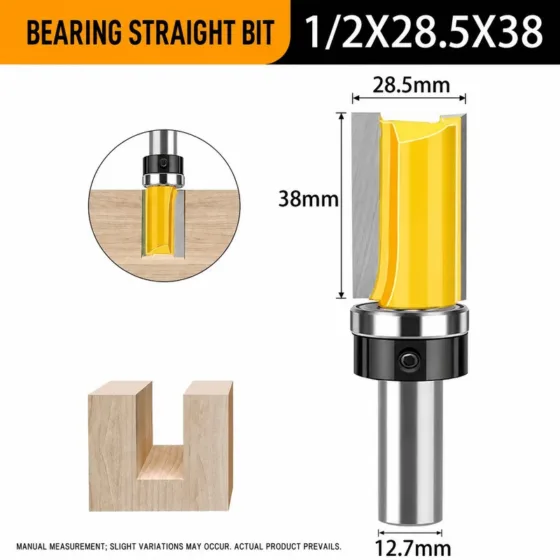

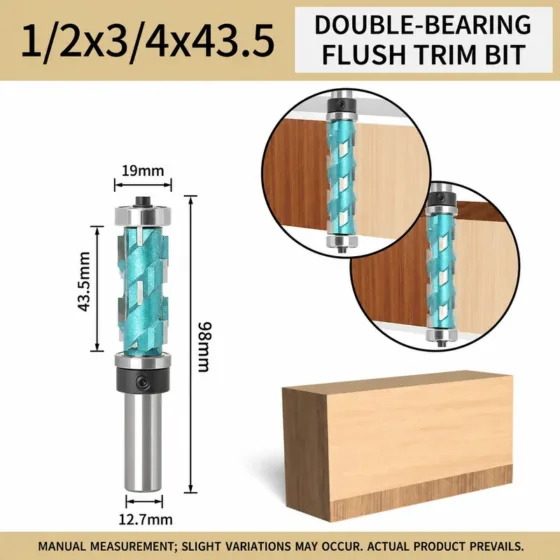

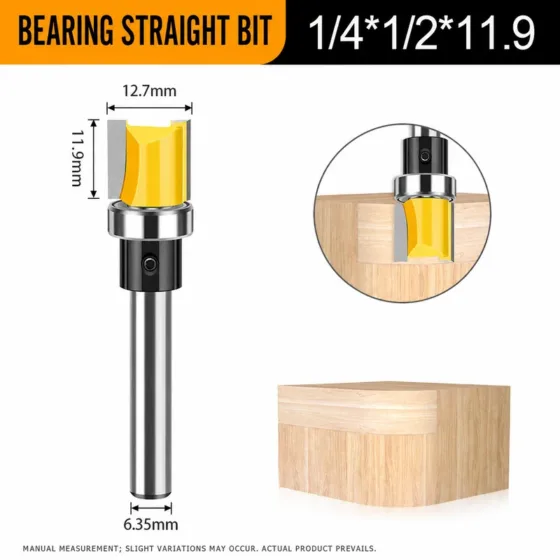

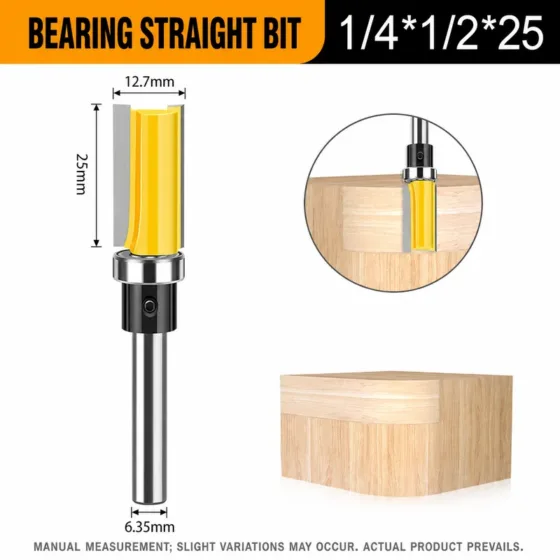

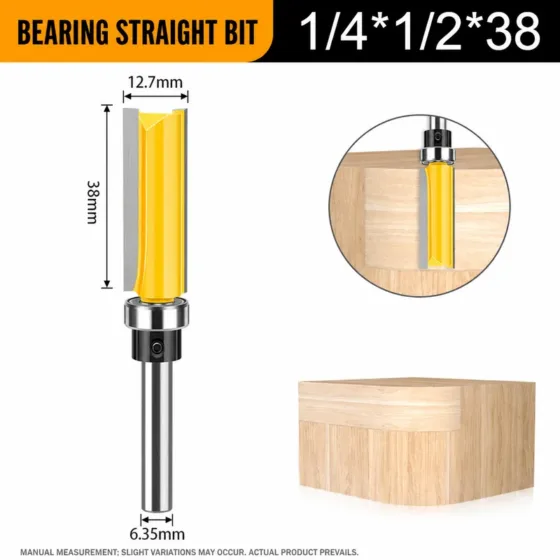

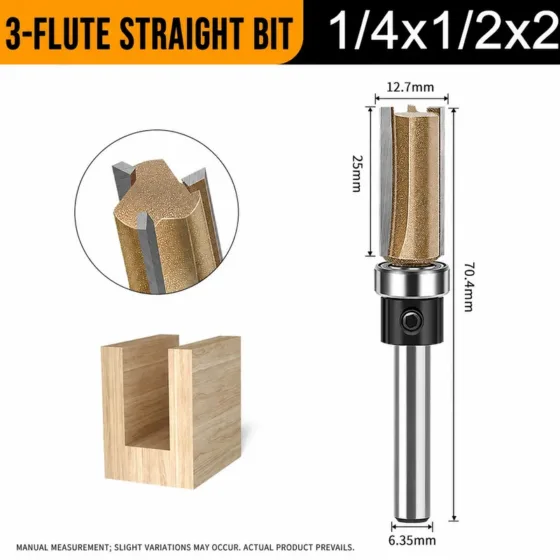

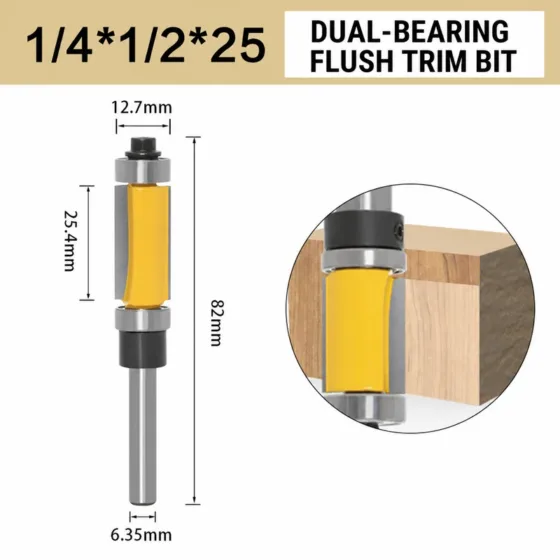

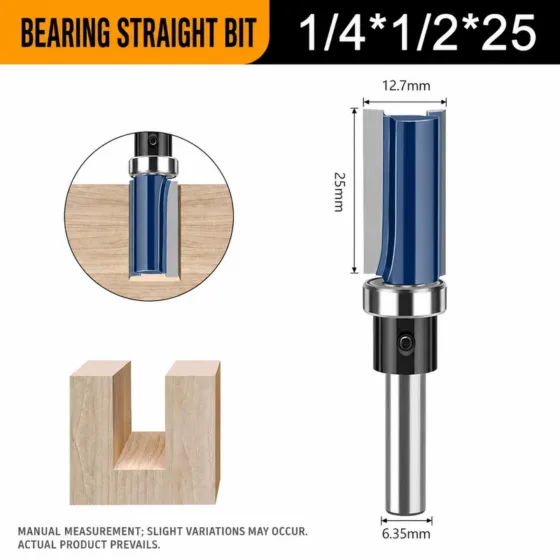

1/2 × 3/4 × 50 mm, 1/4 × 5/8 × 20 mm, 1/4 × 1/2 × 38 mm, Double-Bearing 1/2 × 3/4 × 25 mm, Double-Bearing 1/2 × 3/4 × 20 mm, Double-Bearing 1/4 × 1/2 × 38 mm, Double-Bearing 1/4 × 1/2 × 25 mm, Double-Bearing 1/2 × 3/4 × 65 mm, Double-Bearing 1/2 × 3/4 × 43.5 mm, 1/2 × 28.5 × 38 mm, 1/2 × 3/4 × 37 mm, 1/2 × 3/4 × 20 mm, 1/4 × 3/4 × 50.8 mm, 1/4 × 3/4 × 38.1 mm, 1/4 × 3/4 × 25 mm Yellow, 1/4 × 3/4 × 25 mm Blue, 1/4 × 3/4 × 20 mm, 1/4 × 3/4 × 8 mm, 1/4 × 1/2 × 25 mm Blue 70.4 mm OAL, 1/4 × 1/2 × 25 mm Blue 65 mm OAL, 1/4 × 1/2 × 25 mm Yellow, 1/4 × 1/2 × 20 mm, 1/4 × 1/2 × 11.9 mm Yellow, 1/4 × 1/2 × 11.9 mm Blue, Three-Flute 1/2 × 3/4 × 50.8 mm, Three-Flute 1/4 × 1/2 Four-Piece Set, Three-Flute 1/4 × 1/2 × 25 mm, Three-Flute 1/4 × 1/2 × 20 mm, Three-Flute 1/4 × 1/2 × 11.9 mm

Reviews

There are no reviews yet.

Be the first to review “Shank-Bearing Three-Flute & Double-Bearing Flush-Trim Bits”

Information to include with your inquiry

Router or CNC machine and collet/shank size
Workpiece material and expected cutting profile
Required dimensions, drawing or reference photo
Trial quantity, bulk quantity and destination country
