Description
Micro-Diameter Carbide Flat & Ball Nose End Mills for production machining. The images below are translated from the original product image set; product visuals, dimensions and technical values are retained.
Product details

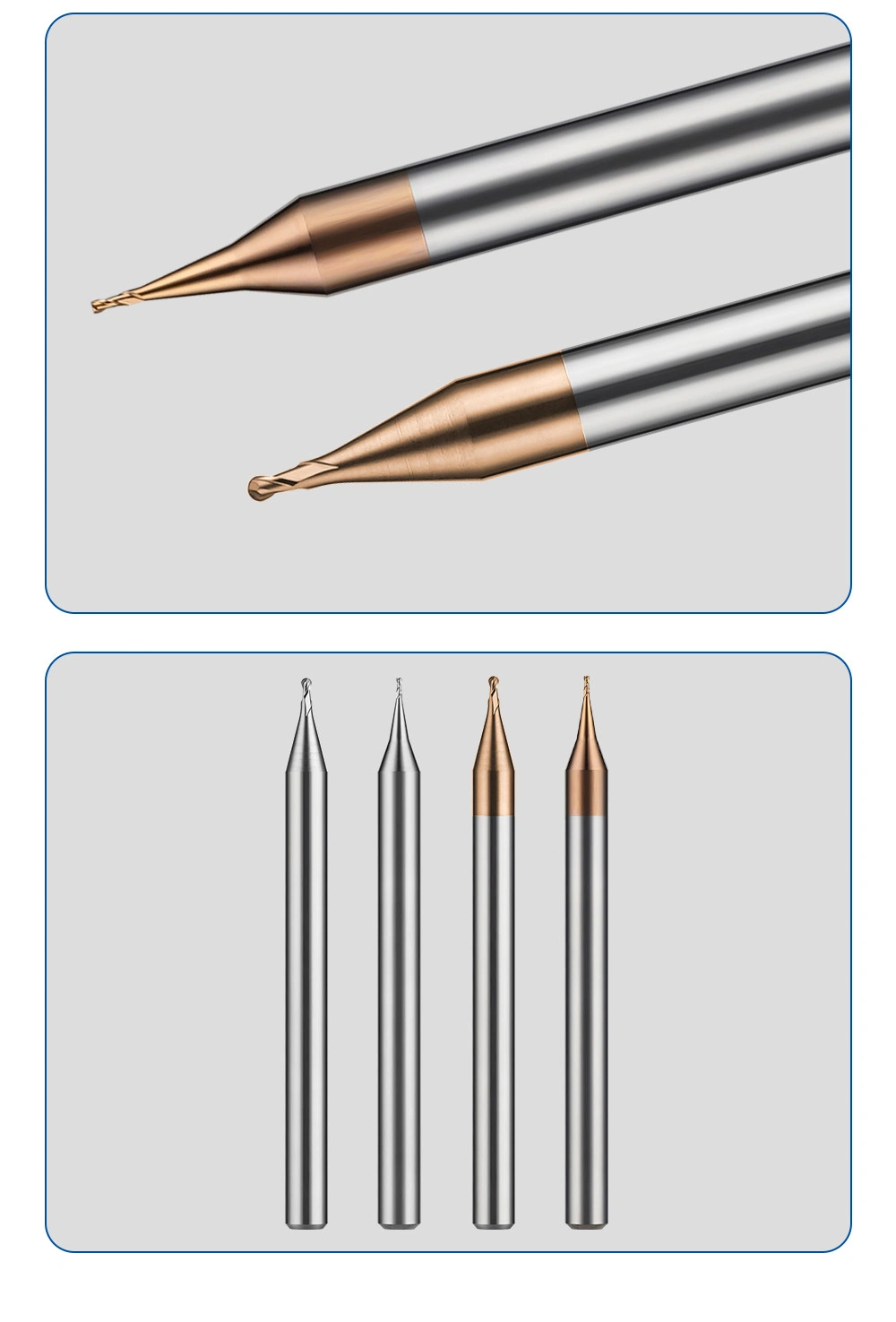

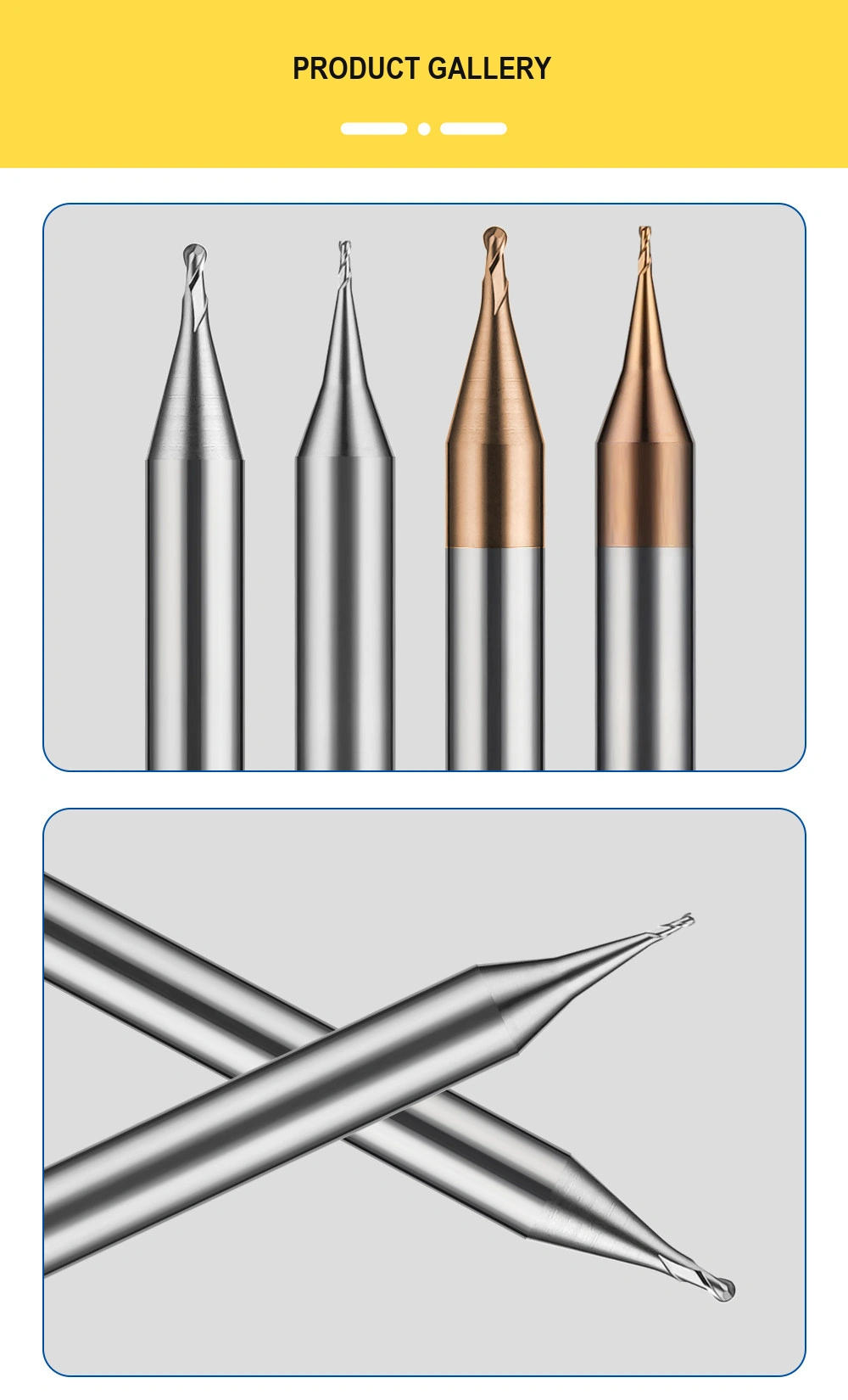

Micro-Diameter Carbide Flat & Ball Nose End Mills
Select the required configuration and request a quote for your production requirement.
Key specifications
| Cutter diameter | 3–20 mm |
|---|---|
| Cutter thickness | 0.5–8 mm |
| Clearance diameter | 1.5–10 mm |
| Clearance length | 4–25 mm |
| Shank diameter | 4–20 mm |
| Overall length | 50–75 mm |
| Flutes | 4 |
Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.
Additional information
| Specification | D0.2×0.4xD4x50L, D0.25*0.5*D4*50*2F, D0.3×0.6xD4x50L, D0.35*0.7*D4*50*2F, D0.4×0.8xD4x50L, D0.45*0.9*D4*50*2F, D0.5x1xD4x50L, D0.55*1.1*D4*50*2F, D0.6×1.2xD4x50L, D0.65*1.3*D4*50*2F, D0.7×1.4xD4x50L, D0.75*1.5*D4*50*2F, D0.8×1.6xD4x50L, D0.85*1.7*D4*50*2F, D0.9×1.8xD4x50L, R0.1×0.4xD4x50L, R0.15×0.6xD4x50L, R0.2×0.8xD4x50L, R0.25×0.5xD4x50L, R0.25x1xD4x50L, R0.3×1.2xD4x50L, R0.35×1.4xD4x50L, R0.4×1.6xD4x50L, R0.45×1.8xD4x50L, R0.5x2xD4x50L |
|---|
Information to include with your inquiry
- Router or CNC machine and collet/shank size
- Workpiece material and expected cutting profile
- Required dimensions, drawing or reference photo
- Trial quantity, bulk quantity and destination country
