CUTQOR extra-long door mortising and bottom-cleaning router bits

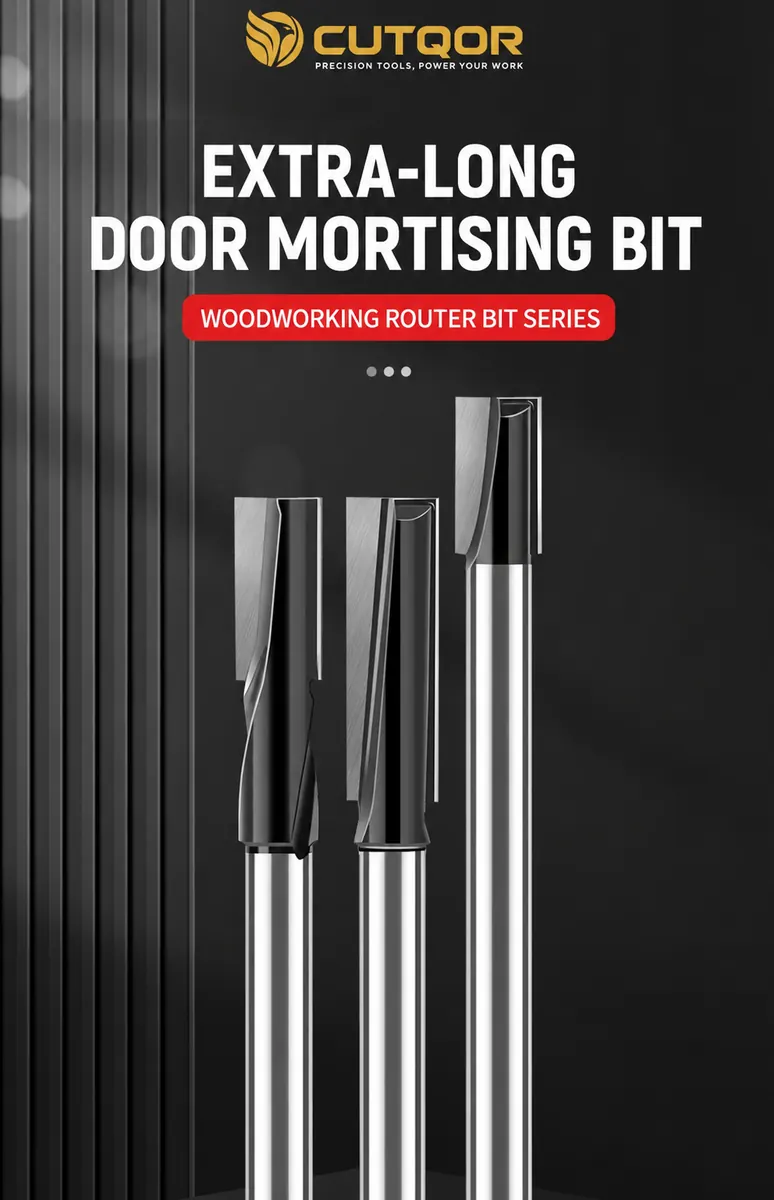

Extra-Long Door Mortising Bit Series
Door Mortising Bit Application Range
Extra-Long Door Mortising Bit Product Group
Door Mortising and Bottom-Cleaning Router Bits

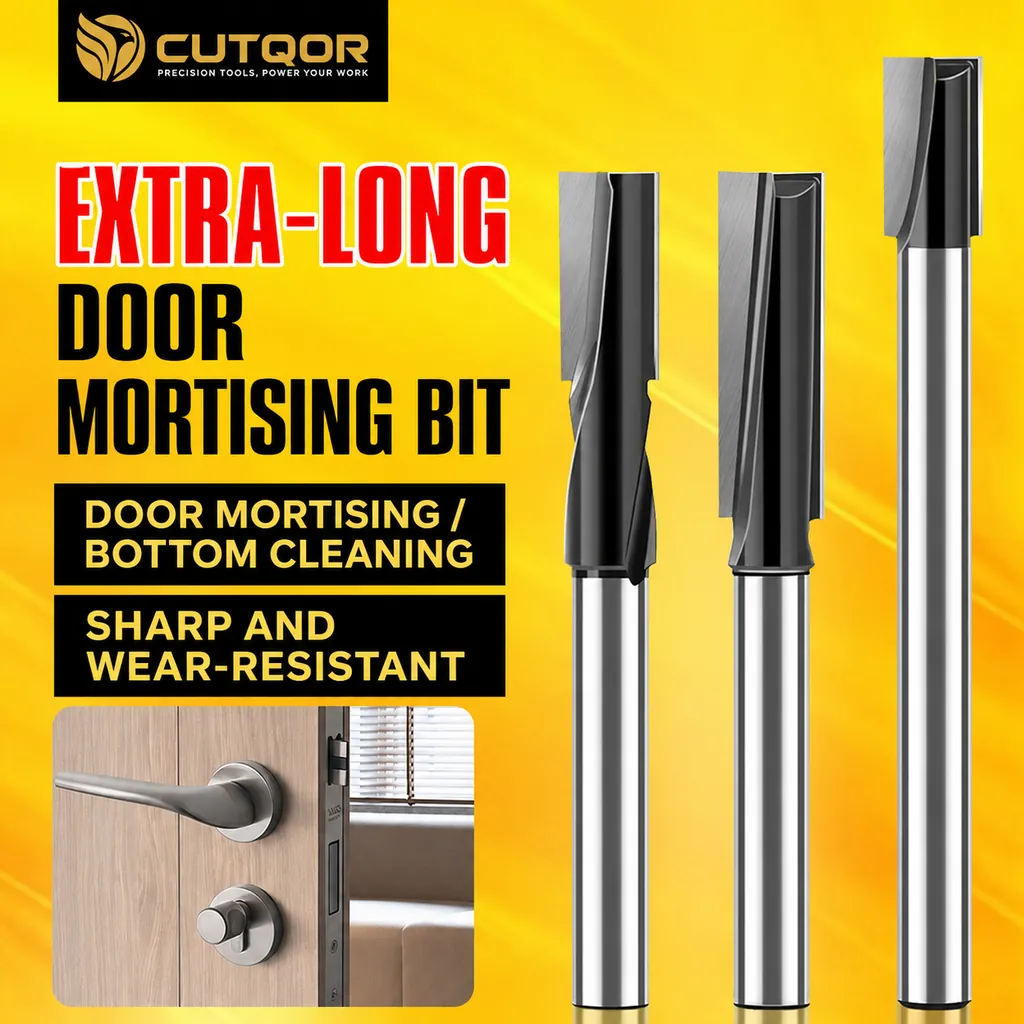

Extra-Long Door Lock Mortising & Bottom-Cleaning Router Bits

Extra-long straight, spiral and four-flute router bits for door-lock mortising, bottom cleaning, deep grooving and hardware-pocket routing.

Available specifications

Choose a model for your inquiry

9 options

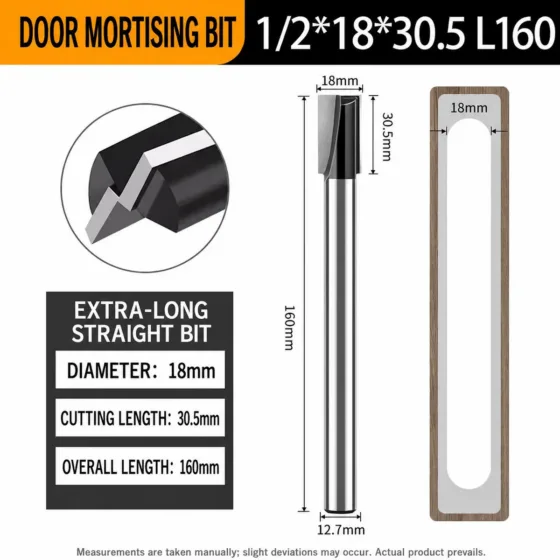

Selected: Extra-Long Straight Door Mortising Bit 1/2 × 18 × 30.5 L160 SKU DLBC-1-2X18X30-5-L160

Wholesale · OEM · Custom Profiles

Need pricing for your quantity?

Send the required size, cutting material, machine type and quantity. We will confirm the suitable specification and quotation.

Request a quote Discuss a custom profile
Specification support before quotationConfirm the shank, cutting profile, material, machine and quantity so the suitable option can be reviewed.

Description

Extra-Long Door Lock Mortising and Bottom-Cleaning Router Bits

This range combines extra-long straight, spiral and four-flute router bits for cutting door-lock mortises, deep grooves, hardware pockets and clean flat-bottom slots. The 1/2-inch shank models are designed for professional door production, cabinetry and CNC woodworking where cutting depth and reach matter.

Range specifications

Shank diameter 1/2 inch / 12.7 mm
Cutter diameters 16 mm, 17 mm, 18 mm and 21 mm
Cutting lengths 30.5 mm, 35 mm, 59 mm and 64.5 mm
Overall lengths 140 mm and 160 mm
Cutting profiles Straight, spiral and four-flute profiles
Supported materials Solid wood, plywood, MDF and particleboard
Compatible machines Electric routers, engraving machines, CNC routers and overhead routers with a matching collet

Typical applications

  • Door-lock and latch mortising
  • Bottom cleaning in deep hardware pockets
  • Straight and spiral grooving in doors and panels
  • Cabinet, furniture and production woodworking

Ordering guidance

Select the model by its full shank, cutter diameter, cutting length and overall length. Confirm the machine collet, mortise width, required depth, workpiece material and quantity before requesting a quotation.

Product Details

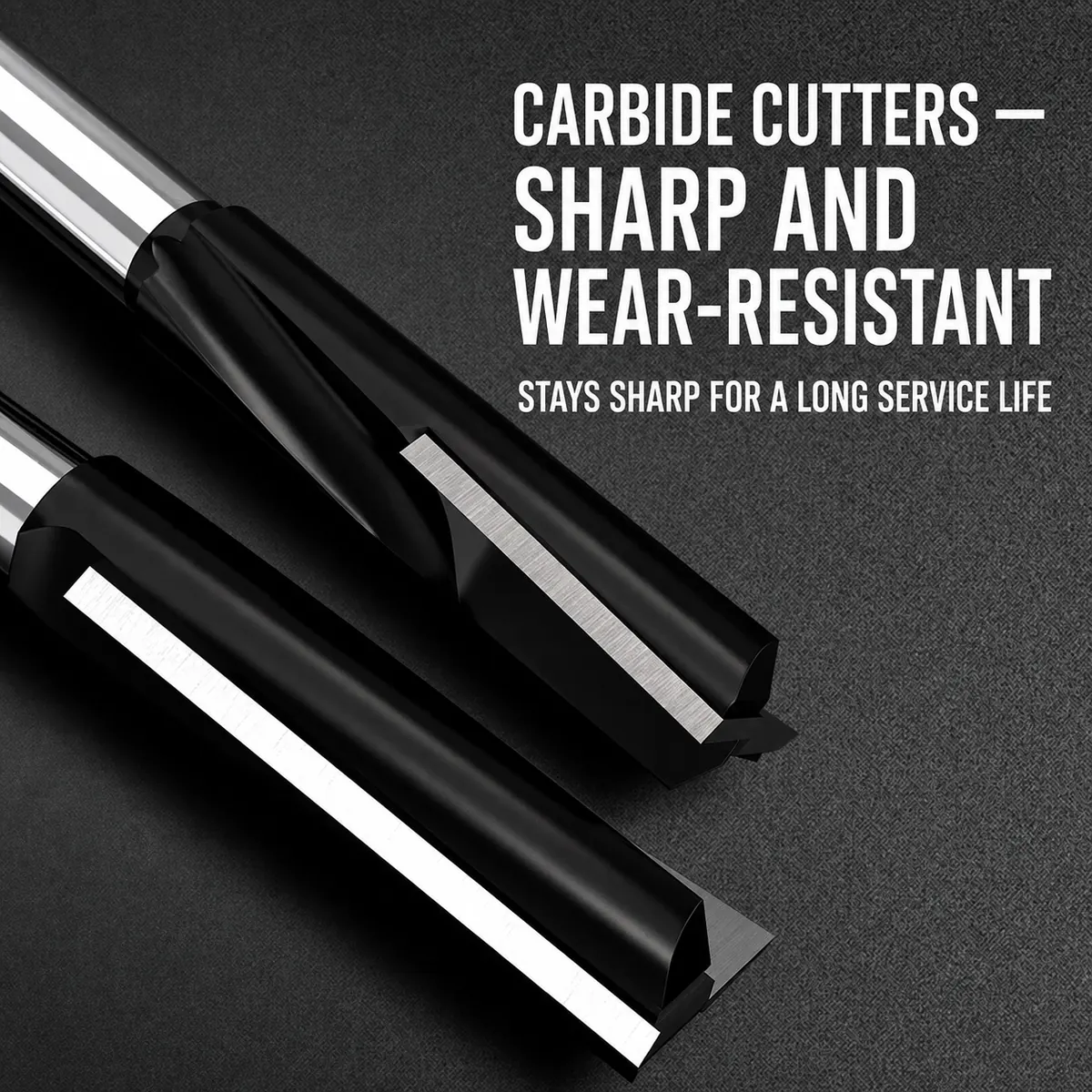

Carbide Cutter Wear Resistance
Dual-Edge Fast-Cutting Design

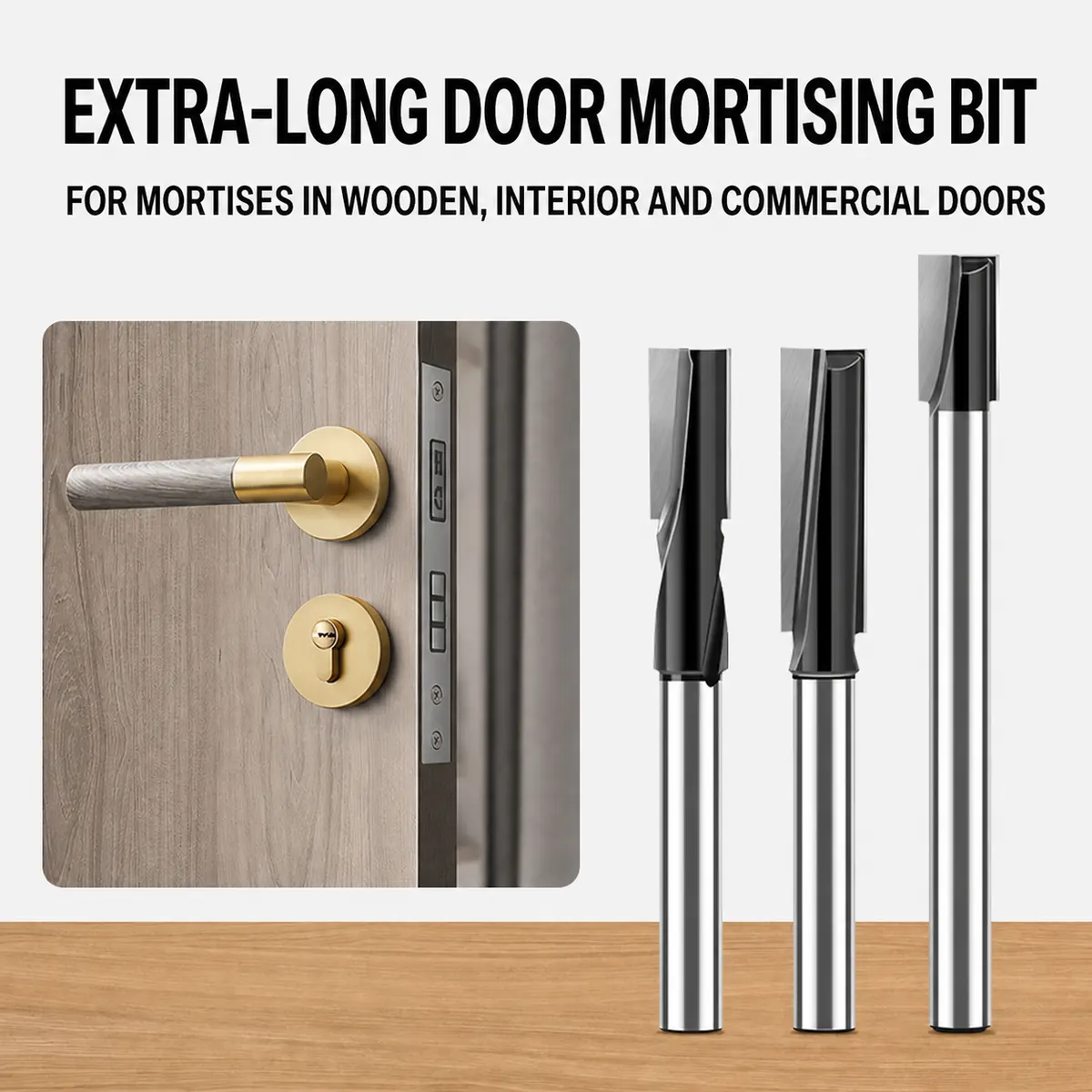

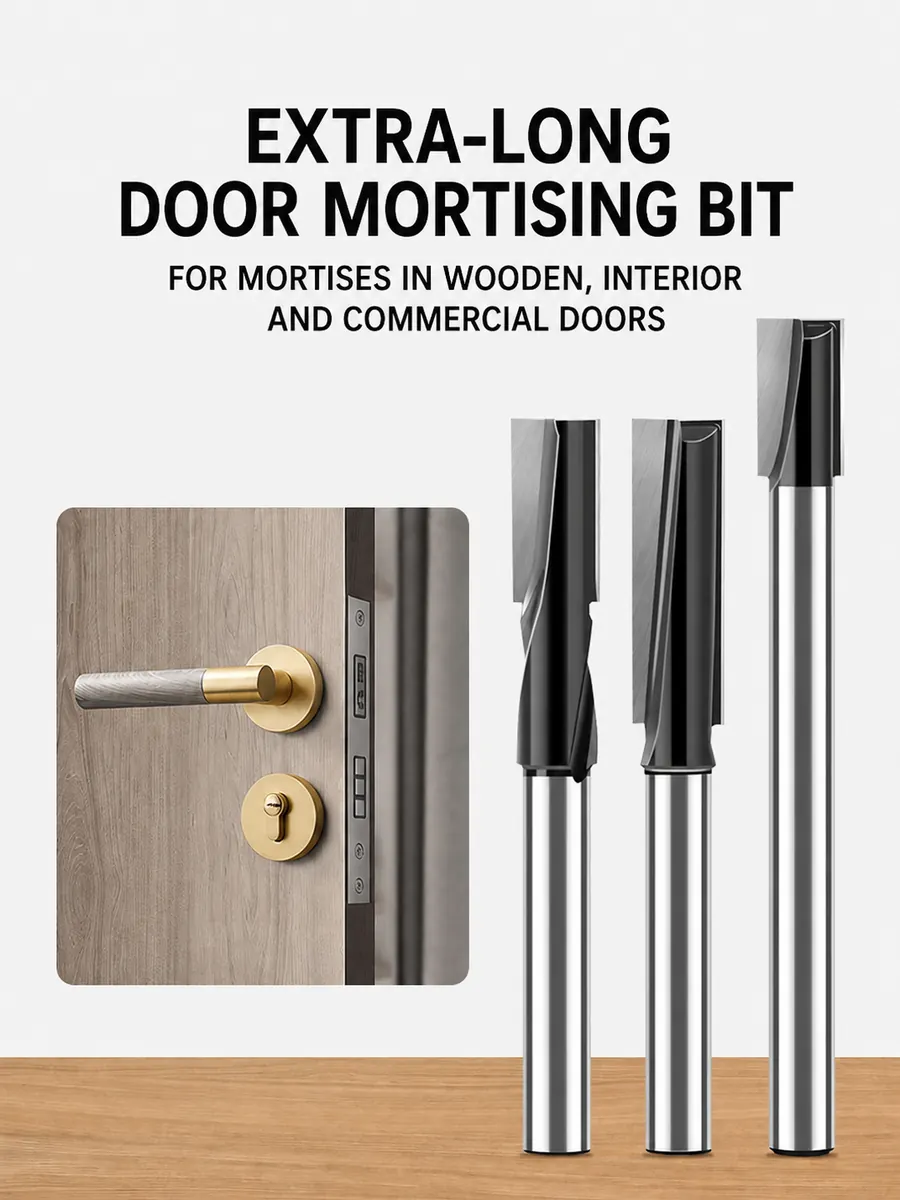

Door Mortising Application Overview

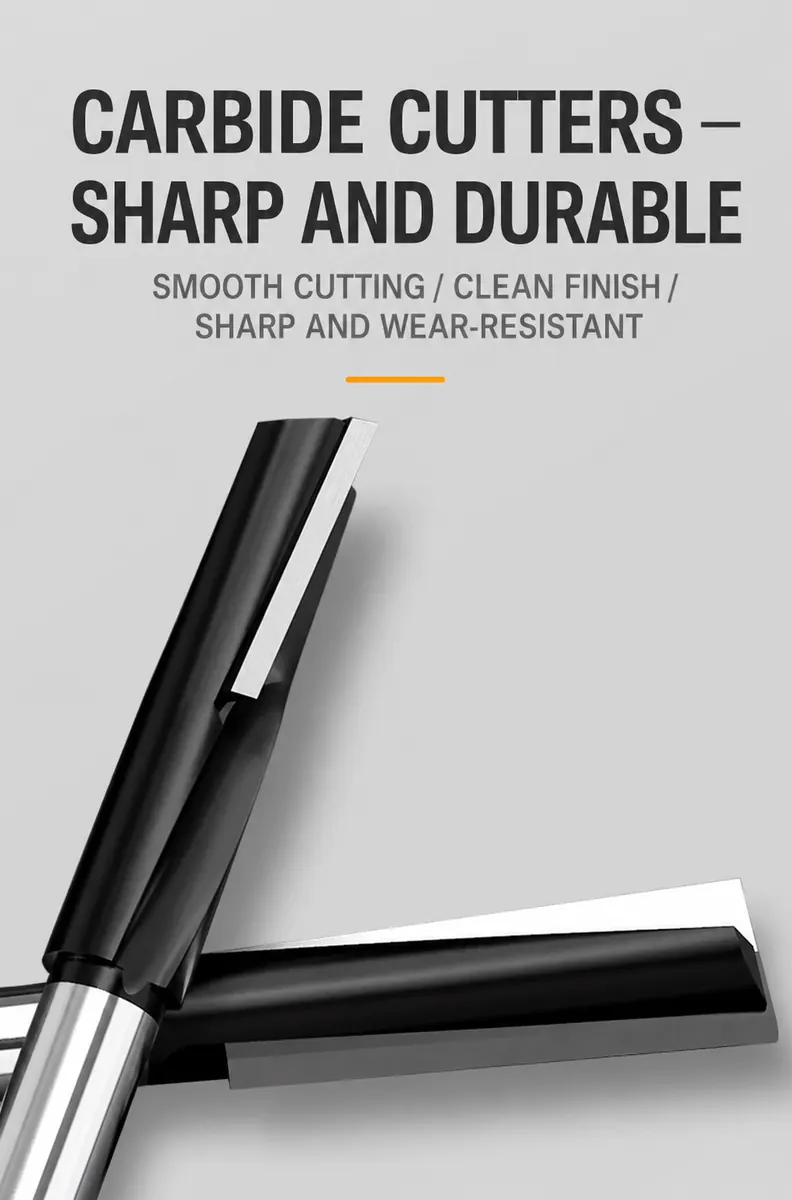

Carbide Cutter Construction

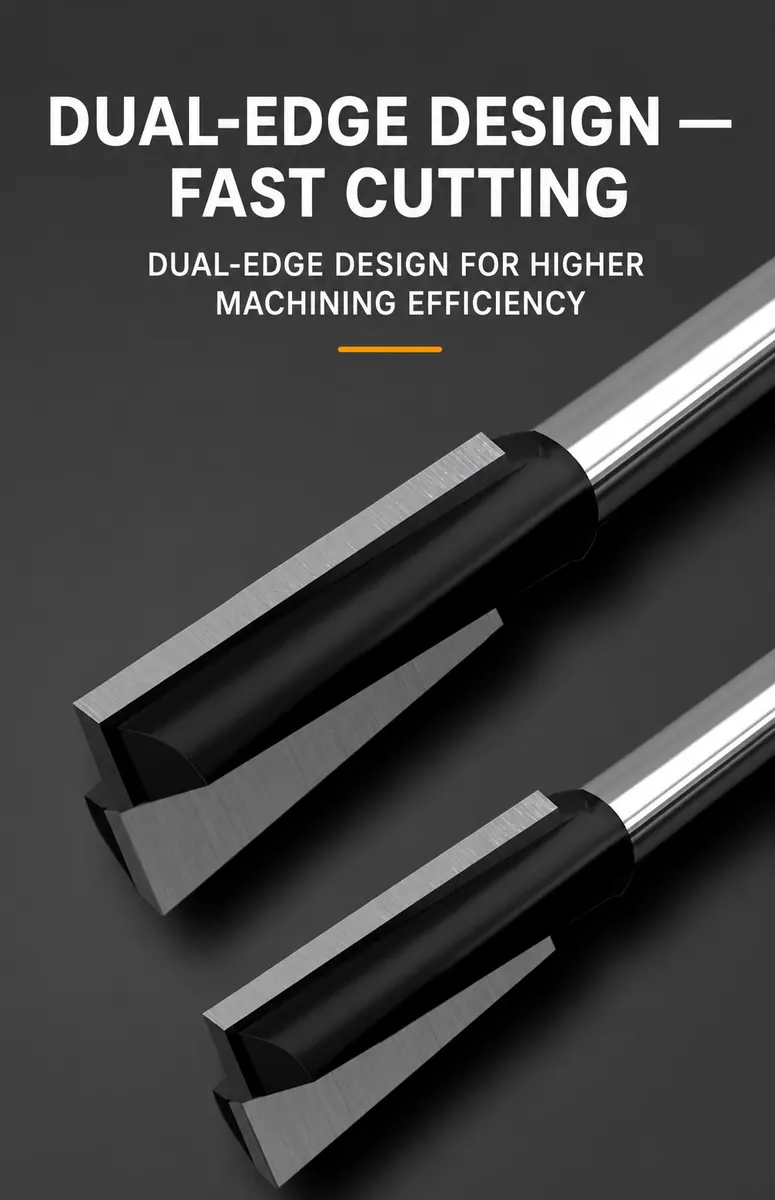

Dual-Edge Machining Efficiency

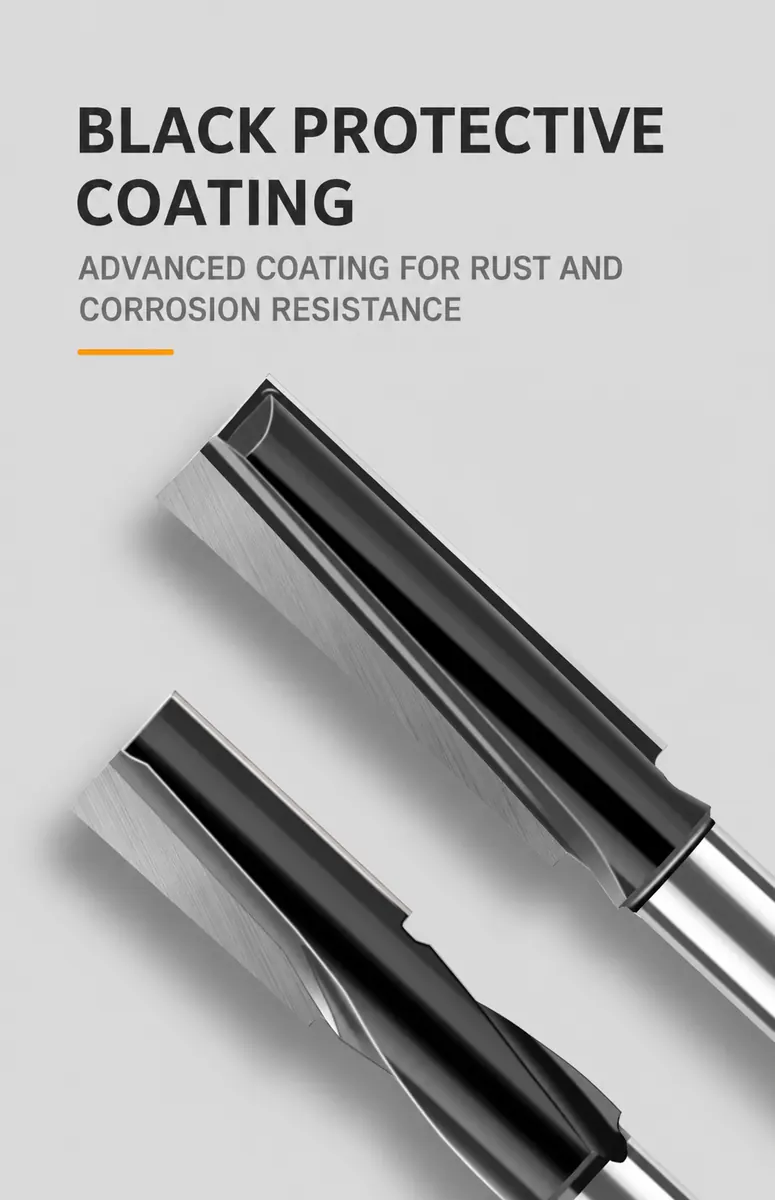

Black Protective Coating

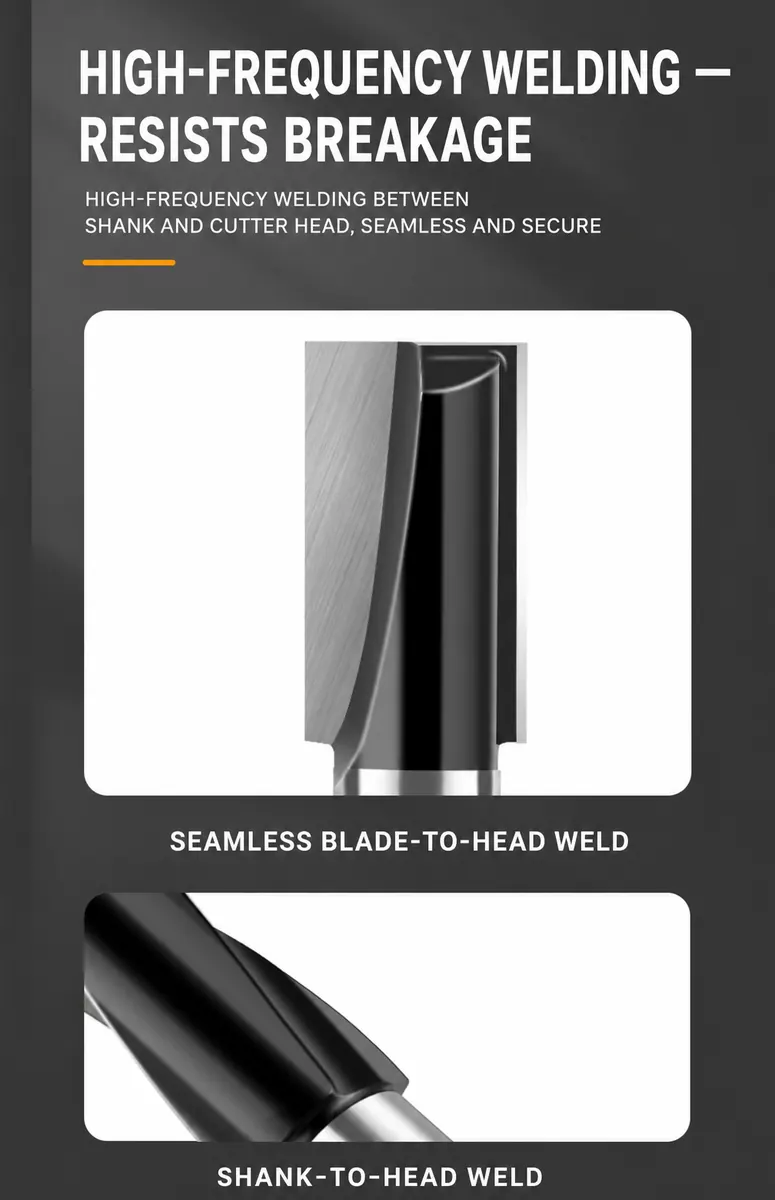

High-Frequency Welded Construction
Shank-to-Cutter-Head Weld

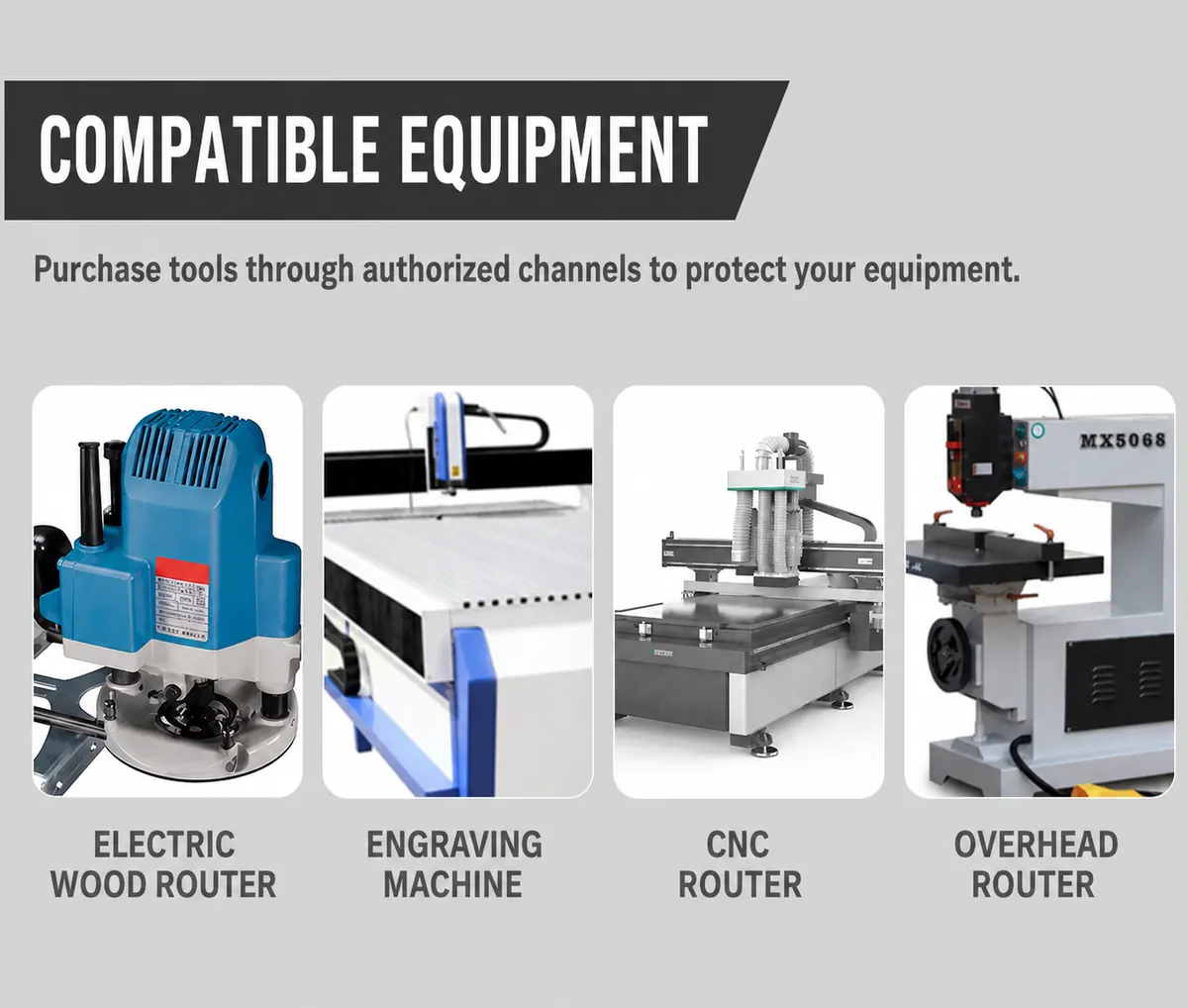

Compatible Routing Equipment

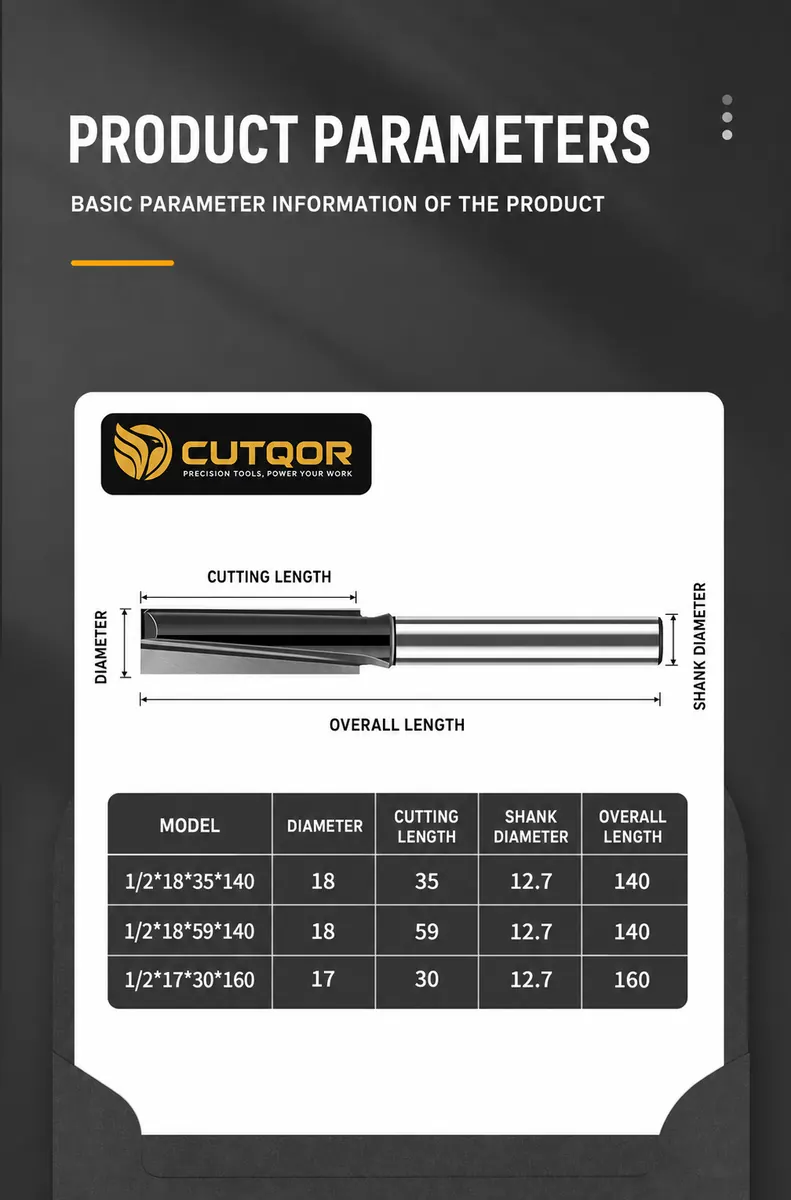

Door Mortising Bit Parameter Table

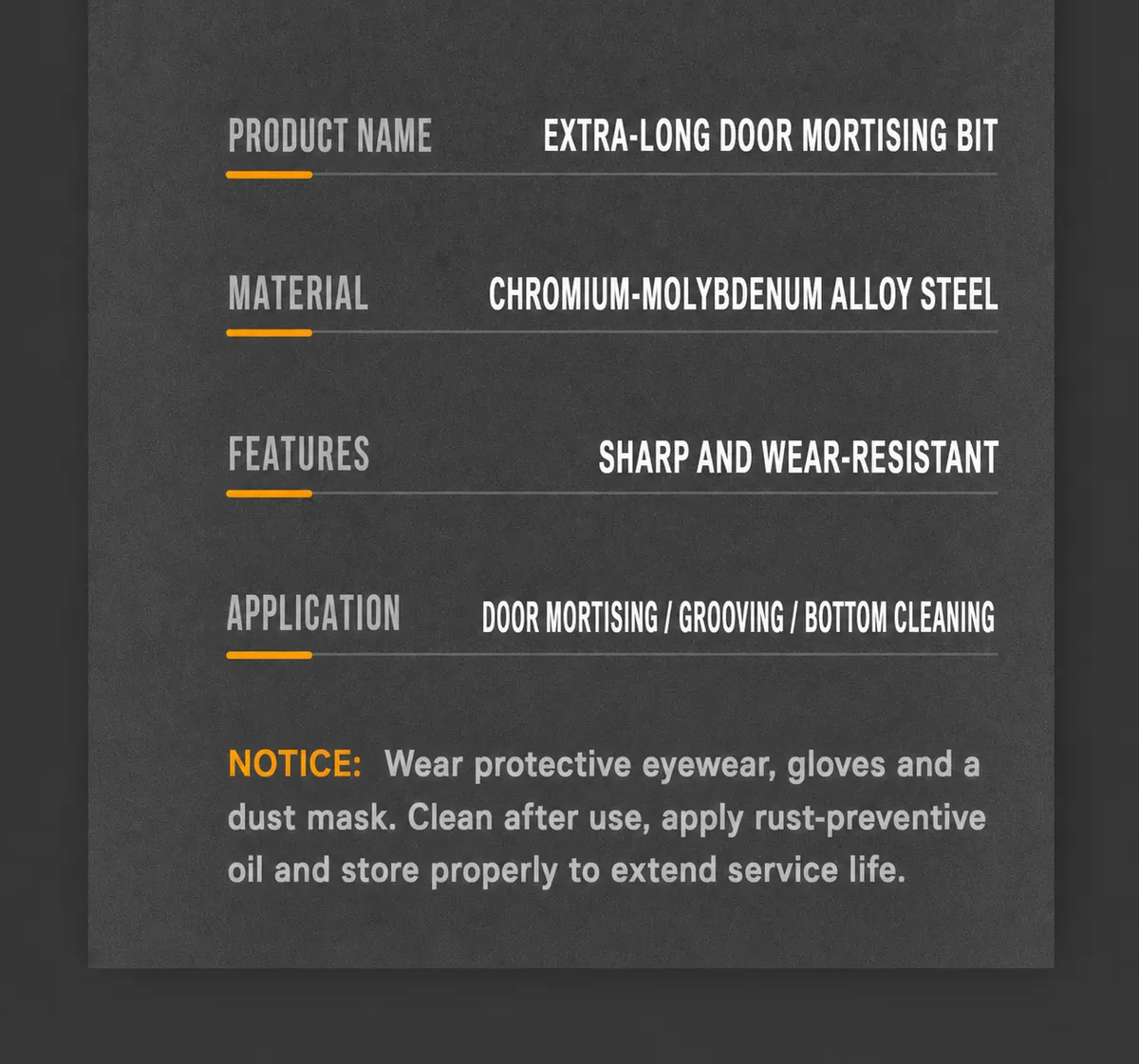

Product Materials Features and Safety

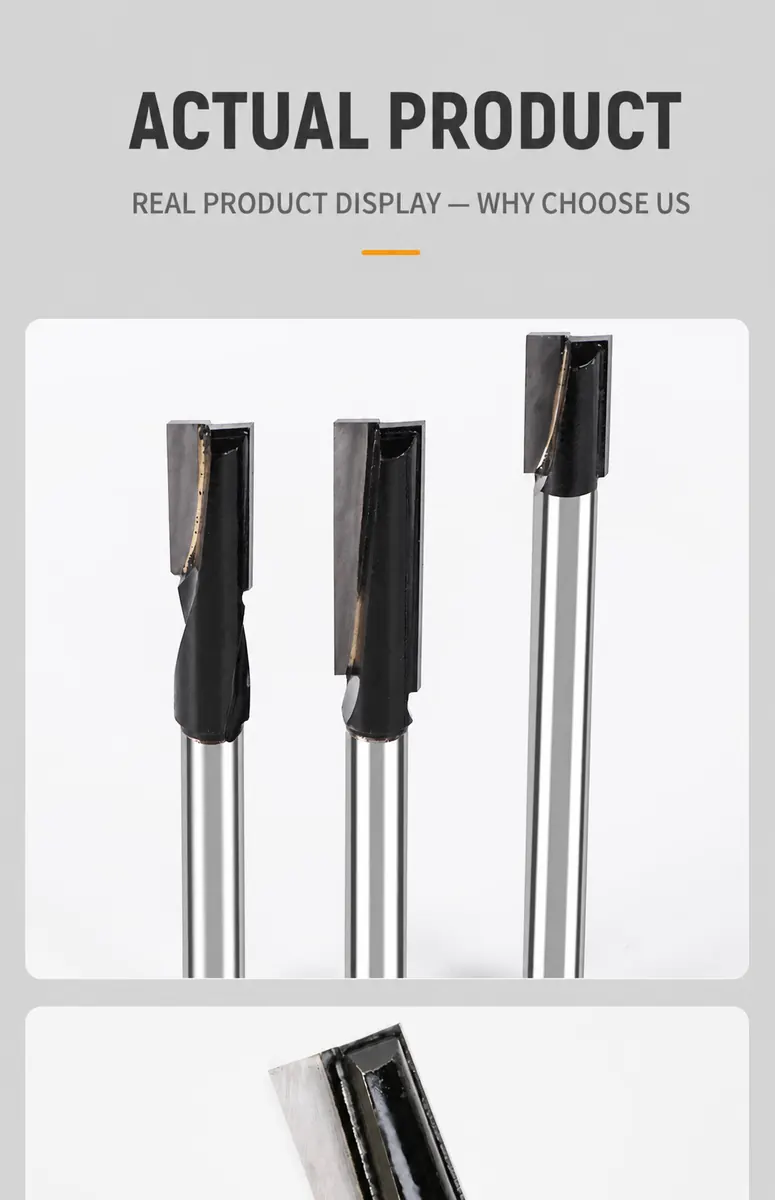

Actual Door Mortising Bit Product View

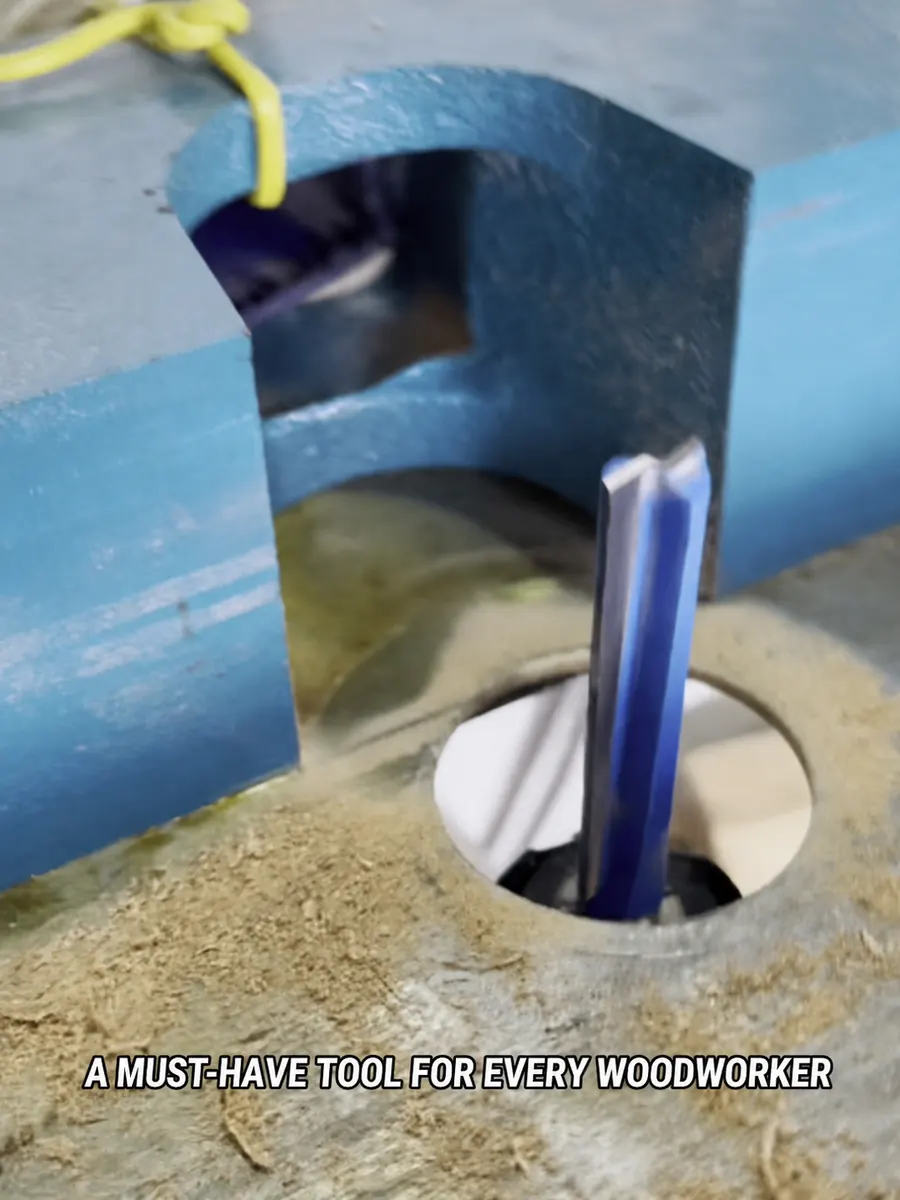

Door Mortising Machining Demonstration

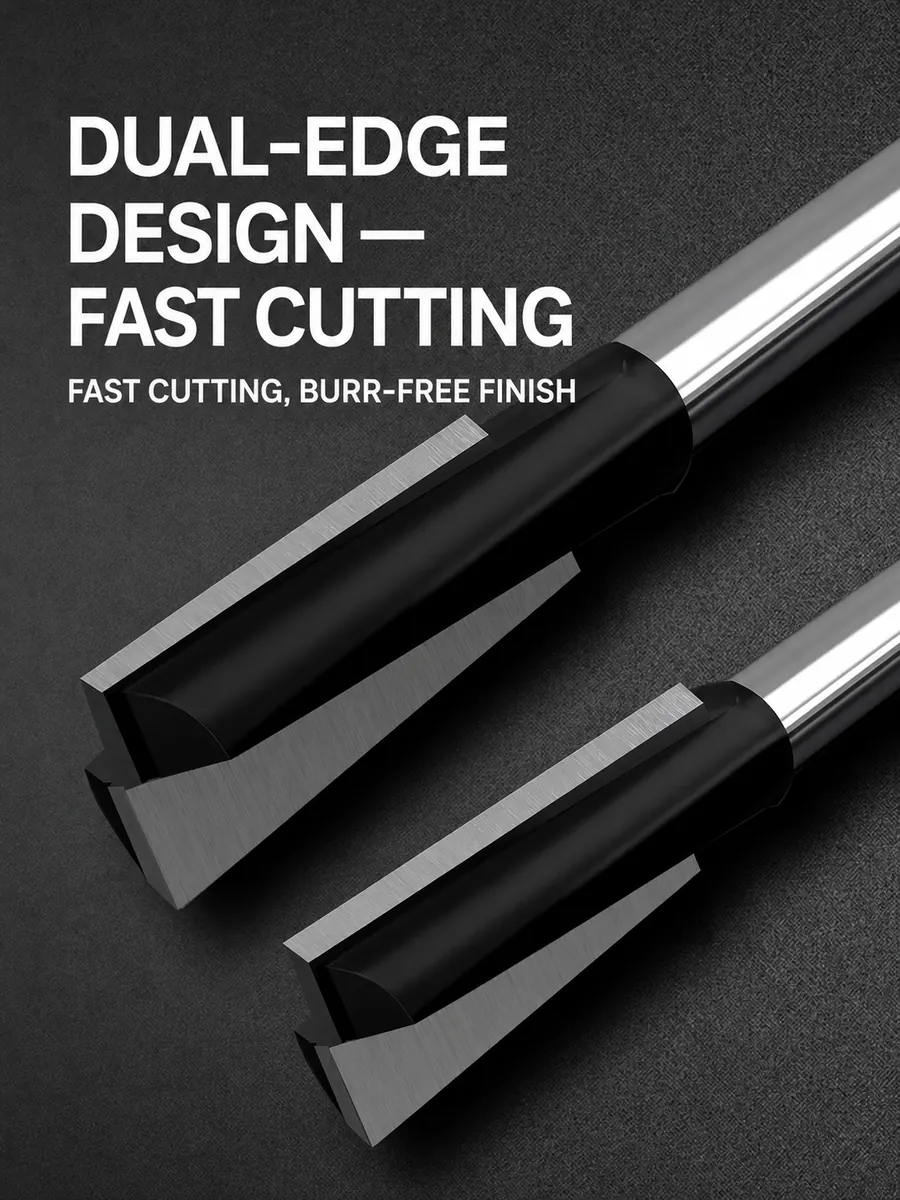

Dual-Edge Product Detail

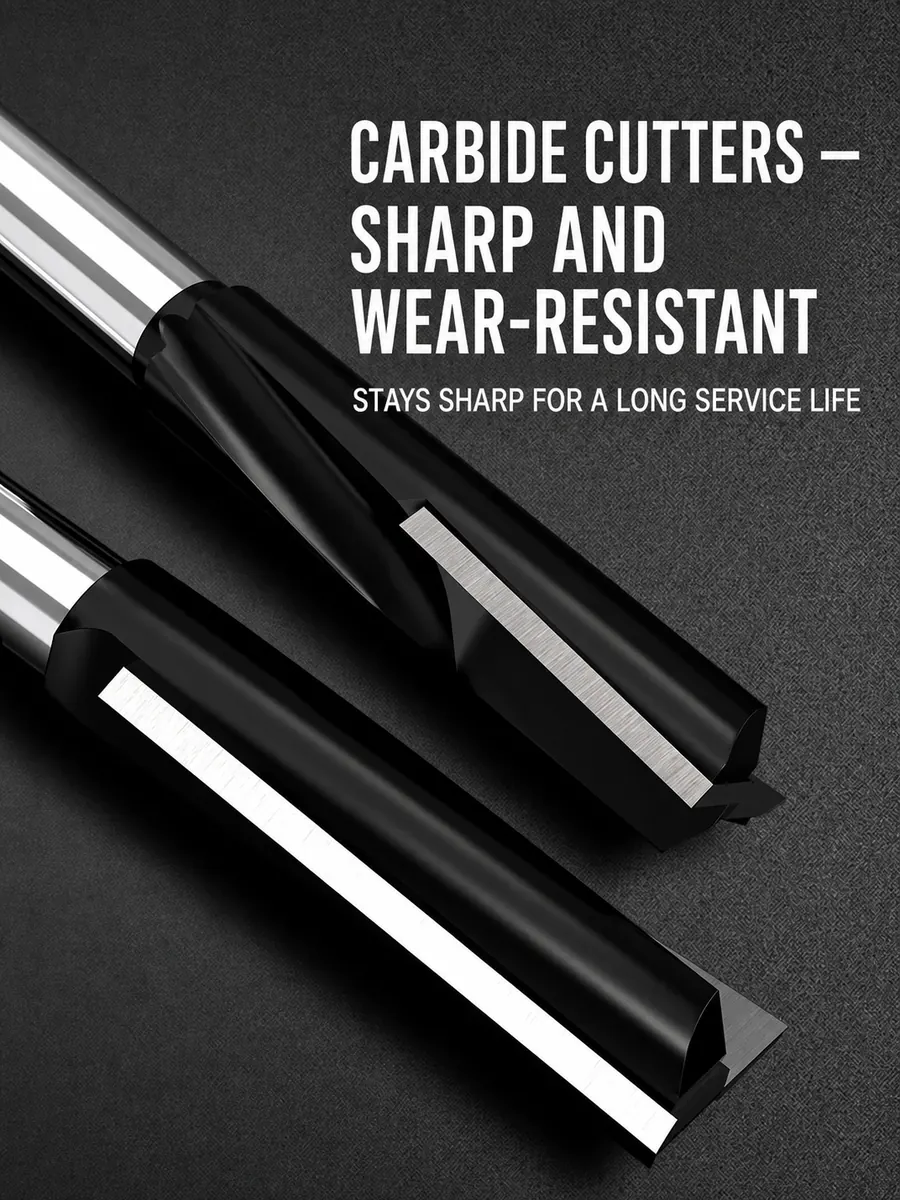

Carbide Cutter Product Detail
Suitable Wood Materials
Door Mortising Bit Product Group

Additional information

Model / Size

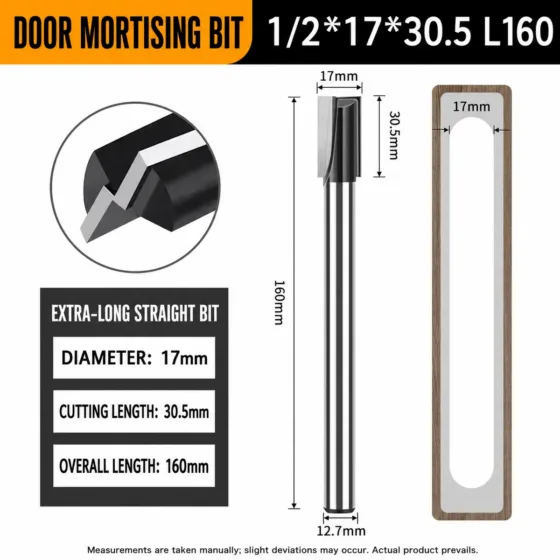

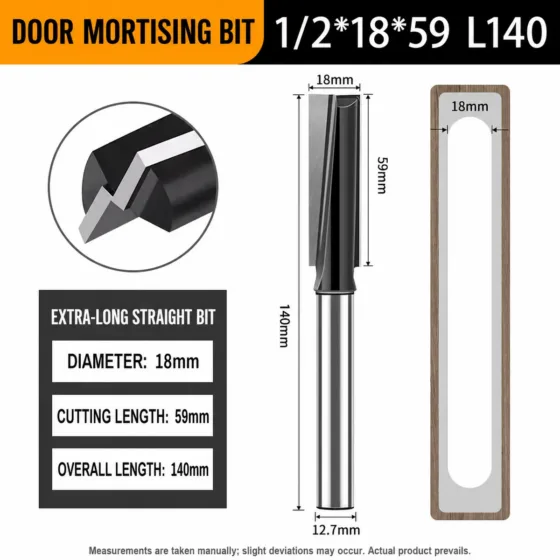

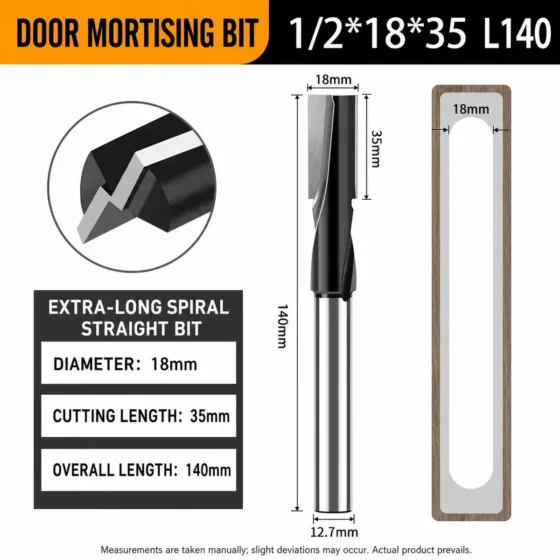

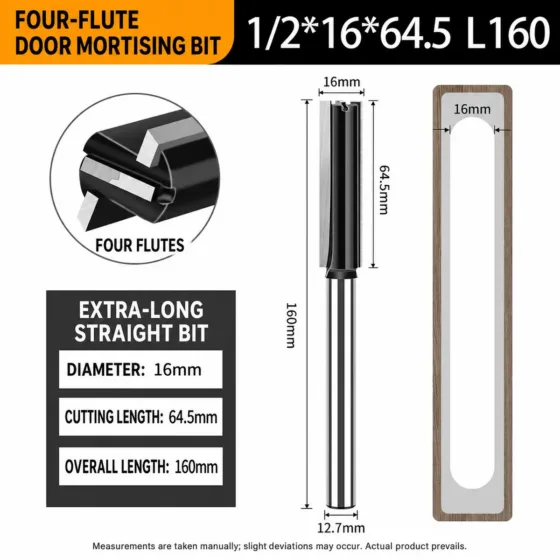

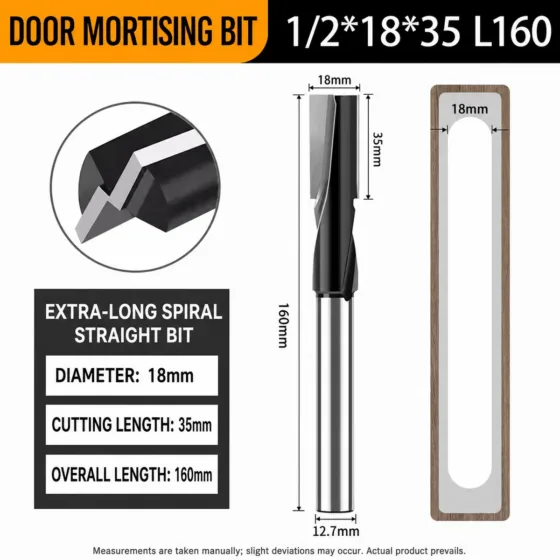

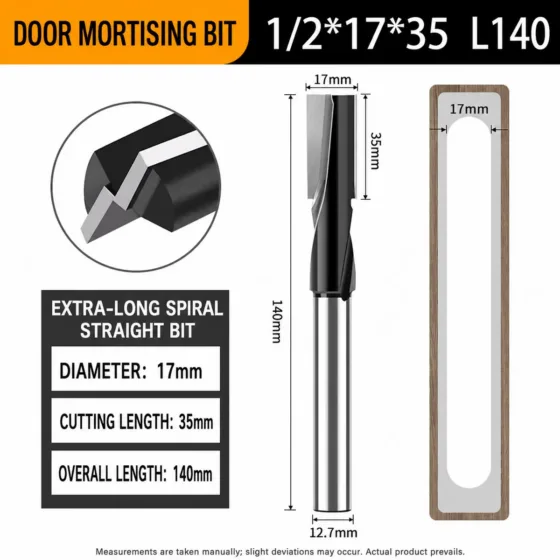

1/2 × 18 × 30.5 L160, 1/2 × 21 × 35 L160, 1/2 × 16 × 64.5 L160, 1/2 × 18 × 35 L140, 1/2 × 18 × 35 L160, 1/2 × 17 × 35 L140, 1/2 × 18 × 59 L140, 1/2 × 17 × 30.5 L160, 1/2 × 16 × 30.5 L160
