Description
90° Cobalt-Titanium Chamfer Drills for production machining. The images below are translated from the original product image set; product visuals, dimensions and technical values are retained.
Product details

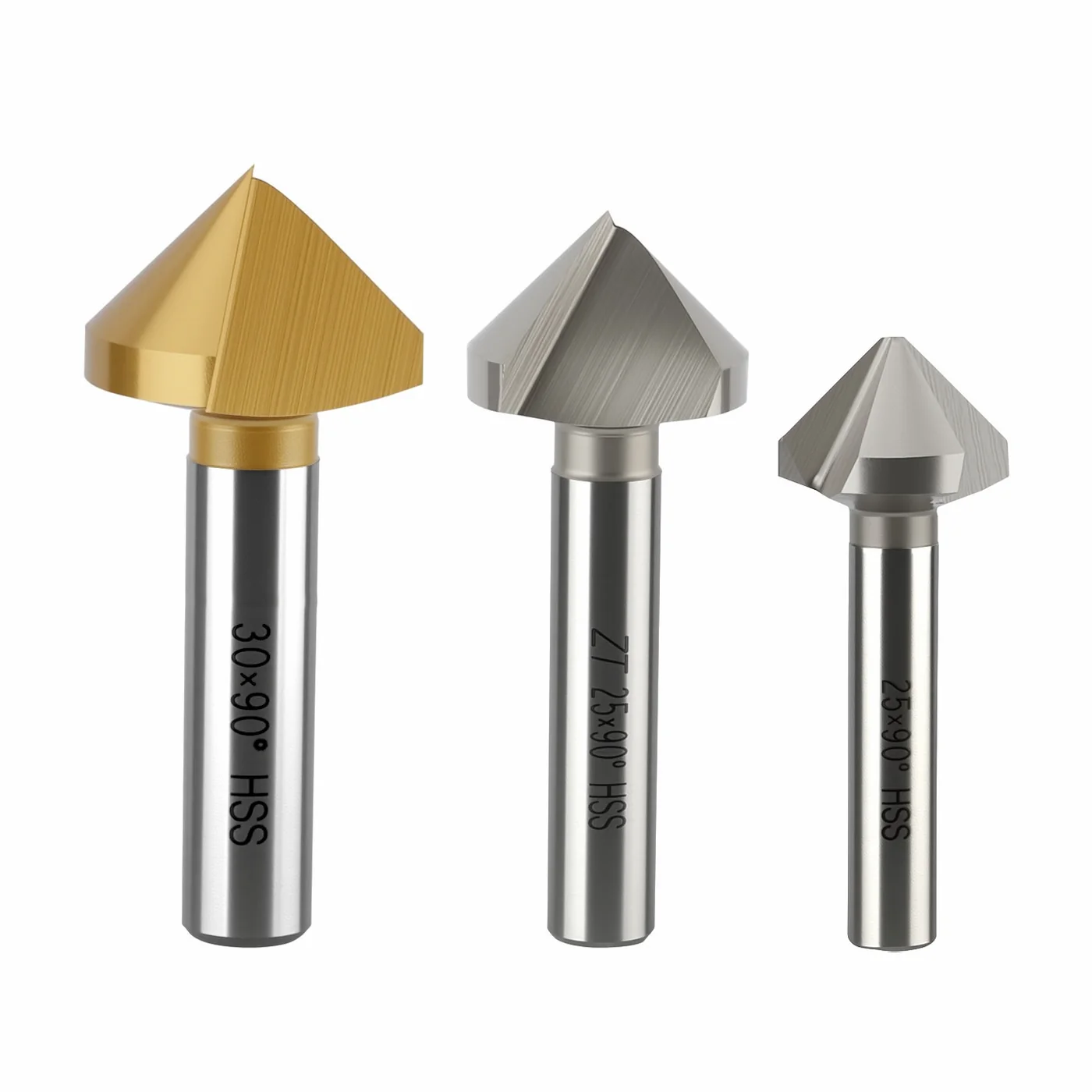

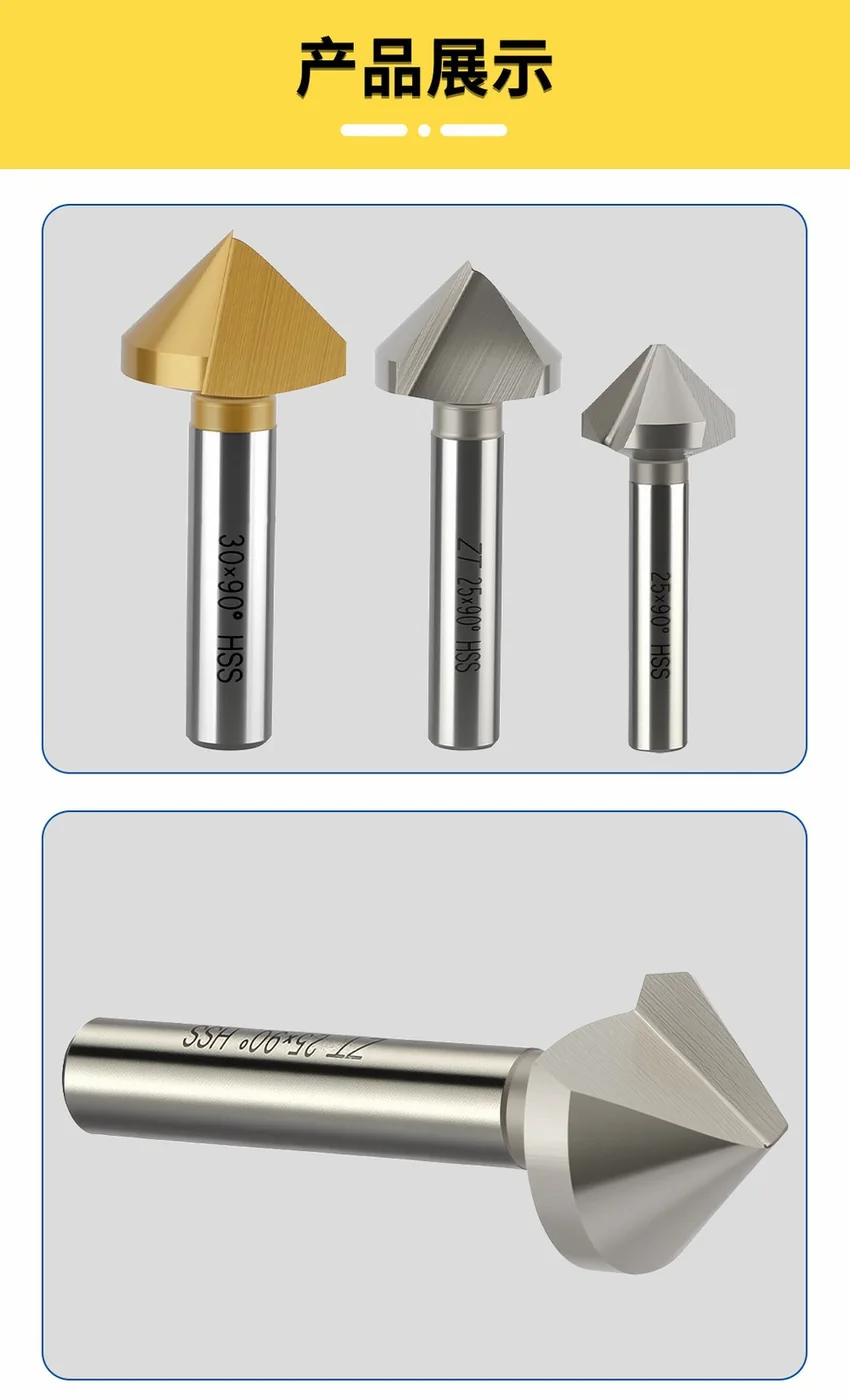

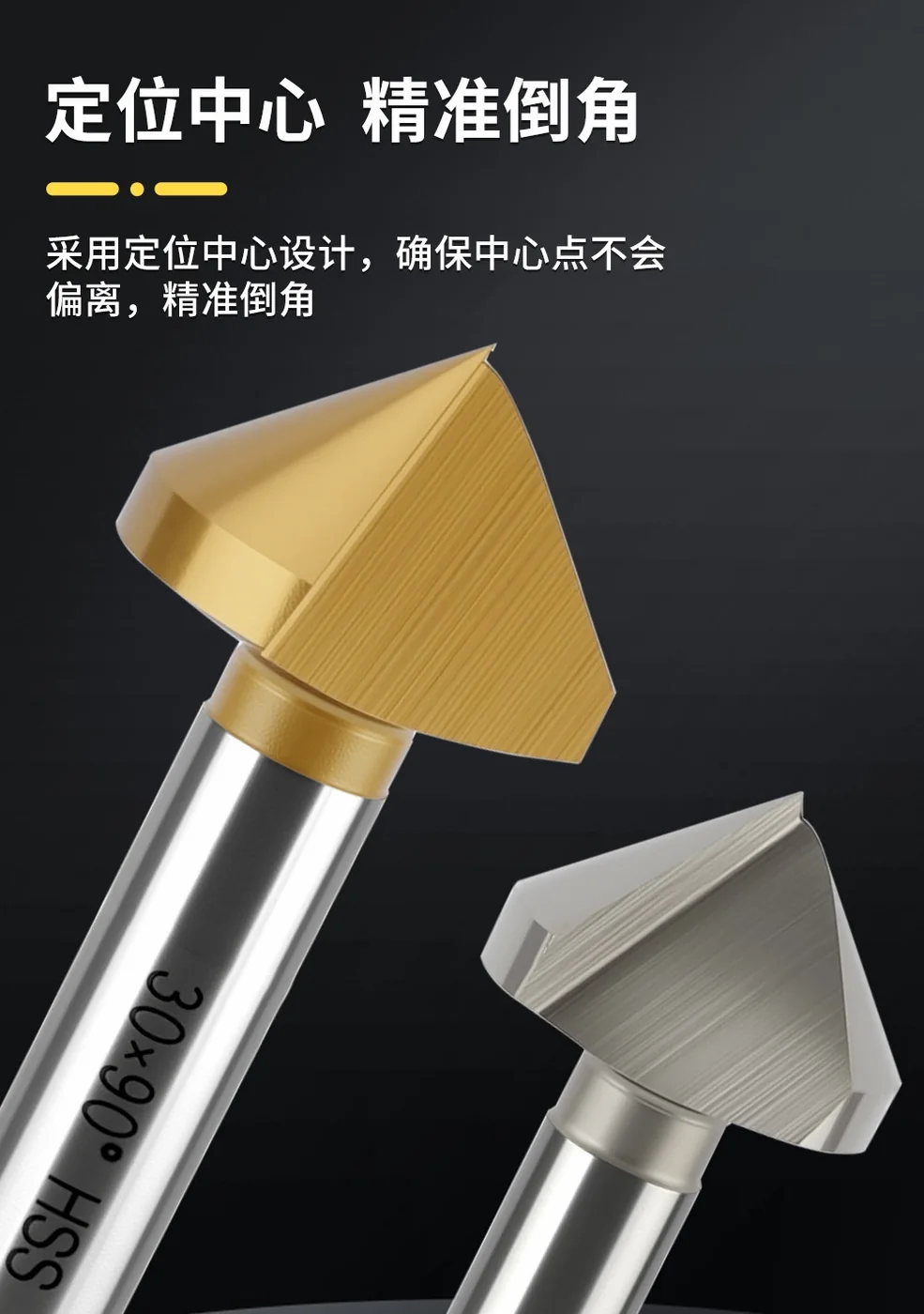

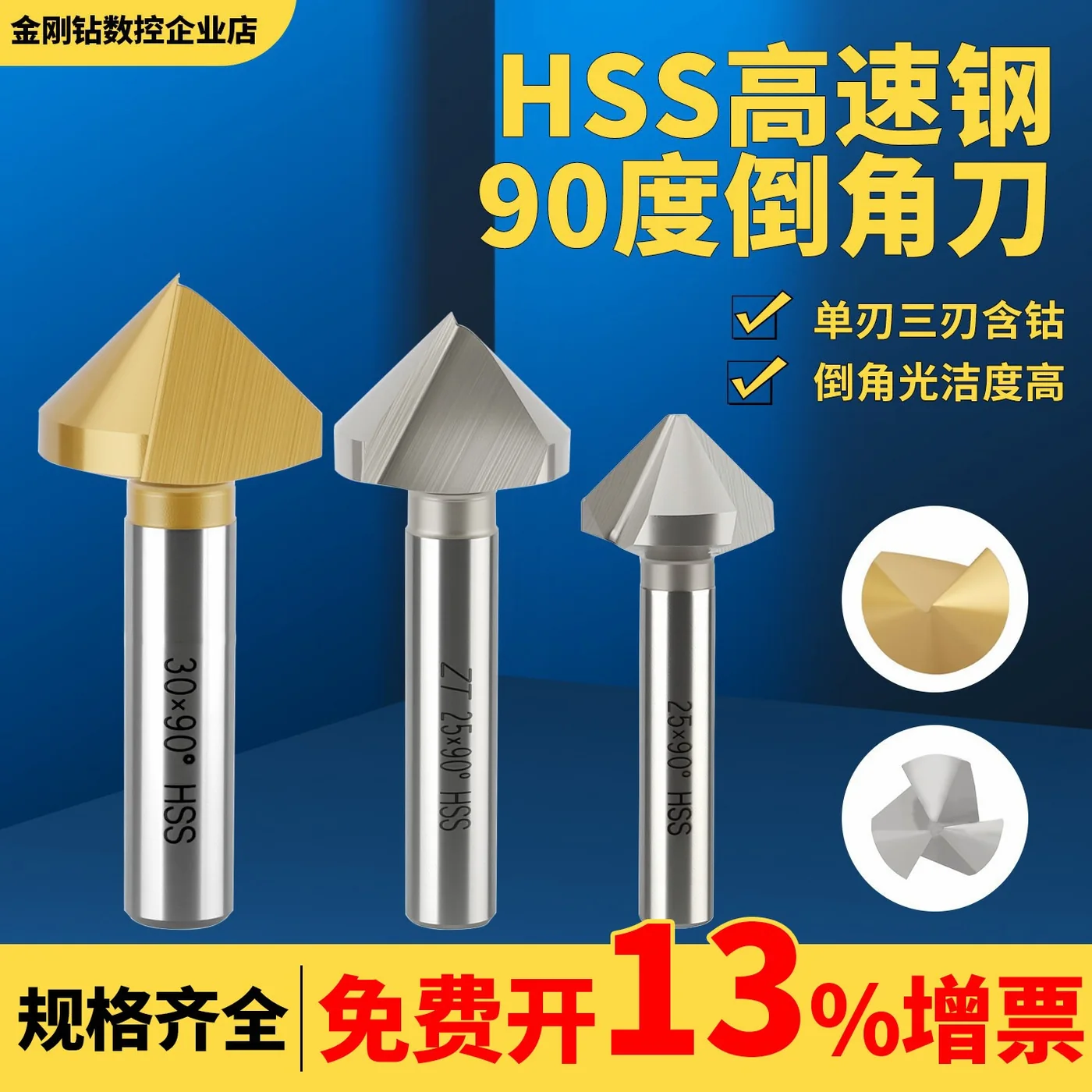

90° Cobalt-Titanium Chamfer Drills
Select the required configuration and request a quote for your production requirement.

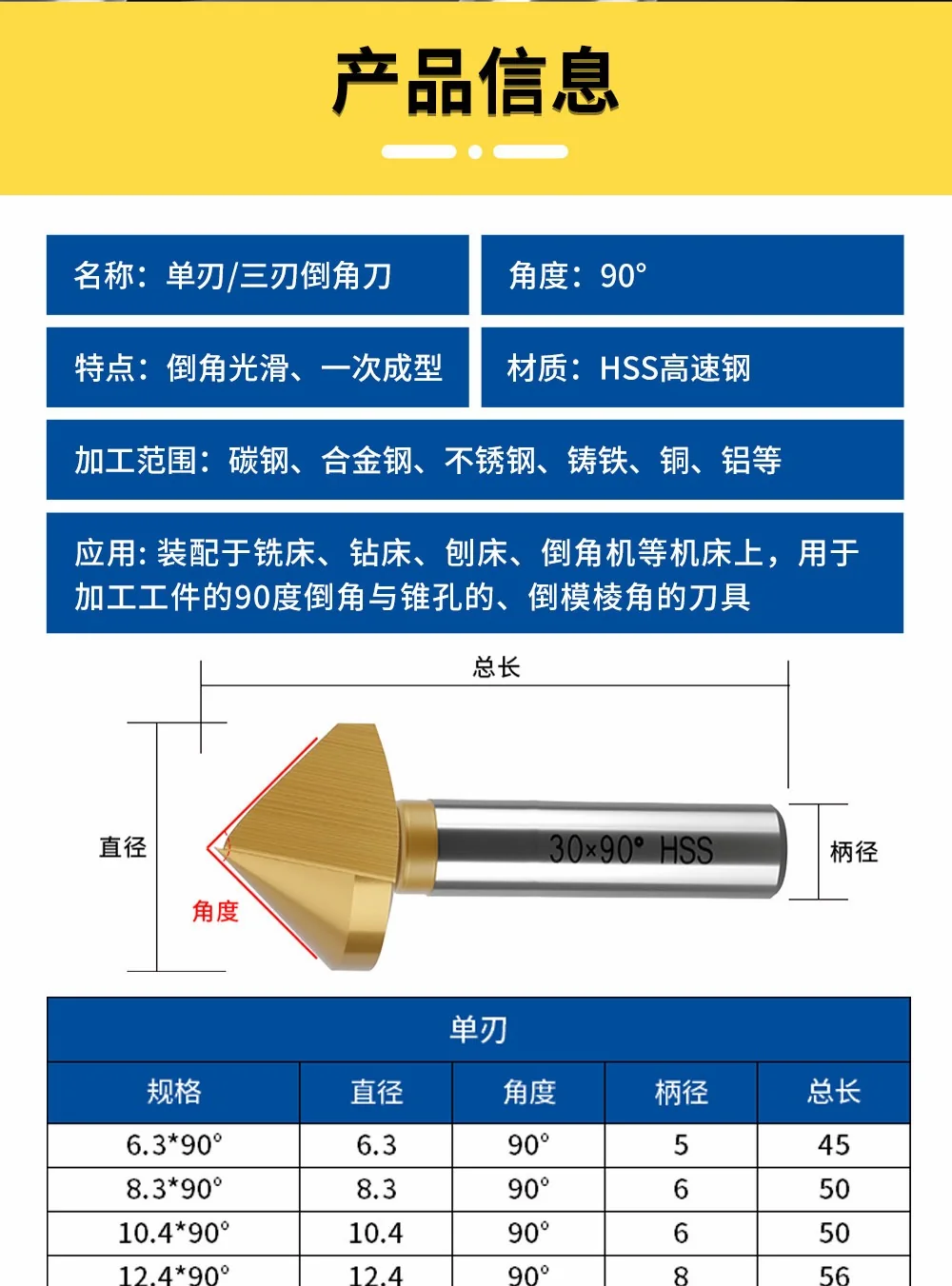

Key specifications
| Cutter diameter | 3–20 mm |
|---|---|
| Cutter thickness | 0.5–8 mm |
| Clearance diameter | 1.5–10 mm |
| Clearance length | 4–25 mm |
| Shank diameter | 4–20 mm |
| Overall length | 50–75 mm |
| Flutes | 4 |

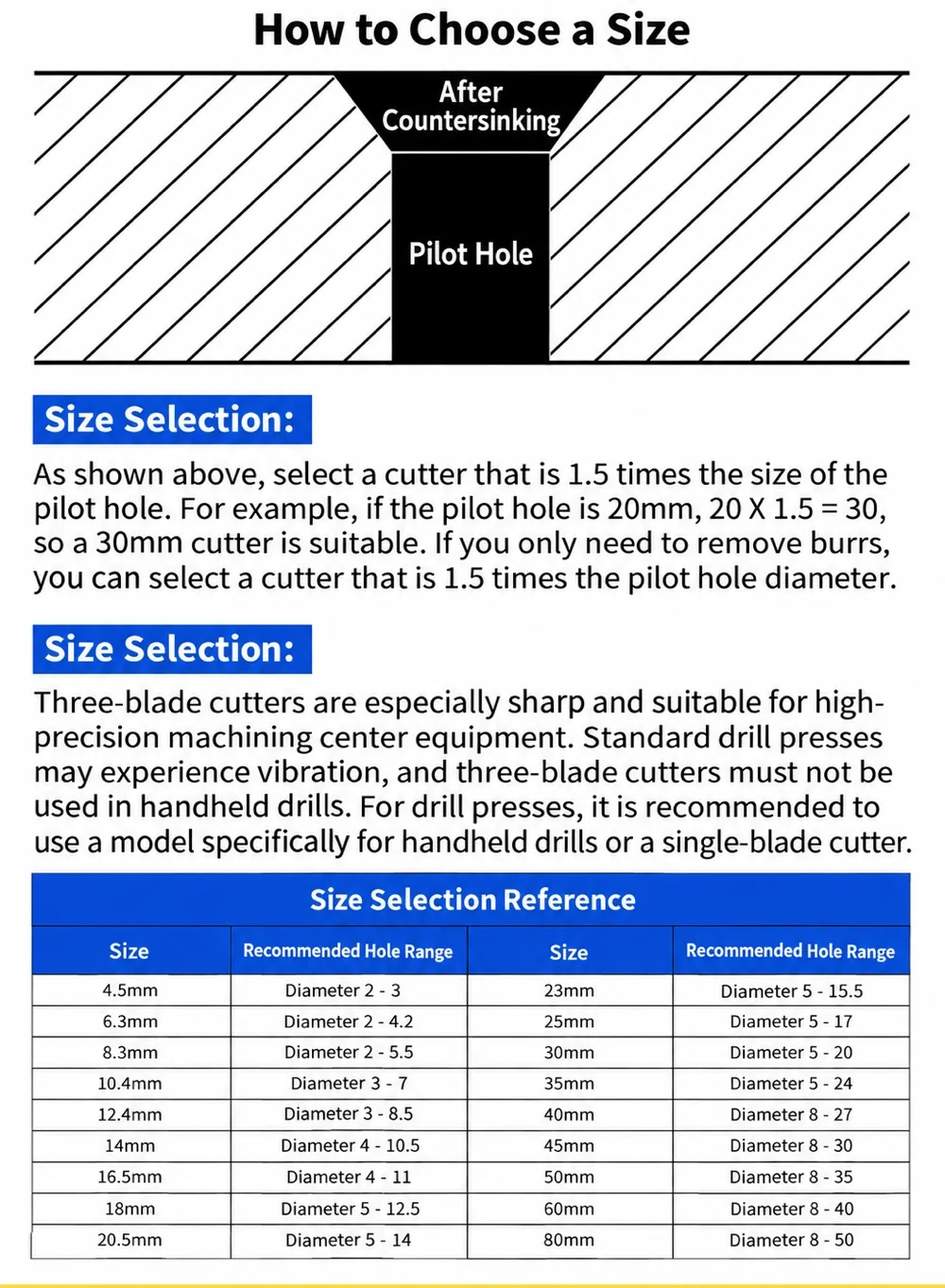

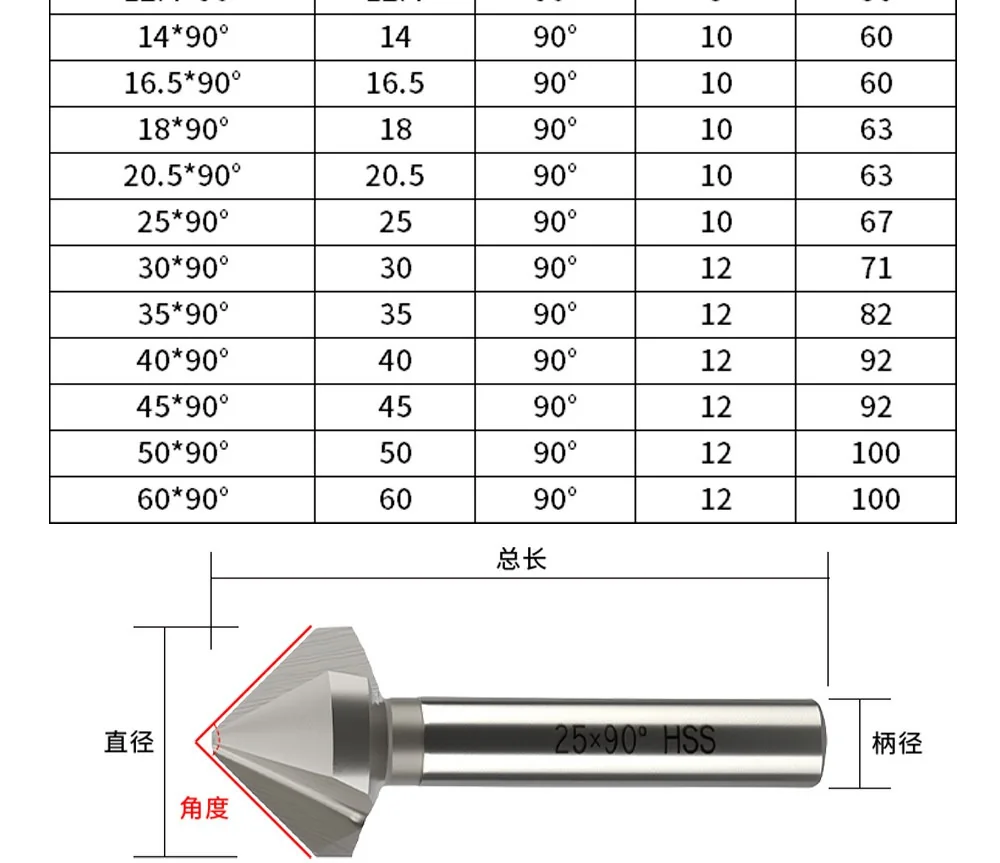

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.
Additional information

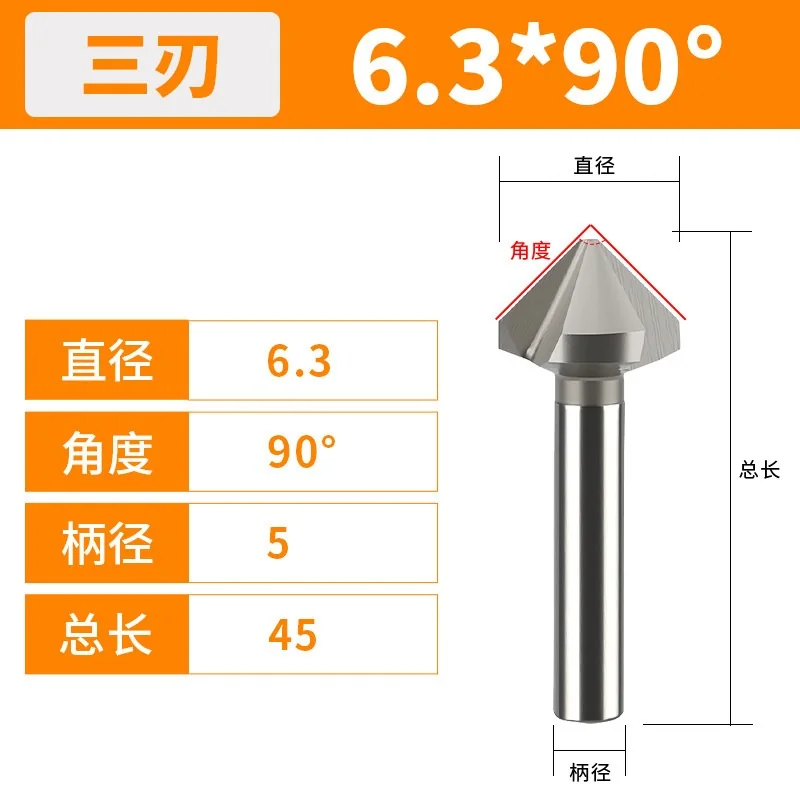

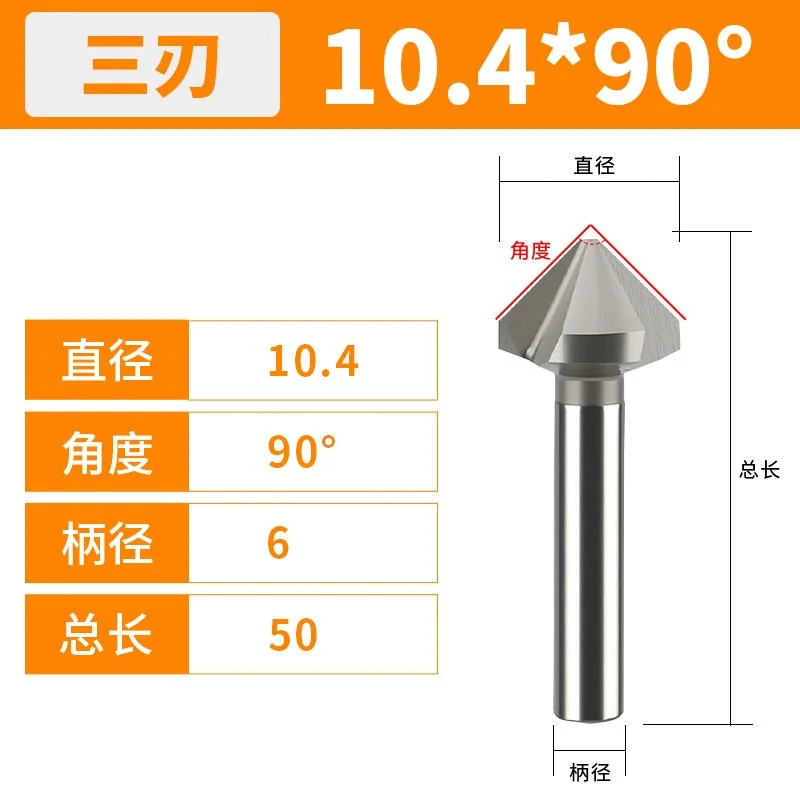

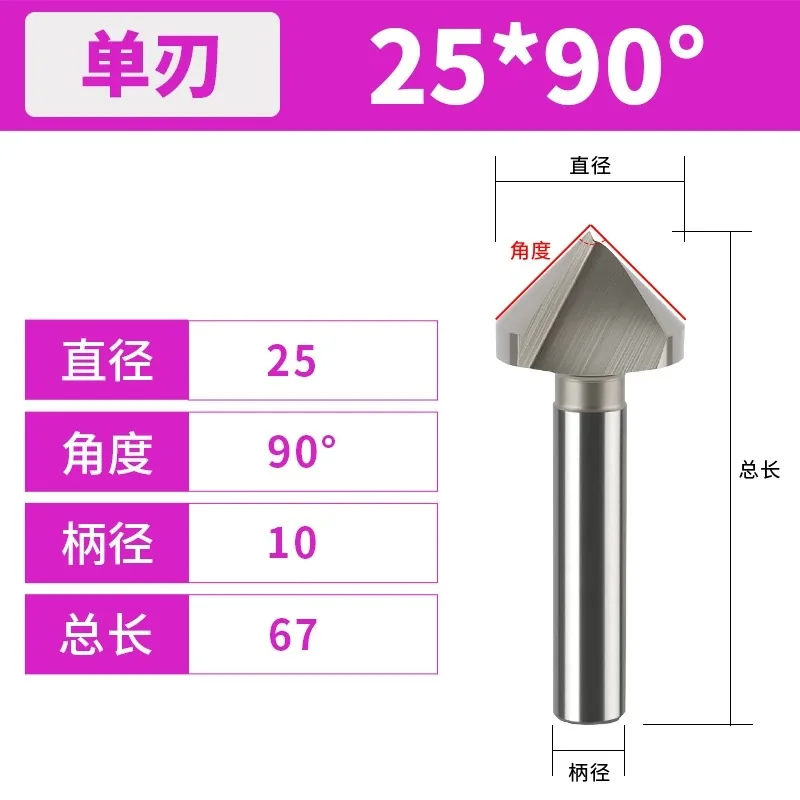

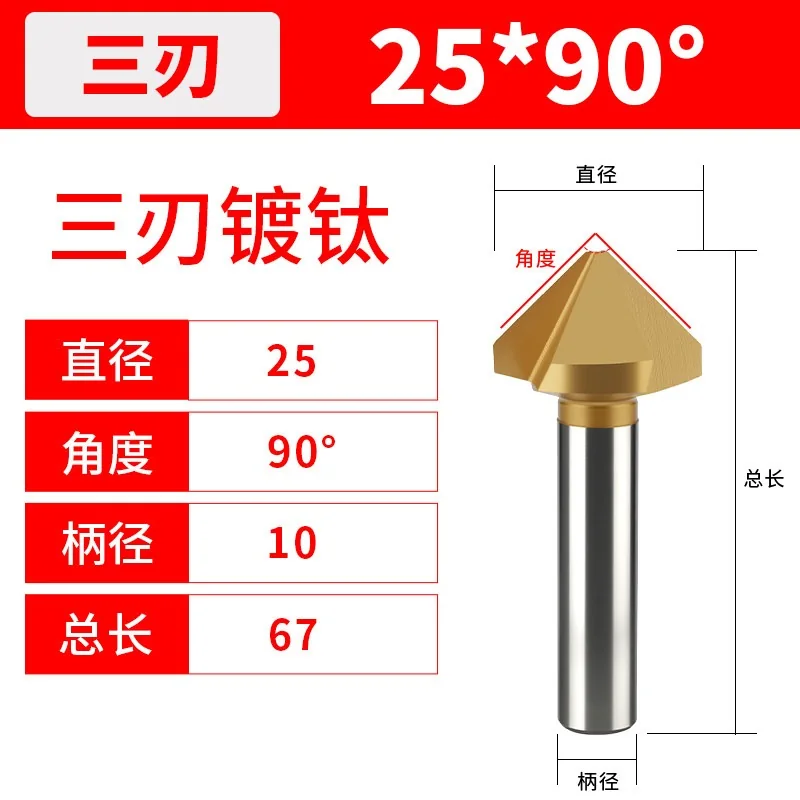

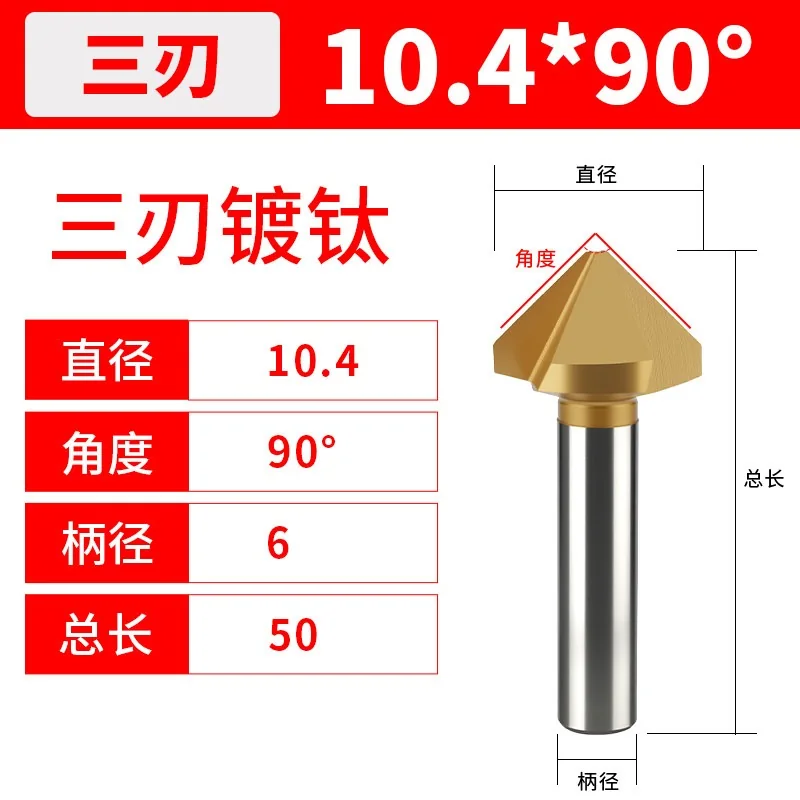

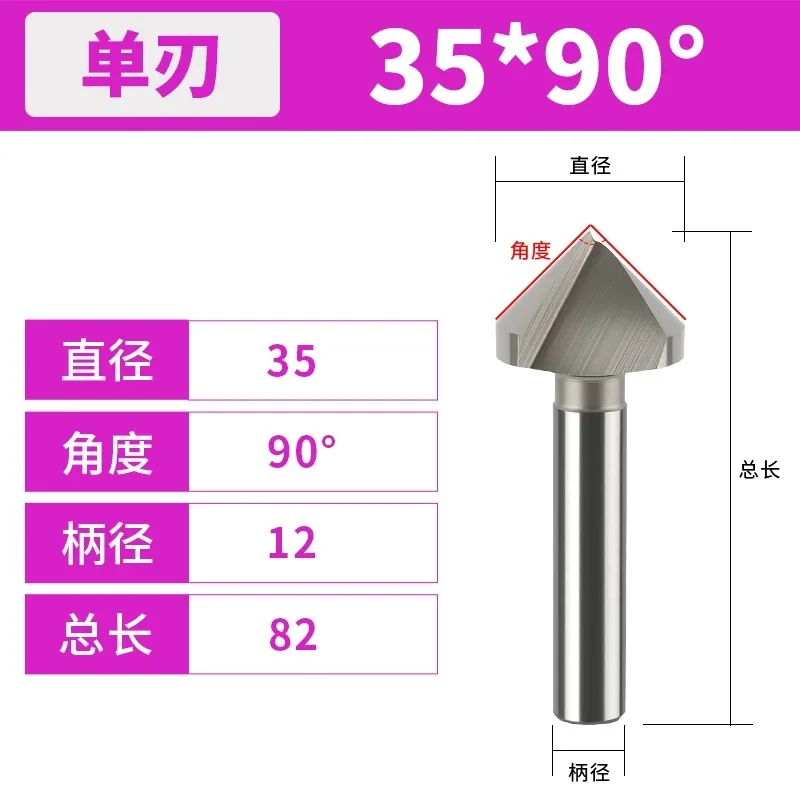

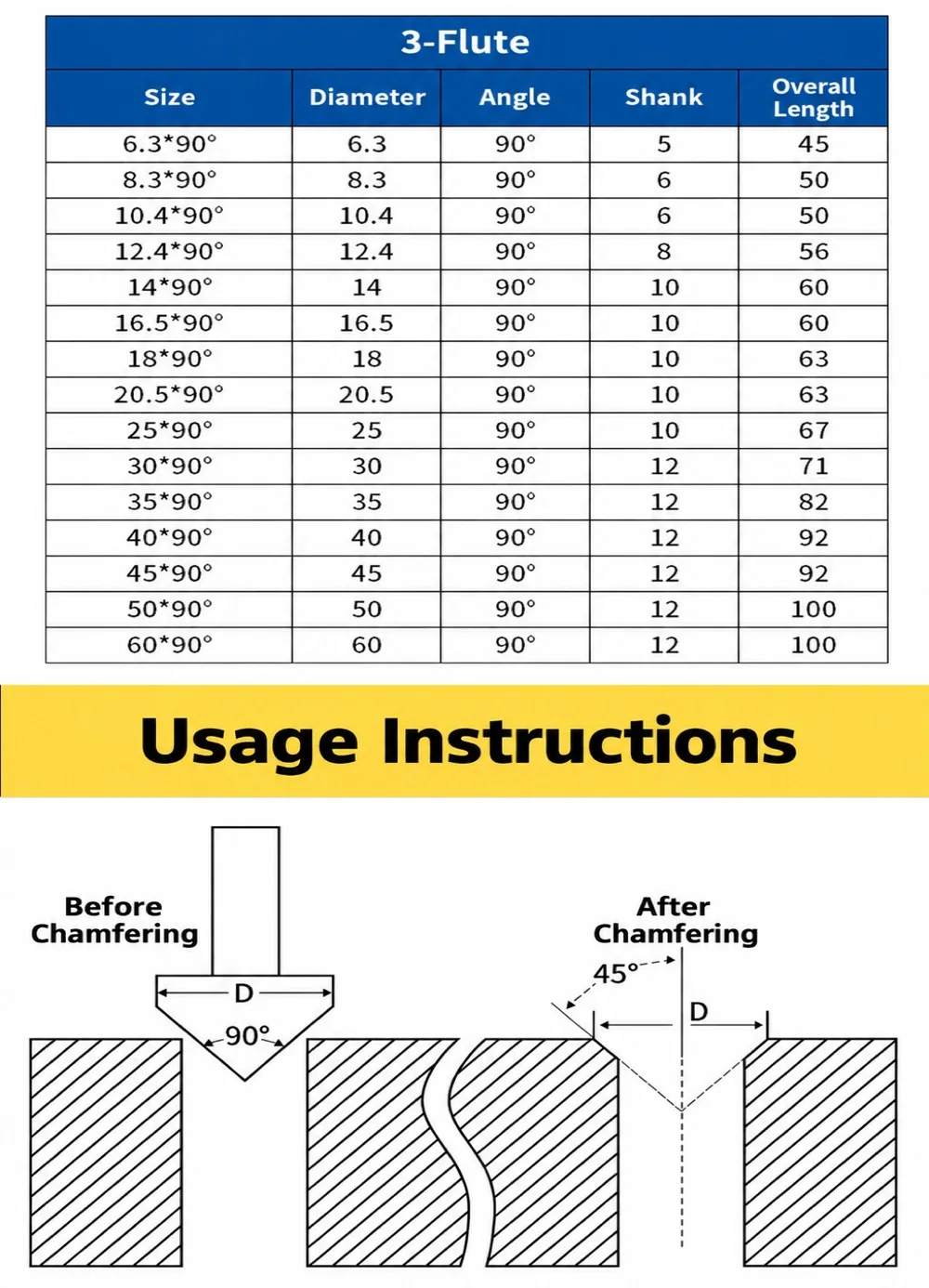

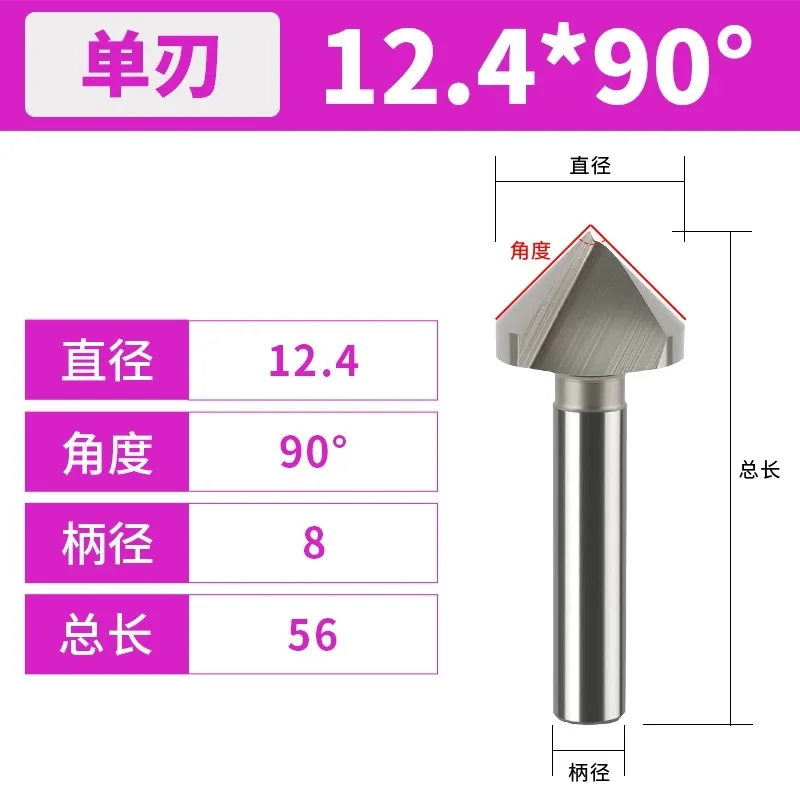

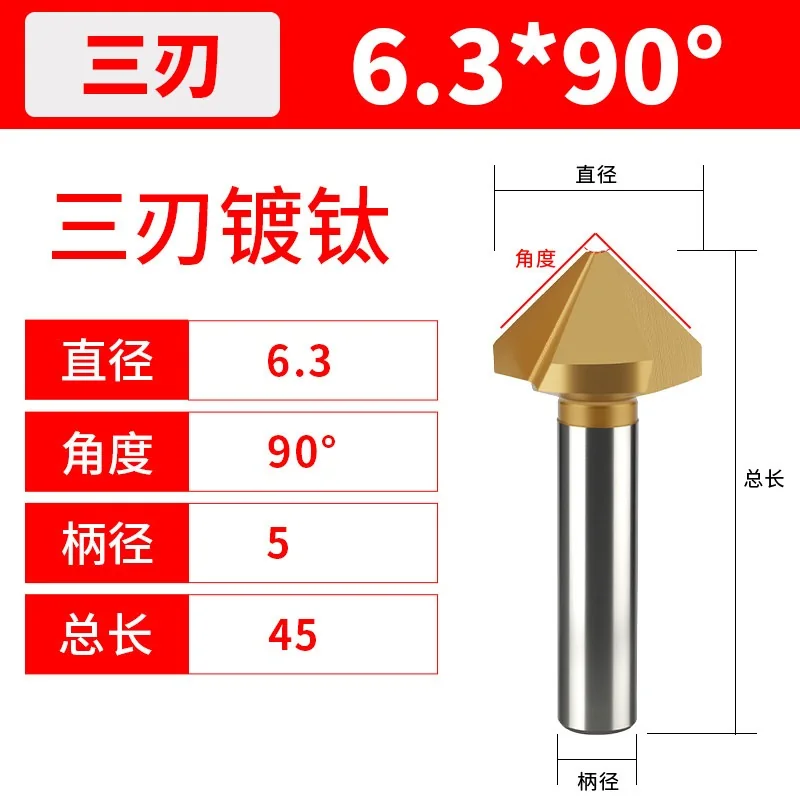

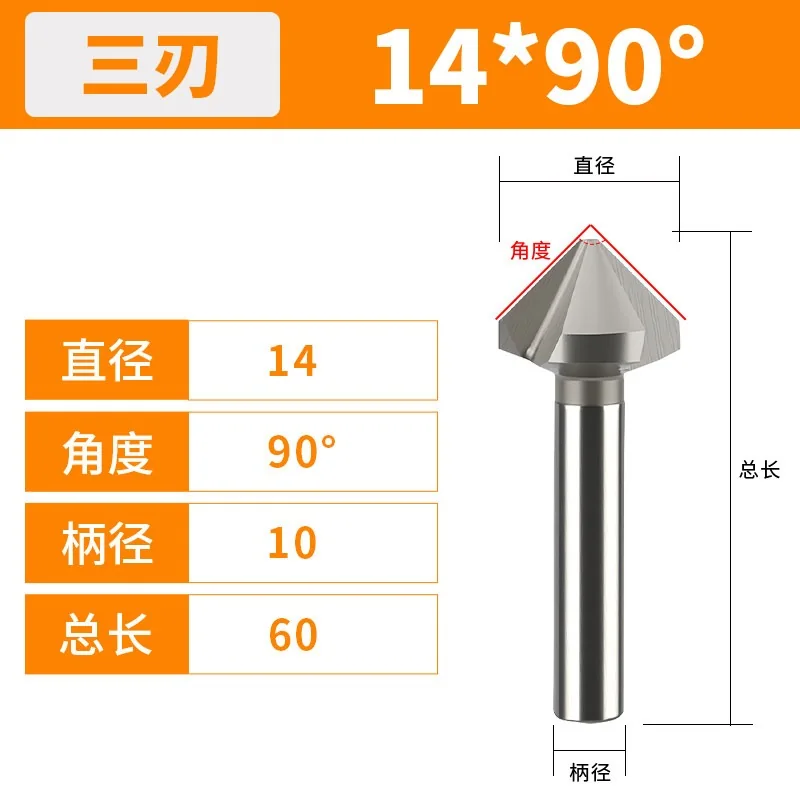

| Specification | 6.3*90°, 8.3*90°, 10.4*90°, 12.4*90°, 14*90°, 16.5*90°, 18*90°, 20.5*90°, 25*90°, 30*90°, 35*90°, 40*90°, 45*90°, 50*90°, 60*90° |
|---|
Information to include with your inquiry
- Router or CNC machine and collet/shank size
- Workpiece material and expected cutting profile
- Required dimensions, drawing or reference photo
- Trial quantity, bulk quantity and destination country
