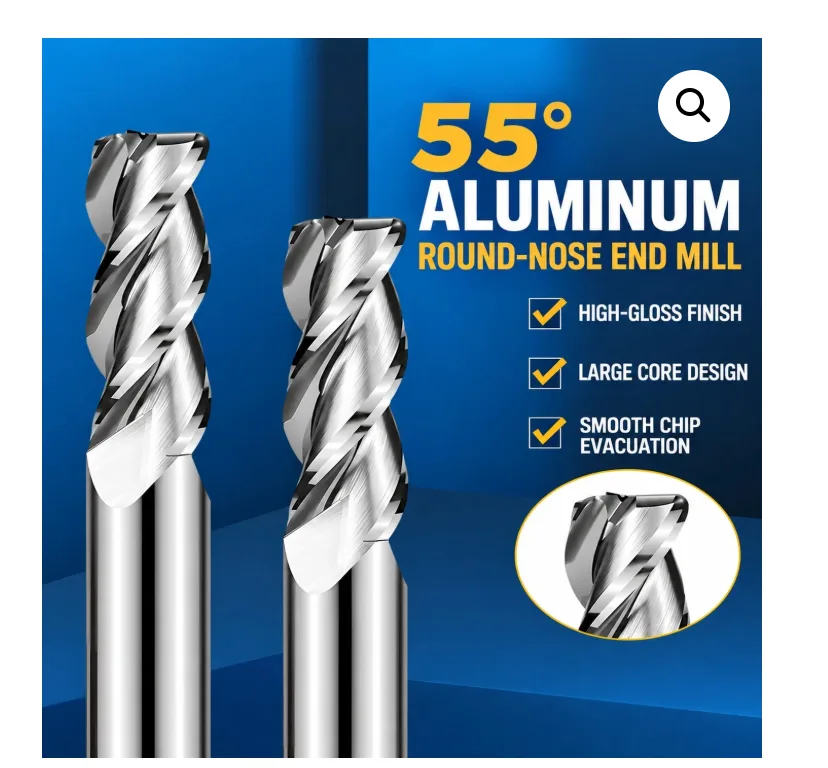

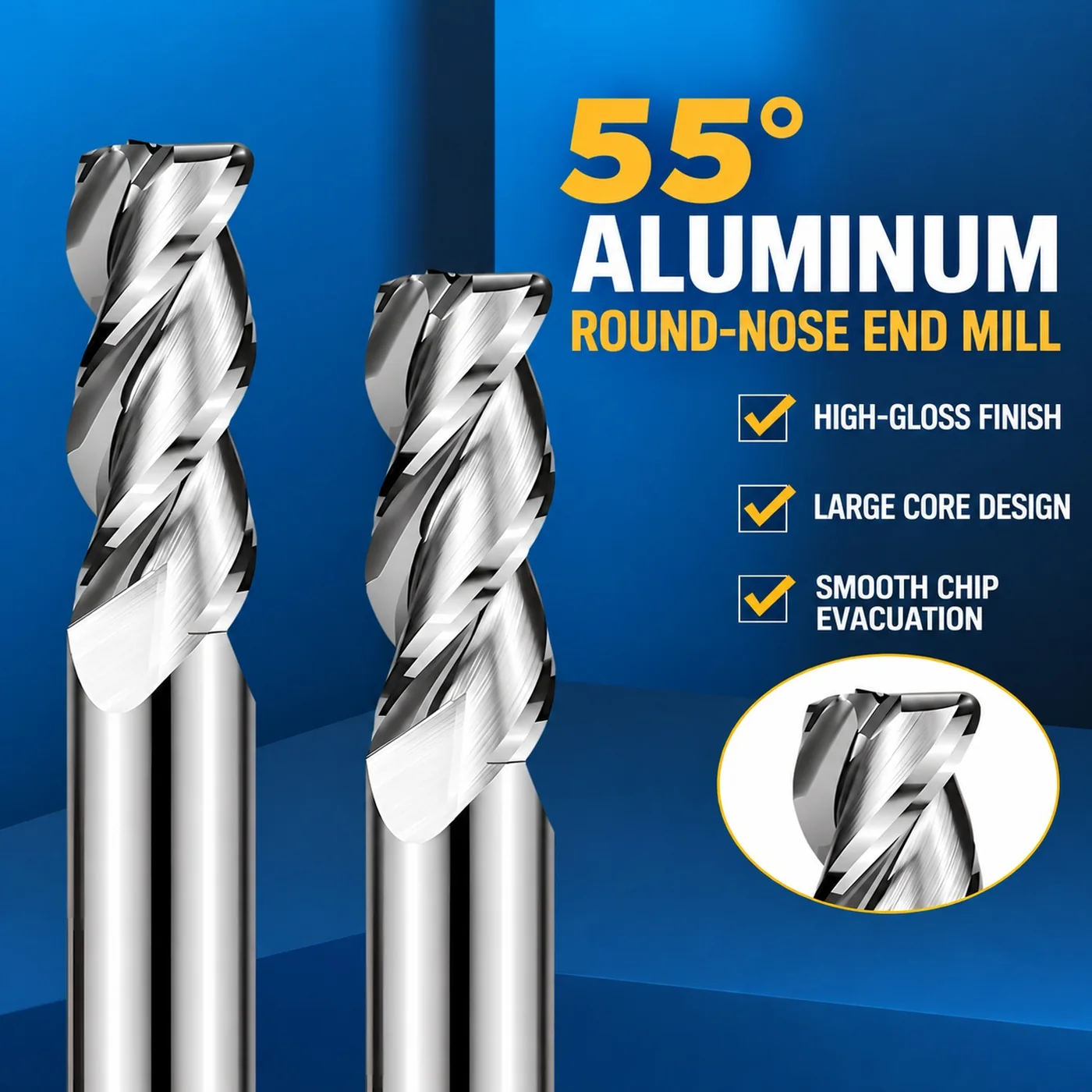

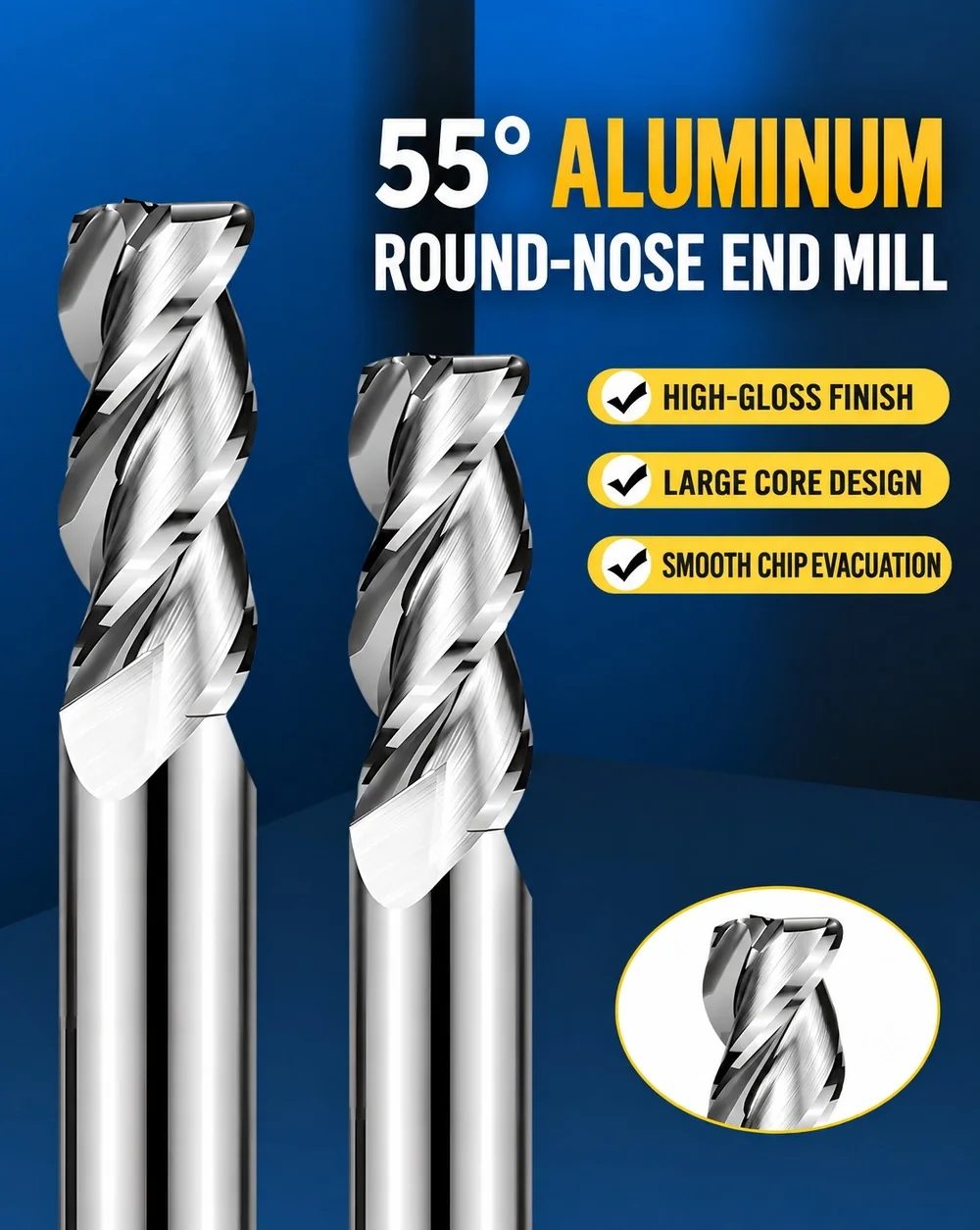

55° Aluminum 3-Flute Corner Radius End Mills — product image

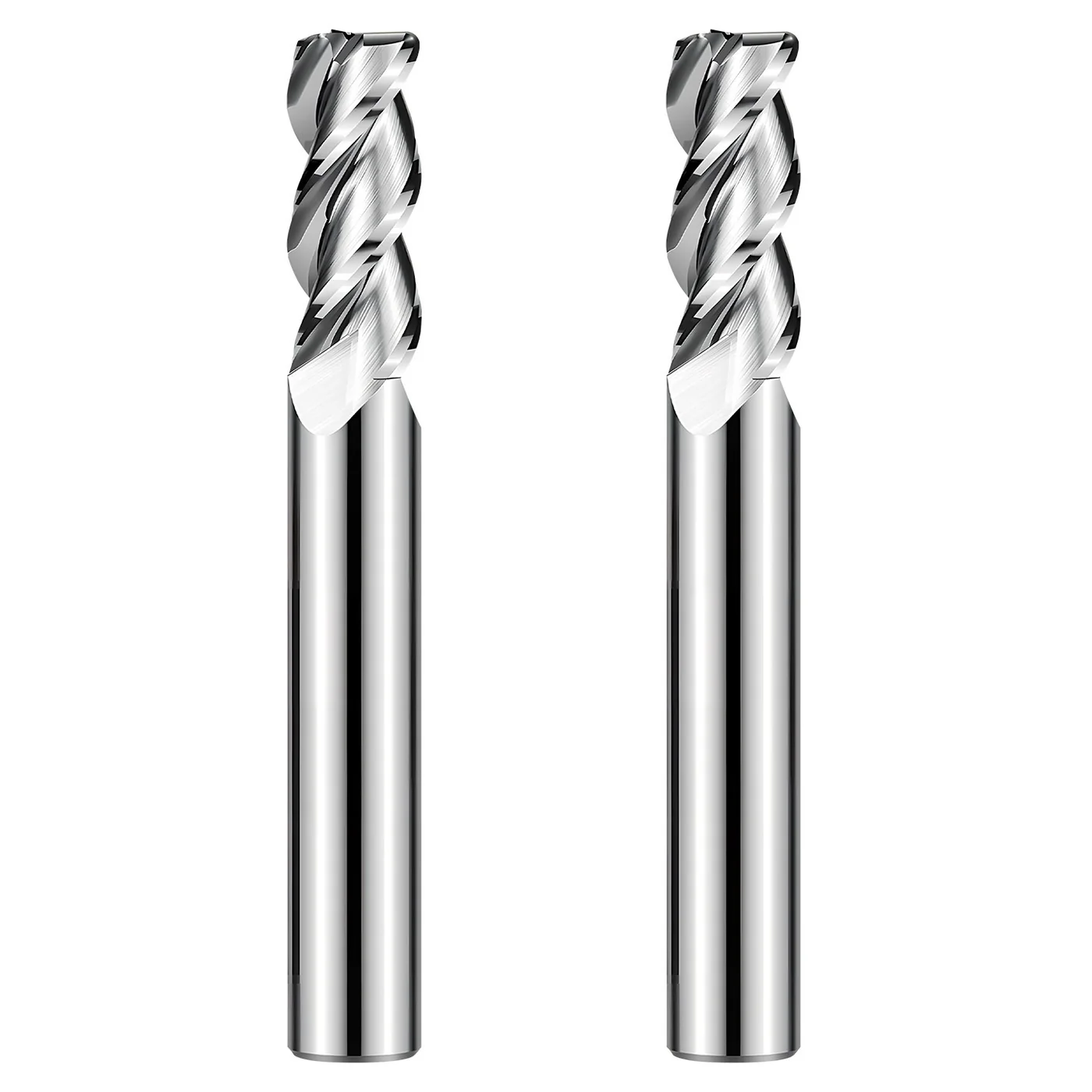

55° Aluminum 3-Flute Corner Radius End Mills — translated original product image

55° Aluminum 3-Flute Corner Radius End Mills

Select the required configuration and request a quote for your production requirement.

Key specifications

Cutter diameter	3–20 mm
Cutter thickness	0.5–8 mm
Clearance diameter	1.5–10 mm
Clearance length	4–25 mm
Shank diameter	4–20 mm
Overall length	50–75 mm
Flutes	4

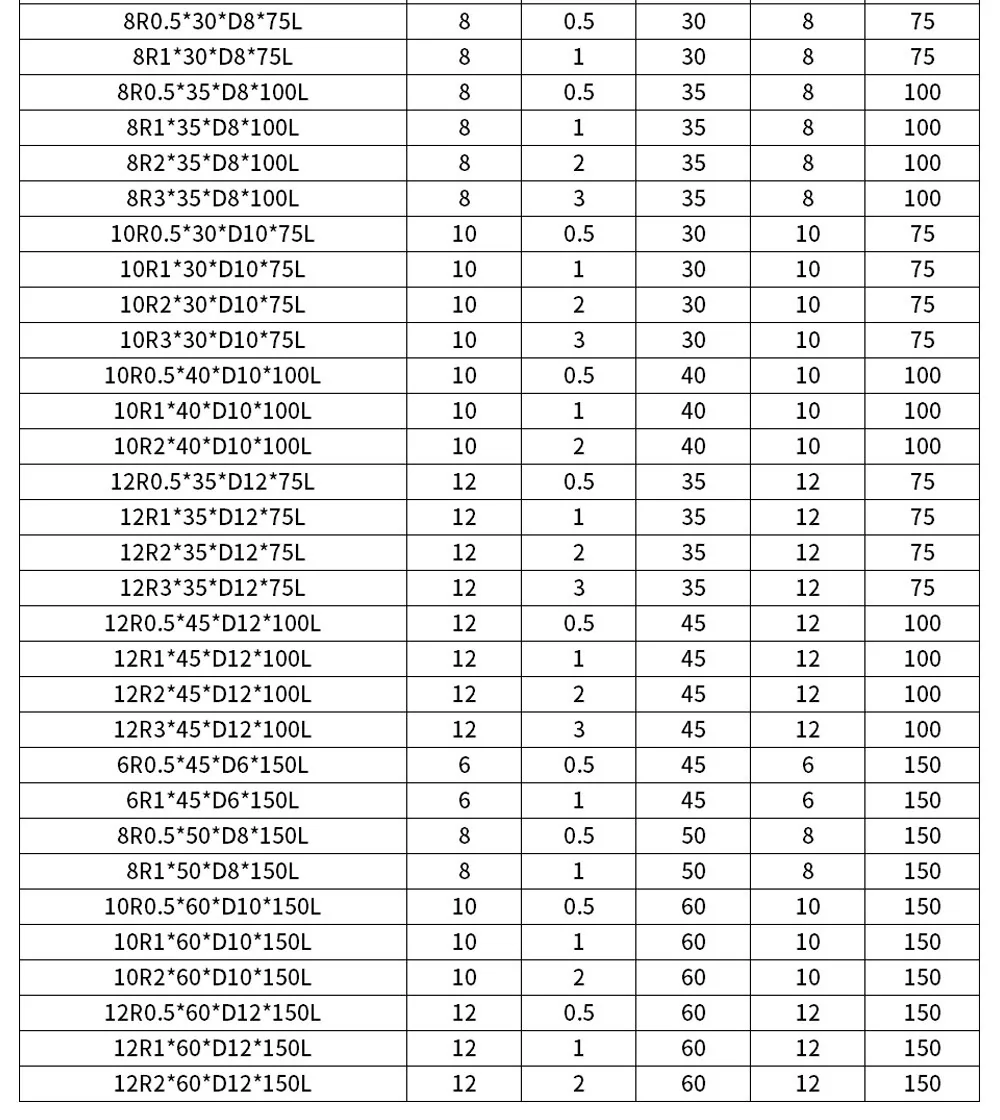

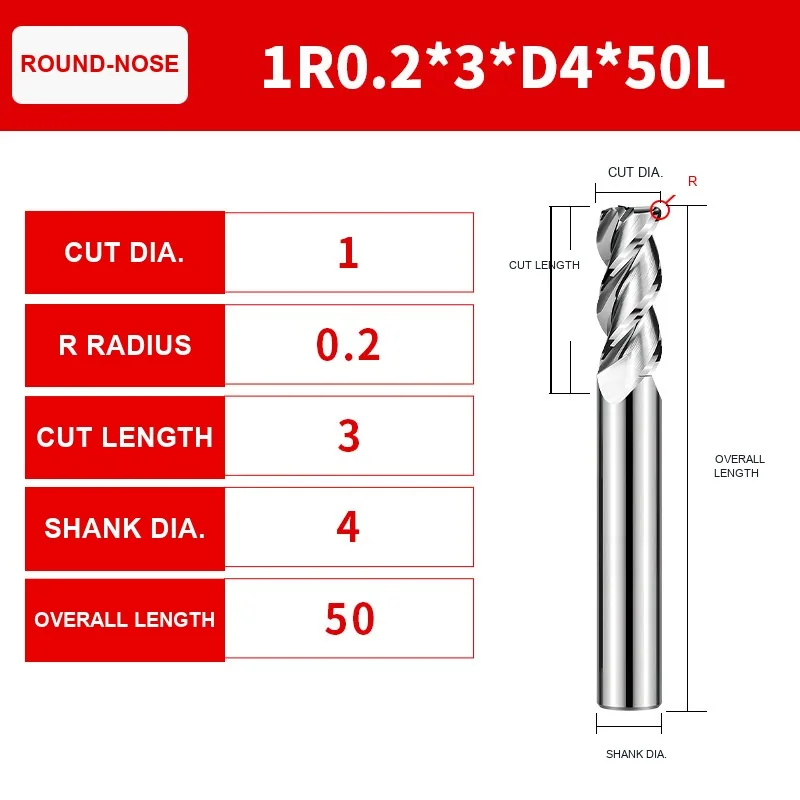

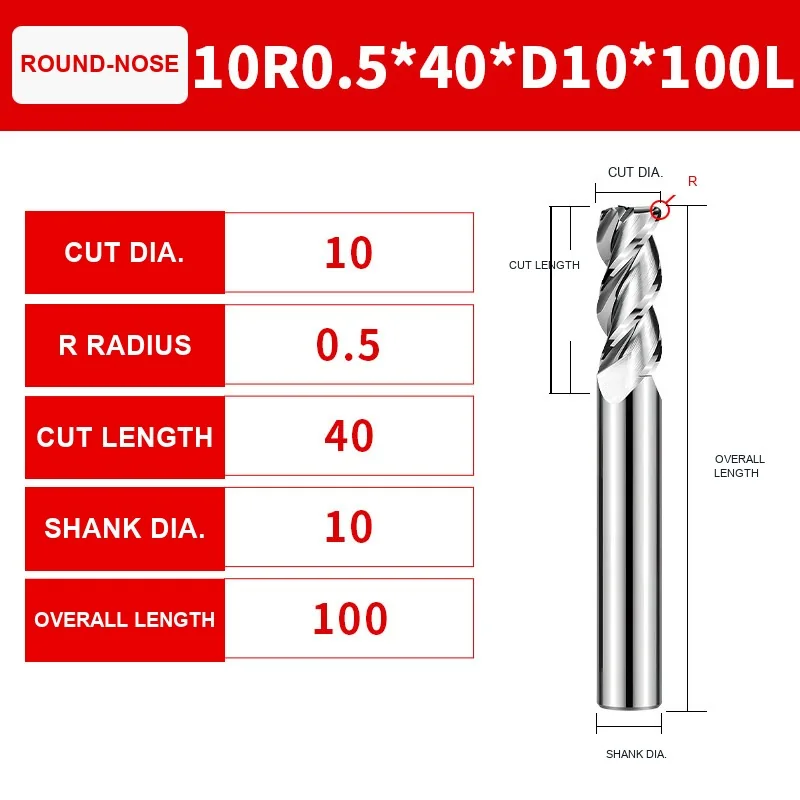

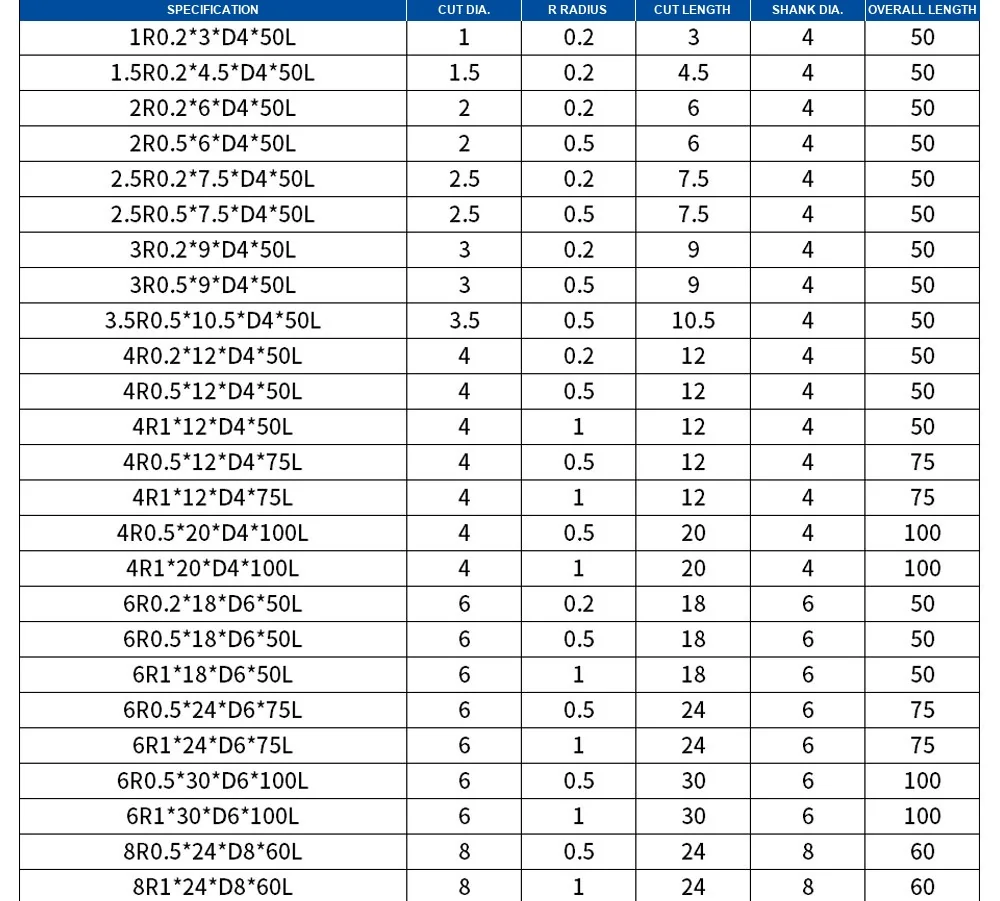

Ranges show listed options. Available dimension combinations vary by cutter diameter; see the size charts below.

Description

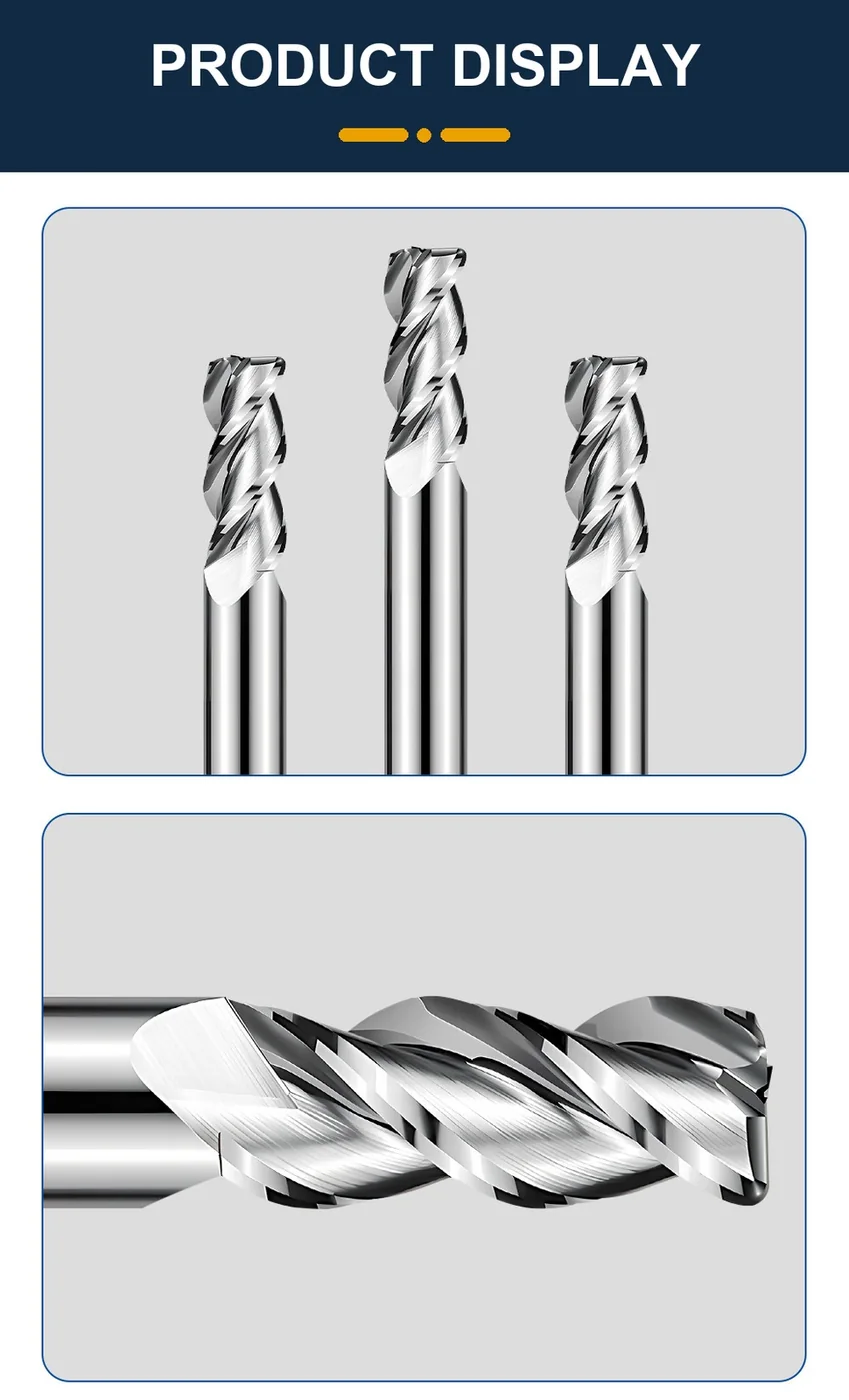

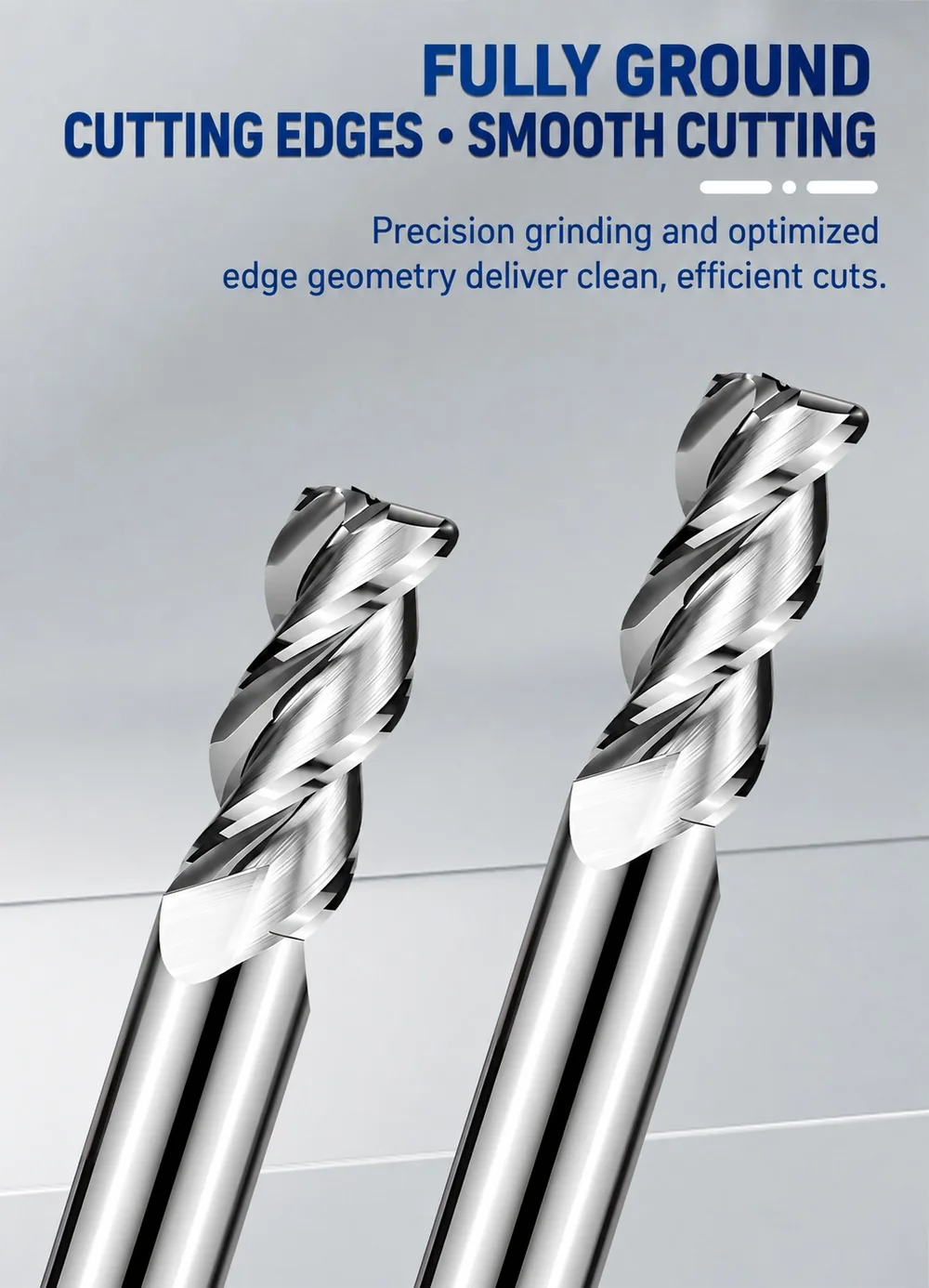

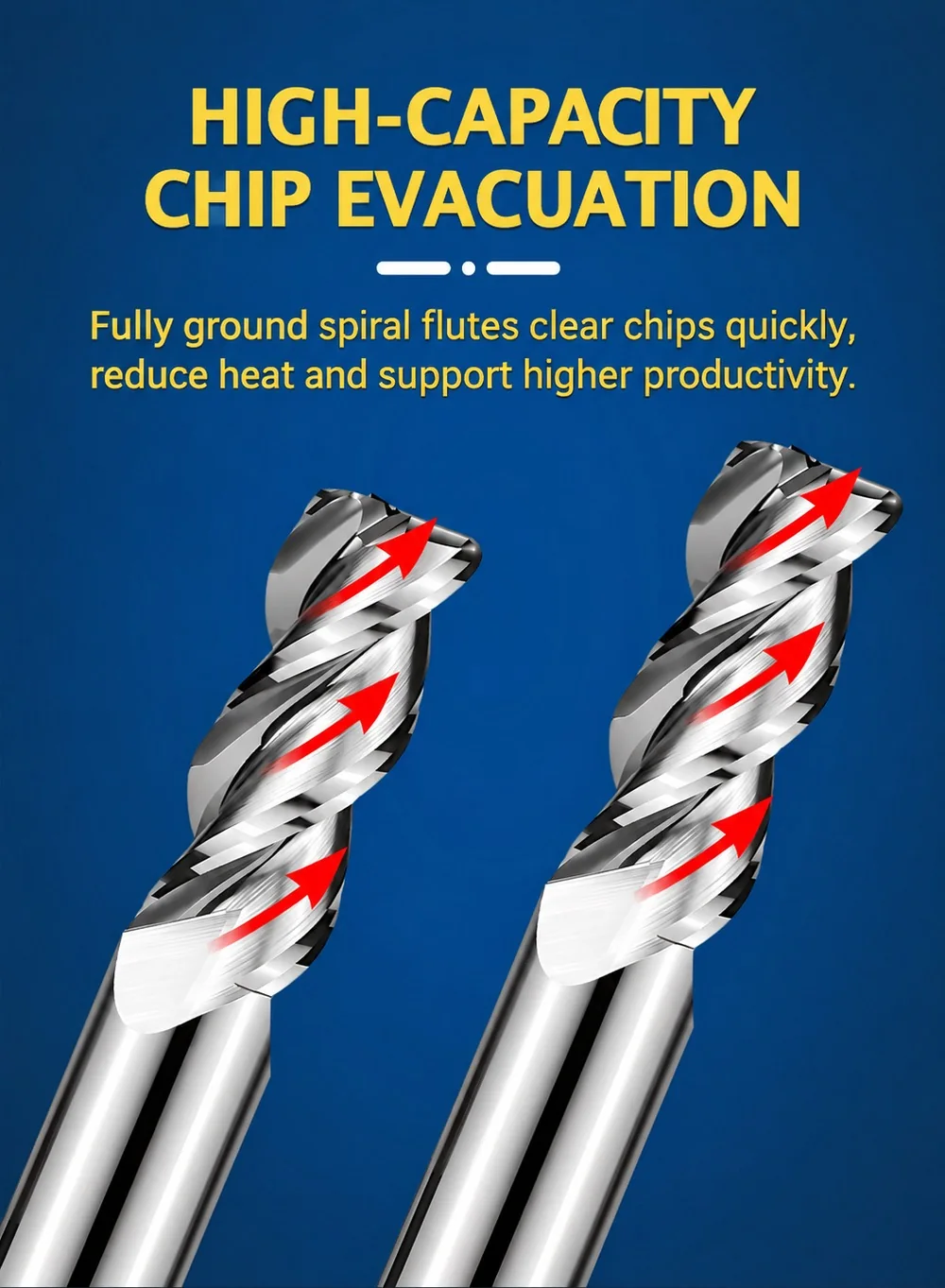

55° Aluminum 3-Flute Corner Radius End Mills for production machining. The images below are translated from the original product image set; product visuals, dimensions and technical values are retained.
